Wheels/Vehicle Underbody Component Views

Wheels/Vehicle Underbody Component Views

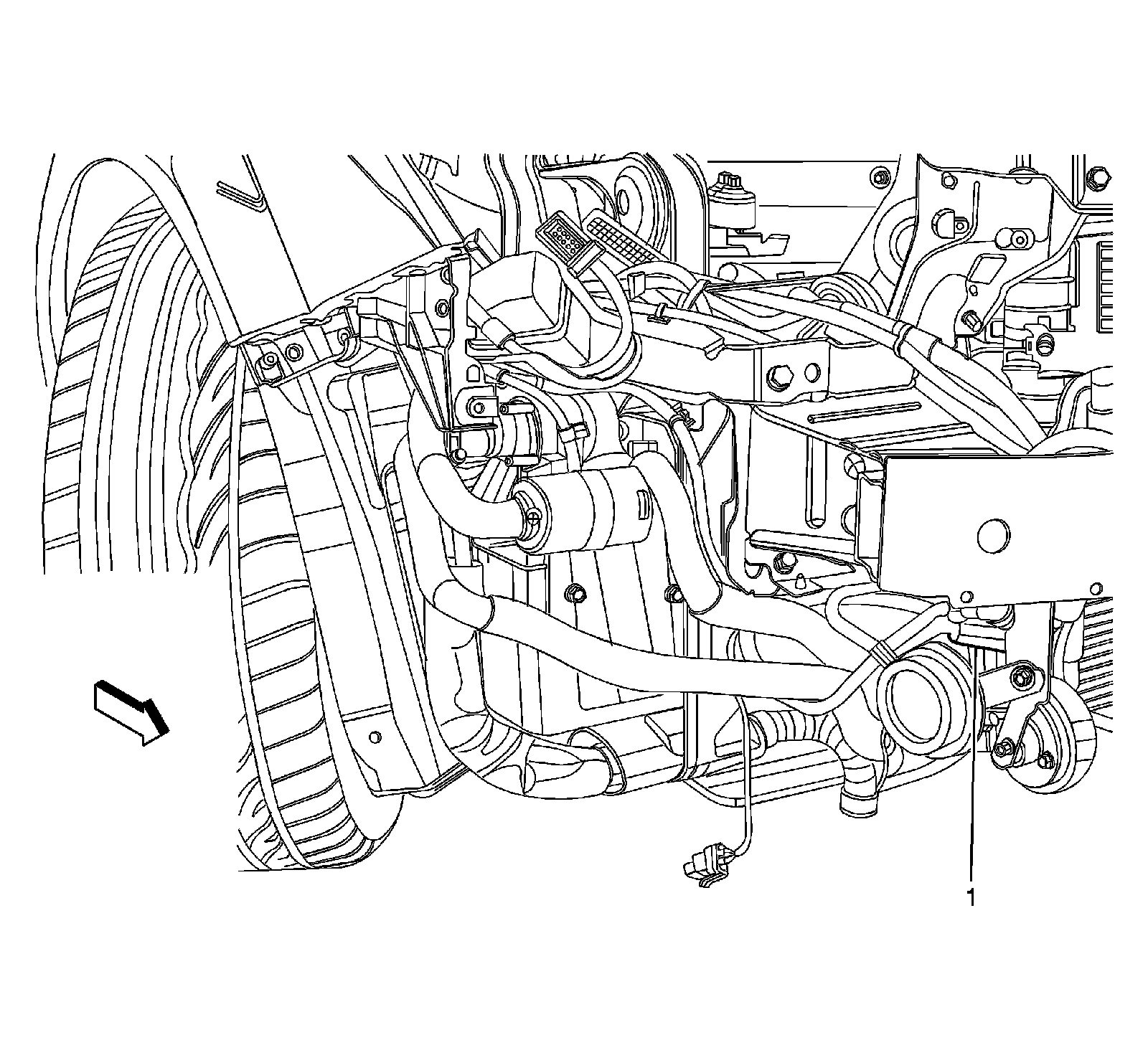

Lower Right Side of the Radiator




1 - Ambient Air Temperature Sensor - 2

Engine Compartment-Right Front




1 - Horn Connector
2 - Fog Lamp - Right Front
3 - X102
4 - Turn Signal Lamp-Right Front

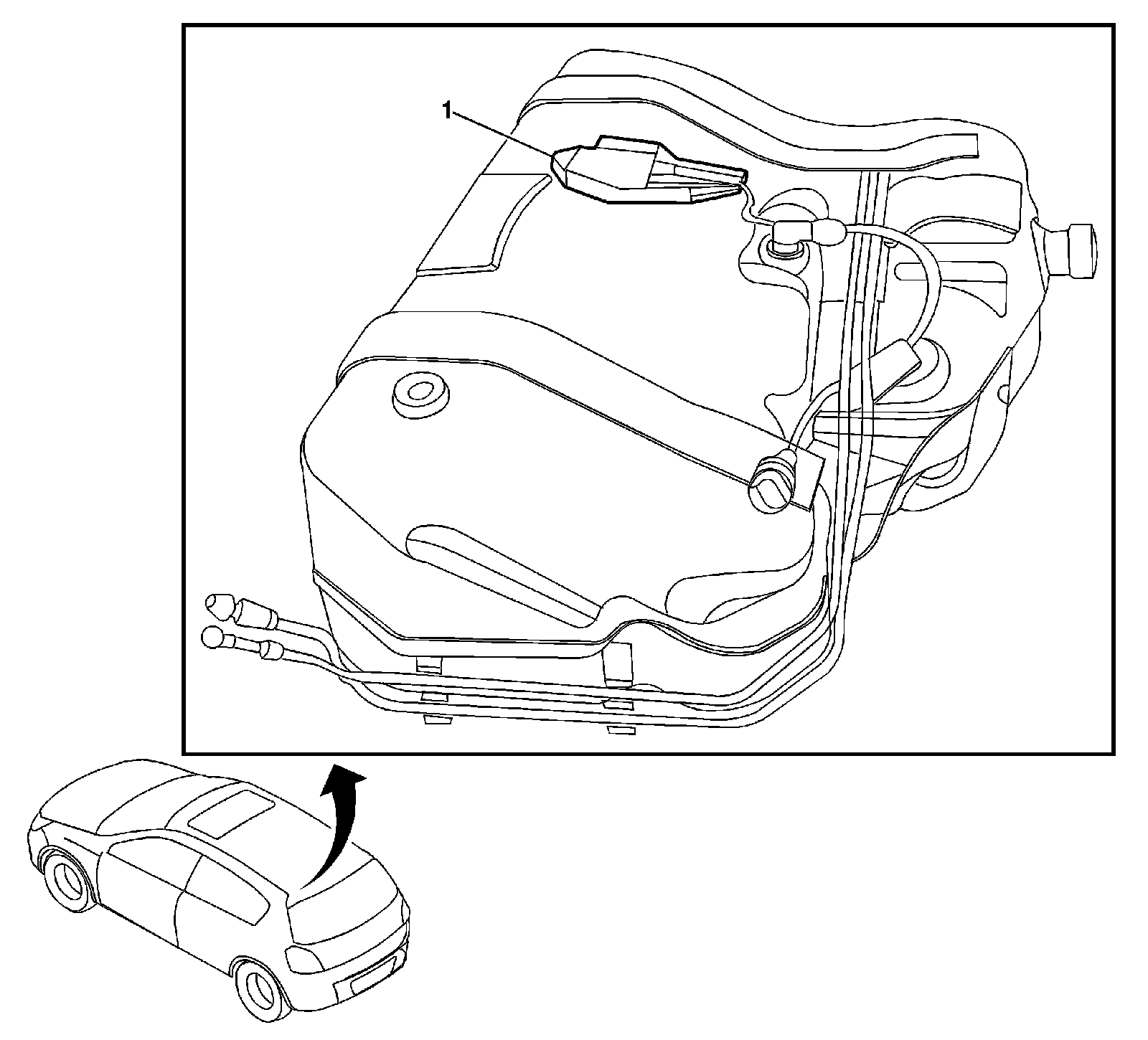

Fuel Tank Assembly




1 - Fuel Tank Assembly

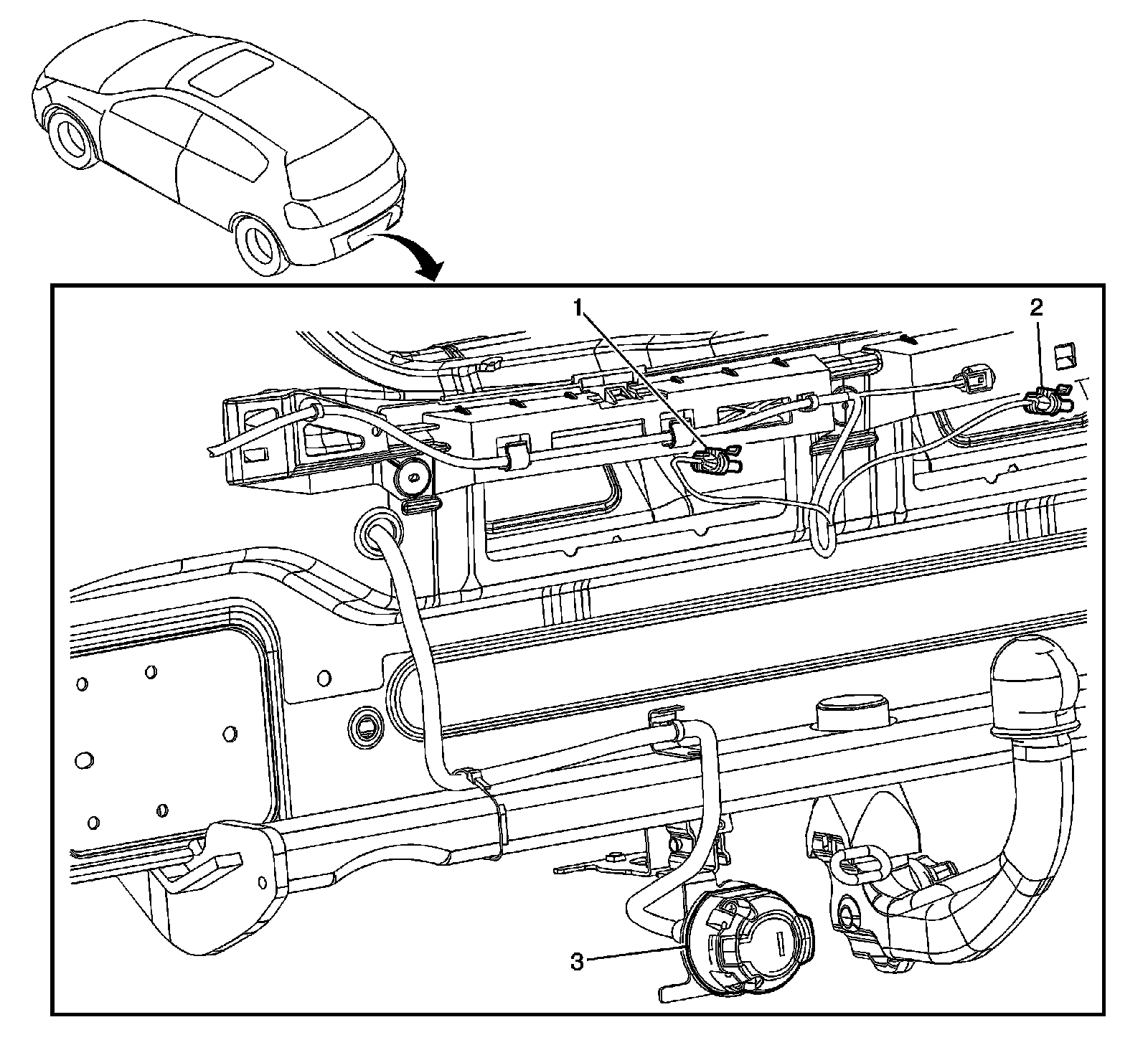

Rear of Vehicle




1 - License Lamp-Left
2 - License Lamp-Right
3 - Trailer Connector
