Fuse Block

Electrical Center Identification Views

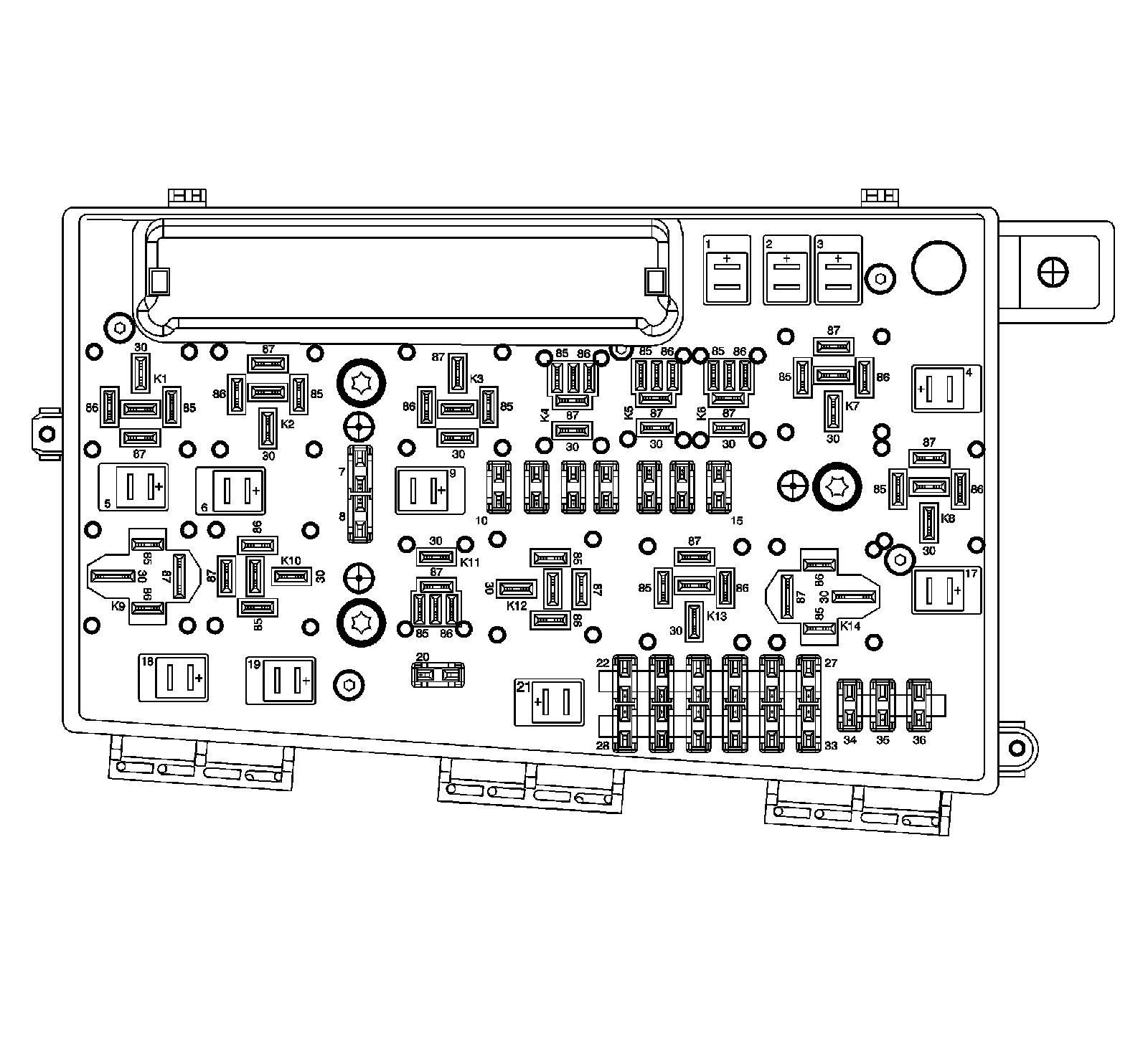

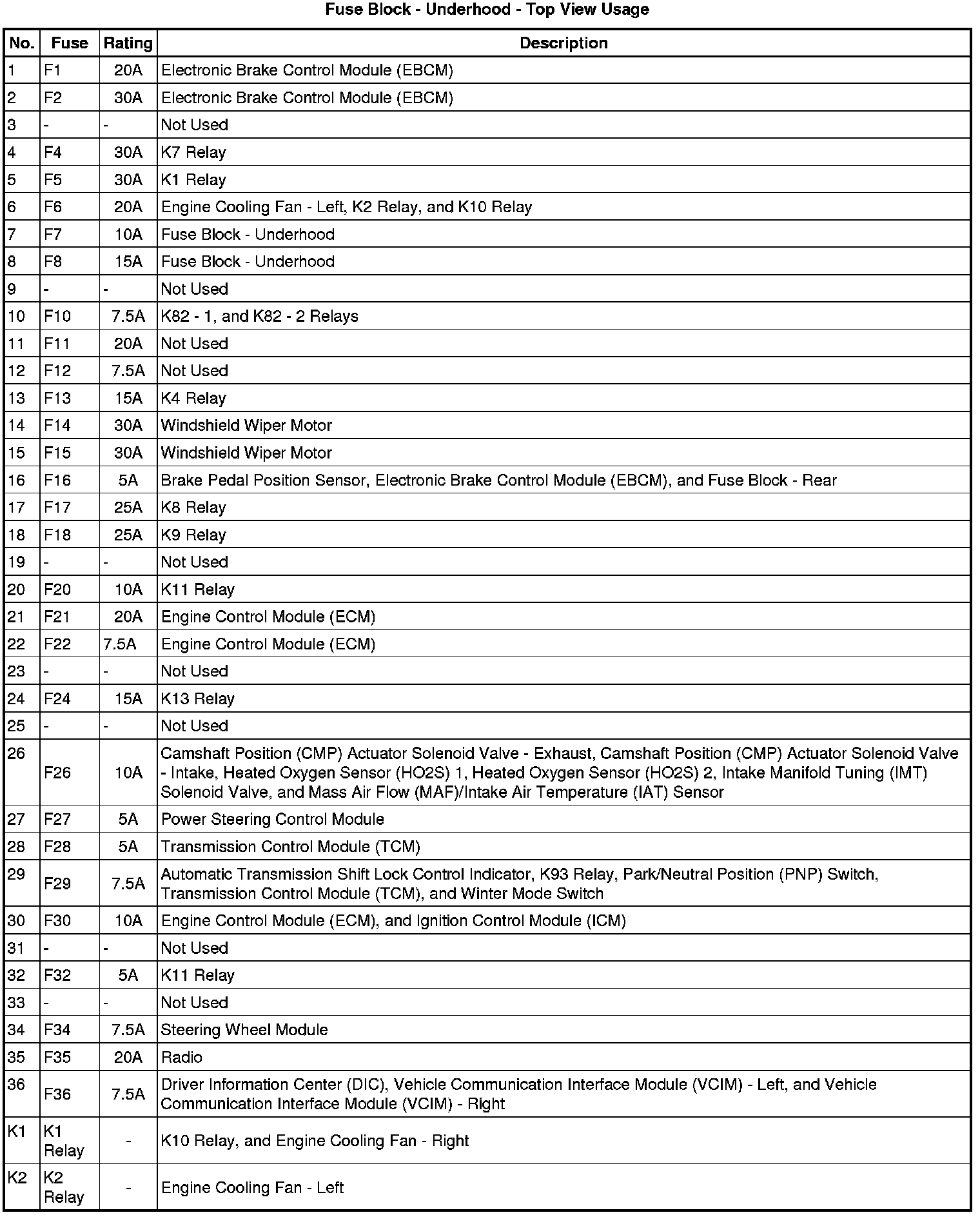

Fuse Block - Underhood - Top View

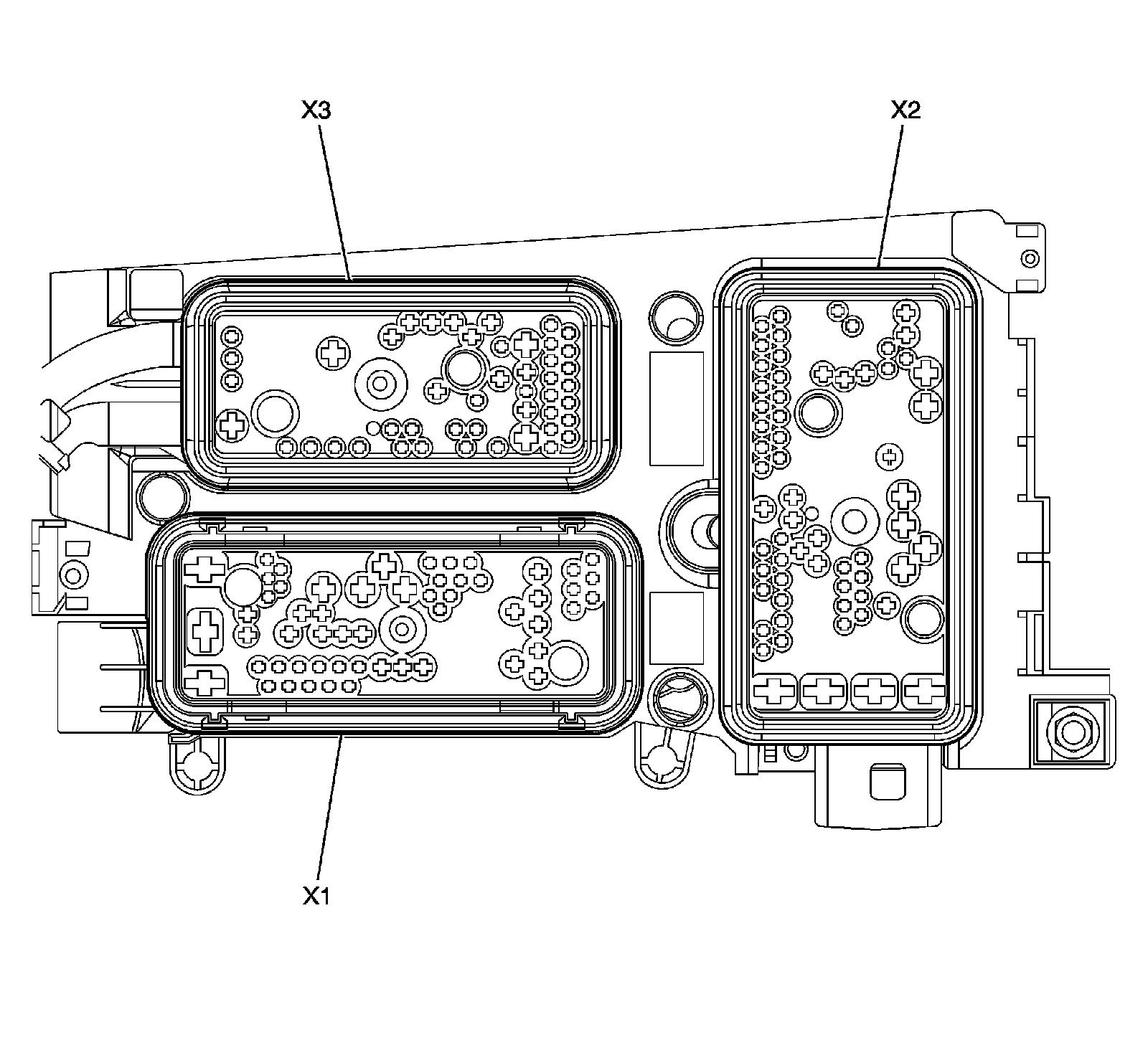

Fuse Block - Underhood - Bottom View

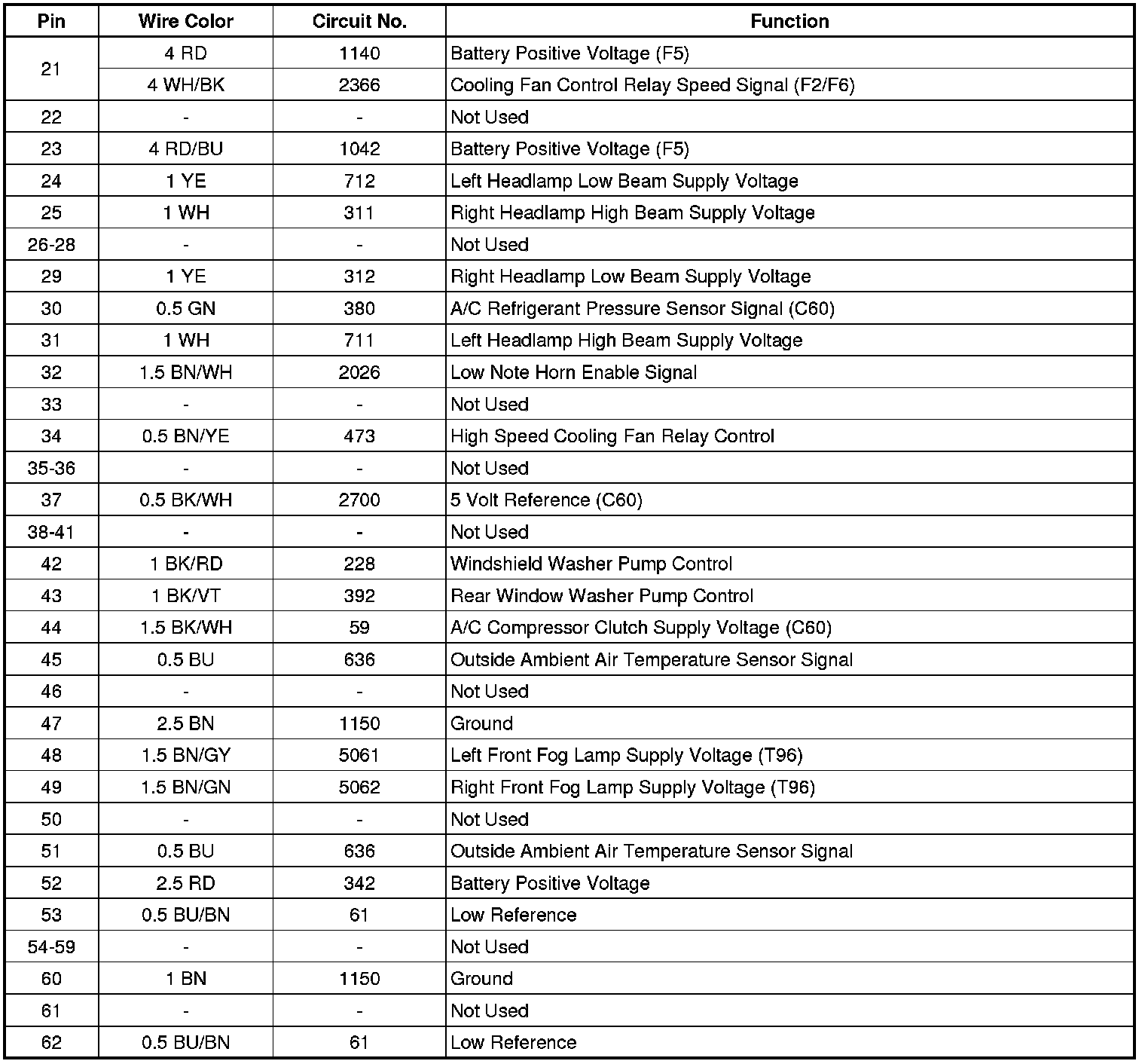

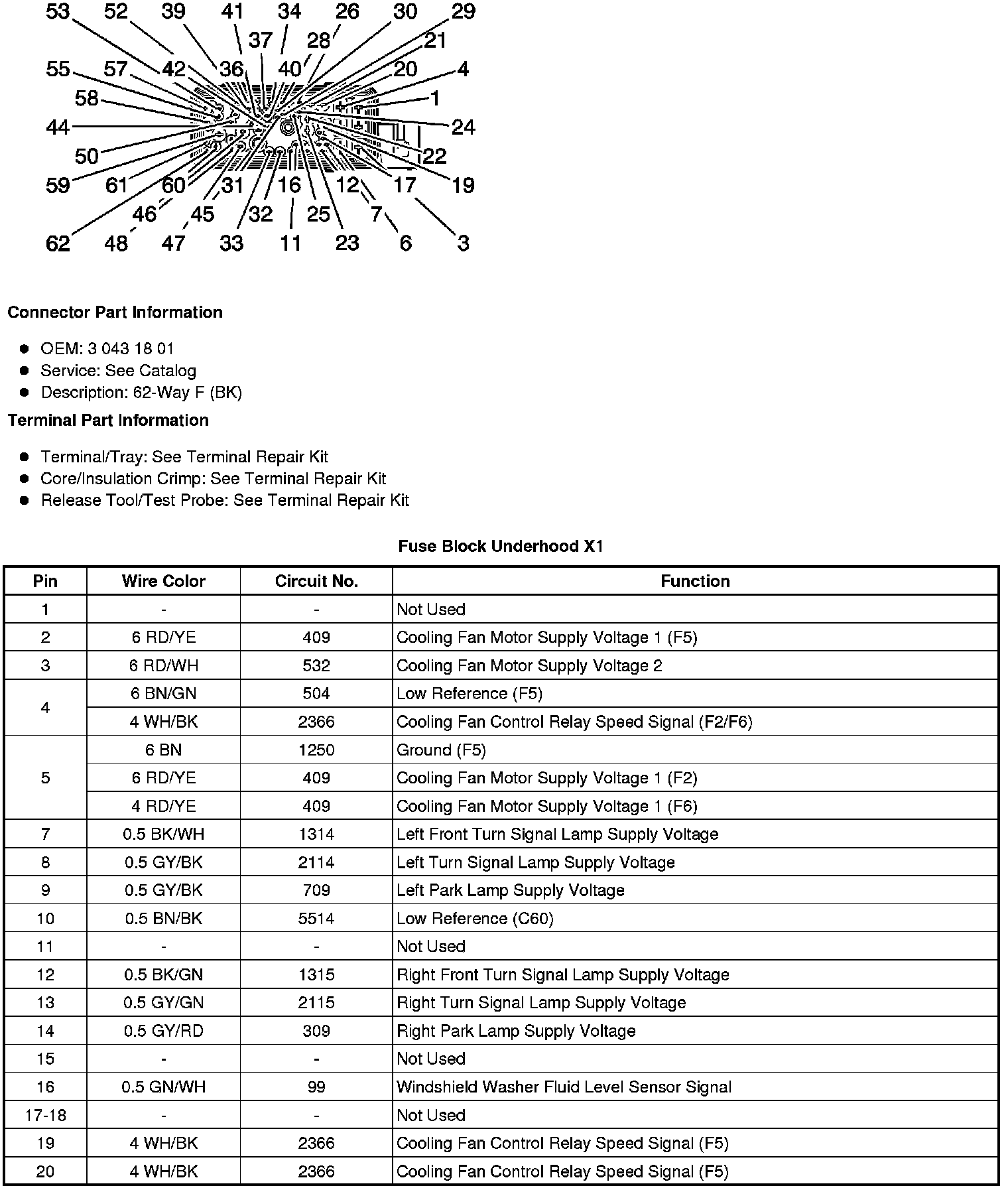

Fuse Block Underhood X1

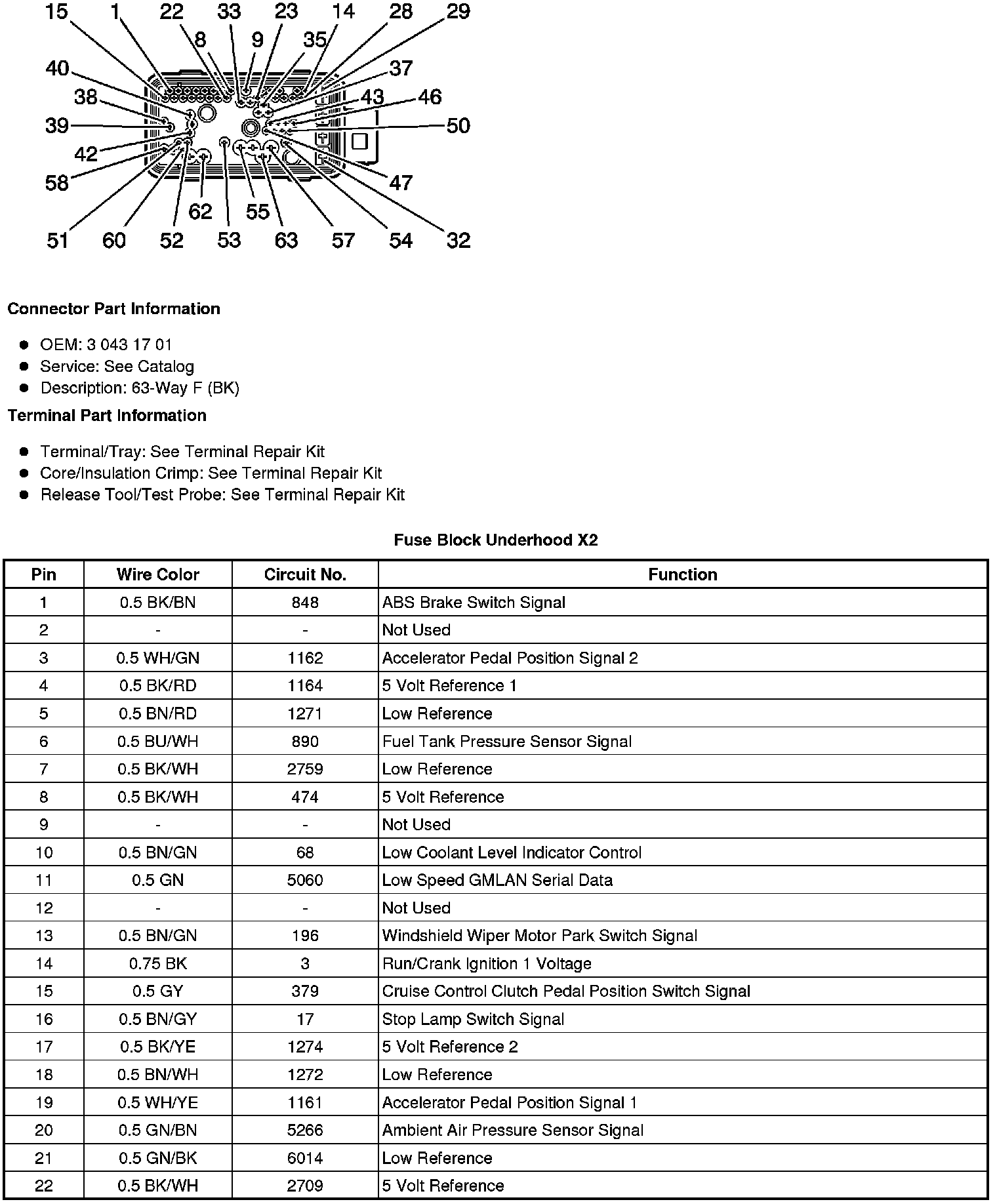

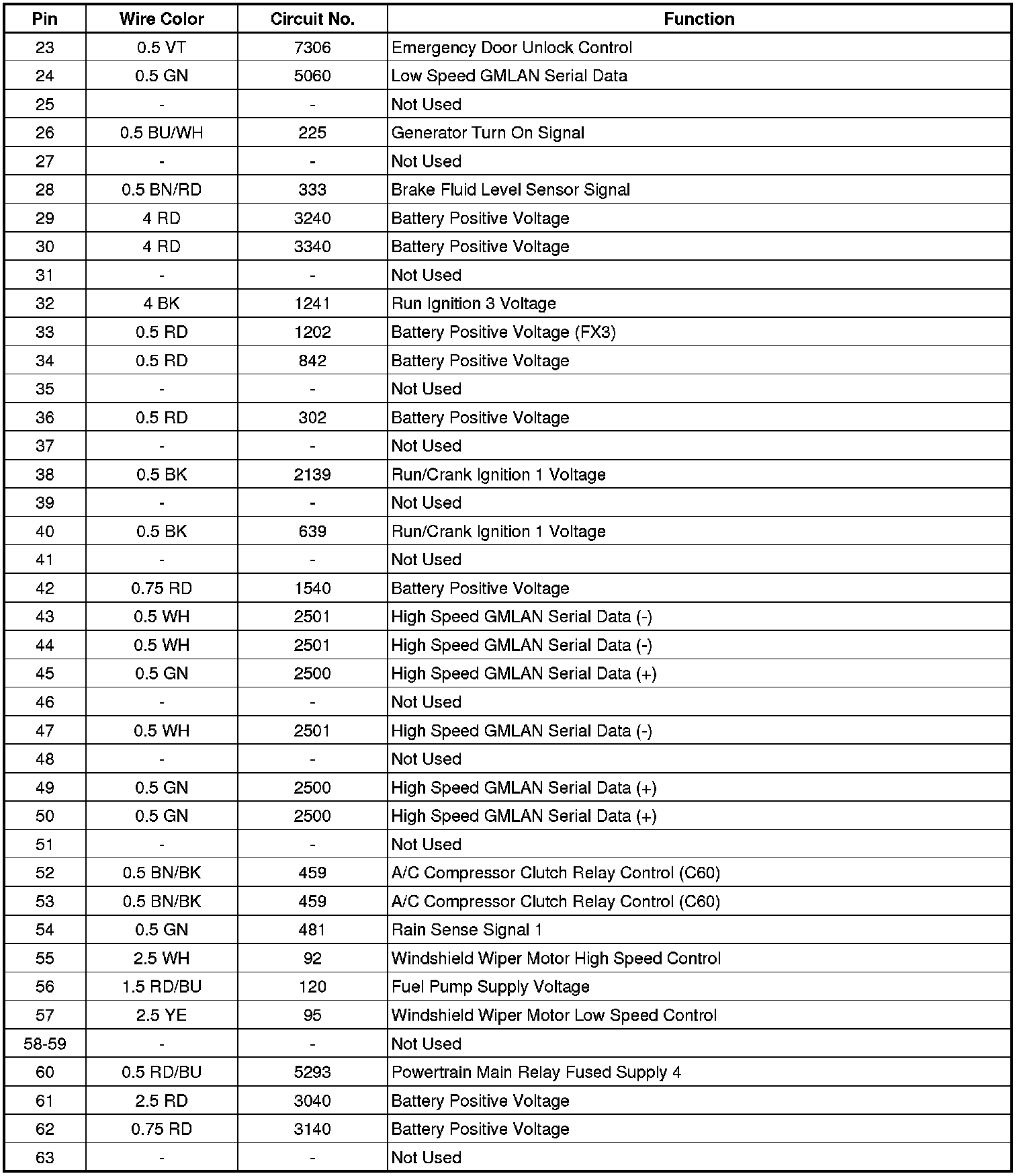

Fuse Block Underhood X2

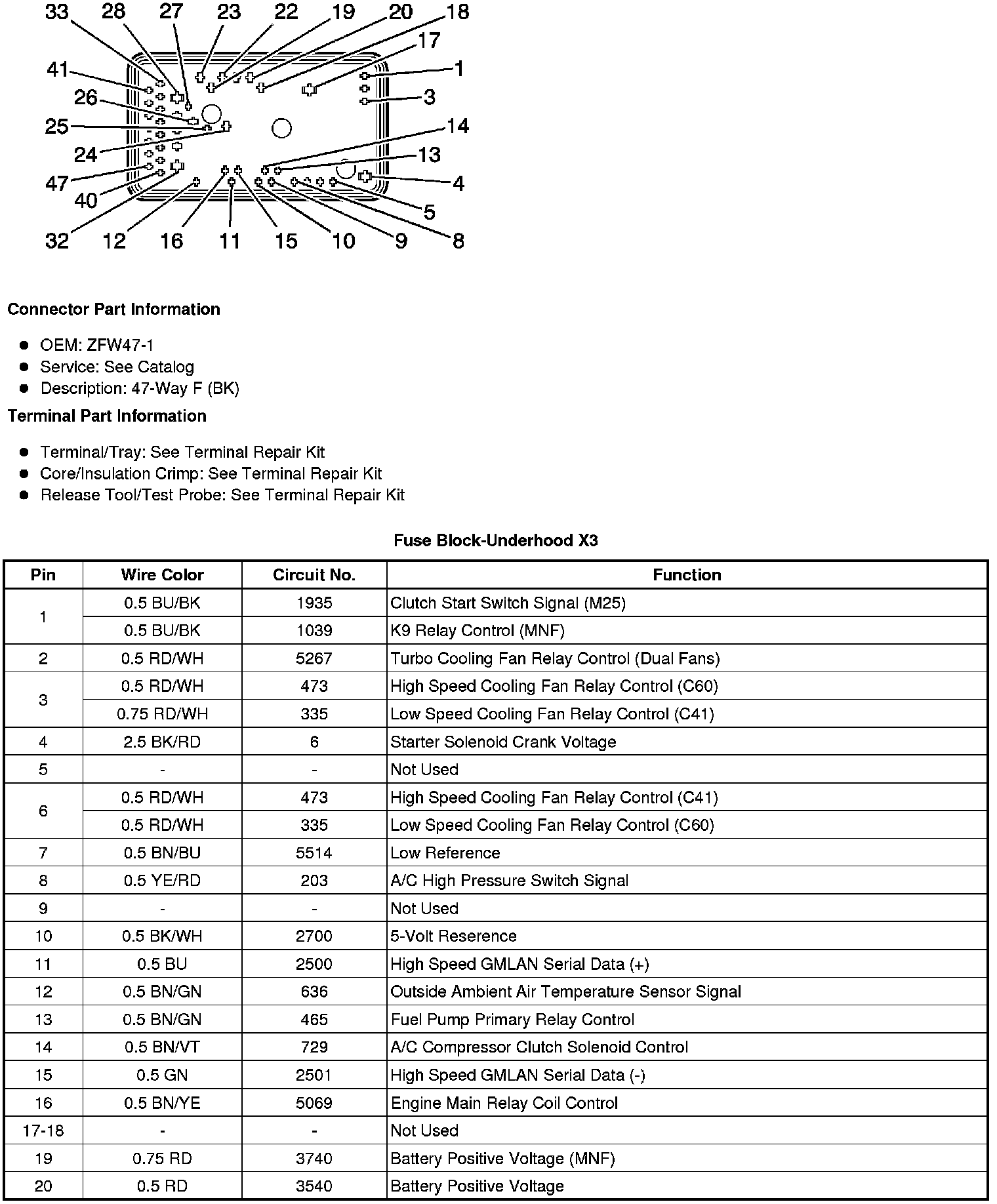

Fuse Block-Underhood X3

Fuse Block - Auxiliary - Top View

Fuse Block - Auxiliary

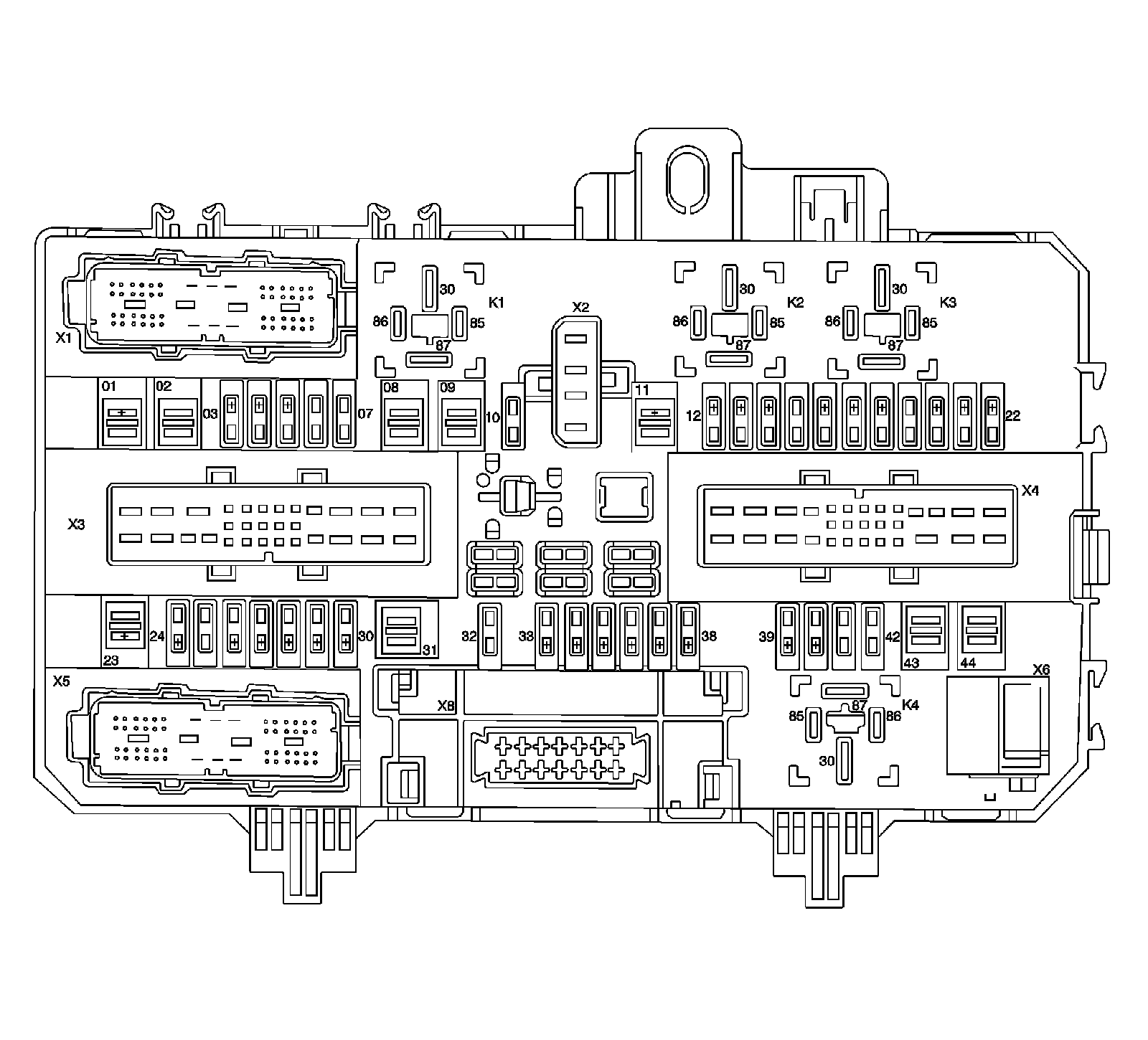

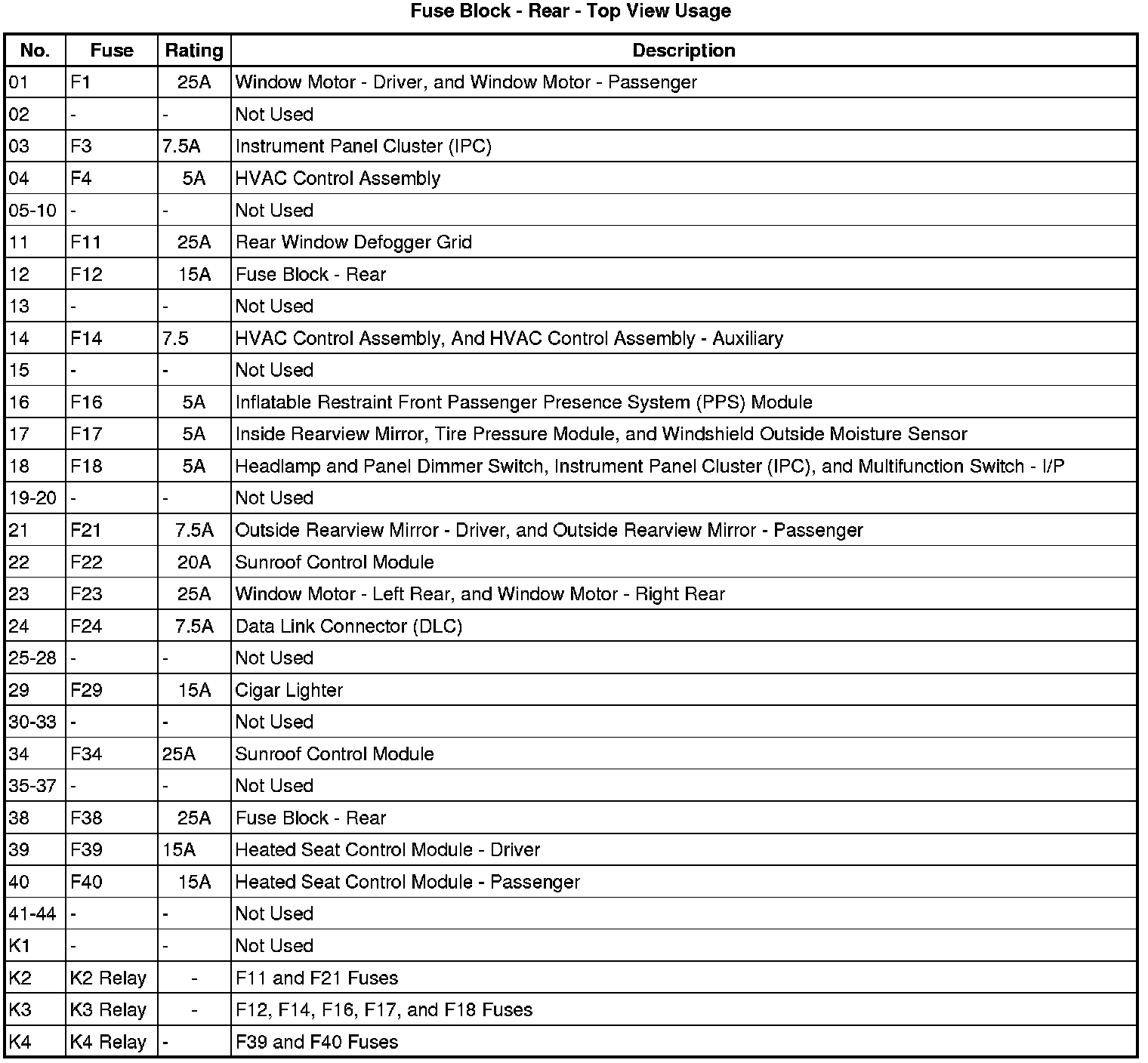

Fuse Block - Rear - Top View

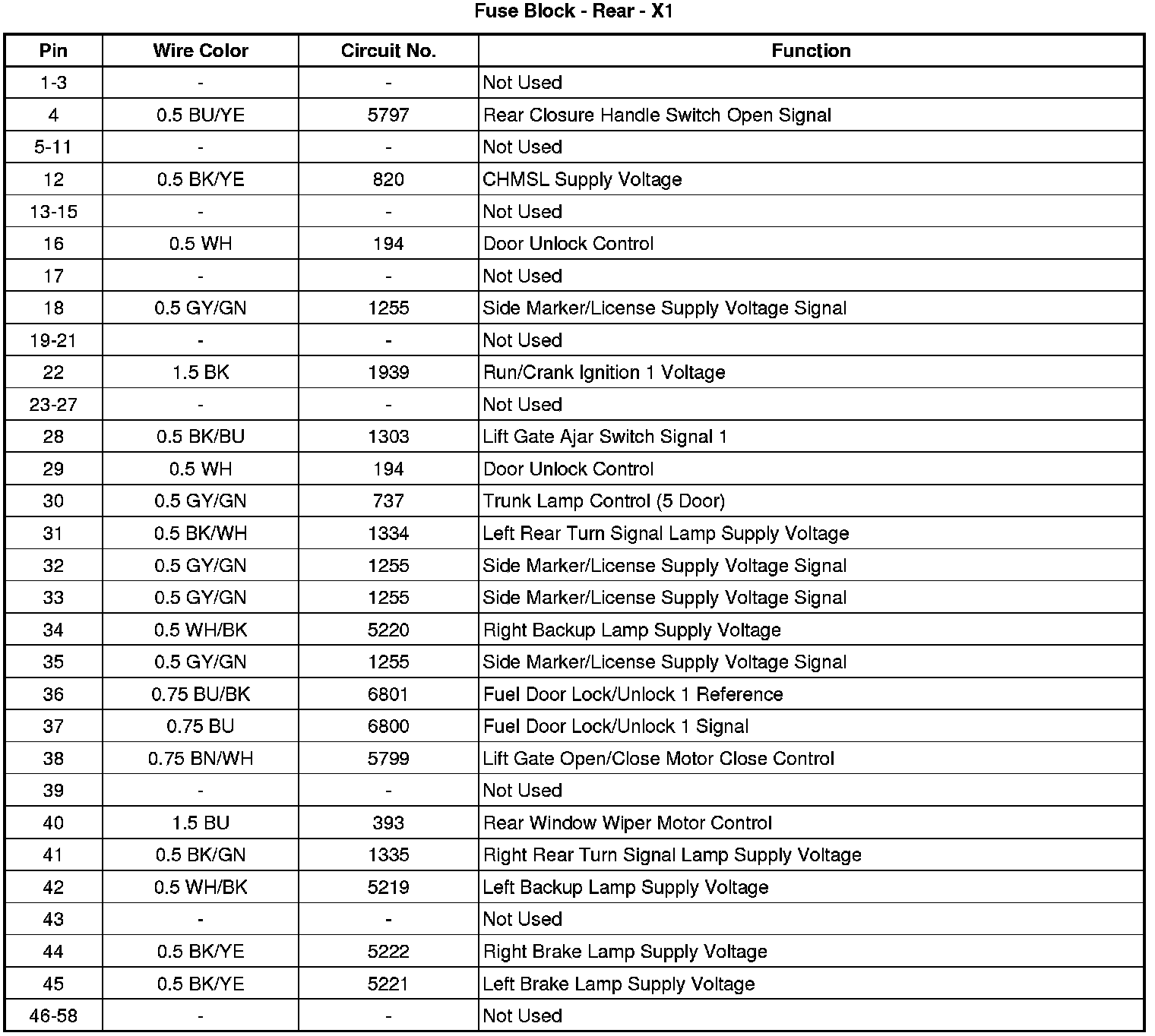

Fuse Block - Rear - X1

Fuse Block - Rear - X2

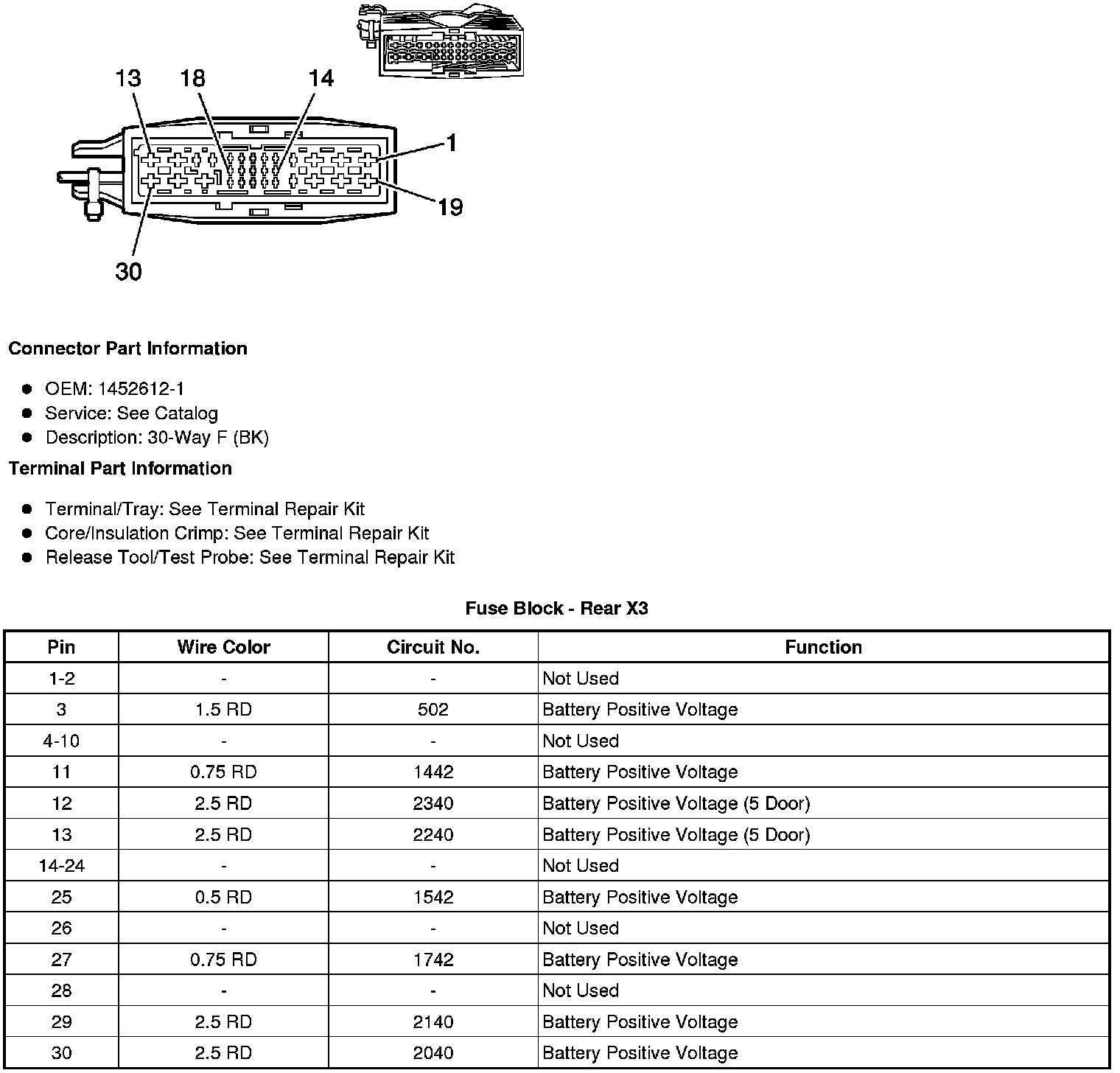

Fuse Block - Rear X3

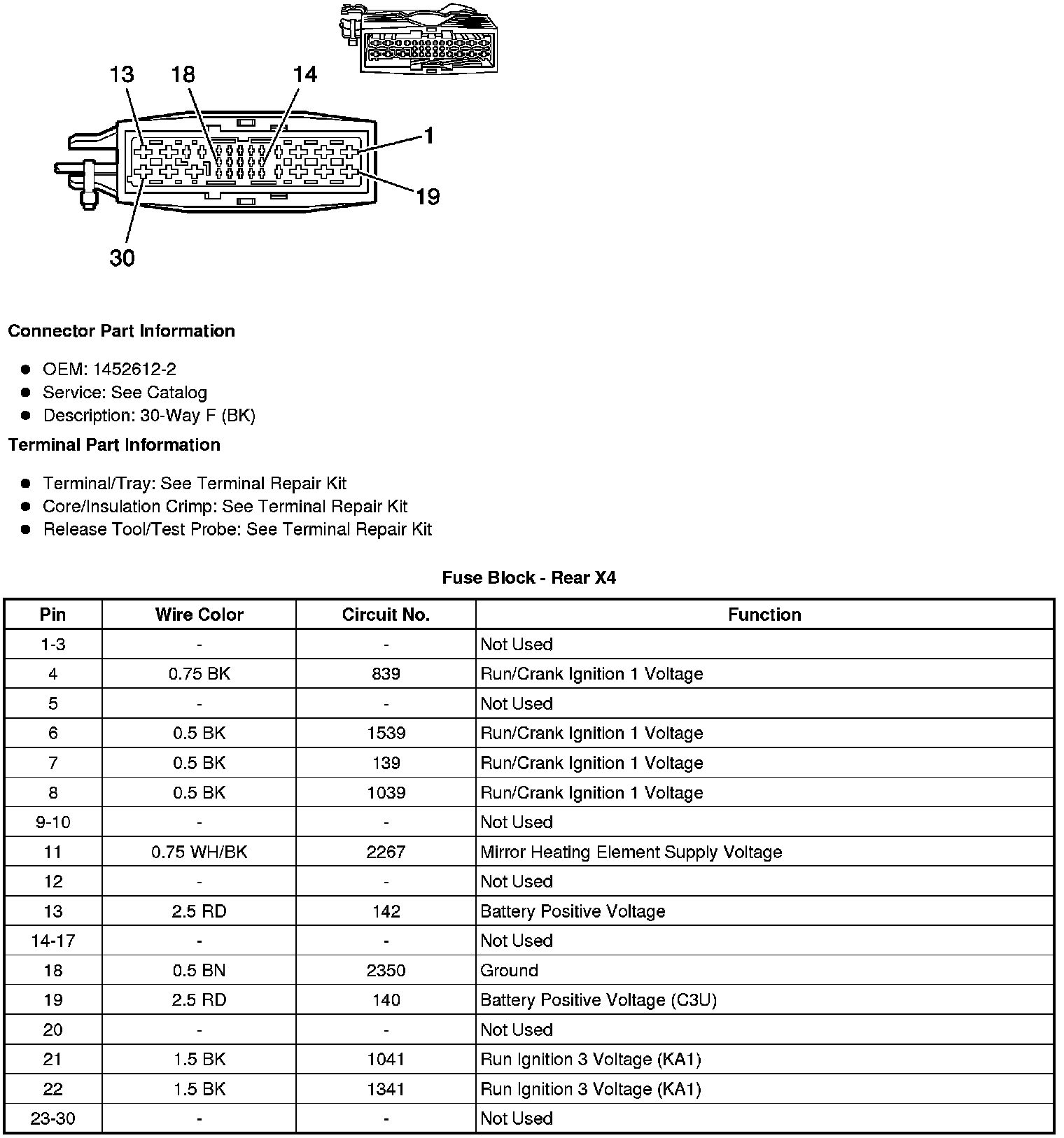

Fuse Block - Rear X4

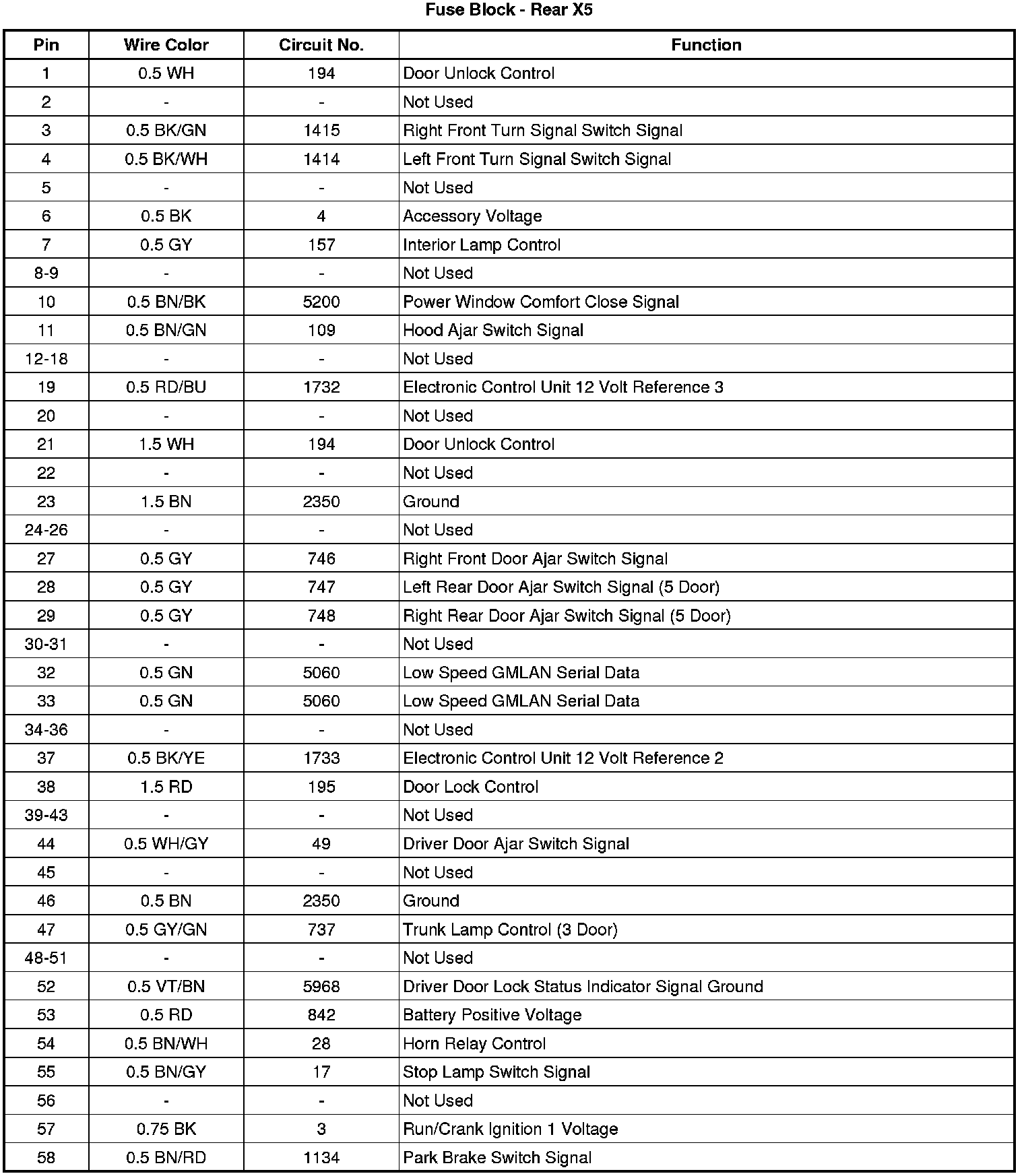

Fuse Block - Rear X5

Fuse Block - Rear -X6
