Fuse Block: Locations



Luggage Compartment/Rear of Vehicle Component Views

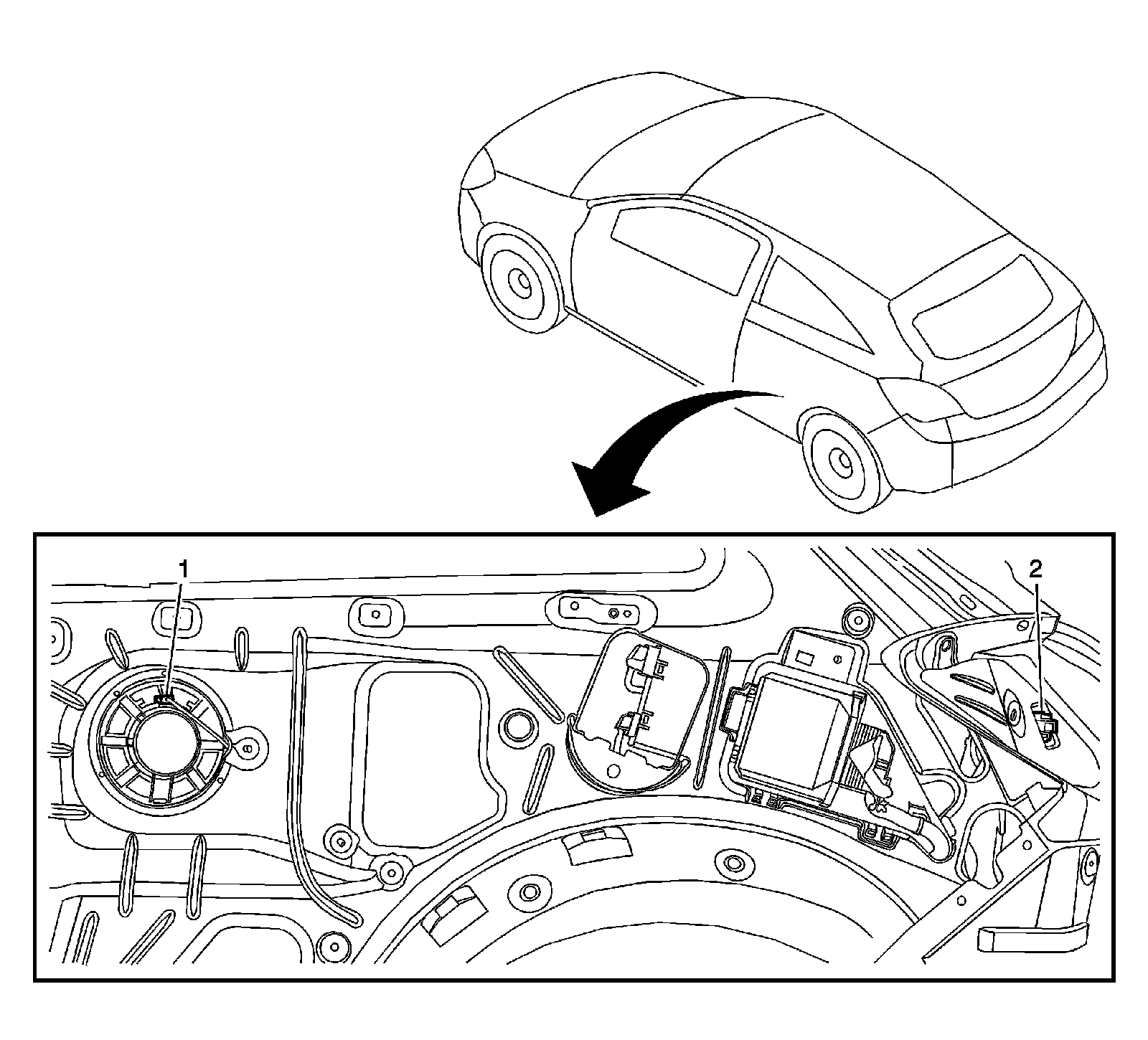

Right Rear Luggage Area




1 - Speaker-Right Rear Panel
2 - Tail Lamp-Right

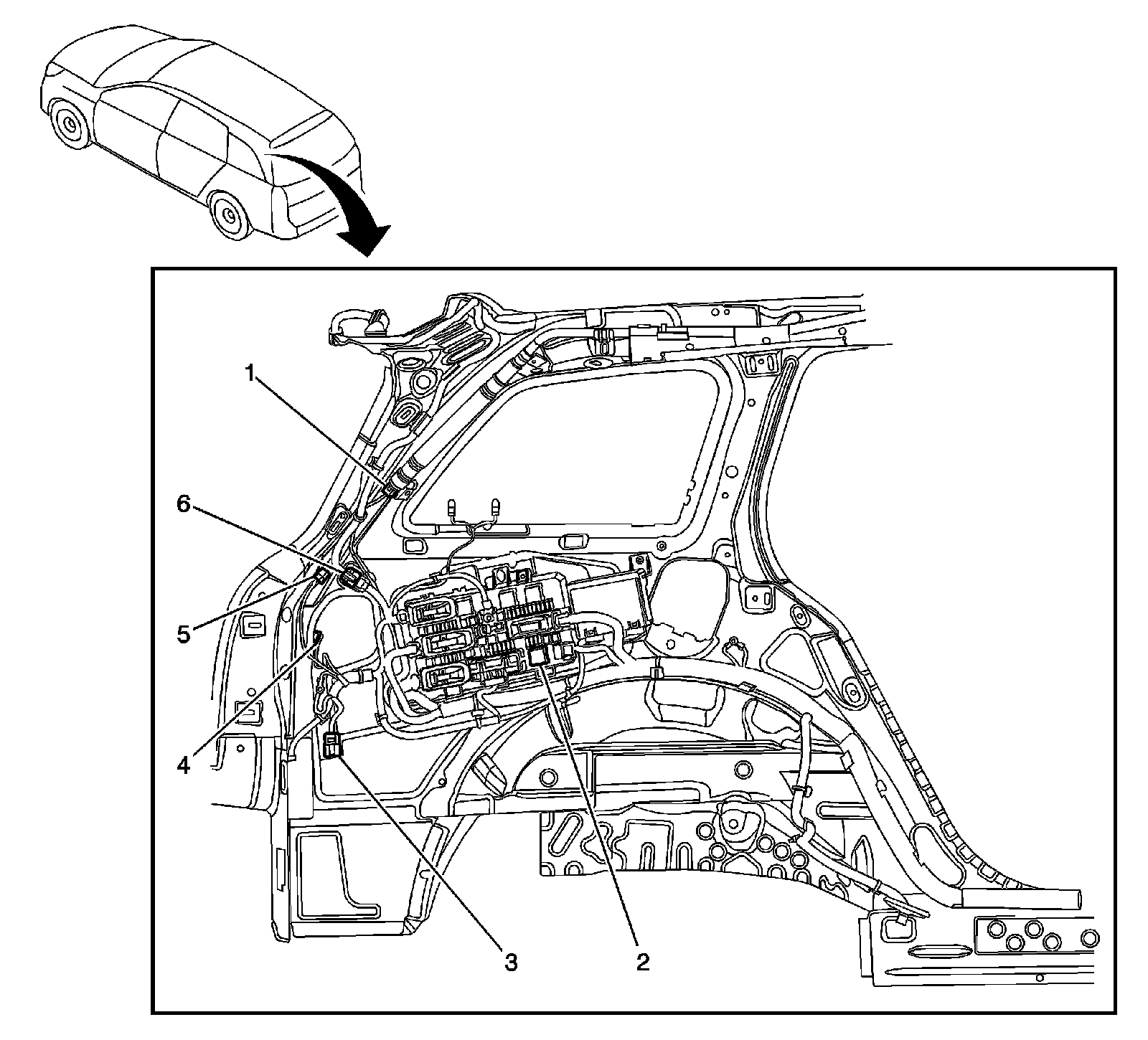

Left Rear Luggage Area




1 - Inflatable Restraint Roof Rail Module - Driver
2 - Fuse Block-Rear
3 - Trailer Connector
4 - Tail Lamp - LR
5 - Compartment Lamp - Rear
6 - X301

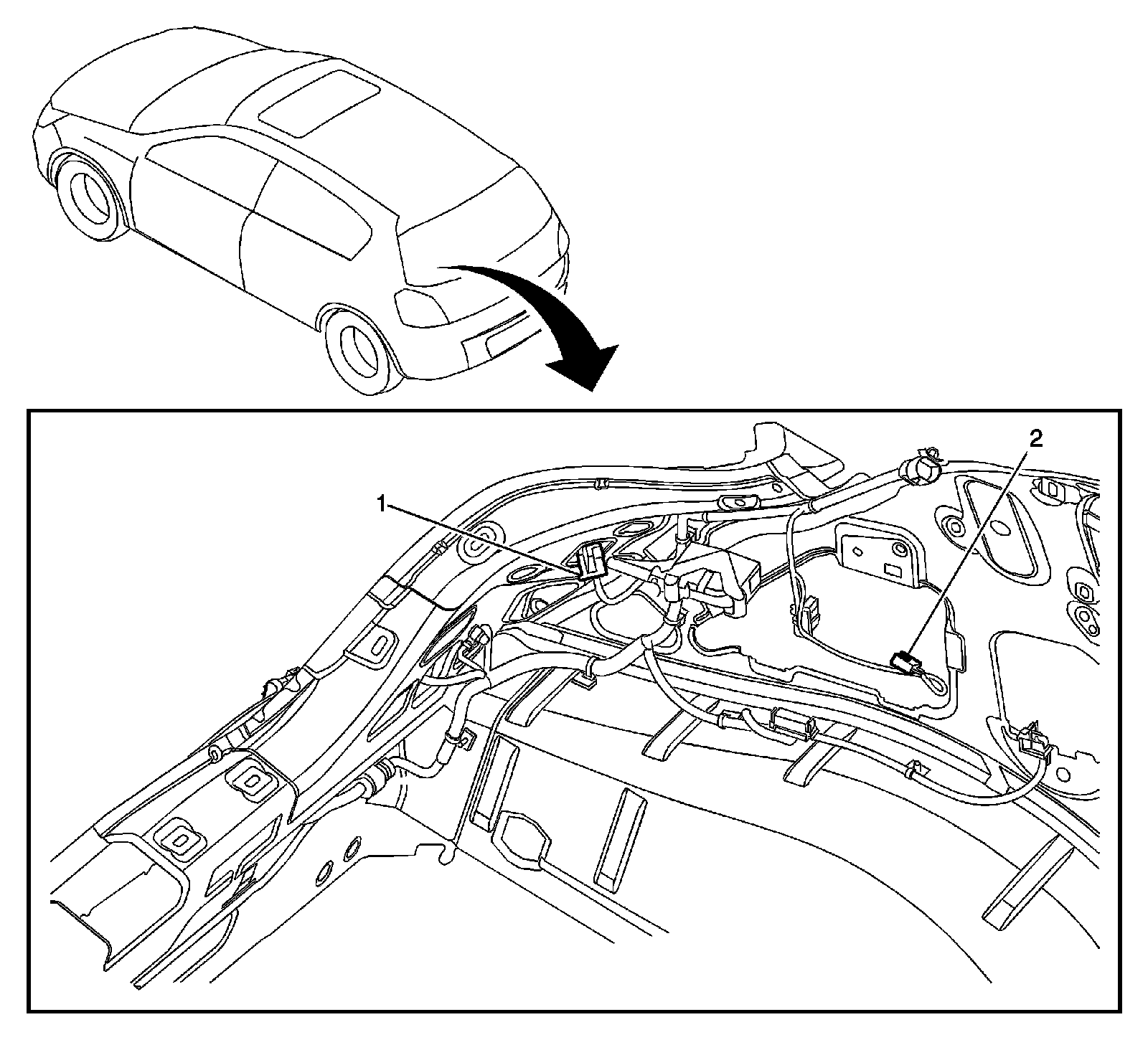

Left Rear Luggage Area




1 - Tail Lamp - Left Rear
2 - Cargo Lamp

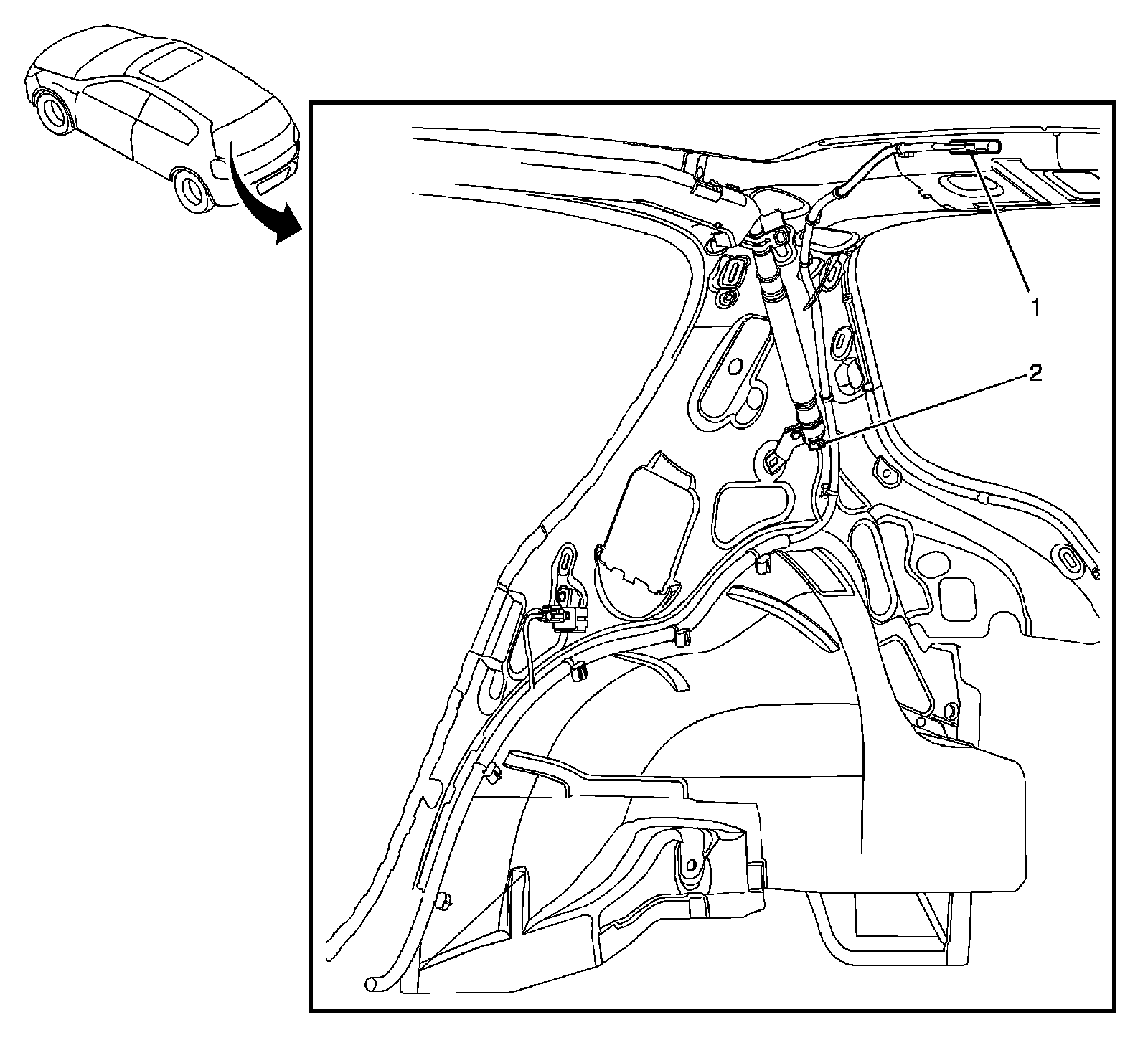

Right Rear Luggage Area




1 - Antenna Amplifier
2 - Inflatable Restraint Roof Rail Module - Passenger

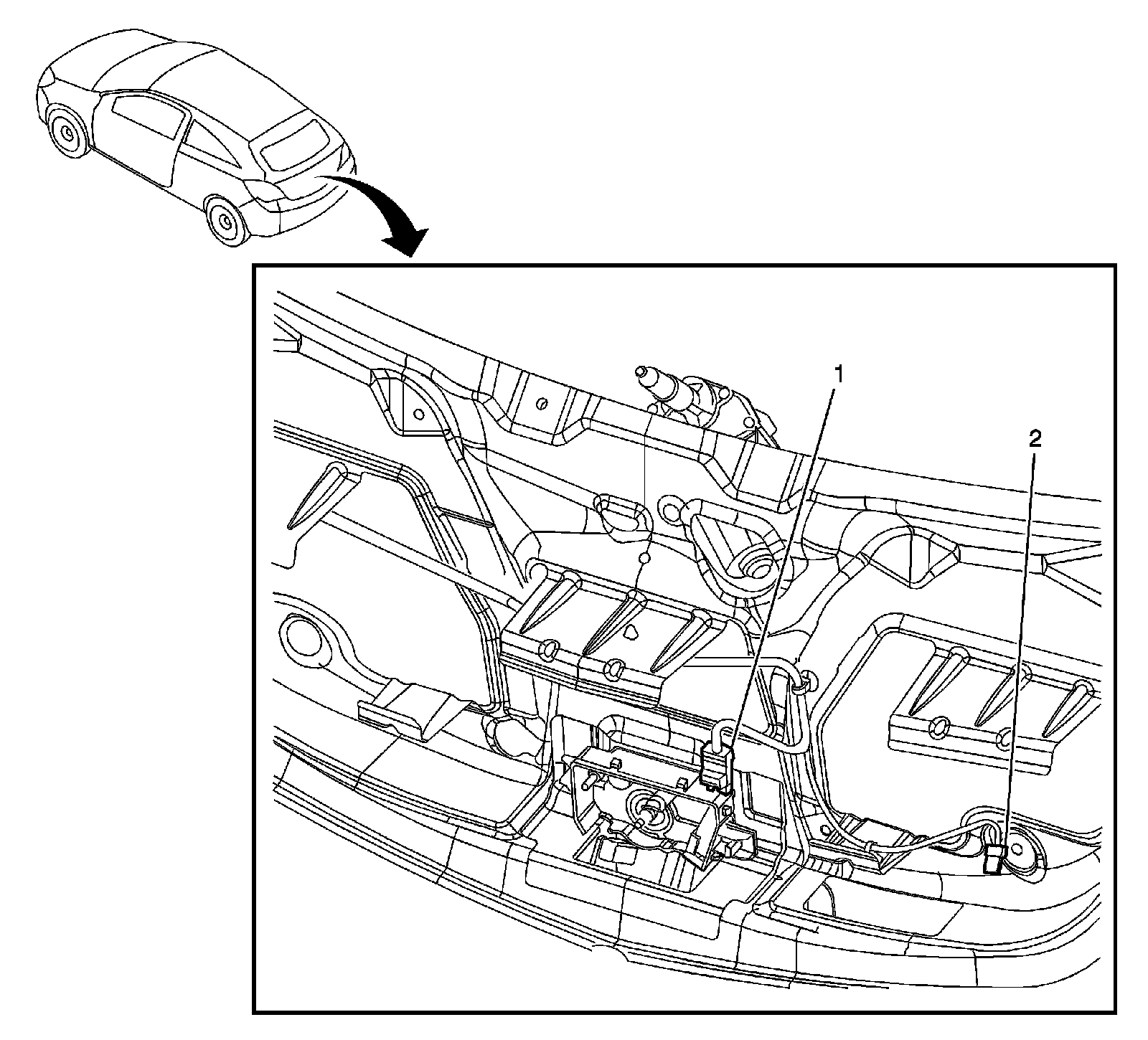

Rear of Vehicle




1 - Liftgate Latch Assembly
2 - Liftgate Release Switch
