Data Link Connector: Locations



Instrument Panel/Center Console Component Views

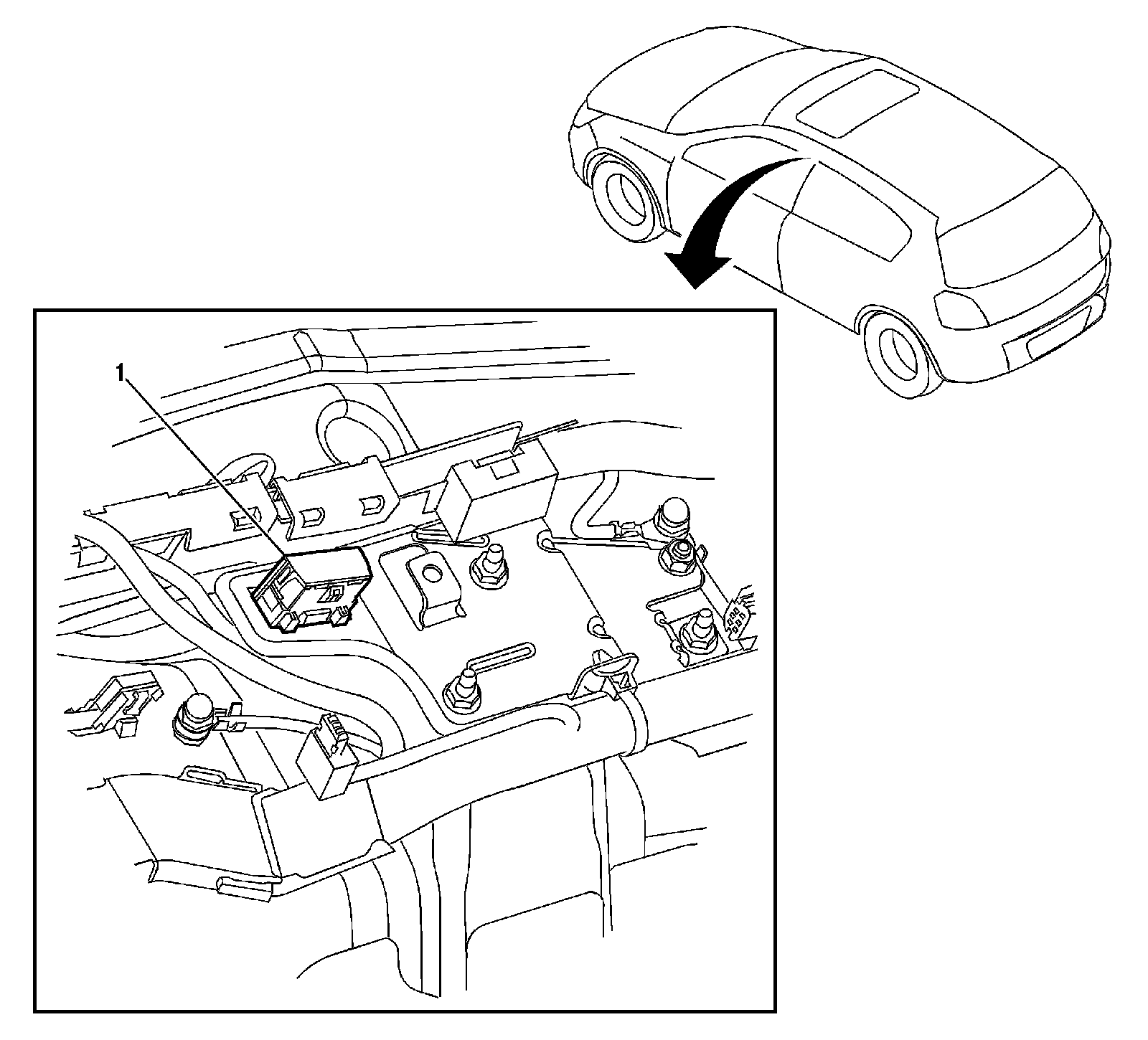

Passenger Compartment-Left Side




1 - Data Link Connector (DLC)

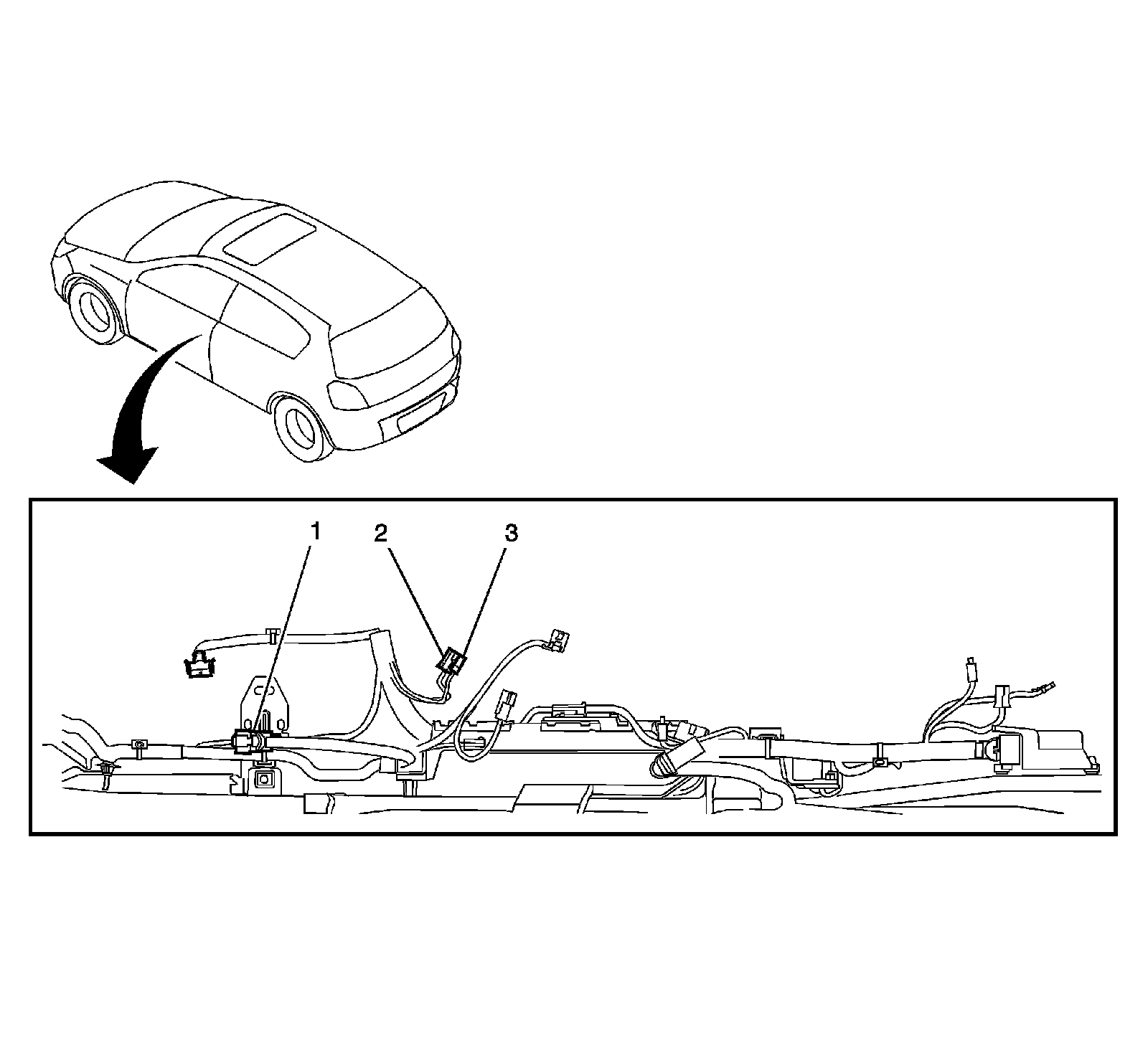

Passenger Compartment




1 - X204
2 - Cigar Lighter
3 - Auxiliary Outlet-Front
