Electronic Brake Control Module: Locations

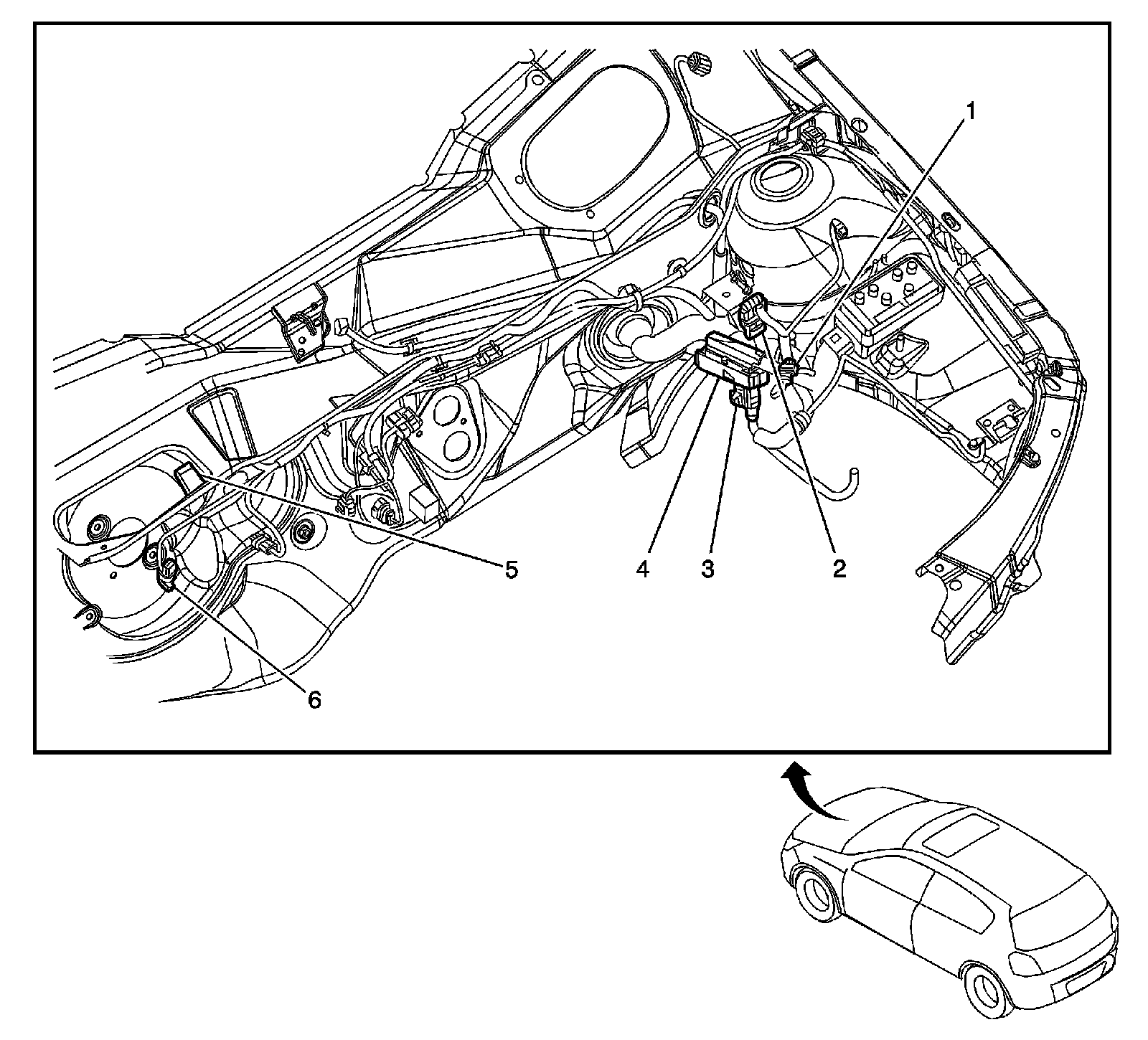

Front of Vehicle/Engine Compartment Component Views

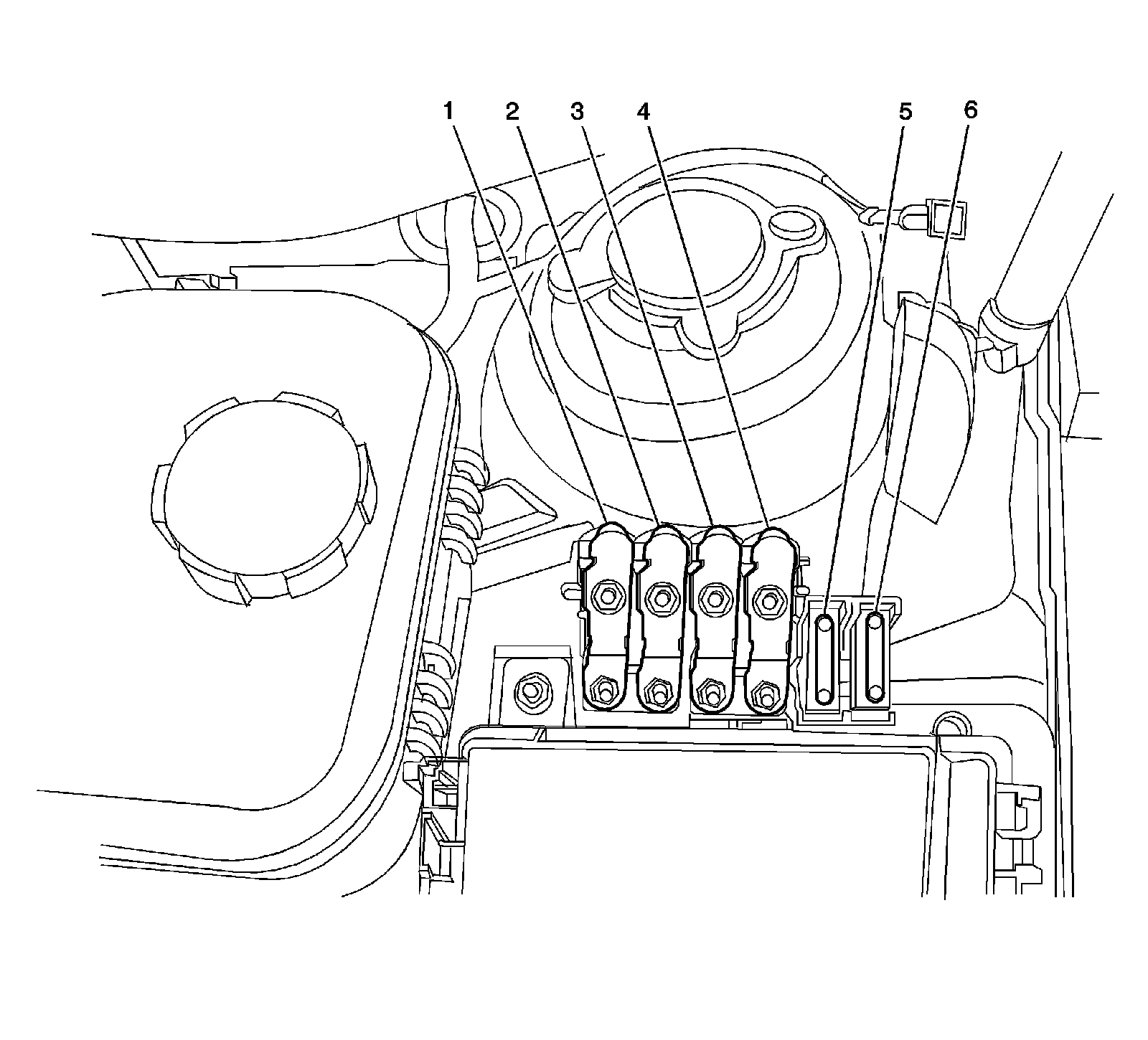

Engine Compartment-Left Rear




1 - Fuse
2 - Fuse
3 - Fuse
4 - Fuse
5 - Fuse

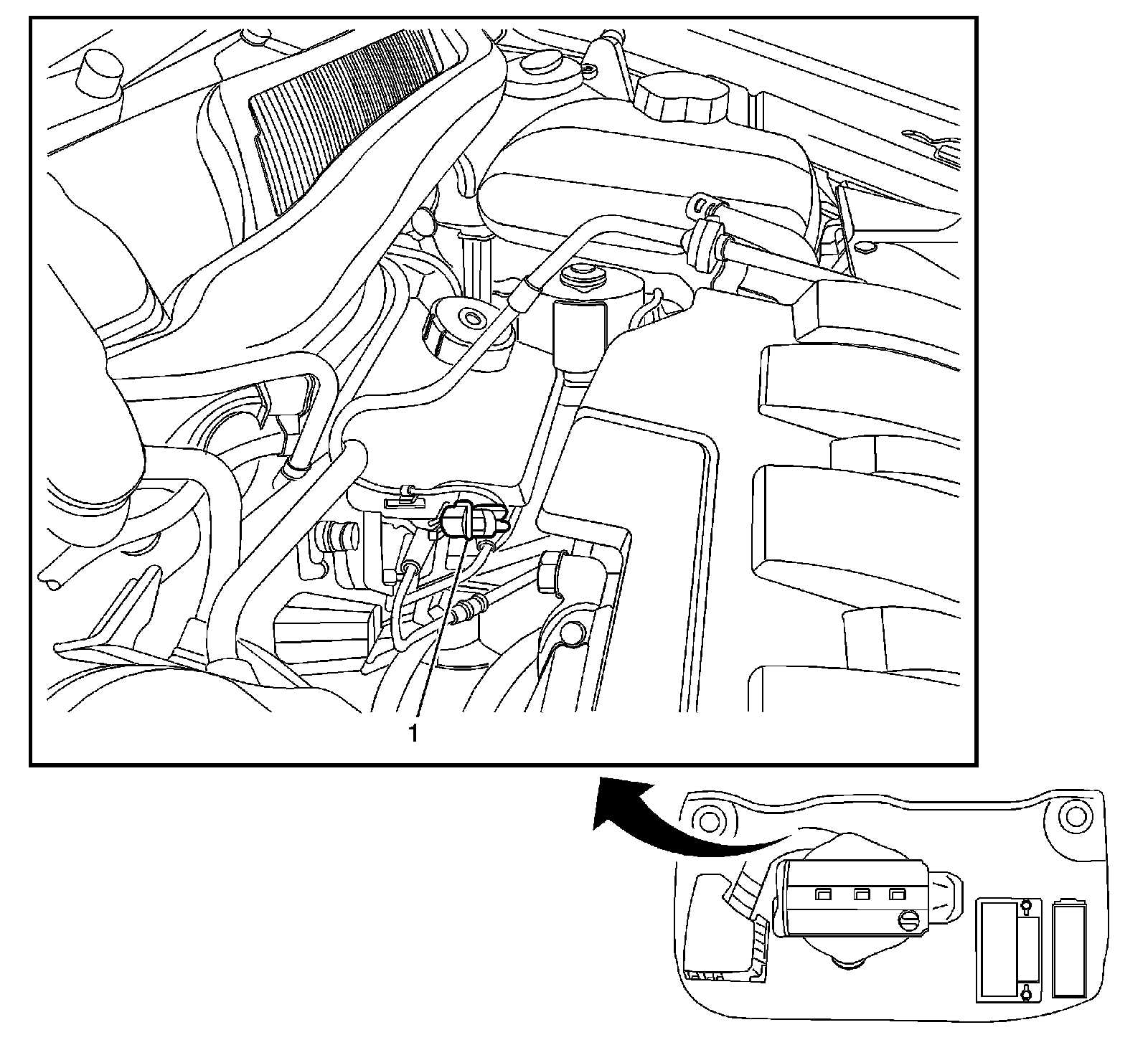

Engine Compartment-Rear




1 - Brake Fluid Level Switch

Engine Compartment-Rear




1 - Engine Coolant Level Switch
2 - X206
3 - X101
4 - Electronic Brake Control Module (EBCM) Connector
5 - Windshield Wiper Motor
6 - Hood Ajar Switch

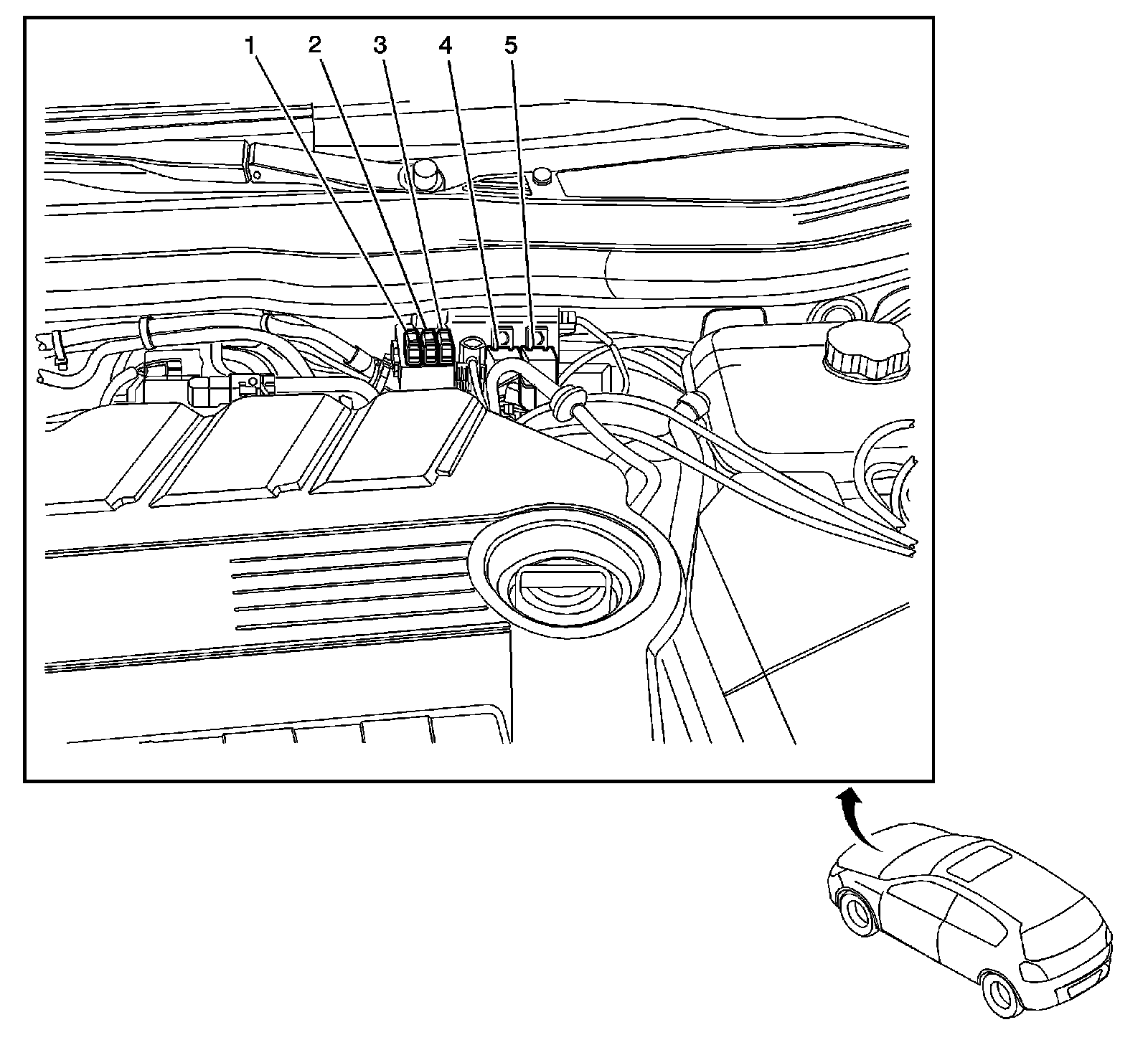

Engine Compartment-Left Rear




1 - Fuse
2 - Fuse
3 - Fuse
4 - Anti Theft Relay
5 - Independent Heater Relay
