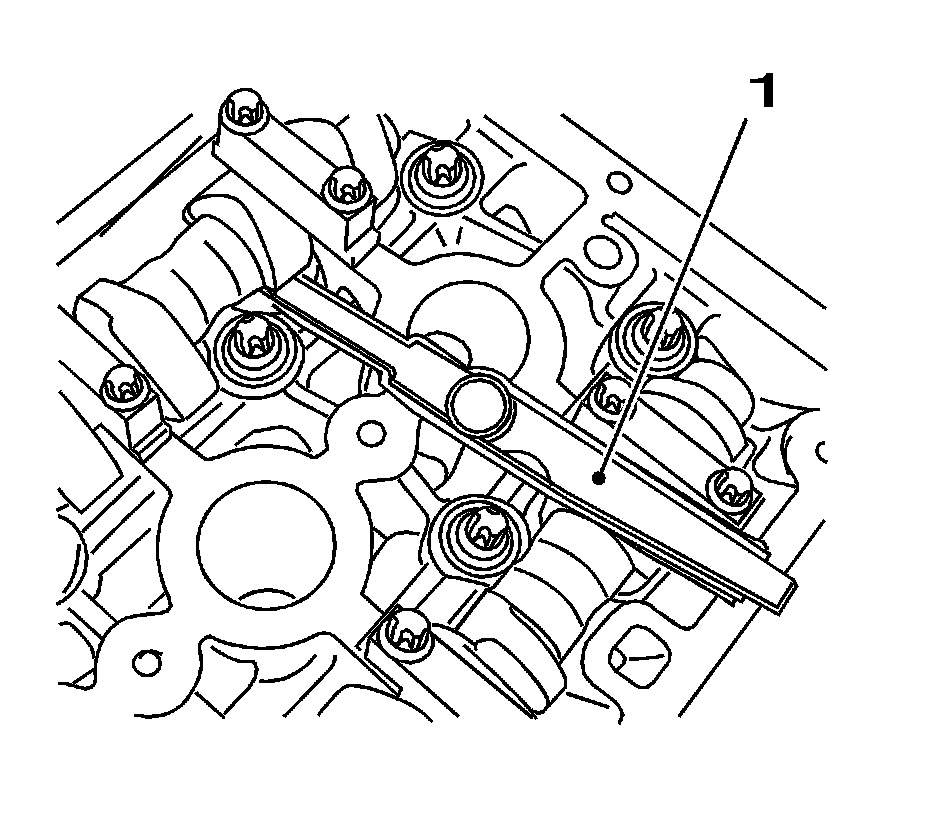

Valve Clearance
Intake valves - 0.21-0.29 (nominal value 0.25 mm)
Exhaust valves - 0.27-0.35 mm (nominal value 0.30 mm)
