Generator Replacement



Generator Replacement

Removal Procedure





1. Open the hood.
Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution) .
2. Disconnect the battery.

* Remove the negative connection from the ground terminal.
* Loosen the nut.

3. Remove the drive belt. Refer to Drive Belt Replacement (Service and Repair) .
4. Disconnect the generator from the power supply.

* Disconnect the generator from the power supply.

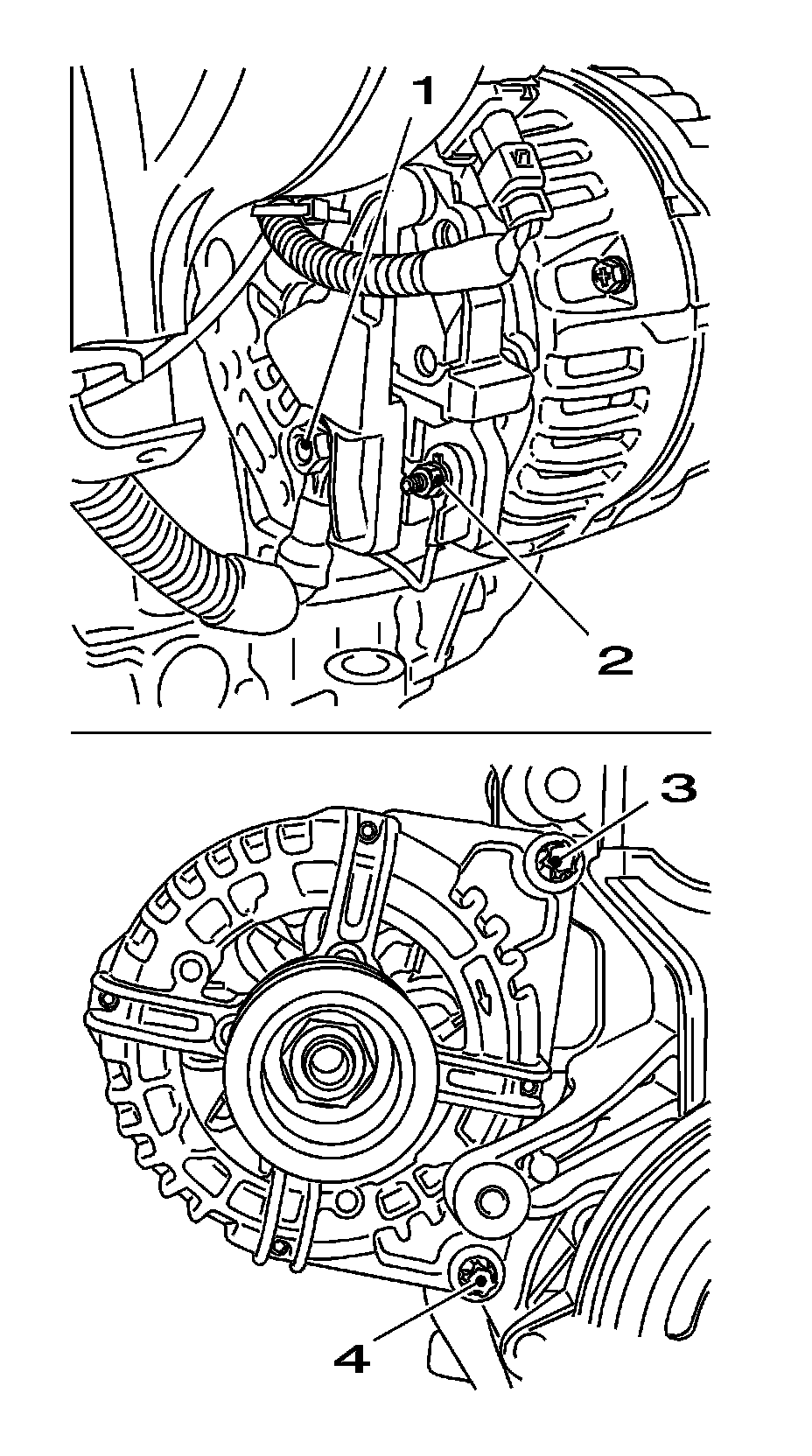

* Remove the 2 nuts (1, 2).

5. Remove the generator.
Remove the 2 bolts (3, 4).



Installation Procedure


Notice: Refer to Fastener Notice (Fastener Notice) .

1. Install the generator.

Tighten the 2 bolts to 35 N.m (25 lb ft).

2. Install the wiring harness to the generator.

Tighten the 2 nuts to 7 N.m (62 lb in).

3. Install the drive belt. Refer to Drive Belt Replacement (Service and Repair) .
4. Connect the battery.
Install the negative connection to the ground terminal.

Tighten the nut to 5 N.m (44 lb in).

5. For programming procedures, refer to Control Module References (Programming and Relearning) .
6. Close the hood.
