Door Component Views

Door Component Views

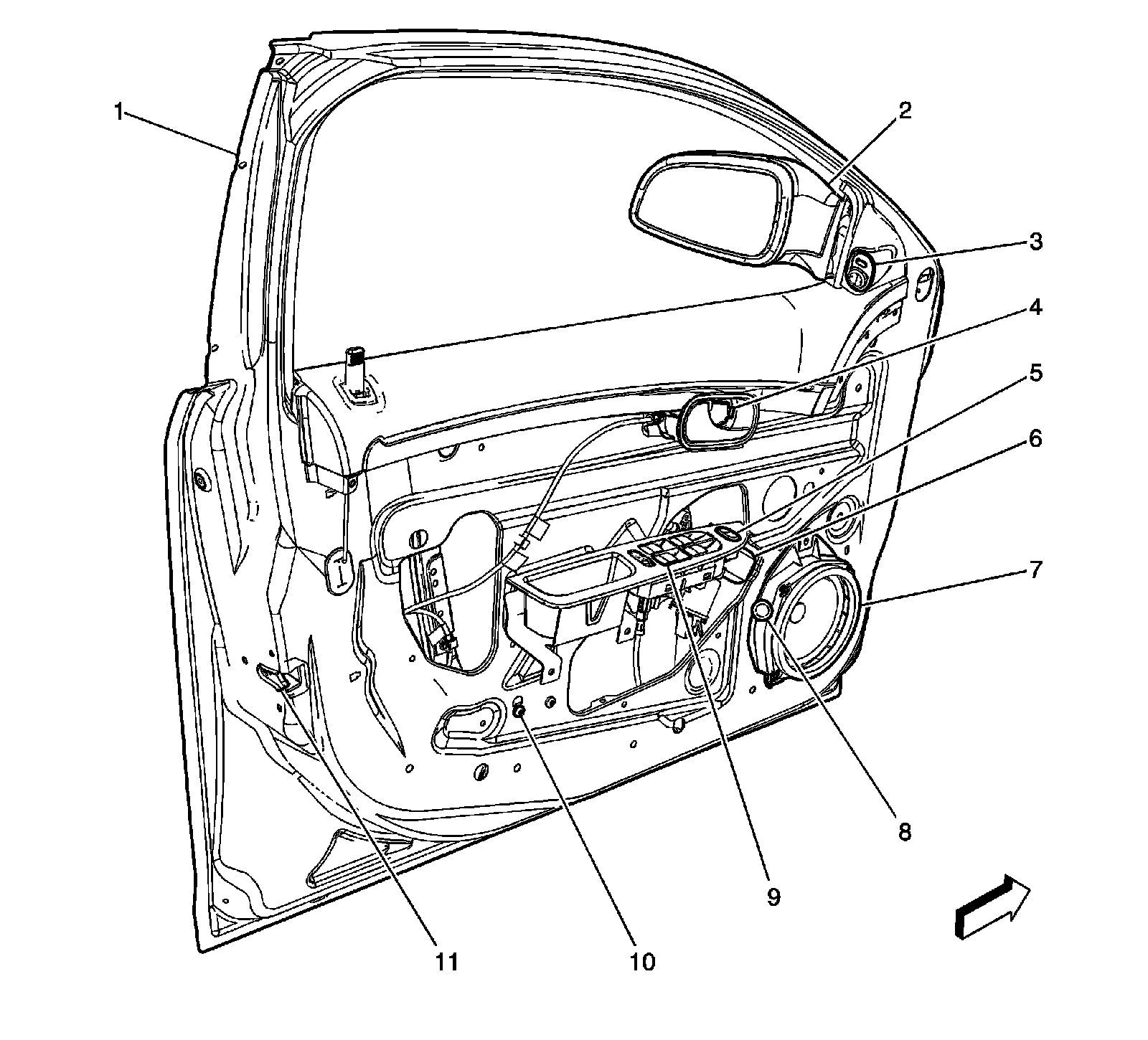

Driver Door Components




1 - Door Frame
2 - Outside Rearview Mirror - Driver
3 - Outside Rearview Mirror Switch
4 - Courtesy Lamp - Left Front Door
5 - Door Lock Switch - Driver
6 - Window Motor - Driver
7 - Speaker - Left Front Door
8 - Rear Compartment Lid Release Switch
9 - Window Switch - Driver
10 - Inflatable Restraint Side Impact Sensor - Left (AY0)
11 - Door Latch Assembly - Driver

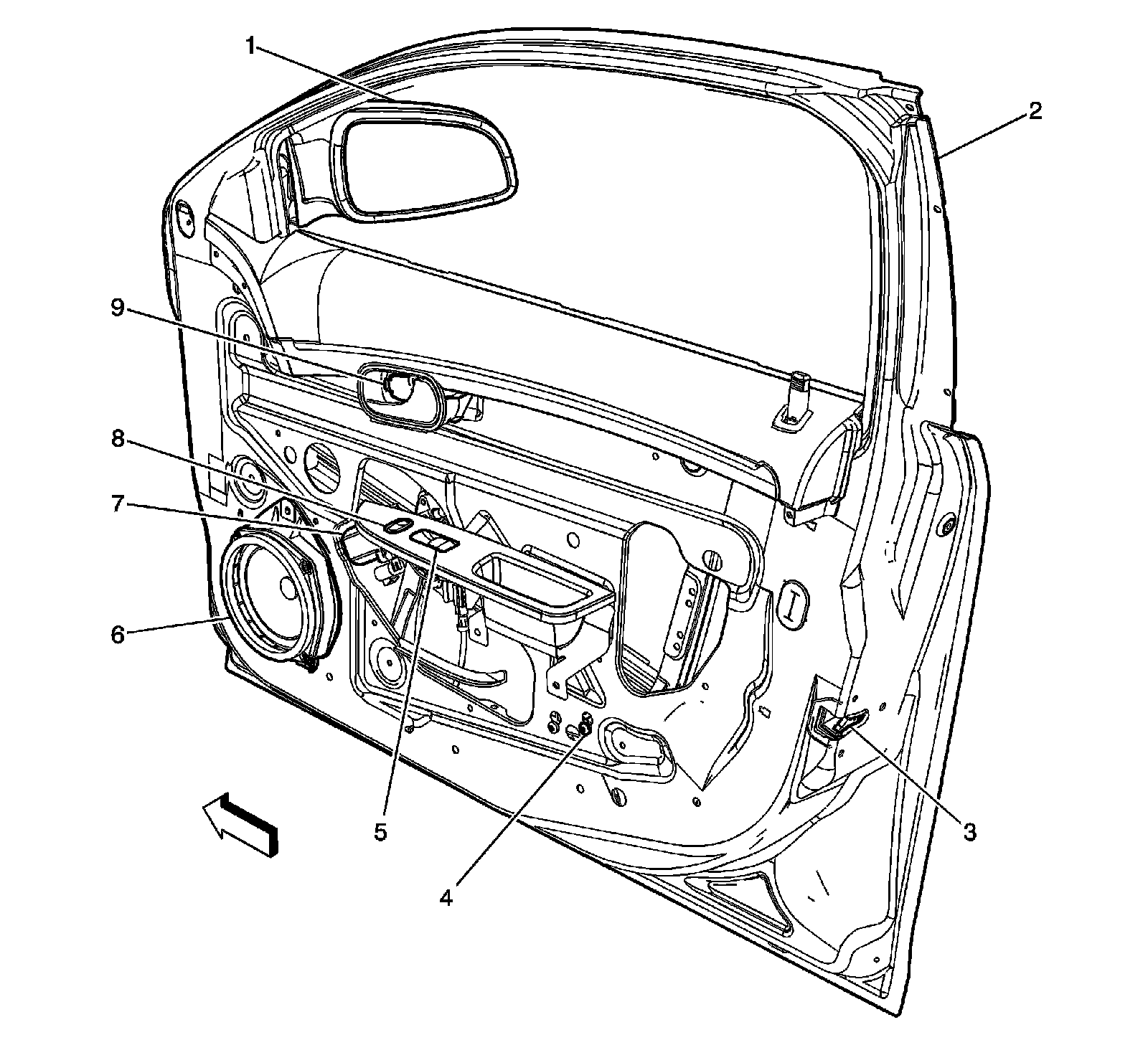

Passenger Door Components




1 - Outside Rearview Mirror - Passenger
2 - Door Frame
3 - Door Latch Assembly - Passenger
4 - Inflatable Restraint Side Impact Sensor - Right (AY0)
5 - Window Switch - Passenger
6 - Speaker - Right Front Door
7 - Window Motor - Passenger
8 - Door Lock Switch - Passenger
9 - Courtesy Lamp - Right Front Door

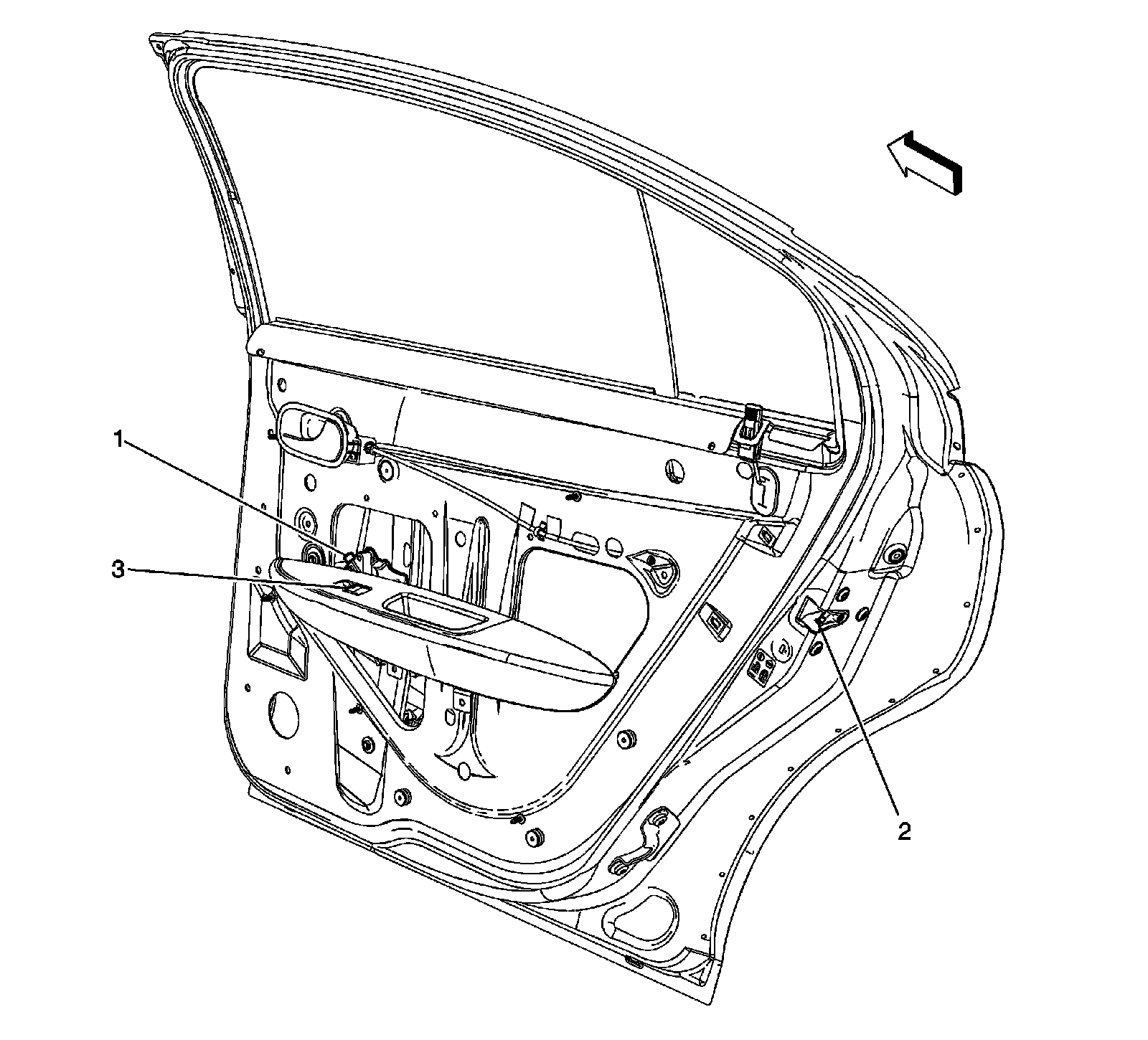

Left Rear Door Components




1 - Door Latch Assembly - Left Rear
2 - Window Switch - Left Rear
3 - Window Motor - Left Rear

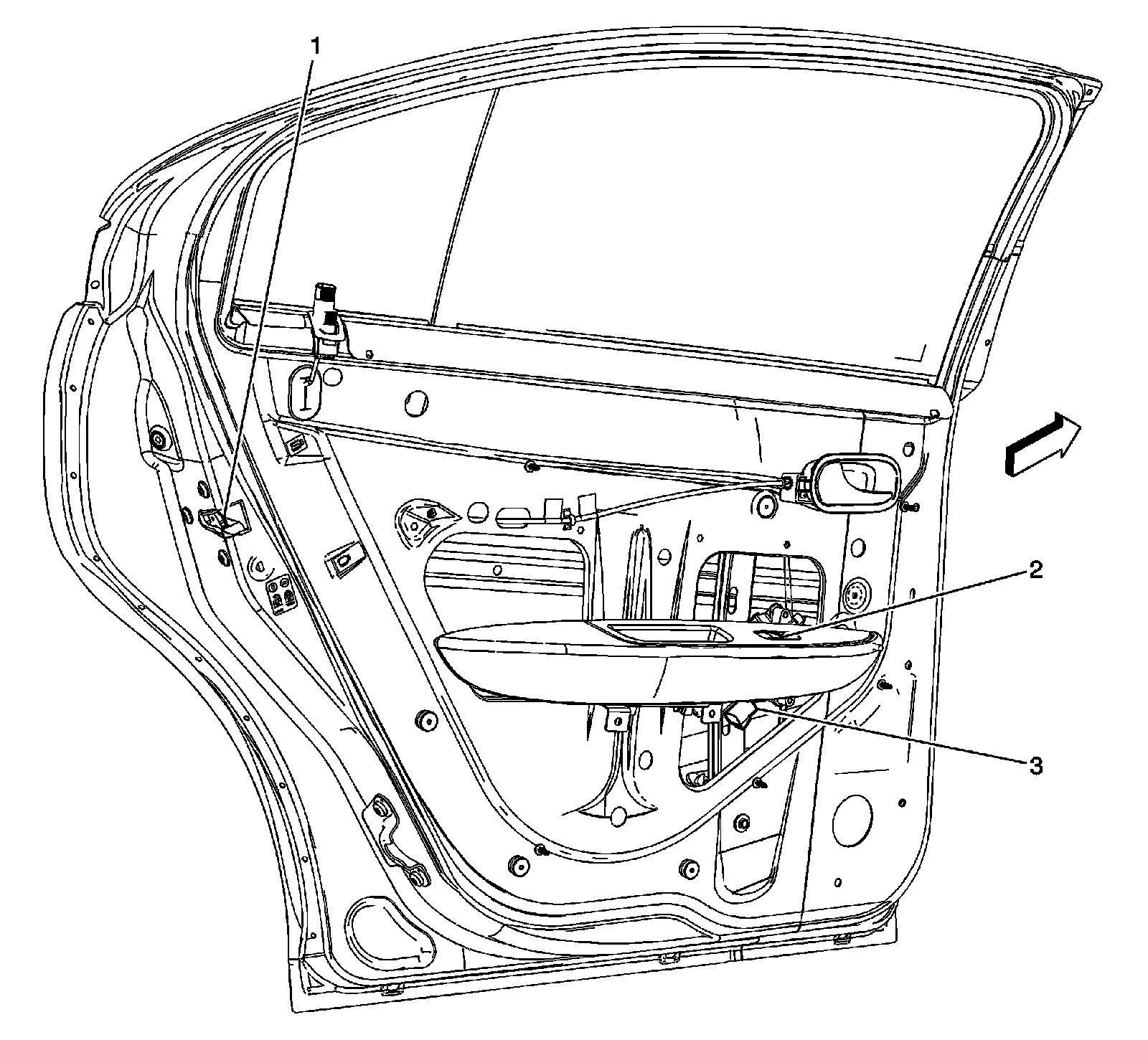

Right Rear Door Components




1 - Window Motor - Right Rear
2 - Door Latch Assembly - Right Rear
3 - Window Switch - Right Rear
