Acceleration/Deceleration Sensor



Component Connector End Views

Yaw Rate and Lateral Acceleration Sensor (BAS)

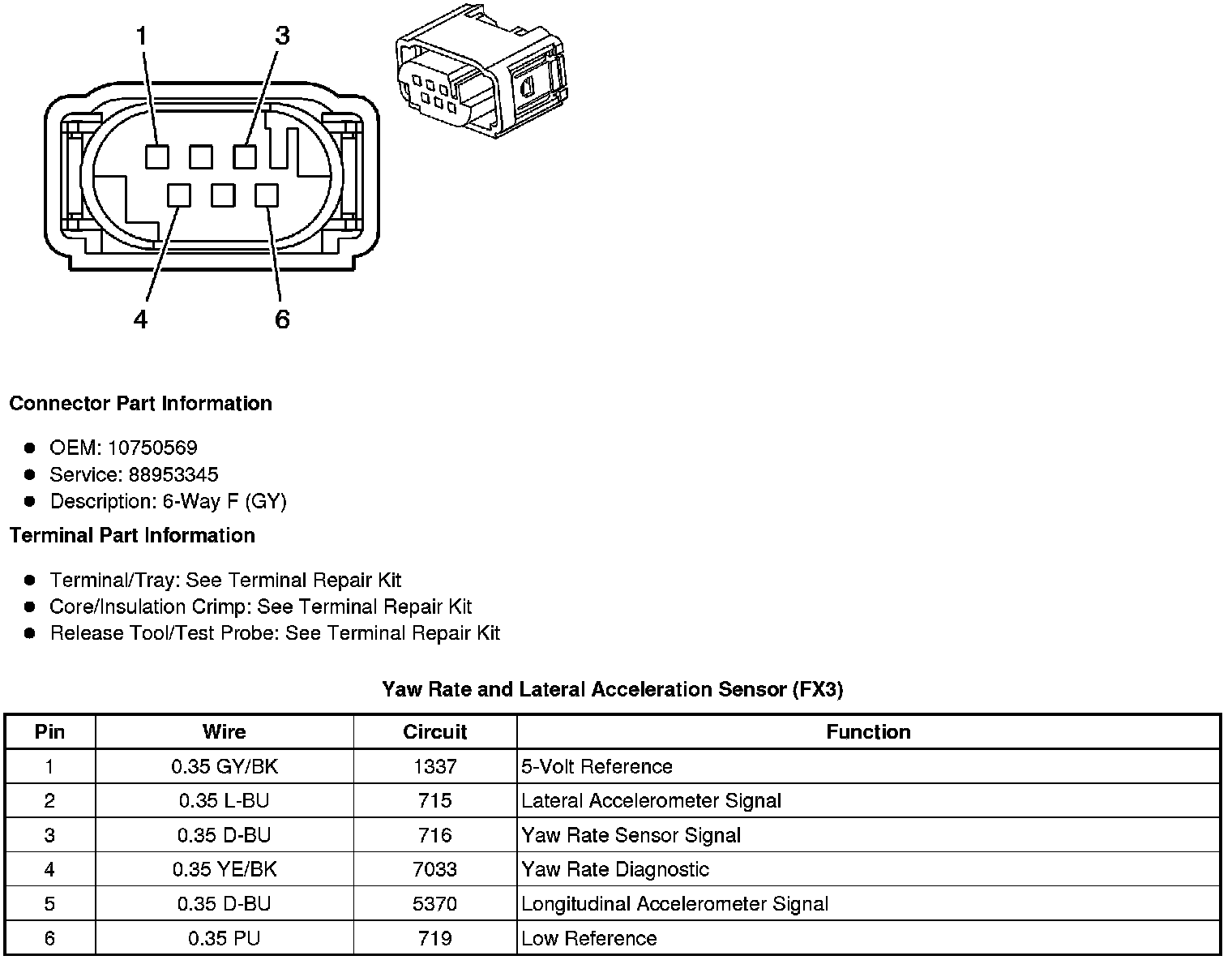

Yaw Rate and Lateral Acceleration Sensor (FX3)
