Power Seat Switch



Component Connector End Views

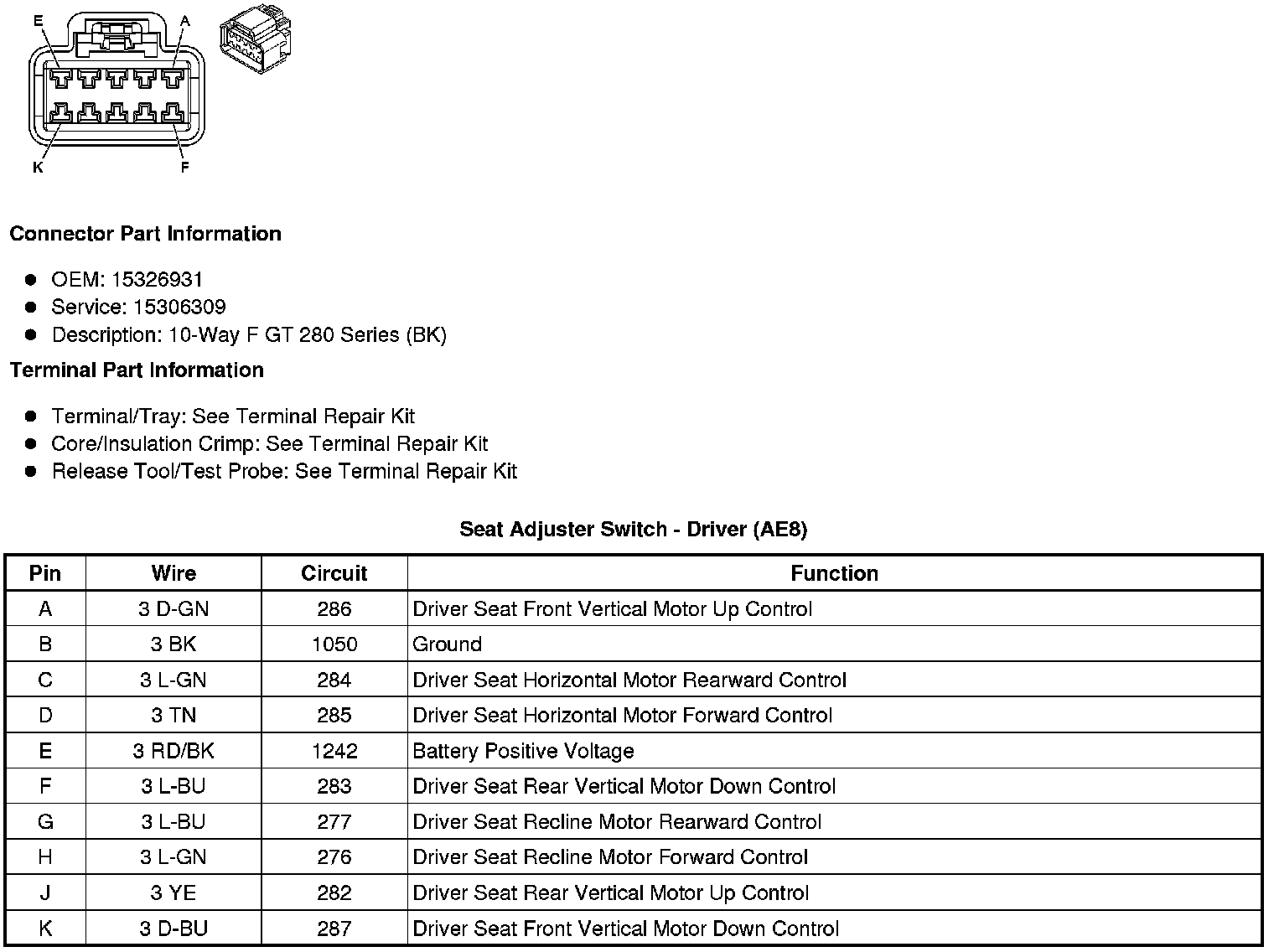

Seat Adjuster Switch - Driver (AE8)






Seat Adjuster Switch - Driver (AF2)

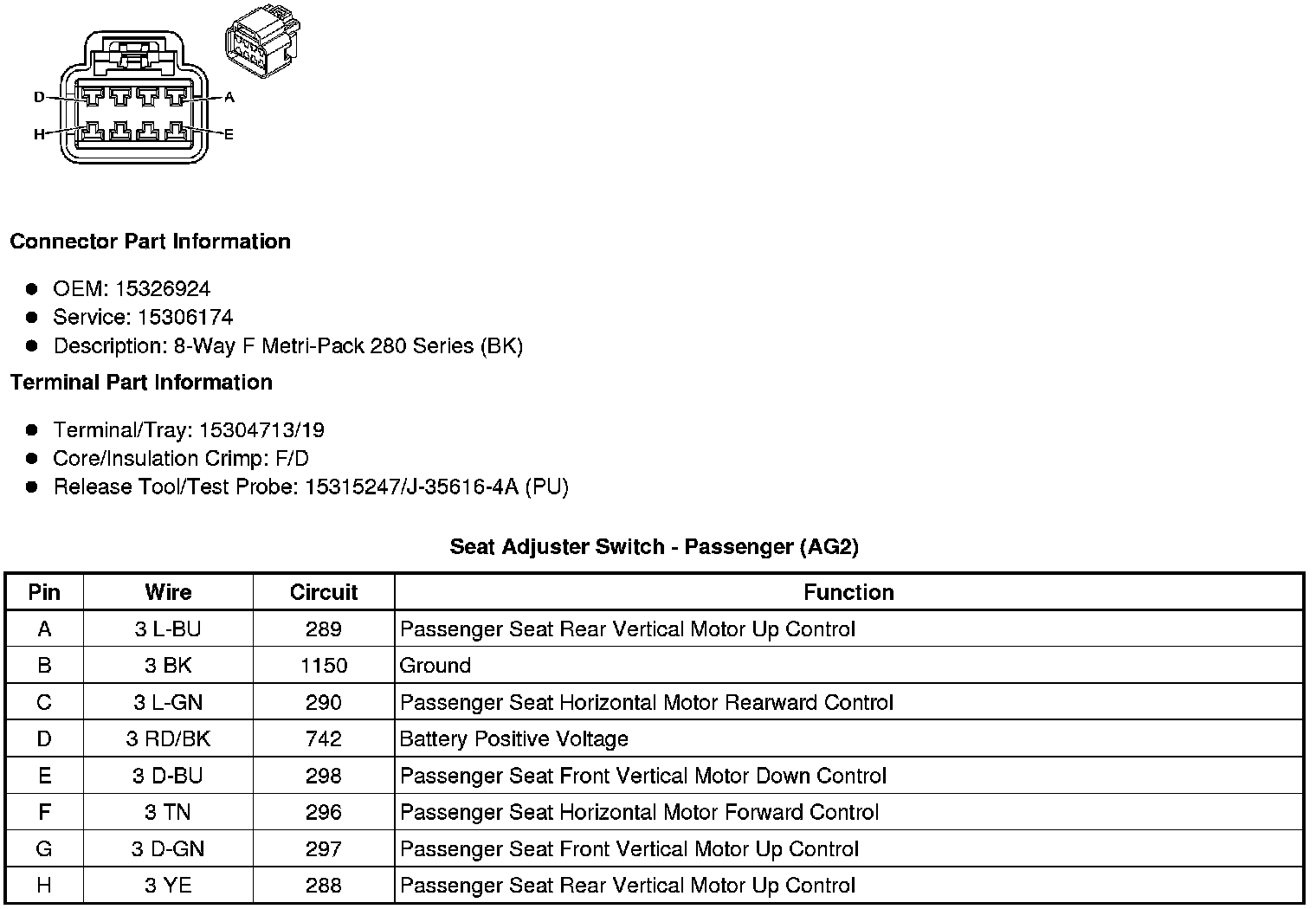

Seat Adjuster Switch - Passenger (AG2)
