Connector Views



Component Connector End Views

Knock Sensor (KS) (LAT/LE5)






Knock Sensor (KS) 1 (LY7)

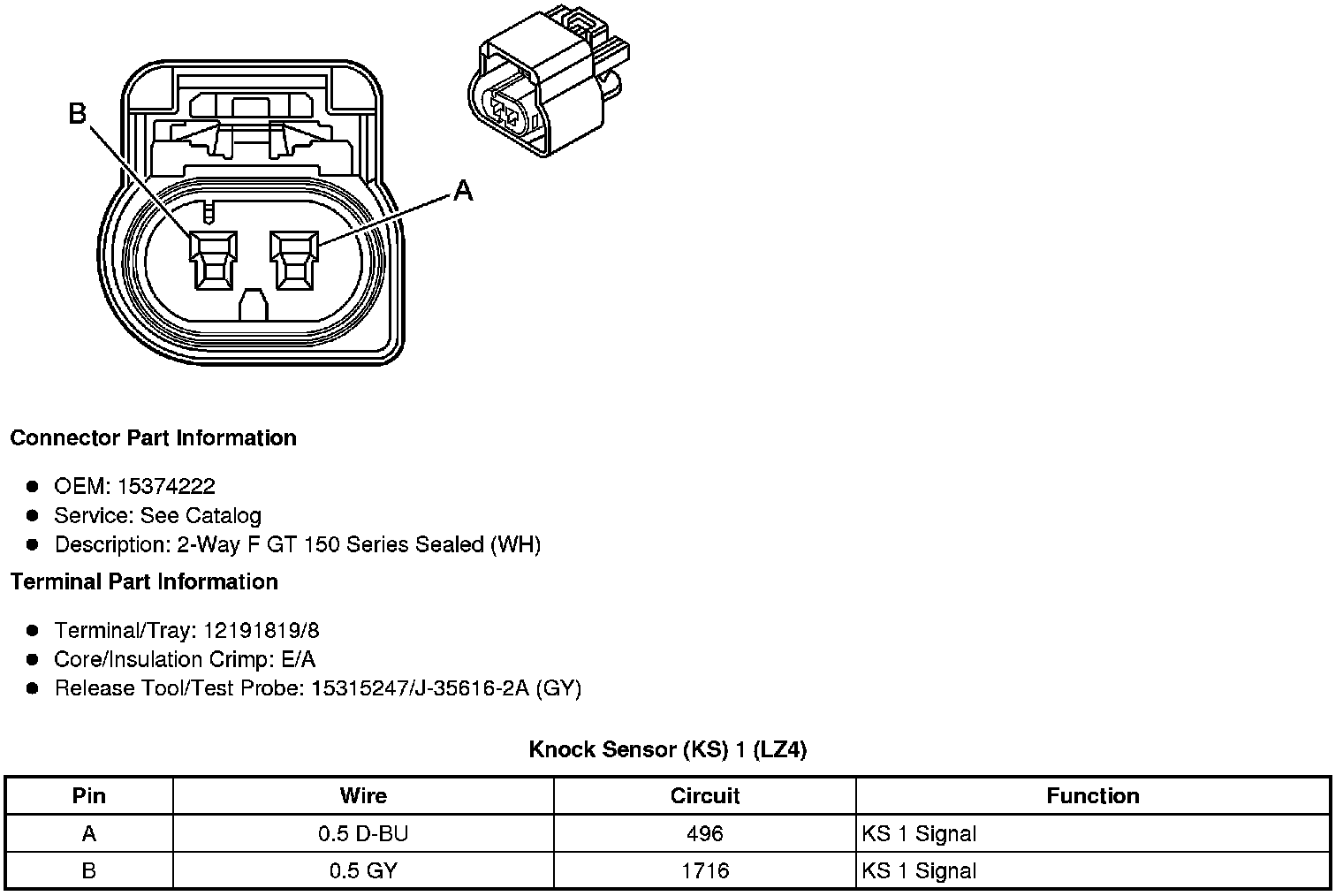

Knock Sensor (KS) 1 (LZ4)






Knock Sensor (KS) 2 (LY7)














Knock Sensor (KS) 2 (LZ4)
