Saturn
>>
2008
>>
Sky L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
Release Systems Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

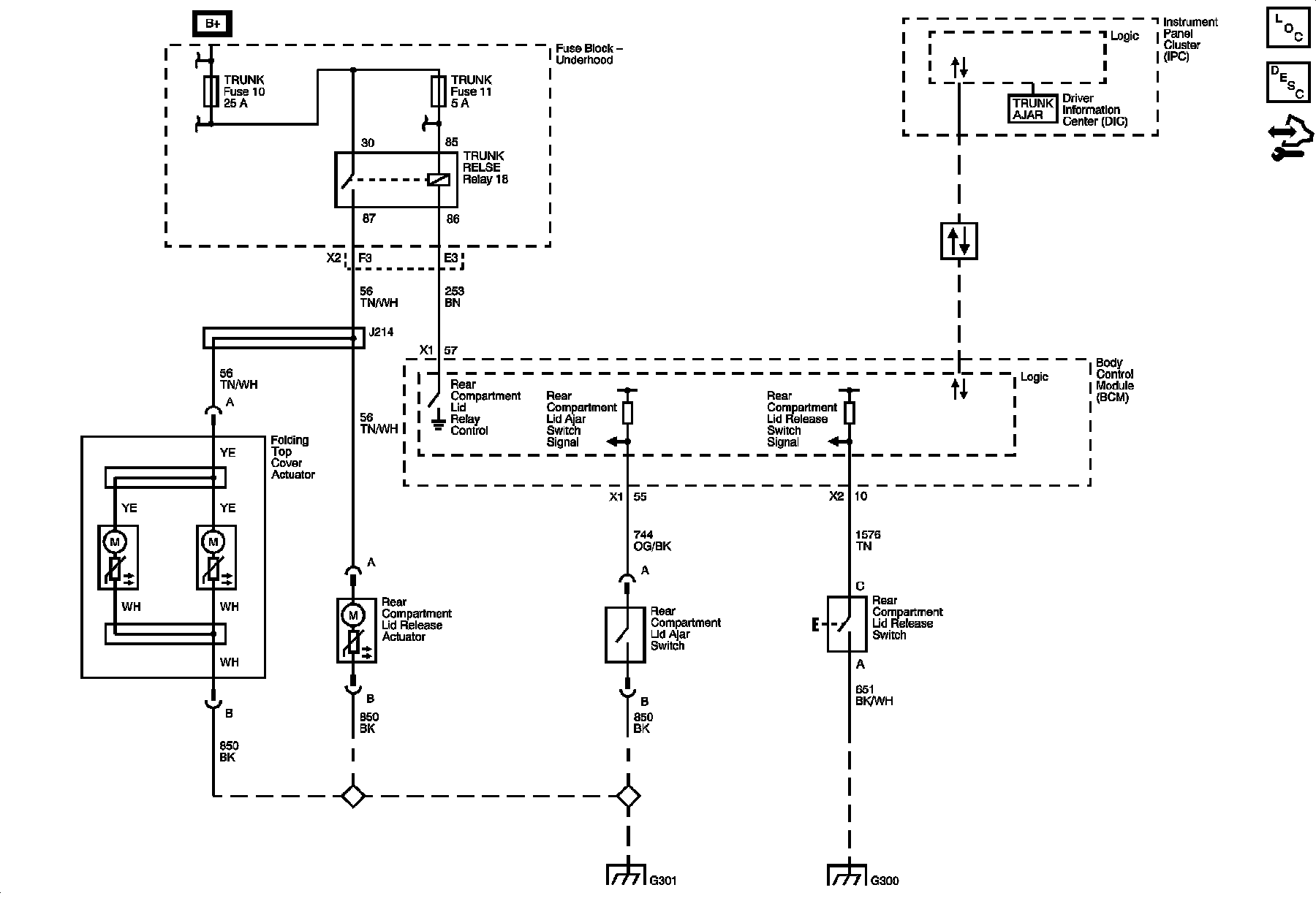

Release Systems Schematics
Release Systems Schematics
