Wheels/Vehicle Underbody Component Views

Wheels/Vehicle Underbody Component Views

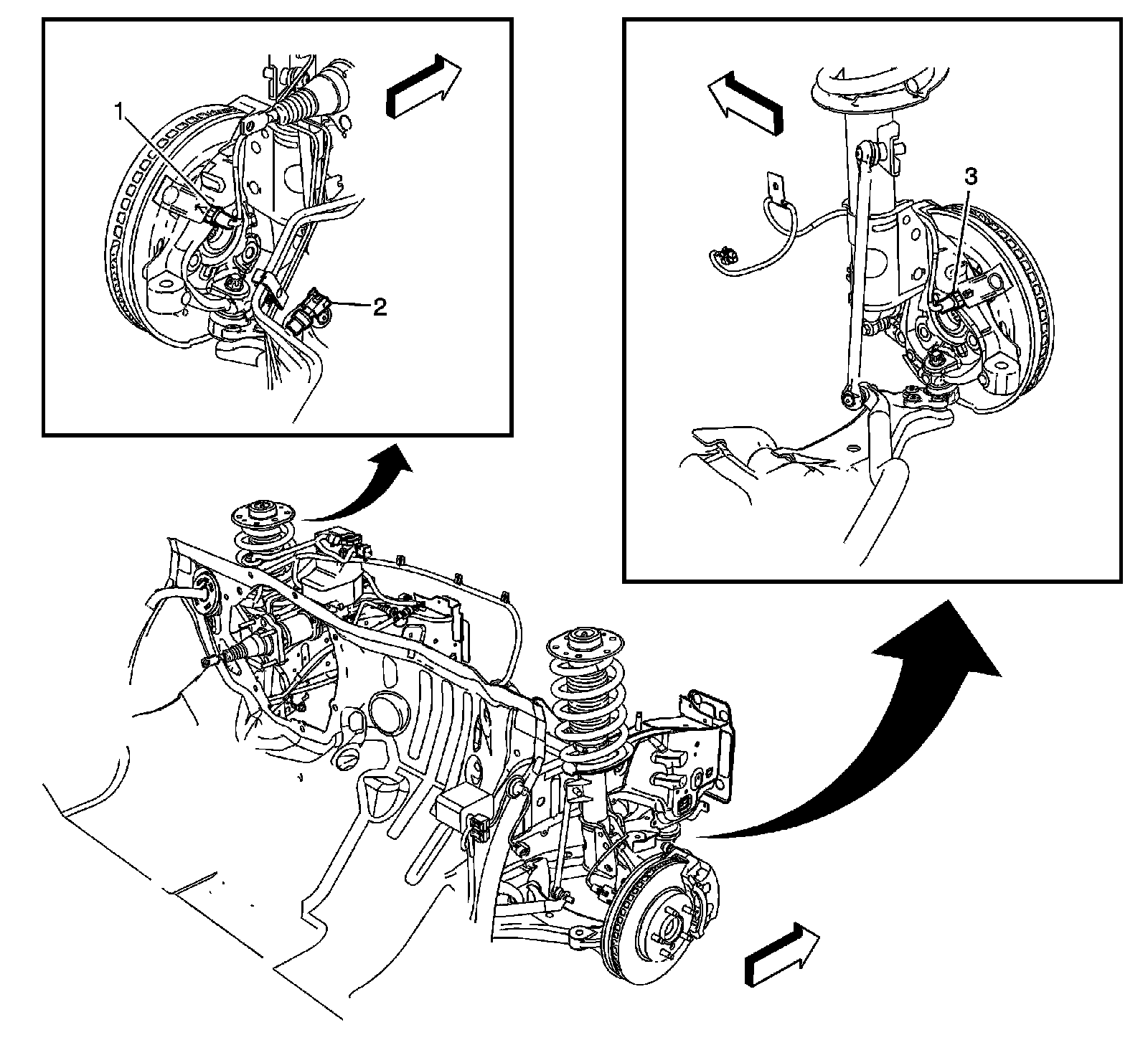

Front Wheel Speed Sensors and Fuel Line Pressure Sensor




1 - Wheel Speed Sensor (WSS) - Left Front
2 - Fuel Line Pressure Sensor
3 - Wheel Speed Sensor (WSS) - Right Front

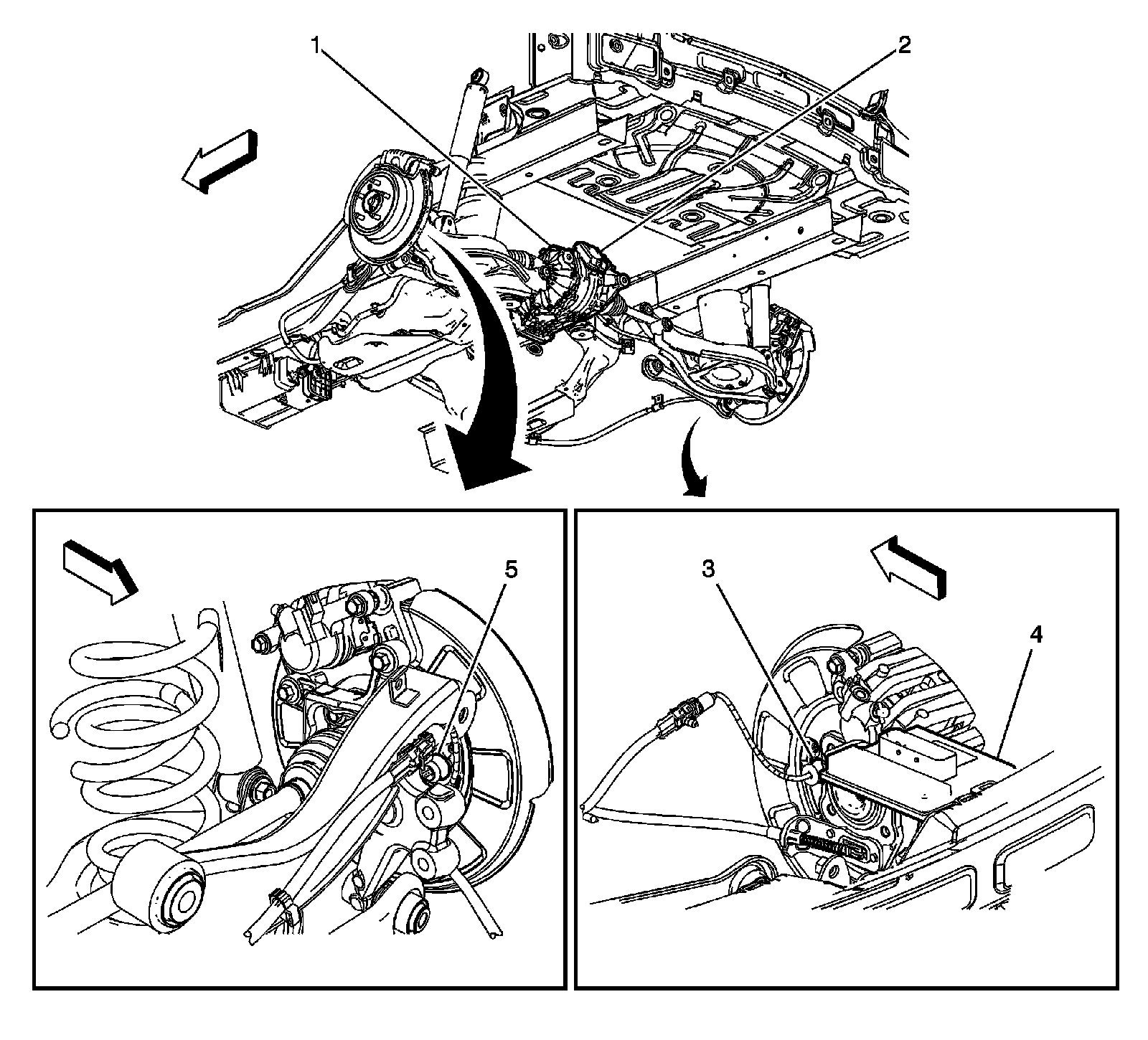

Rear Frame and Underbody Components




1 - Rear Differential (With AWD)
2 - Rear Differential Clutch Control Module (With AWD)
3 - Wheel Speed Sensor (WSS) - Right Rear
4 - Fuel System Control Module
5 - Wheel Speed Sensor (WSS) - Left Rear

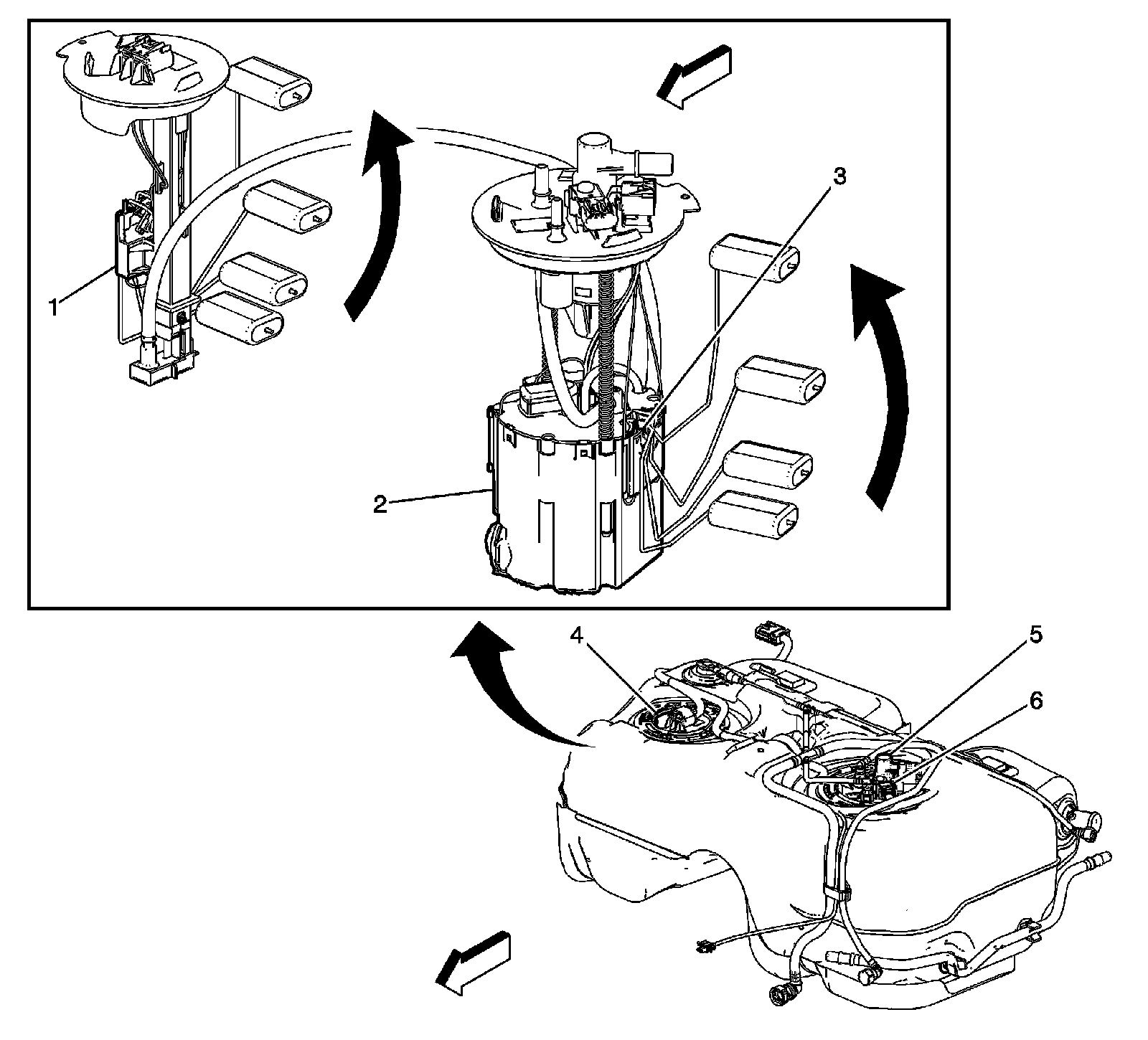

Fuel Tank - Components




1 - Fuel Level Sensor - Secondary
2 - Fuel Pump
3 - Fuel Level Sensor - Primary/Fuel Pump
4 - Fuel Sender Assembly - Secondary
5 - Fuel Pump and Sender Assembly - Primary
6 - Fuel Tank Pressure (FTP) Sensor

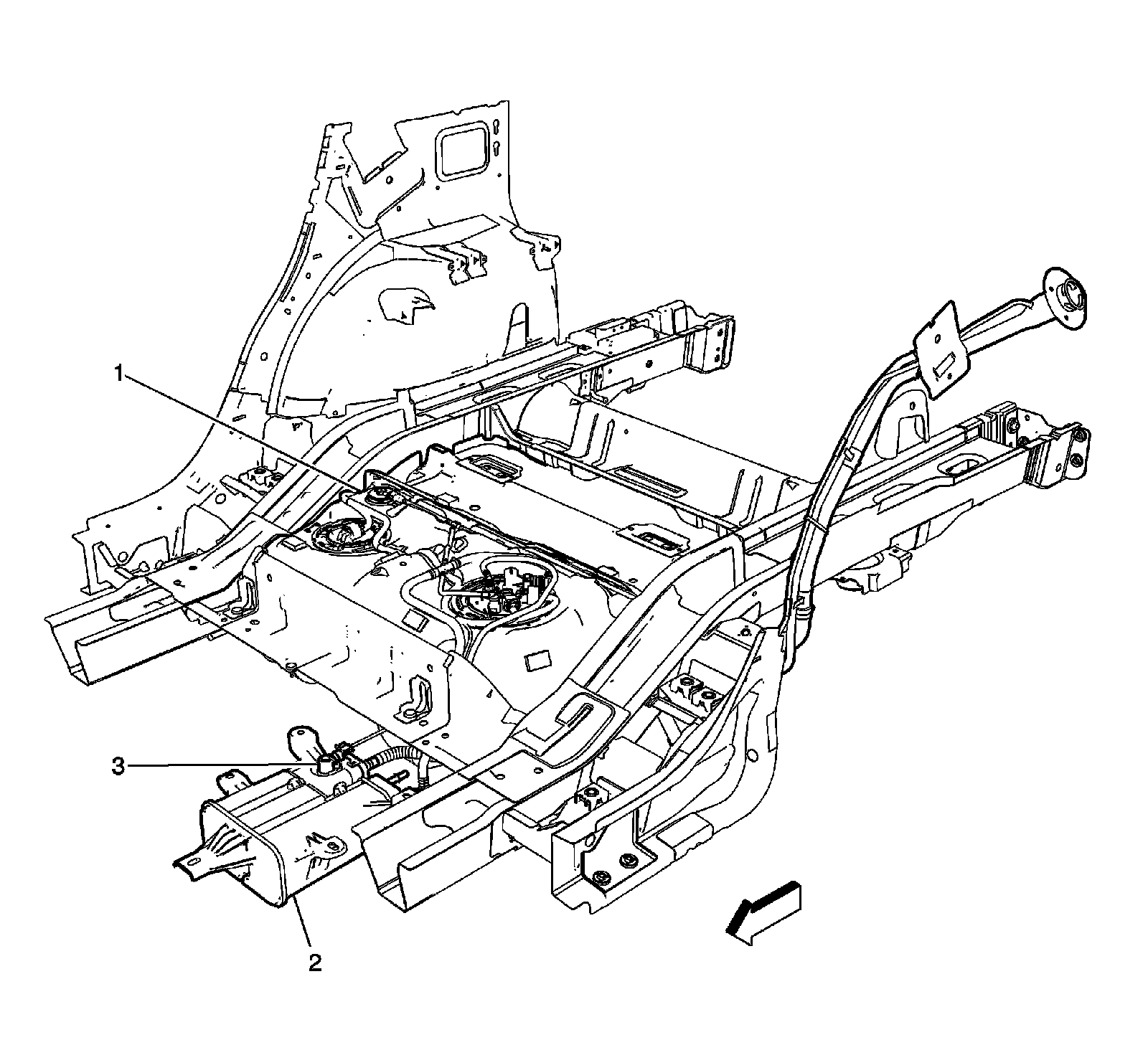

Evaporative Emissions (EVAP) Canister Vent Solenoid Valve




1 - Fuel Tank
2 - EVAP Canister
3 - EVAP Canister Vent Solenoid Valve
