Heating and Air Conditioning



A/C Compressor Clutch (-HP7)






A/C Compressor Clutch (HP7)

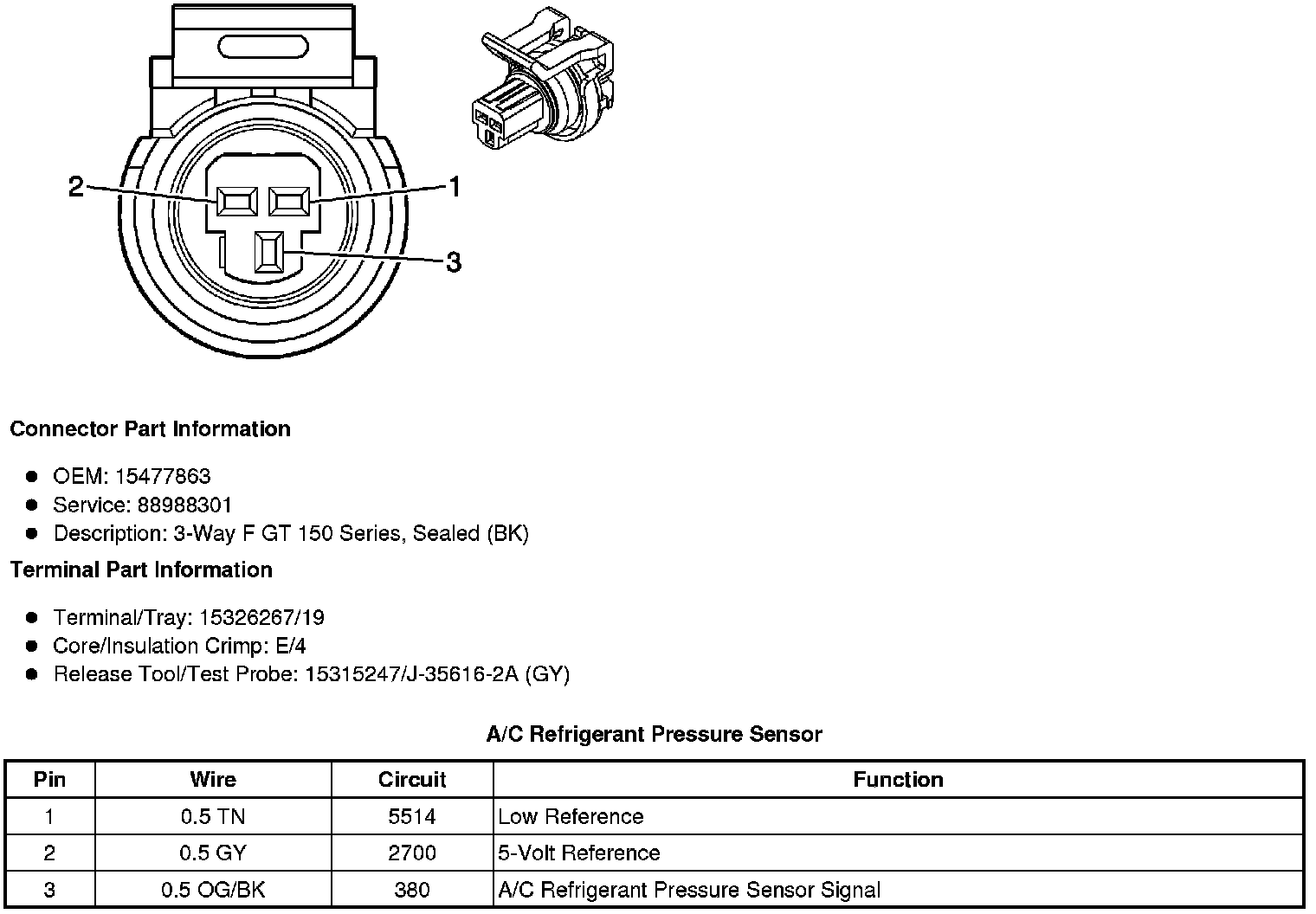

A/C Refrigerant Pressure Sensor





Air Temperature Actuator - Right


Ambient Air Temperature Sensor (C68)












Air Temperature Sensor - Lower (C68)






Air Temperature Sensor - Upper (C68)

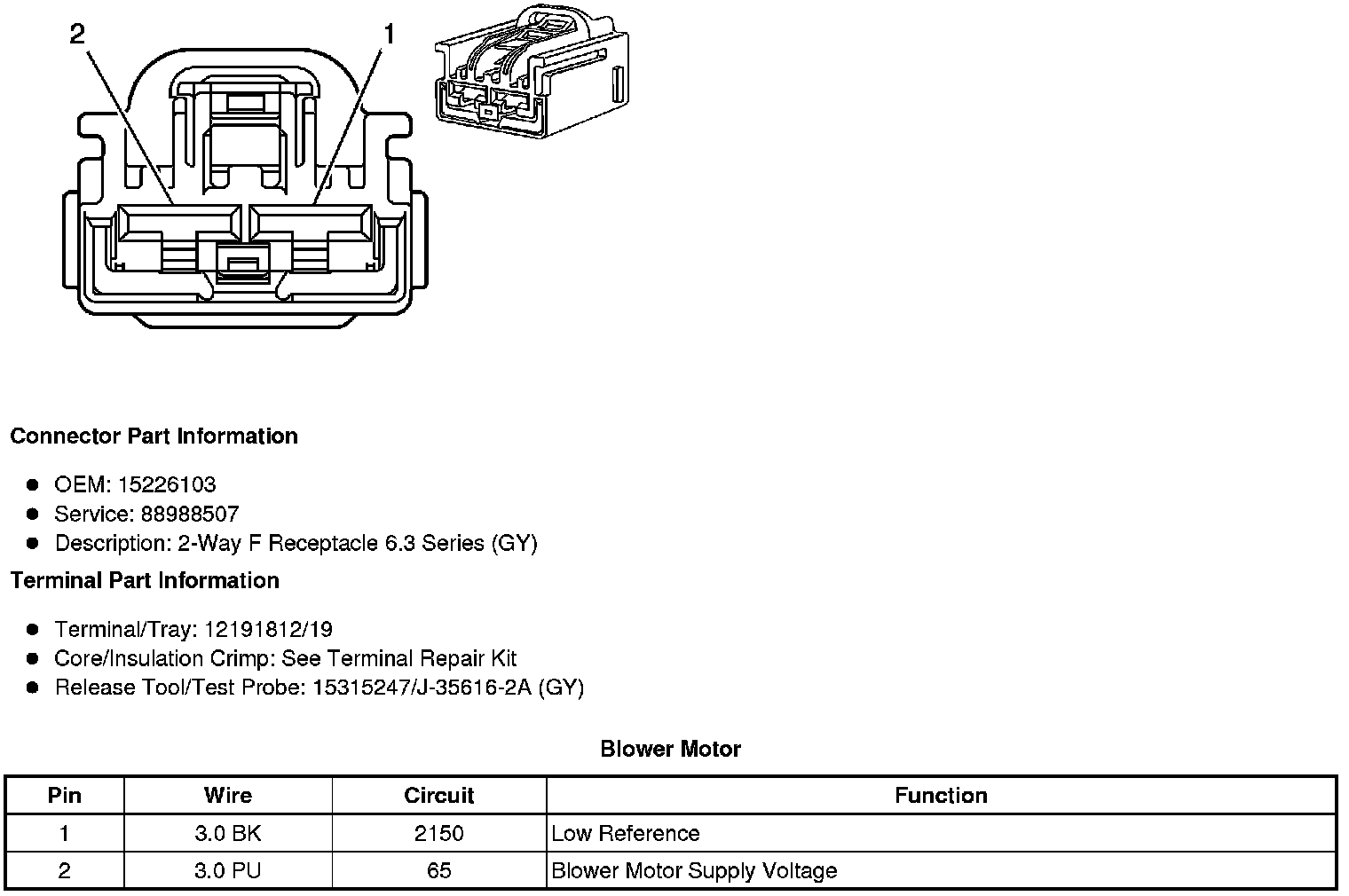

Blower Motor

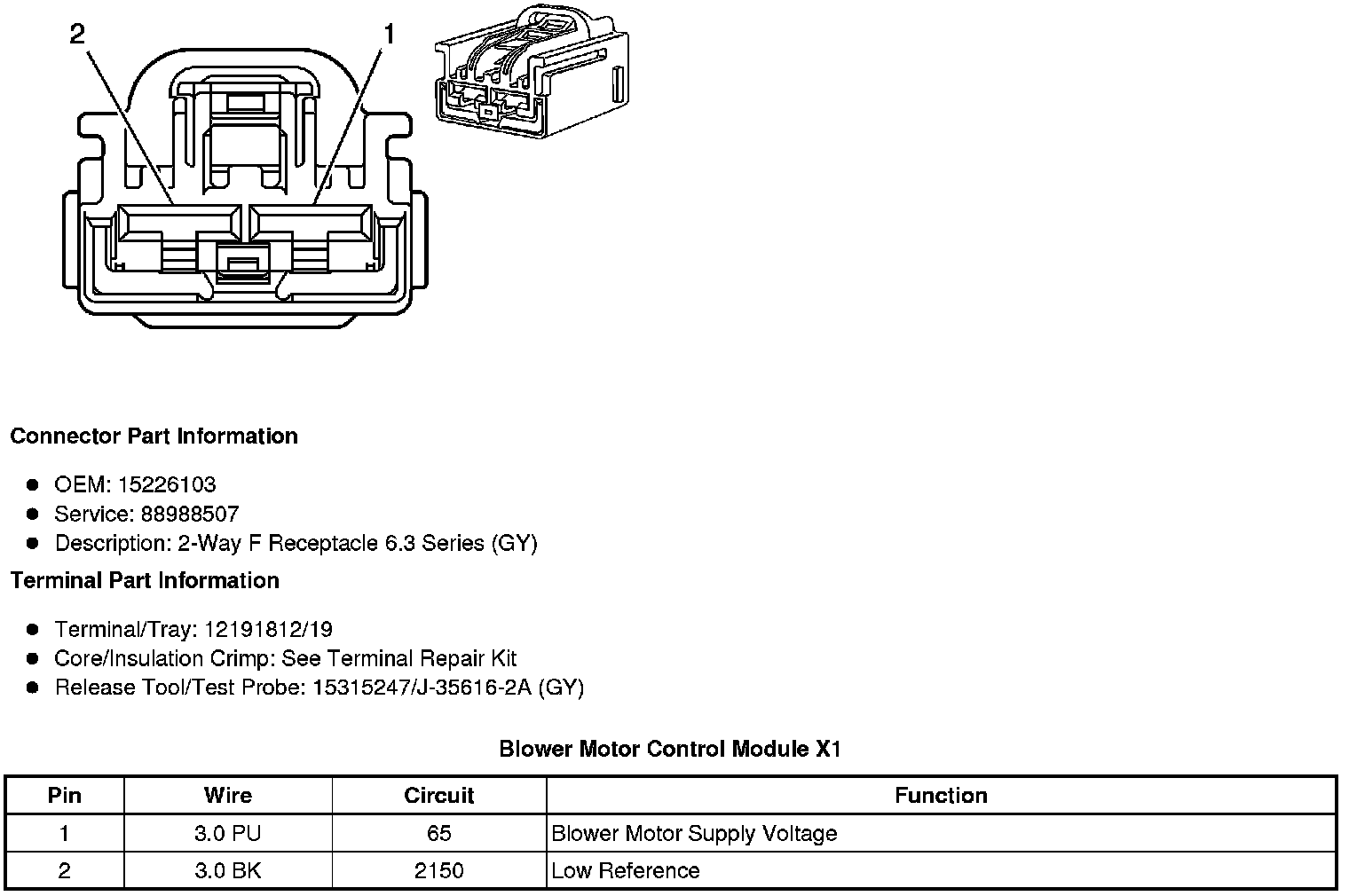

Blower Motor Control Module X1

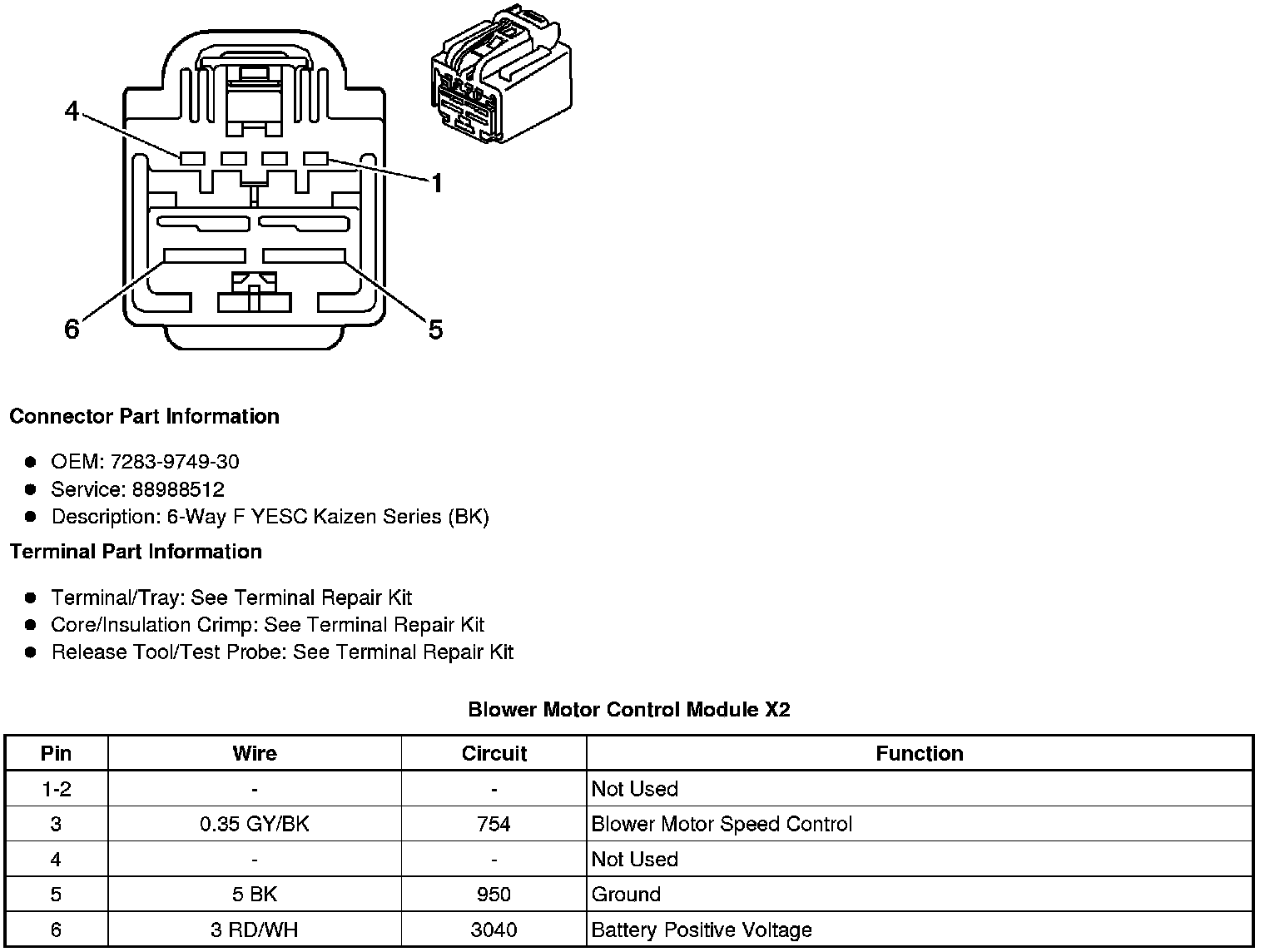

Blower Motor Control Module X2






HVAC Control Module X1 (C67)






HVAC Control Module X1 (C68)






HVAC Control Module X2






HVAC Control Module X3 (C67)






HVAC Control Module X3 (C68)






Inside Air Temperature Sensor Aspirator Assembly (C68)






Recirculation Actuator






Sunload Sensor (C68)
