Starting and Charging



Alternator (LE5 2.4L/LY7 3.6L/LZ4-3.5L 3.5L)






Auxiliary Power Outlet 1






Auxiliary Power Outlet - Rear






Battery Current Sensor






Battery Current Sensor (HP7)






Generator (-HP7)

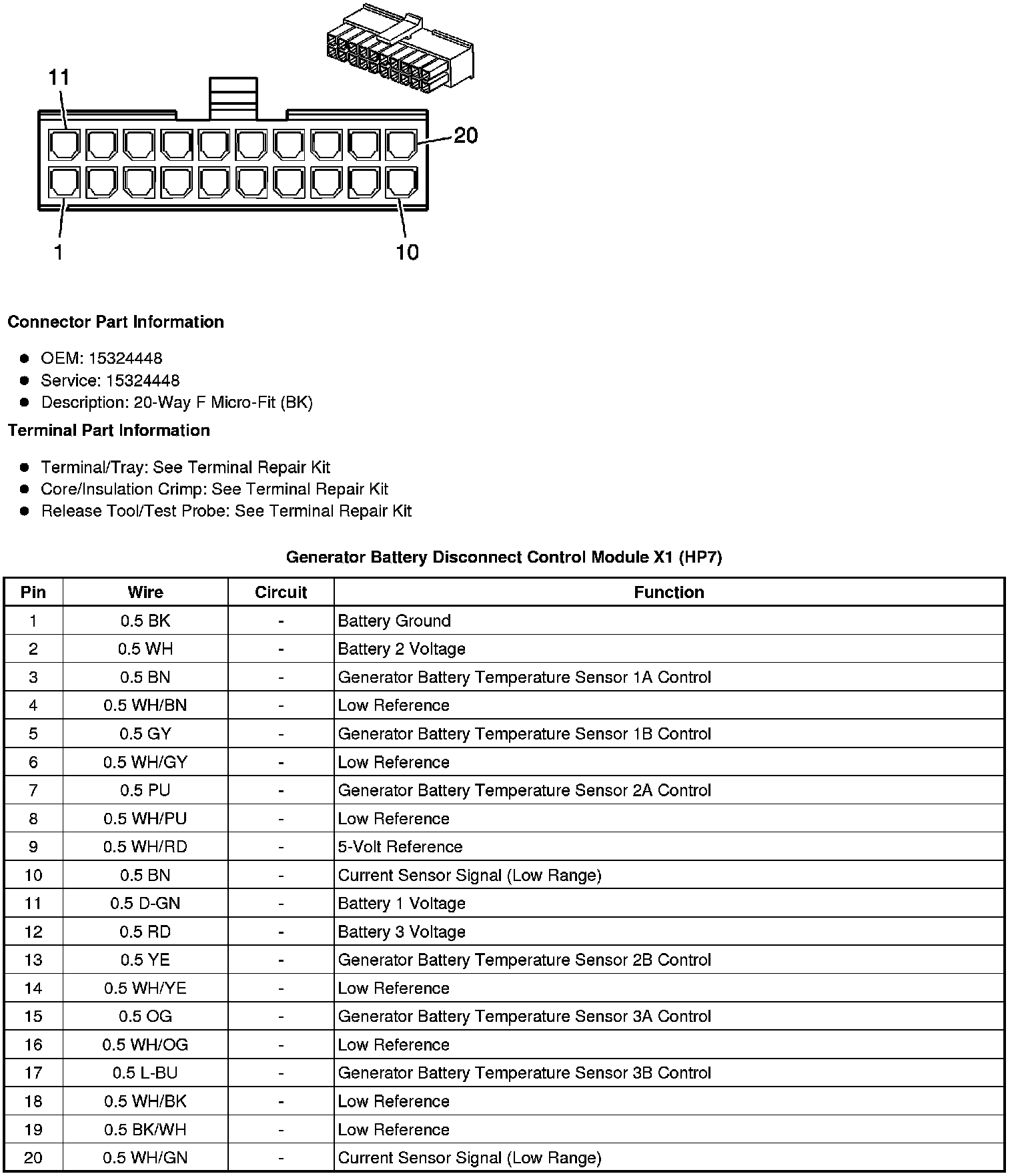

Generator Battery Disconnect Control Module X1 (HP7)

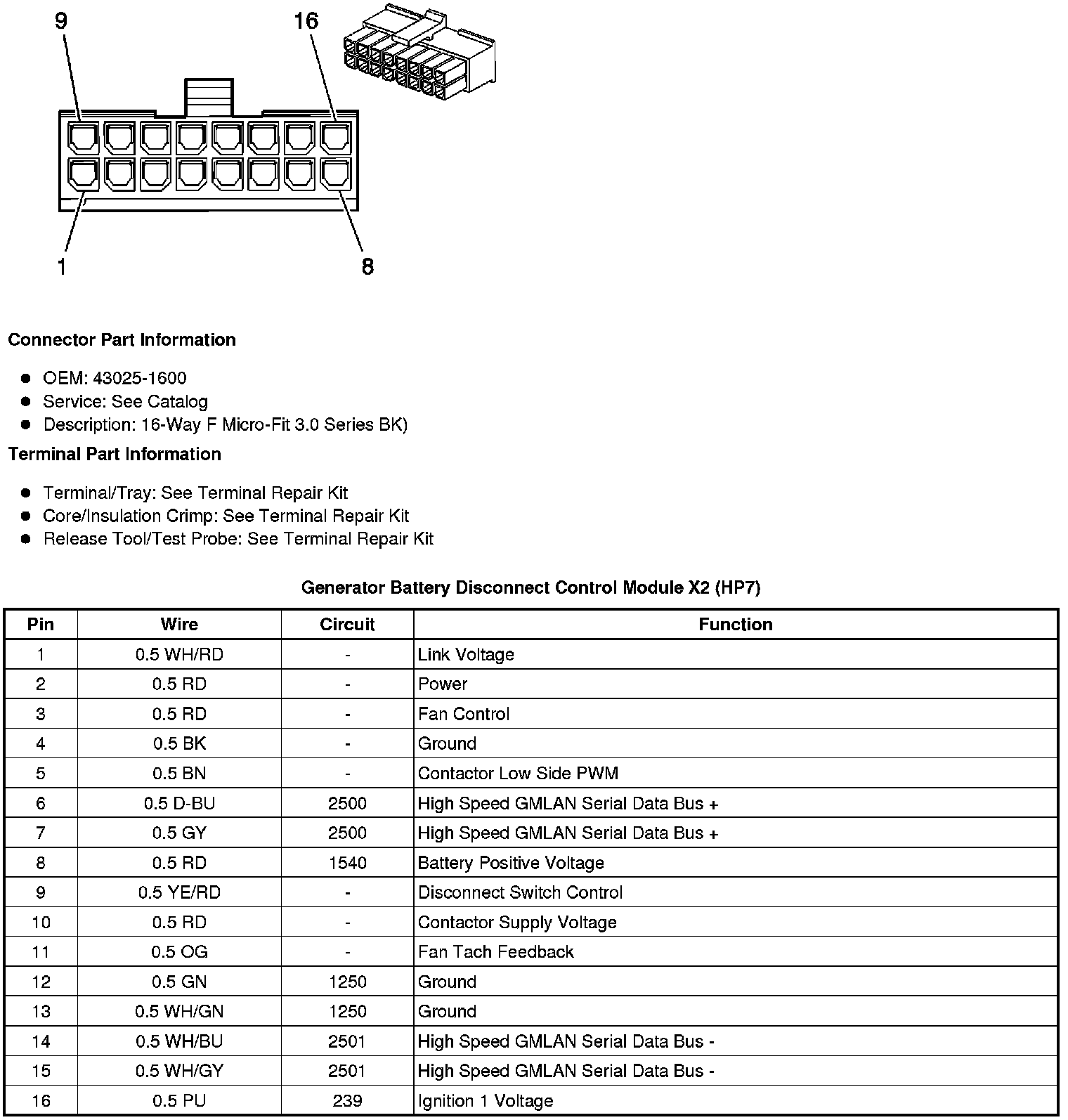

Generator Battery Disconnect Control Module X2 (HP7)






Generator Battery Vent Fan (HP7)






Generator Battery 1 (HP7)






Generator Battery 2 (HP7)






Generator Battery 3 (HP7)

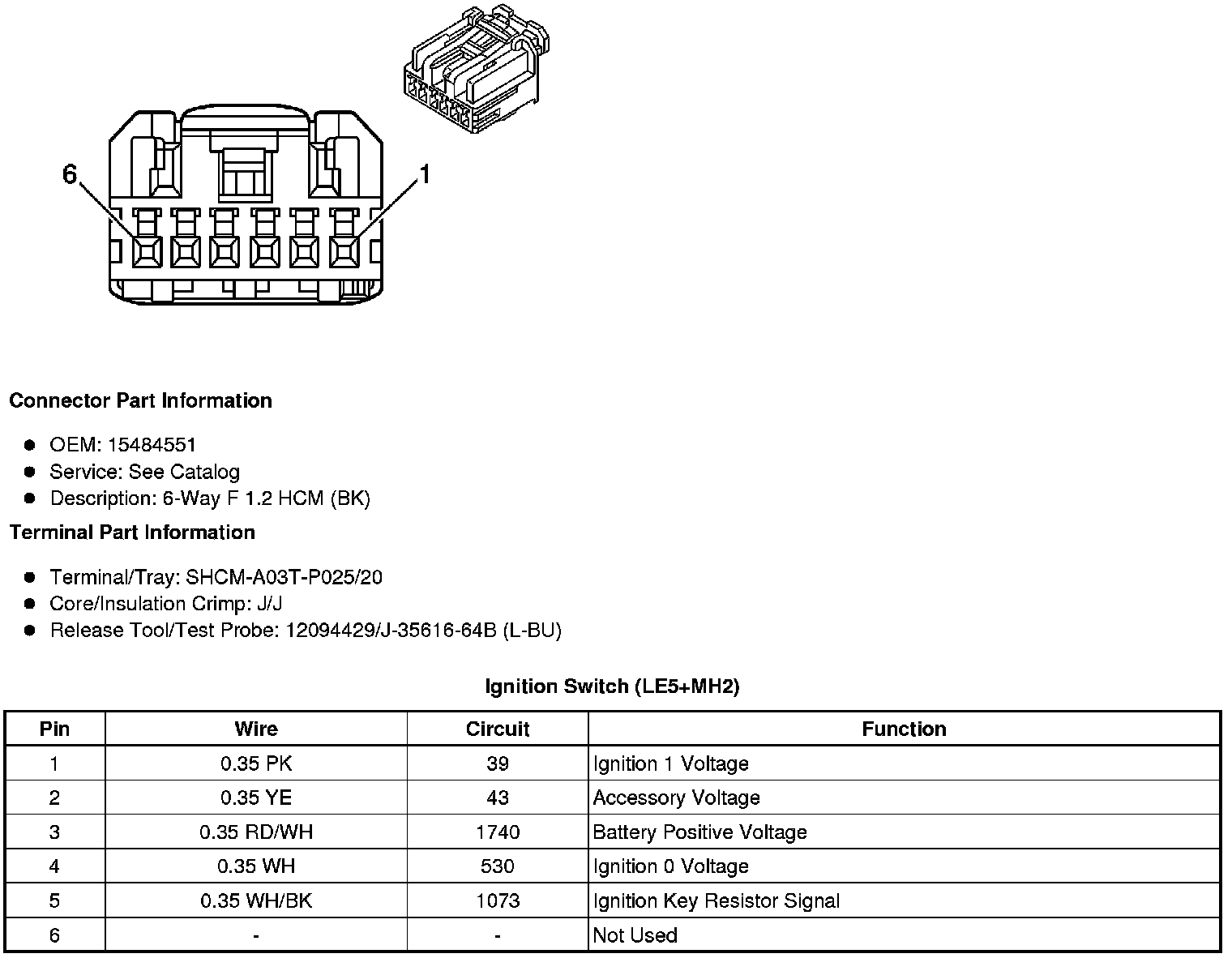

Ignition Switch (LE5 2.4L+MH2)

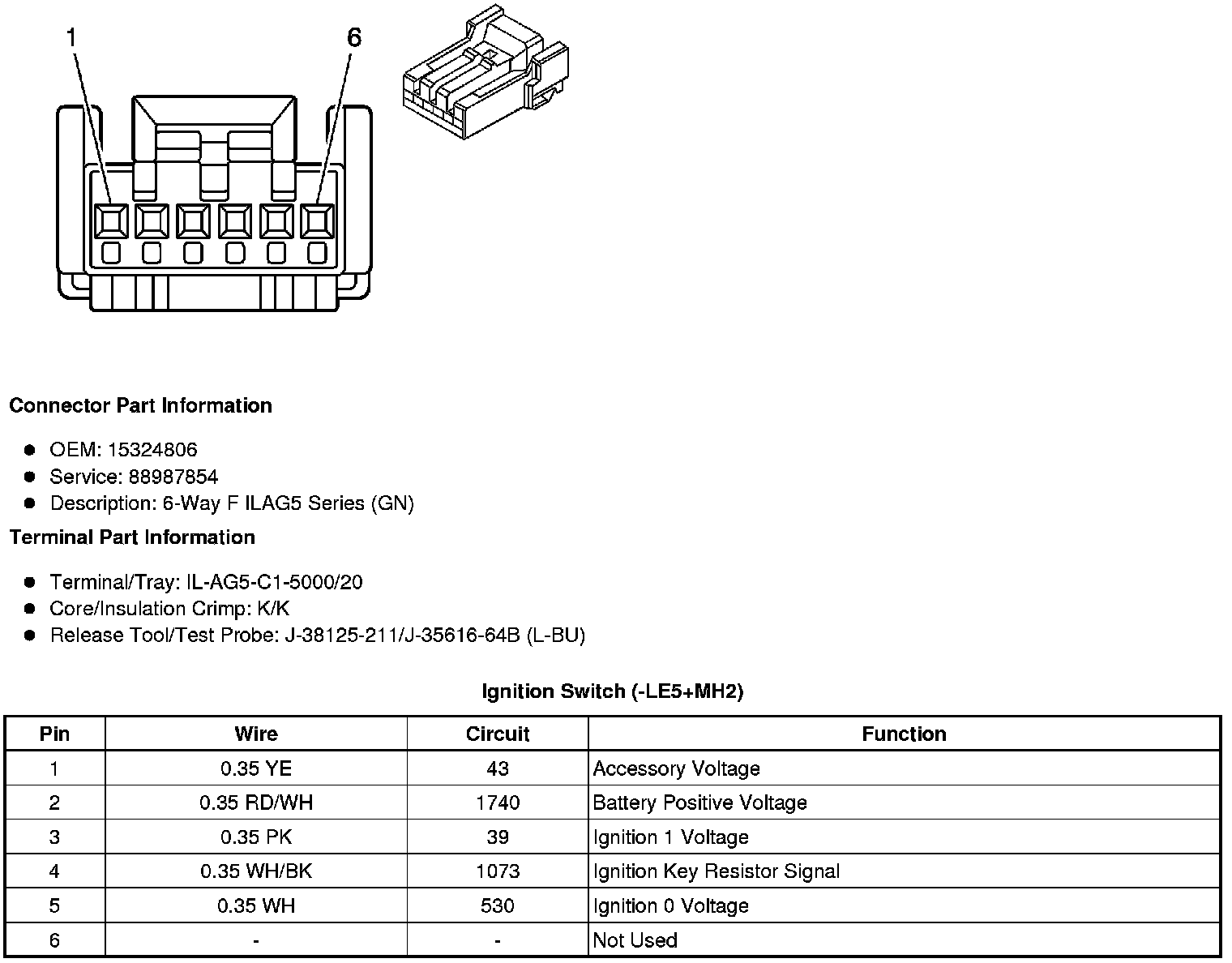

Ignition Switch (-LE5 2.4L+MH2)






Inline Fuse - Electric Power Steering (EPS)






Inline Fuse - Rear Defog Element






Starter Motor
