Camshaft Position Sensor Replacement - Intake

Camshaft Position Sensor Replacement - Intake

Removal Procedure

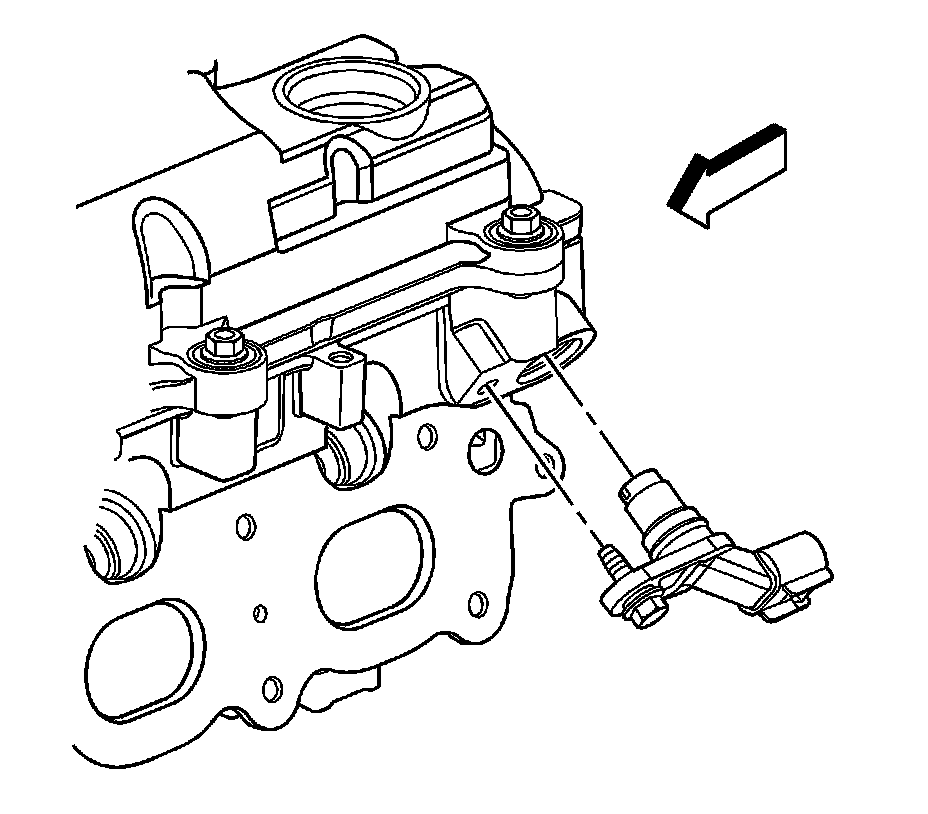

1. Disconnect the engine wiring harness electrical connector (1) from the intake camshaft position (CMP) sensor.




2. Remove the intake CMP sensor bolt.
3. Remove the intake CMP sensor.



Installation Procedure






Important: Inspect the intake CMP sensor for damage, replace as necessary.


1. Lubricate the intake CMP sensor O-ring seal with clean engine oil.
2. Install the intake CMP sensor.

Notice: Refer to Fastener Notice (Fastener Notice) .

3. Install the intake CMP sensor bolt.

Tighten the bolt to 10 N.m (89 lb in).





4. Connect the engine wiring harness electrical connector (1) to the intake CMP sensor.
