Starter Relay: Locations
Electrical Center Identification Views

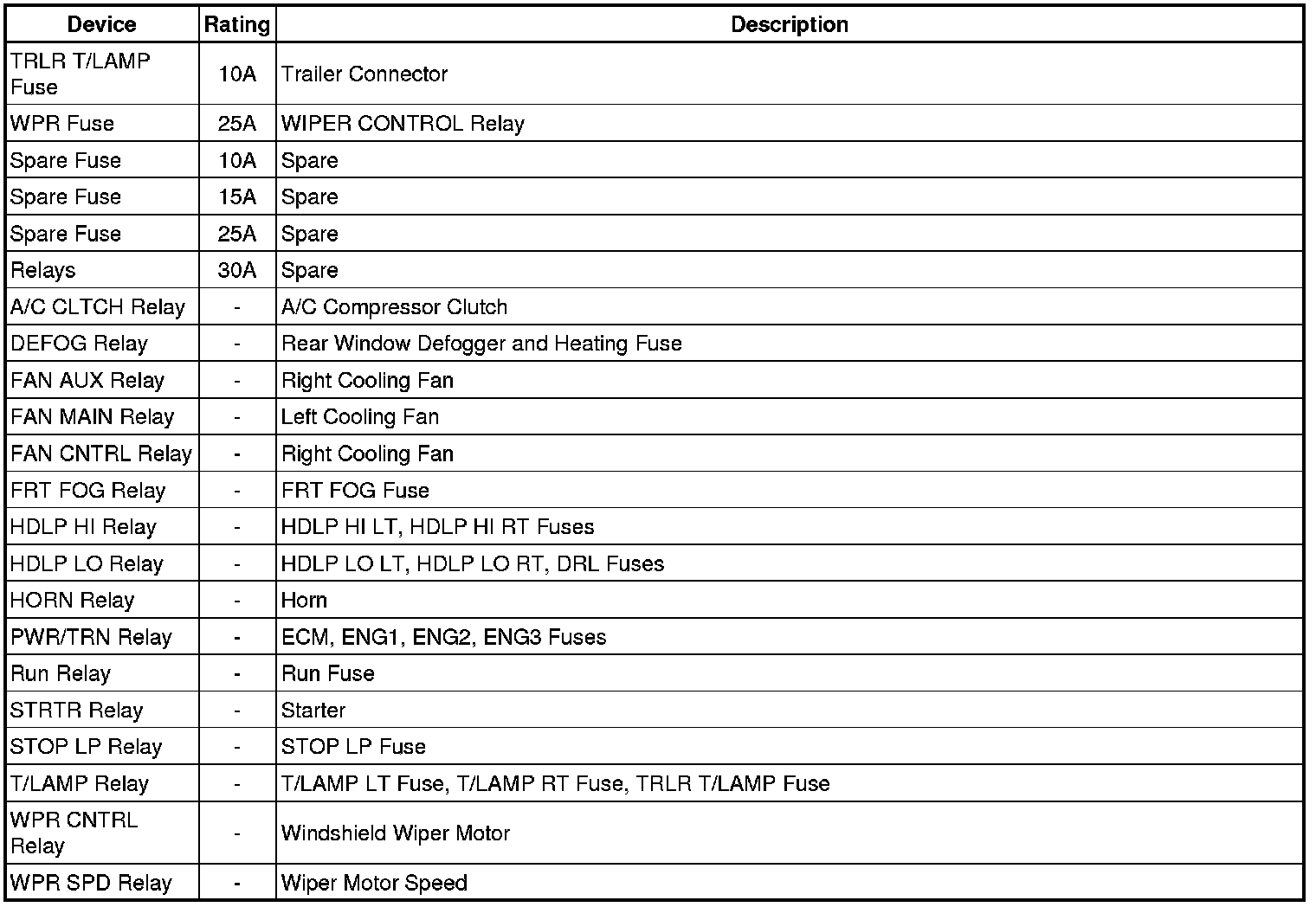

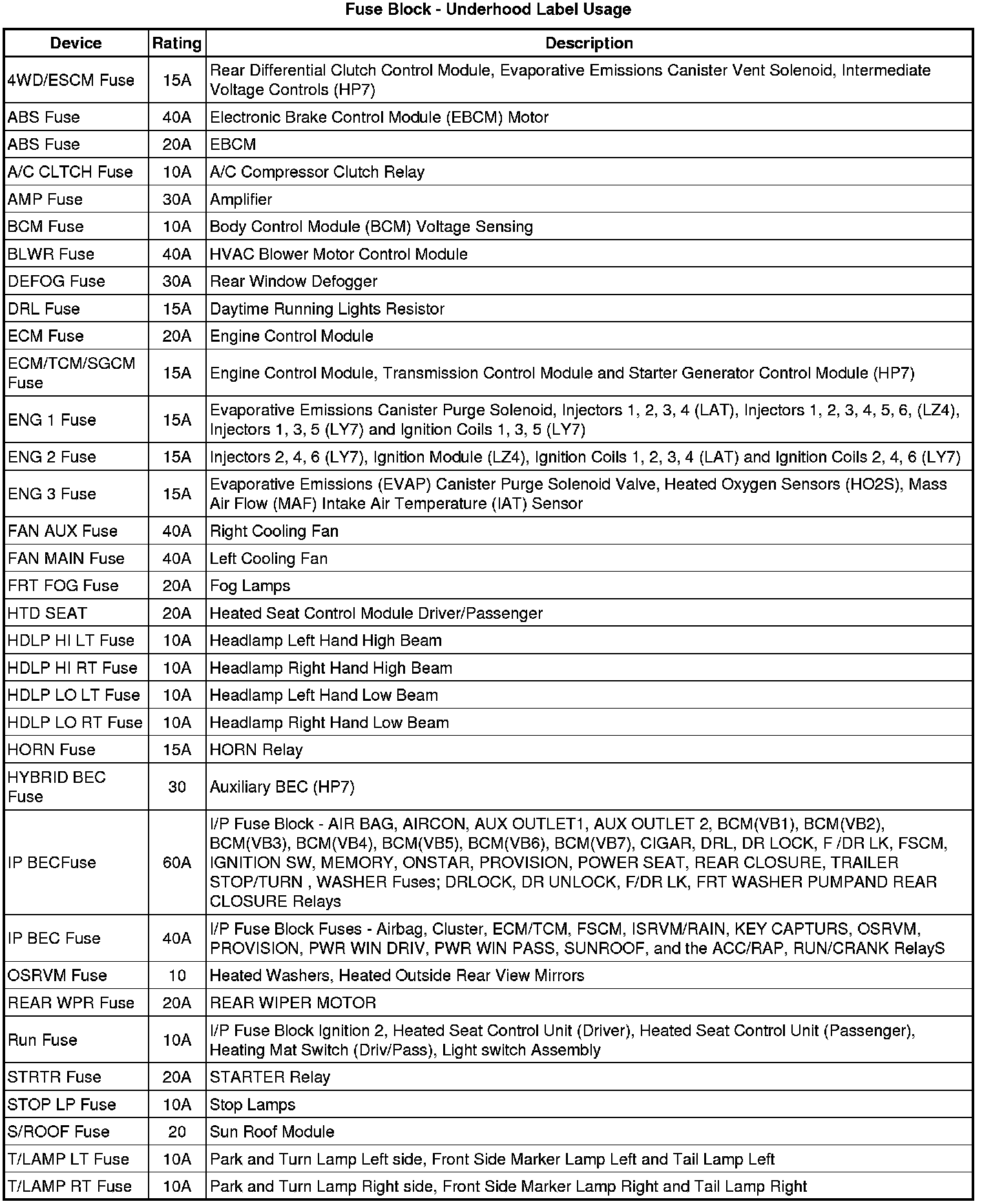

Fuse Block - Underhood Label

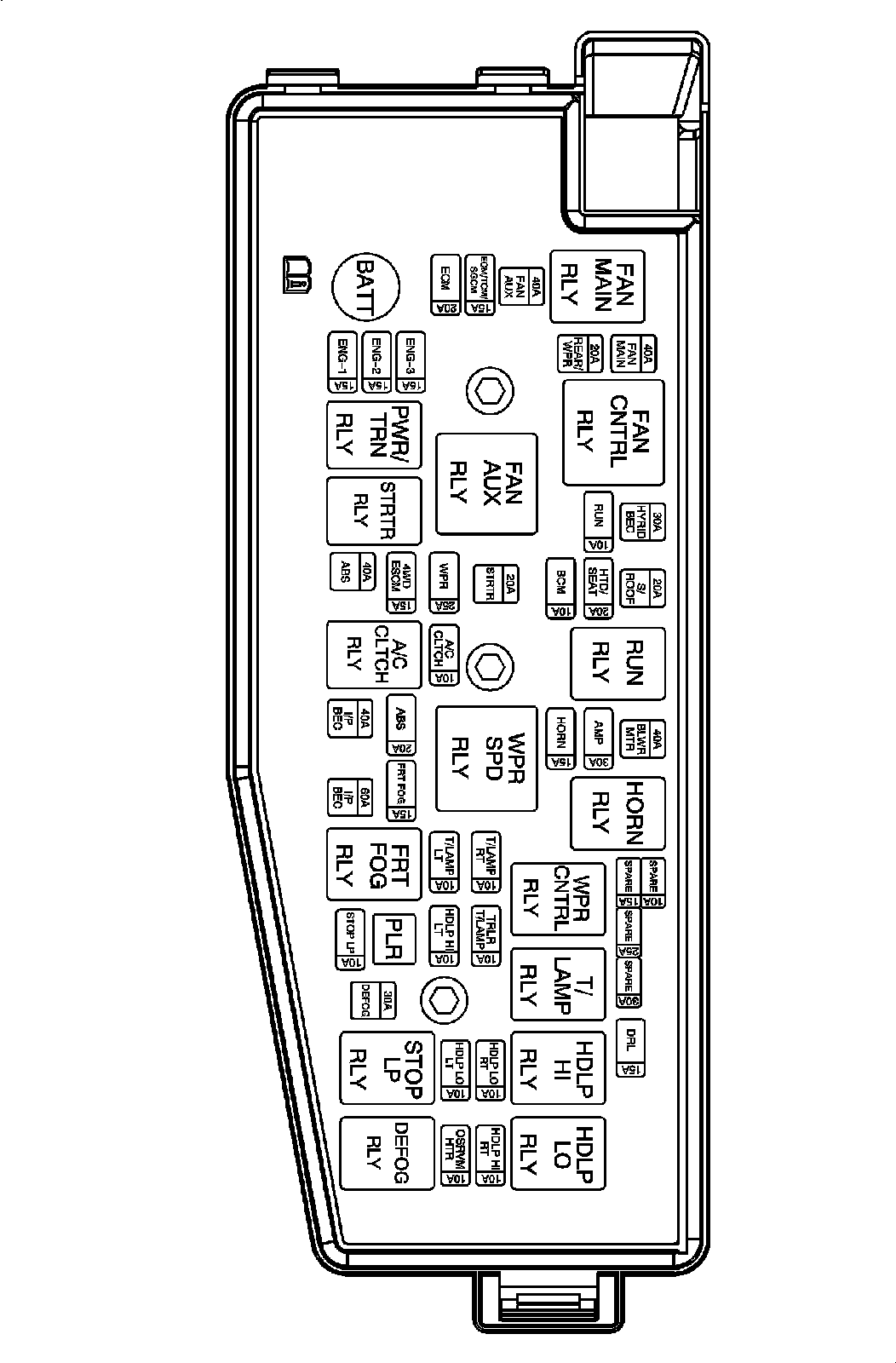

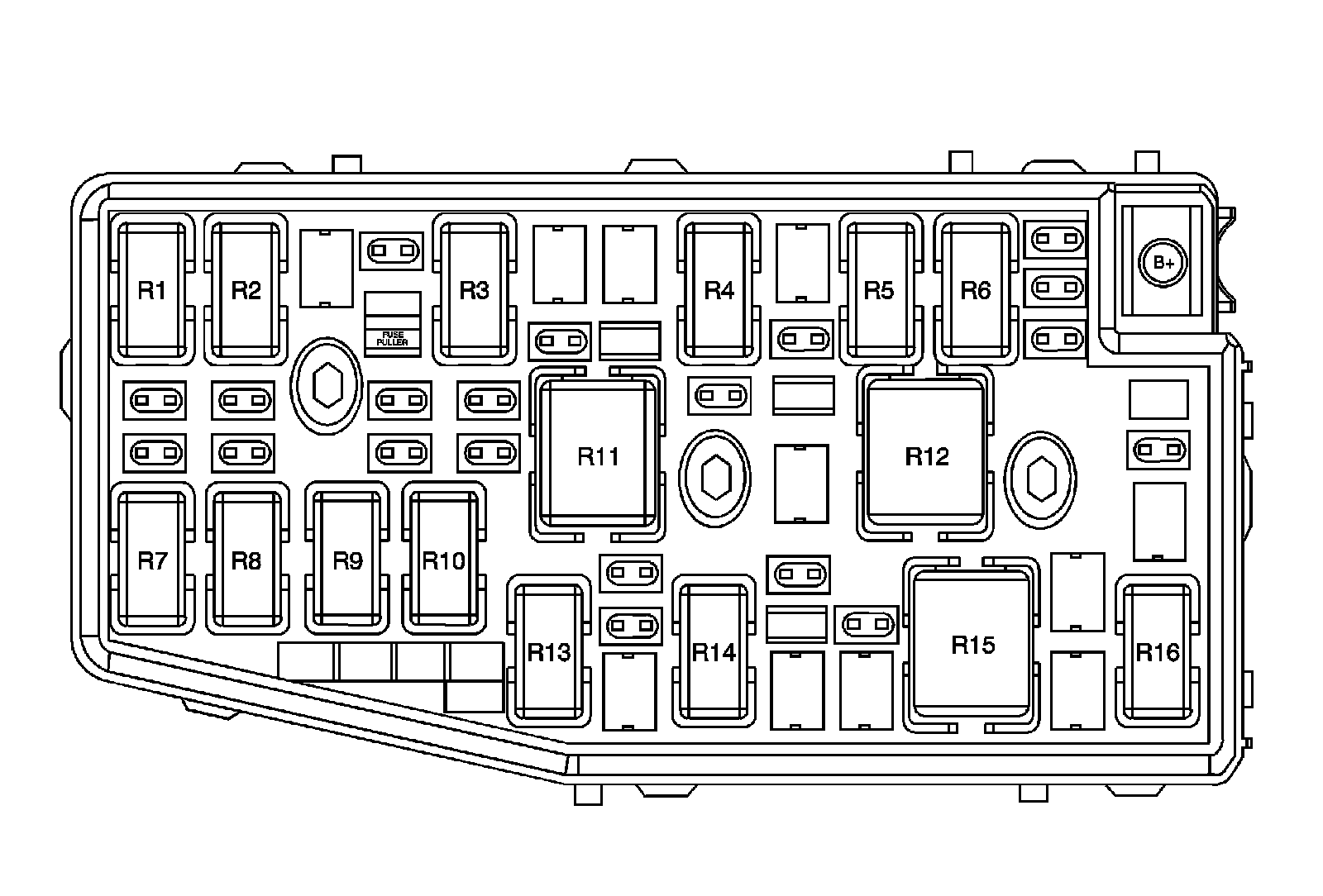

Fuse Block - Underhood Top View

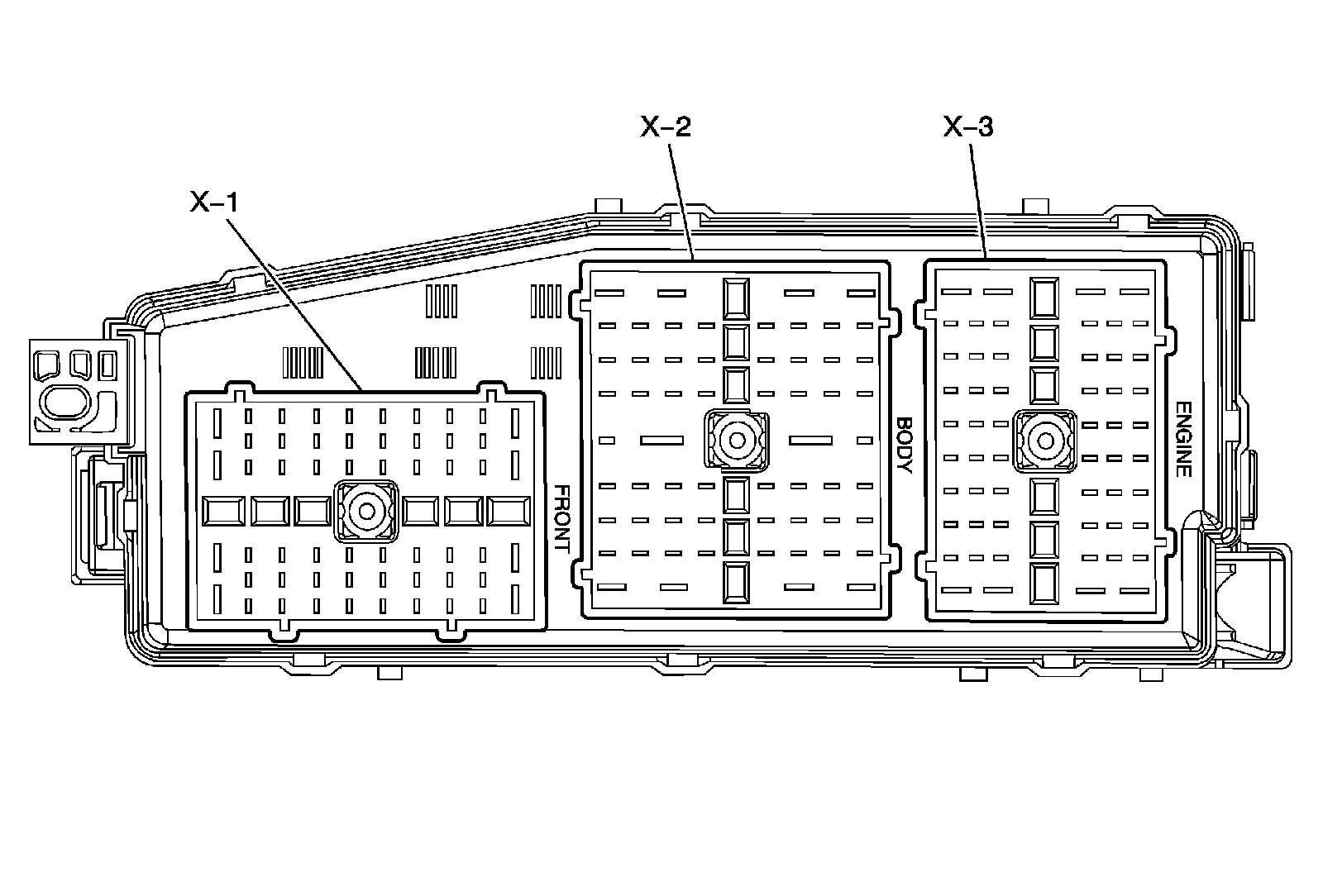

Fuse Block - Underhood Bottom View

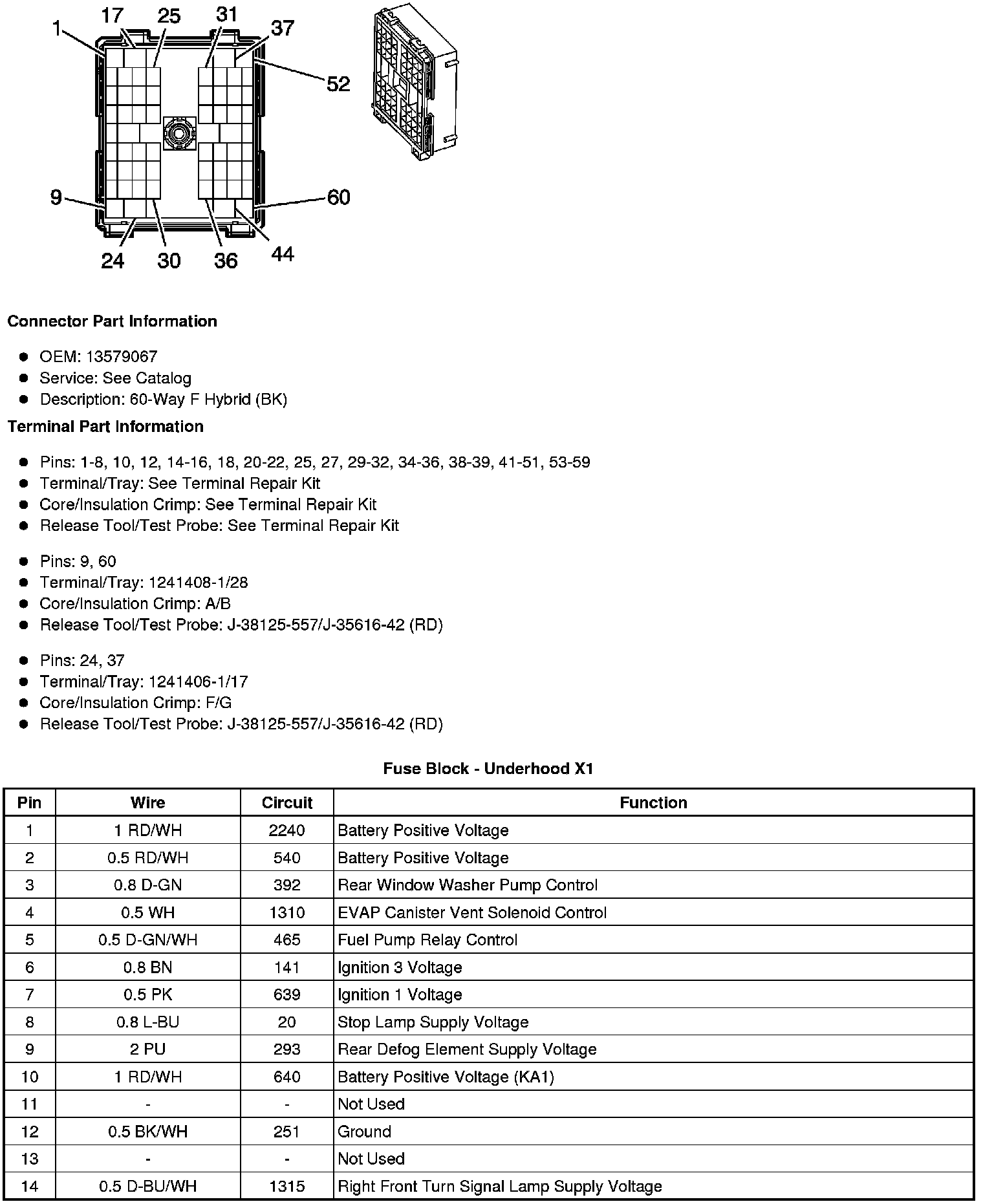

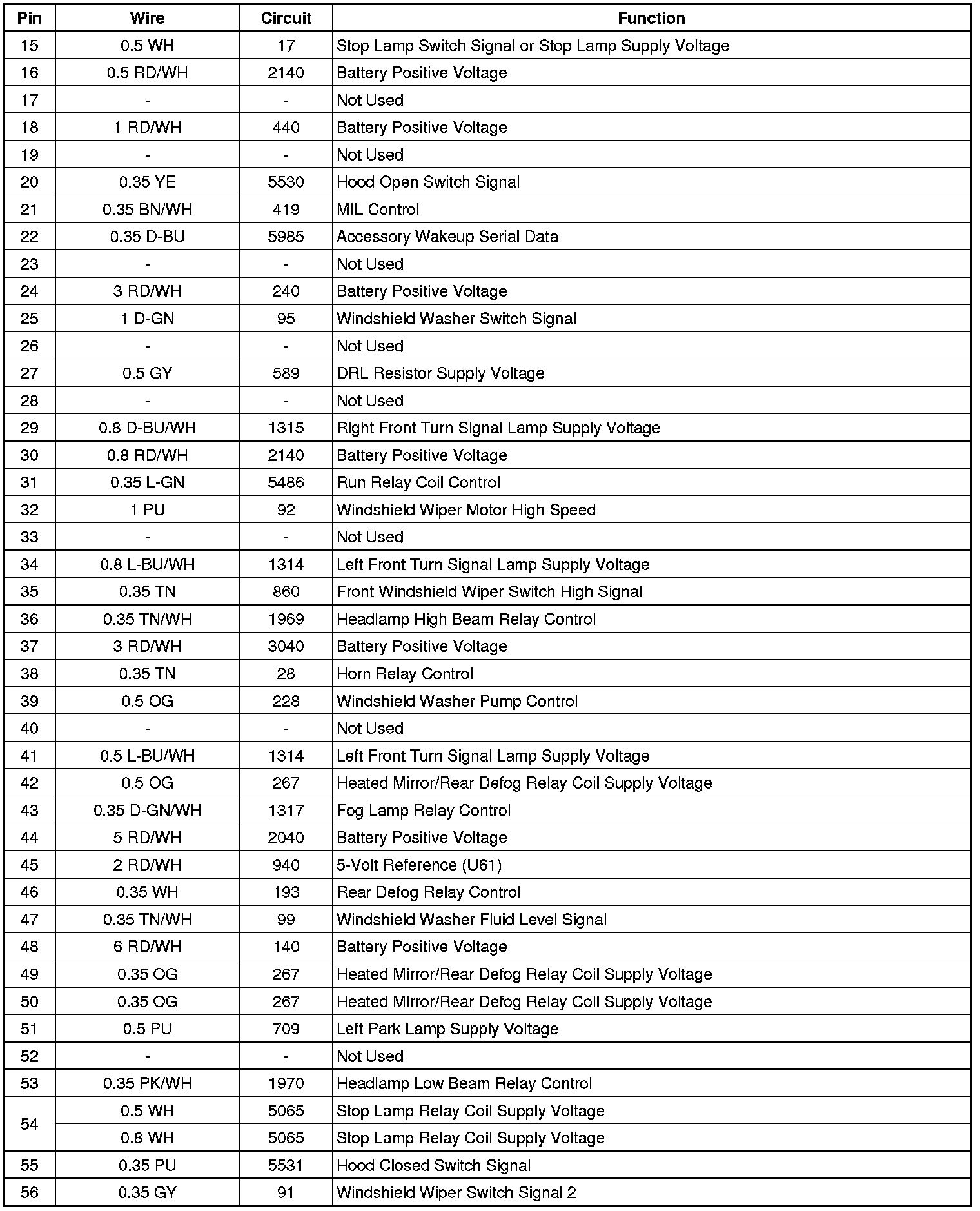

Fuse Block - Underhood X1

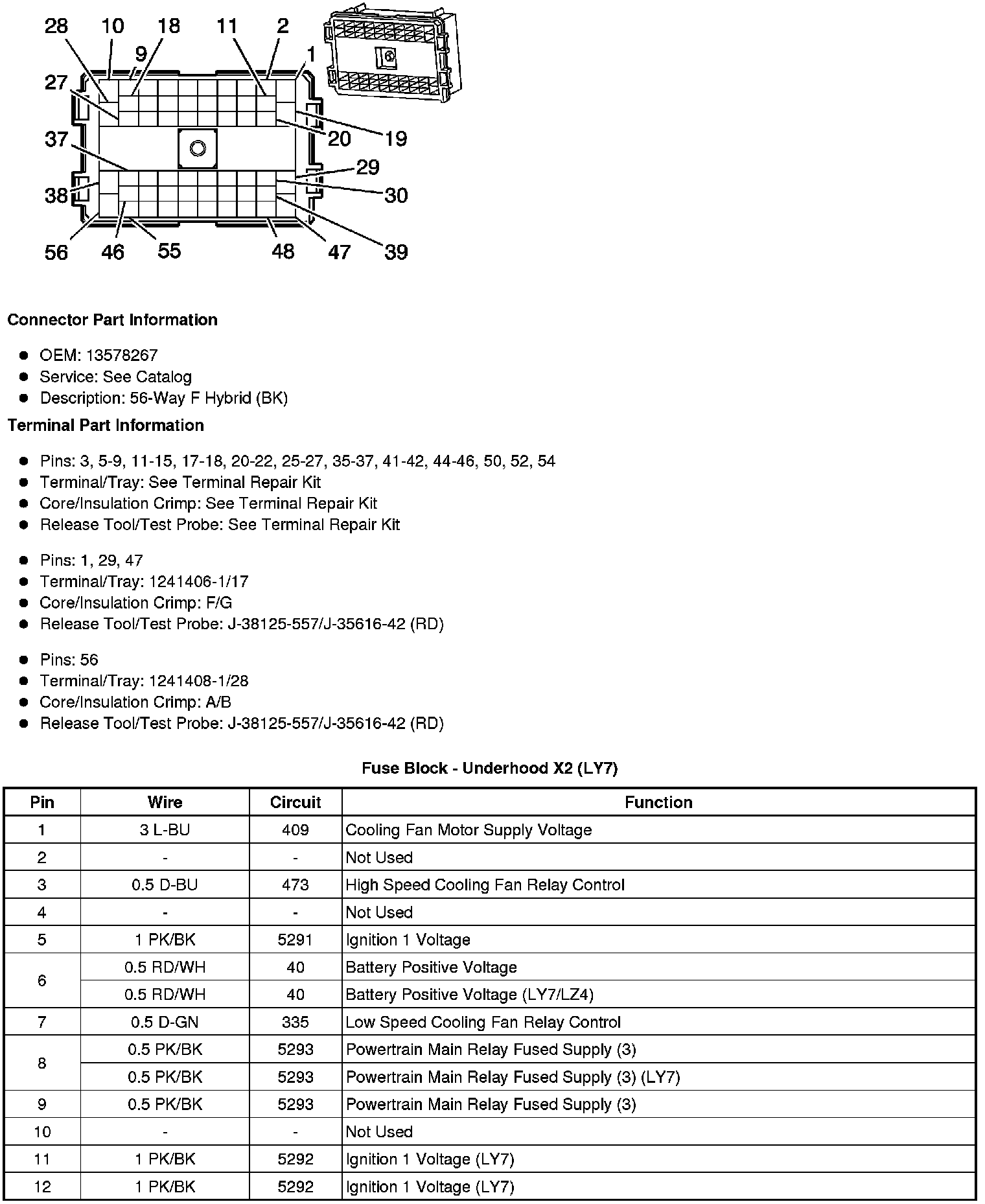

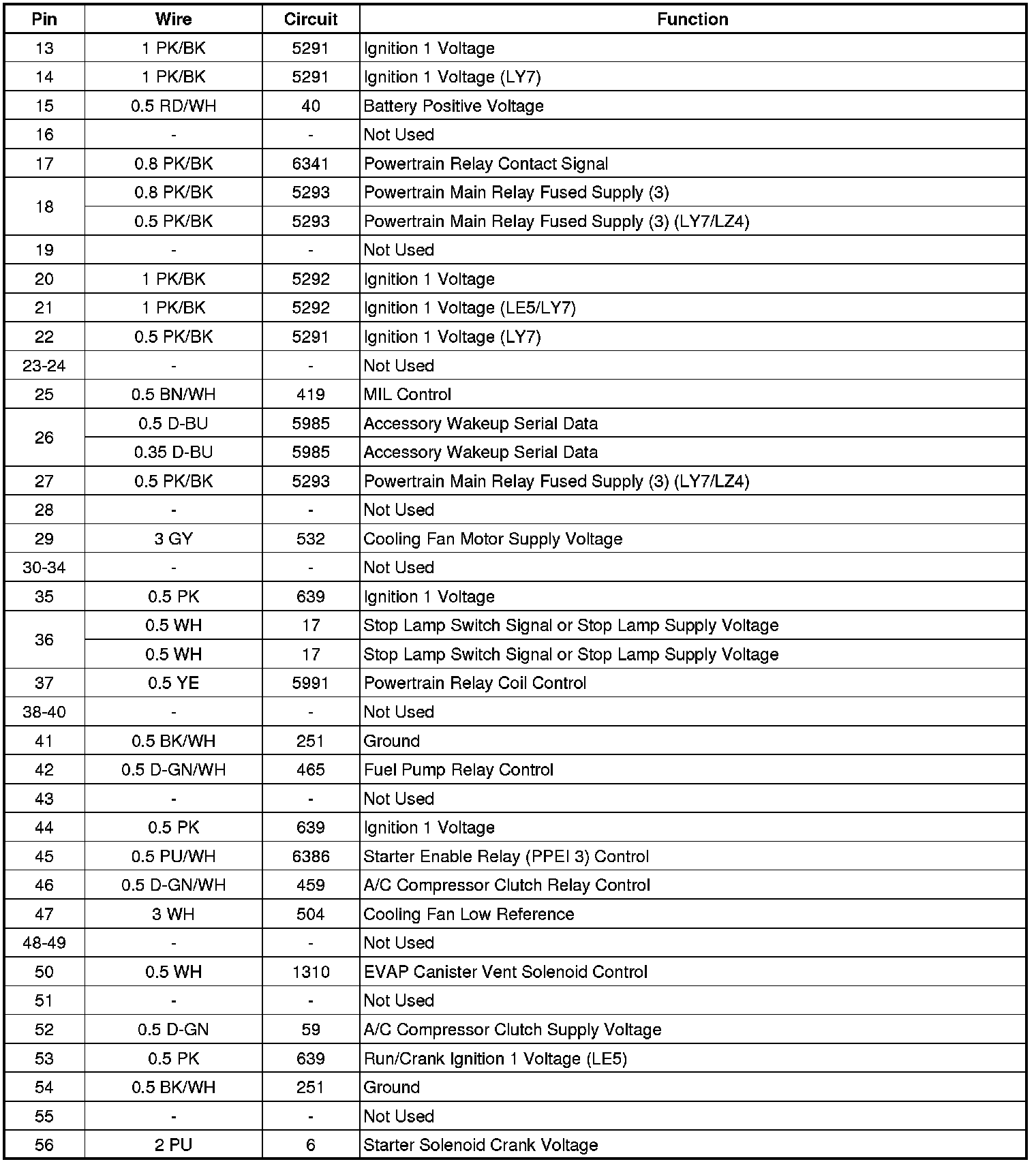

Fuse Block - Underhood X2

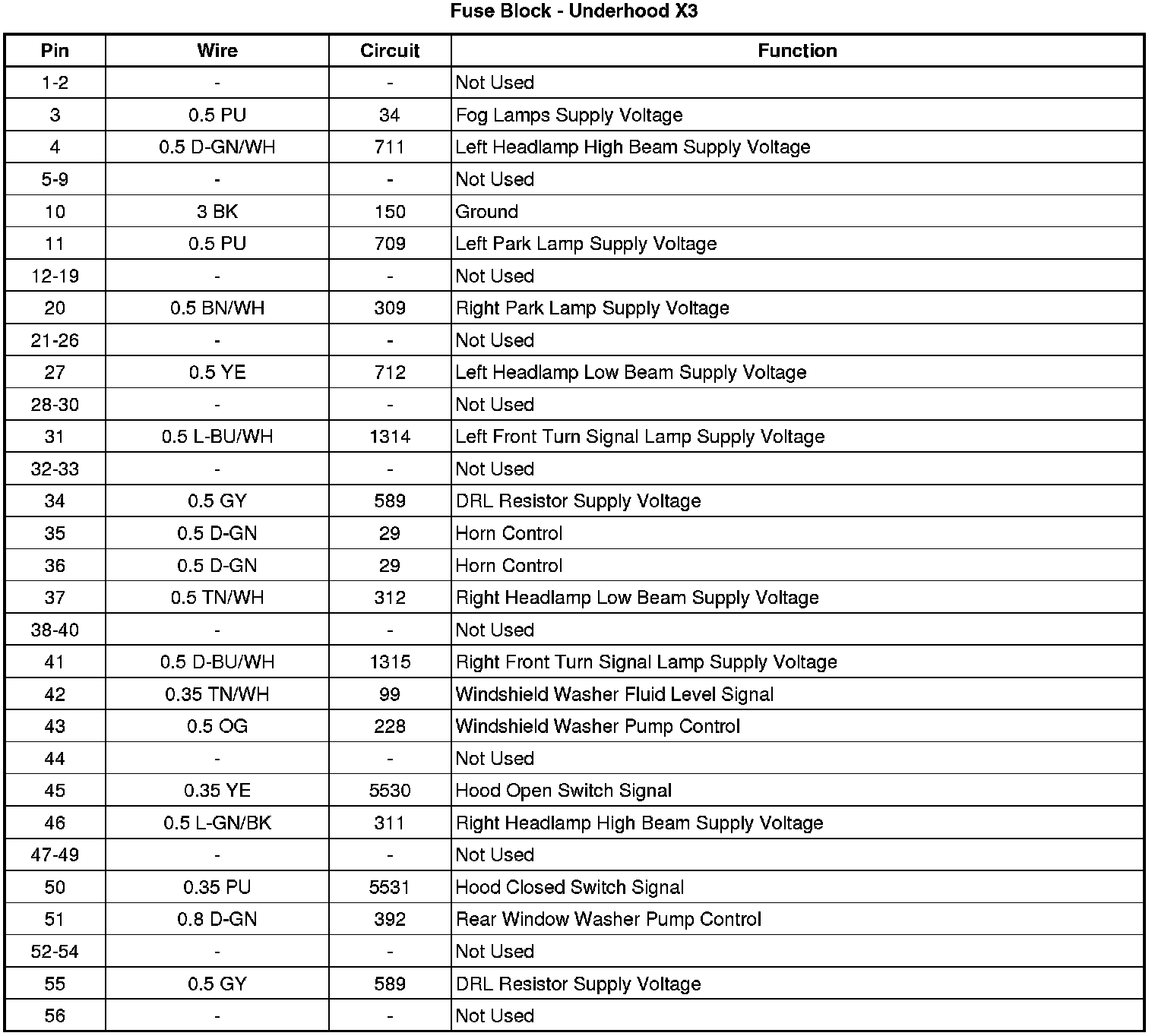

Fuse Block - Underhood X3
Fuse Block - Auxiliary (HP7) Label

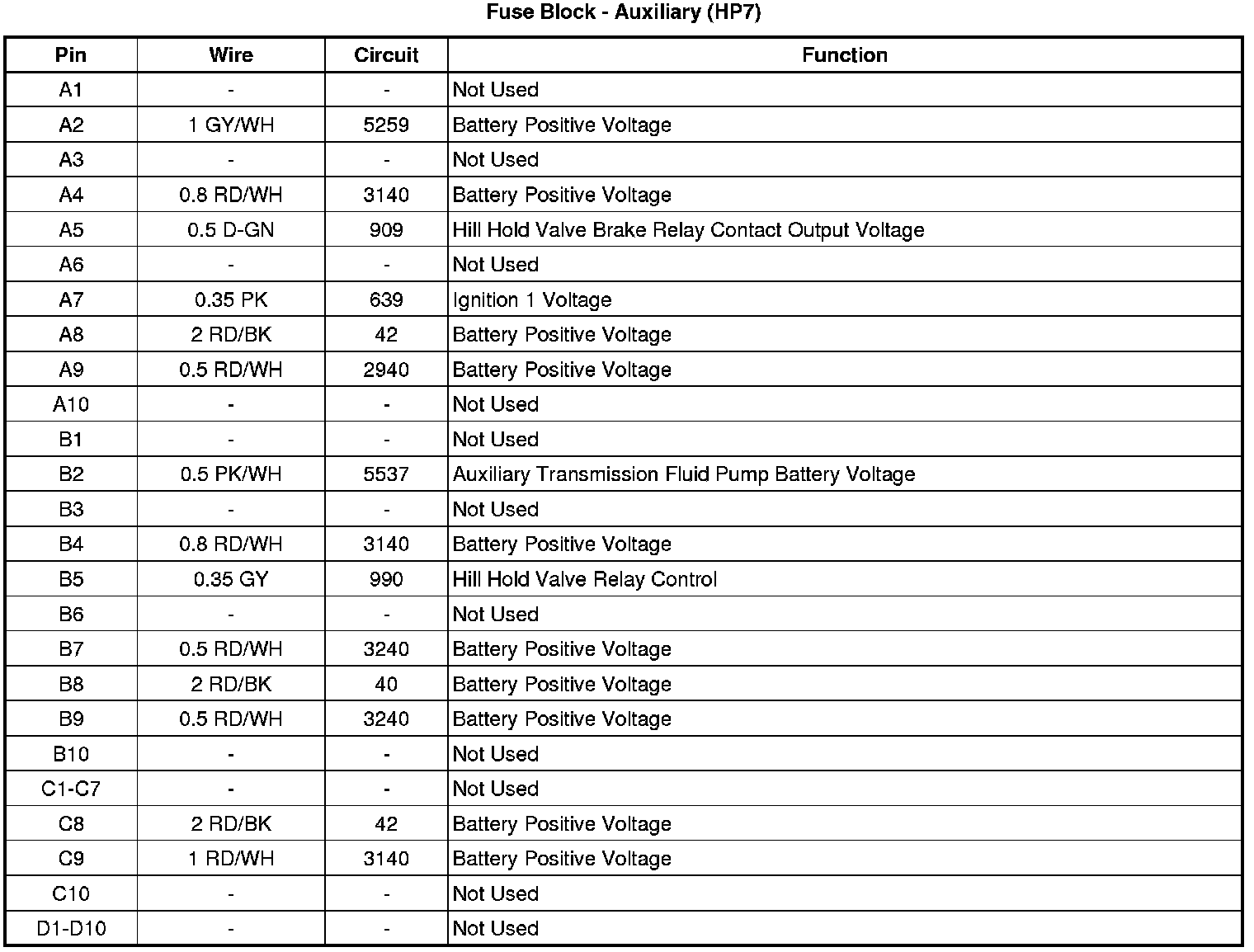

Fuse Block - Auxiliary (HP7)
