Power Moding Schematics

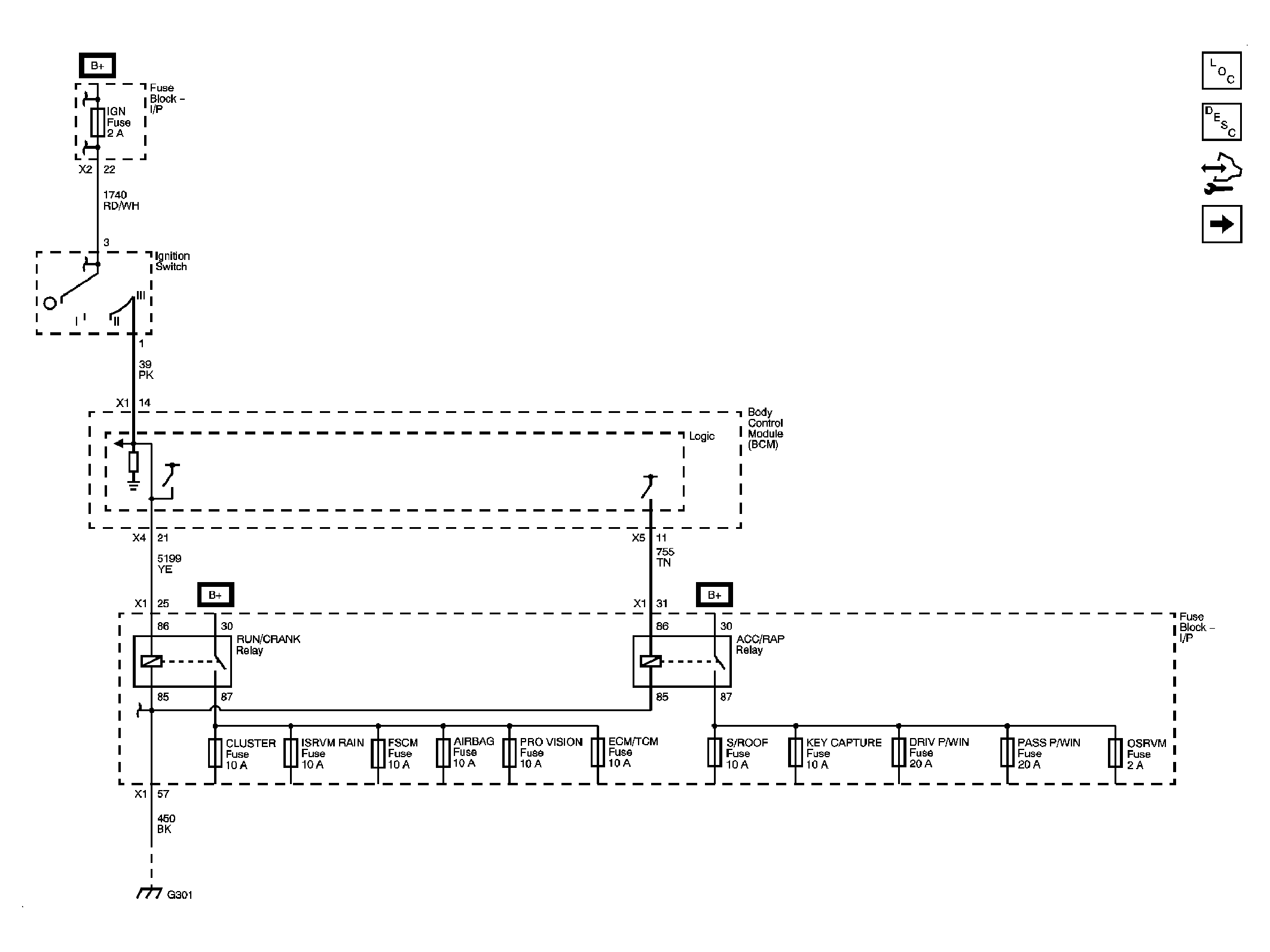

Fig 1: RAP Relay Control - Schematic
GM1883494Courtesy of GENERAL MOTORS CORP.
Fig 2: Run Relay Control - Schematic
GM1883495Courtesy of GENERAL MOTORS CORP.
