Battery Negative Cable Replacement

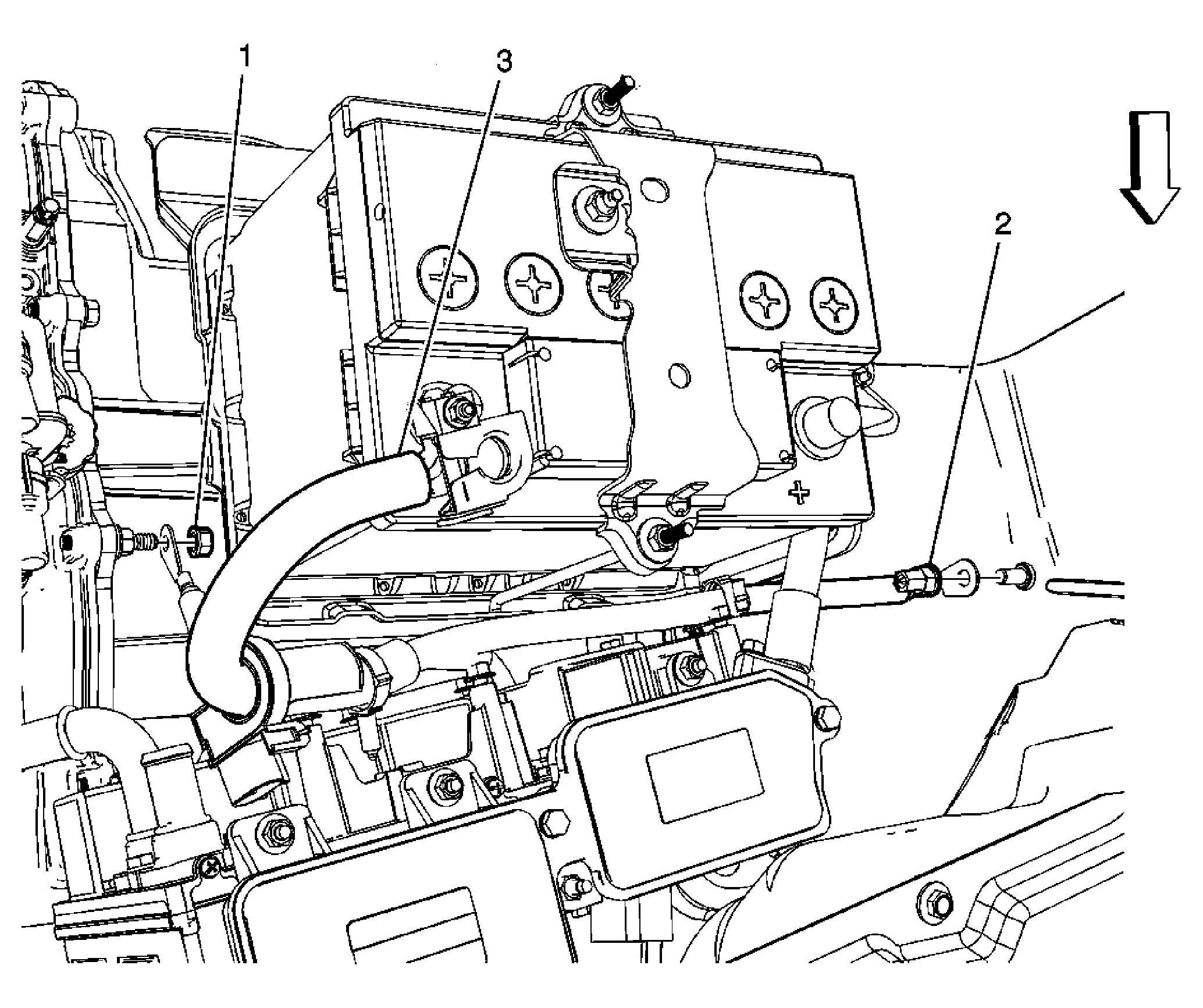

Fig 1: Battery Negative Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove battery. Refer to Battery Replacement (Without LAT) or Battery Replacement (With LAT) .
1	Nut. NOTE: Refer to Fastener Notice . Tighten: 23 N.m (17 lb ft)
2	Nut. Tighten: 25 N.m (18 lb ft)
3	Negative Battery Cable. Procedure Disconnect the battery current sensor. Remove the battery current sensor from the battery cable. Refer to Battery Current Sensor Replacement
