Central Control Module




Component Connector End Views

Vehicle Communication Interface Module (VCIM) Battery

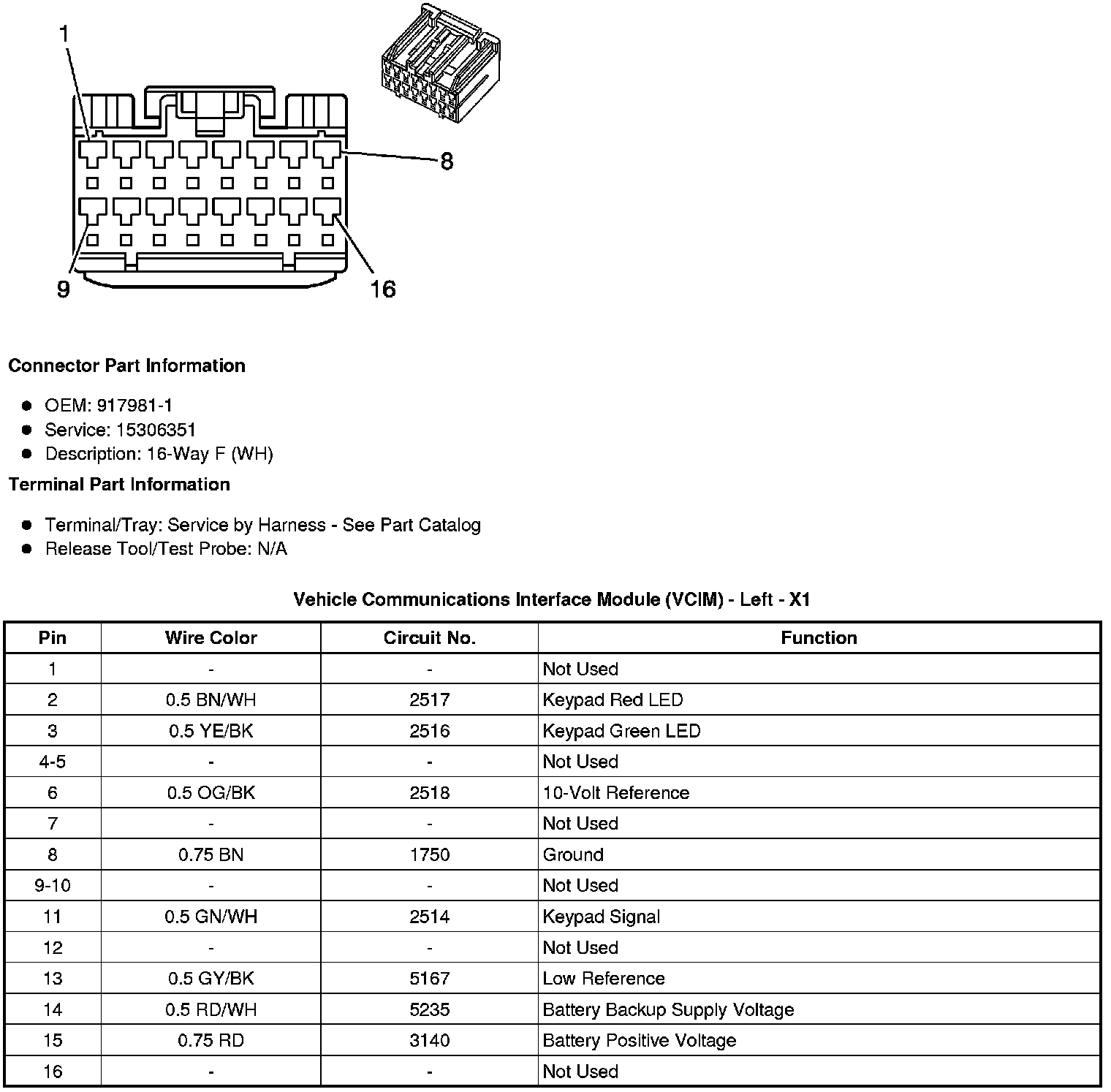

Vehicle Communications Interface Module (VCIM) - Left - X1

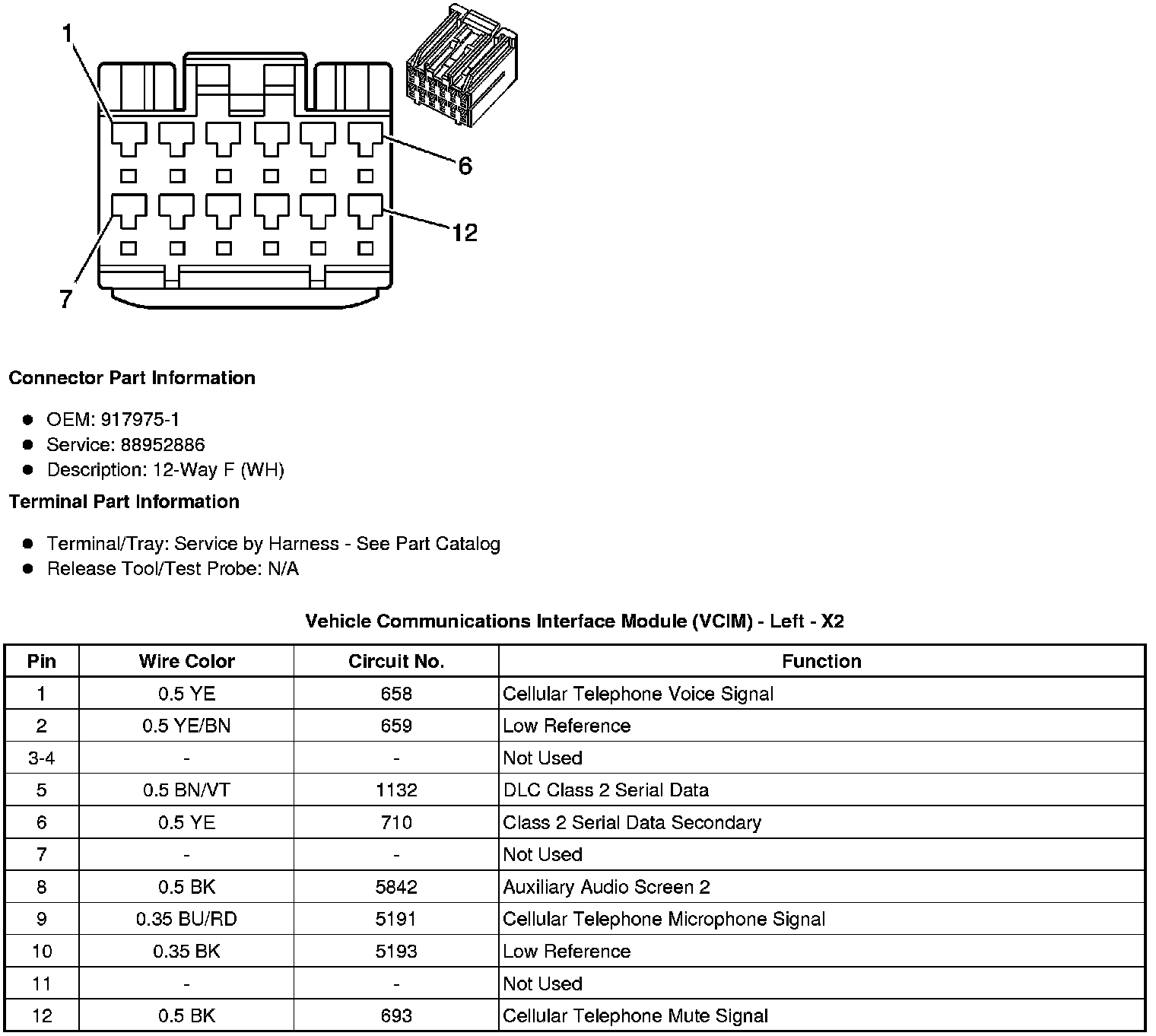

Vehicle Communications Interface Module (VCIM) - Left - X2

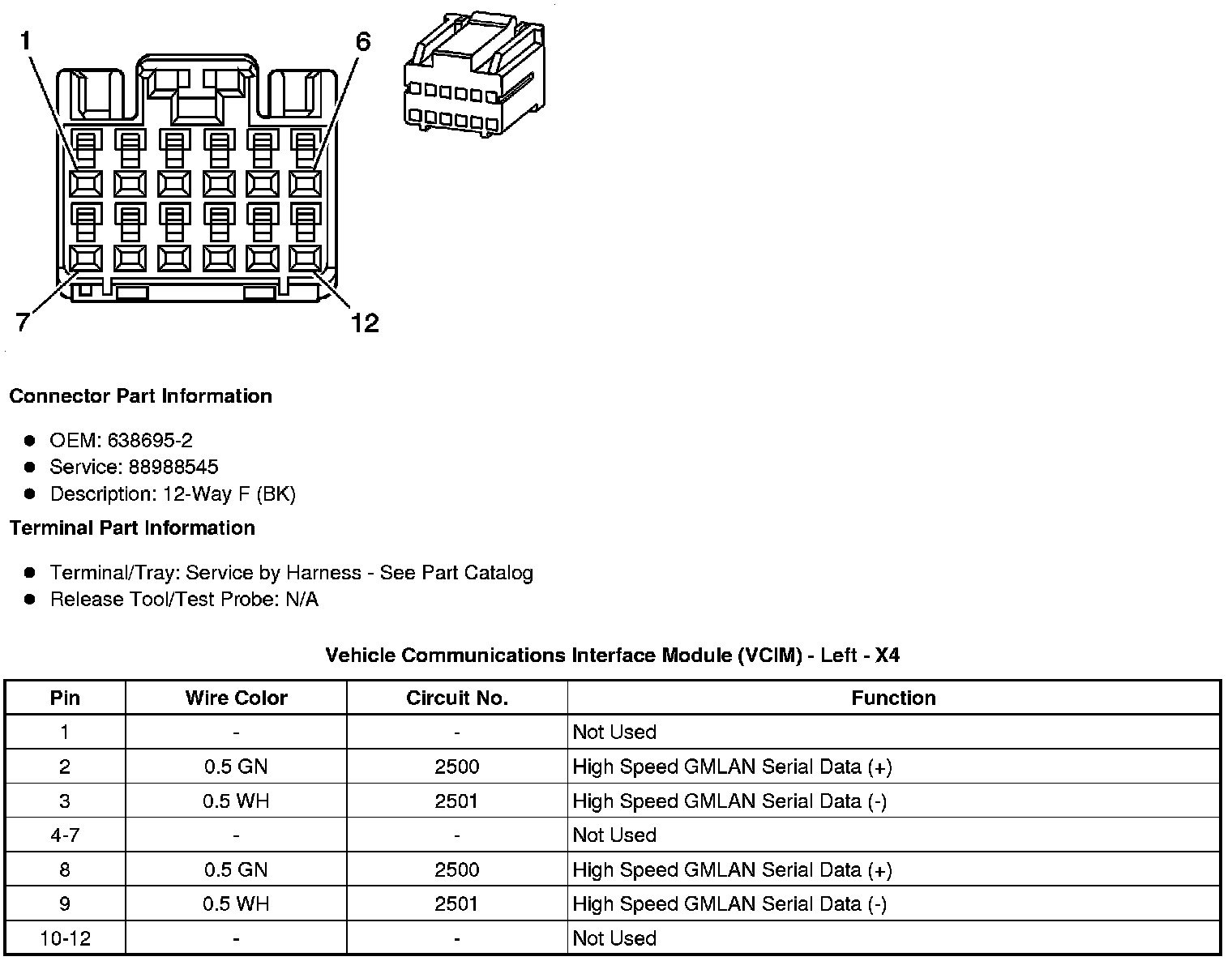

Vehicle Communications Interface Module (VCIM) - Left - X4

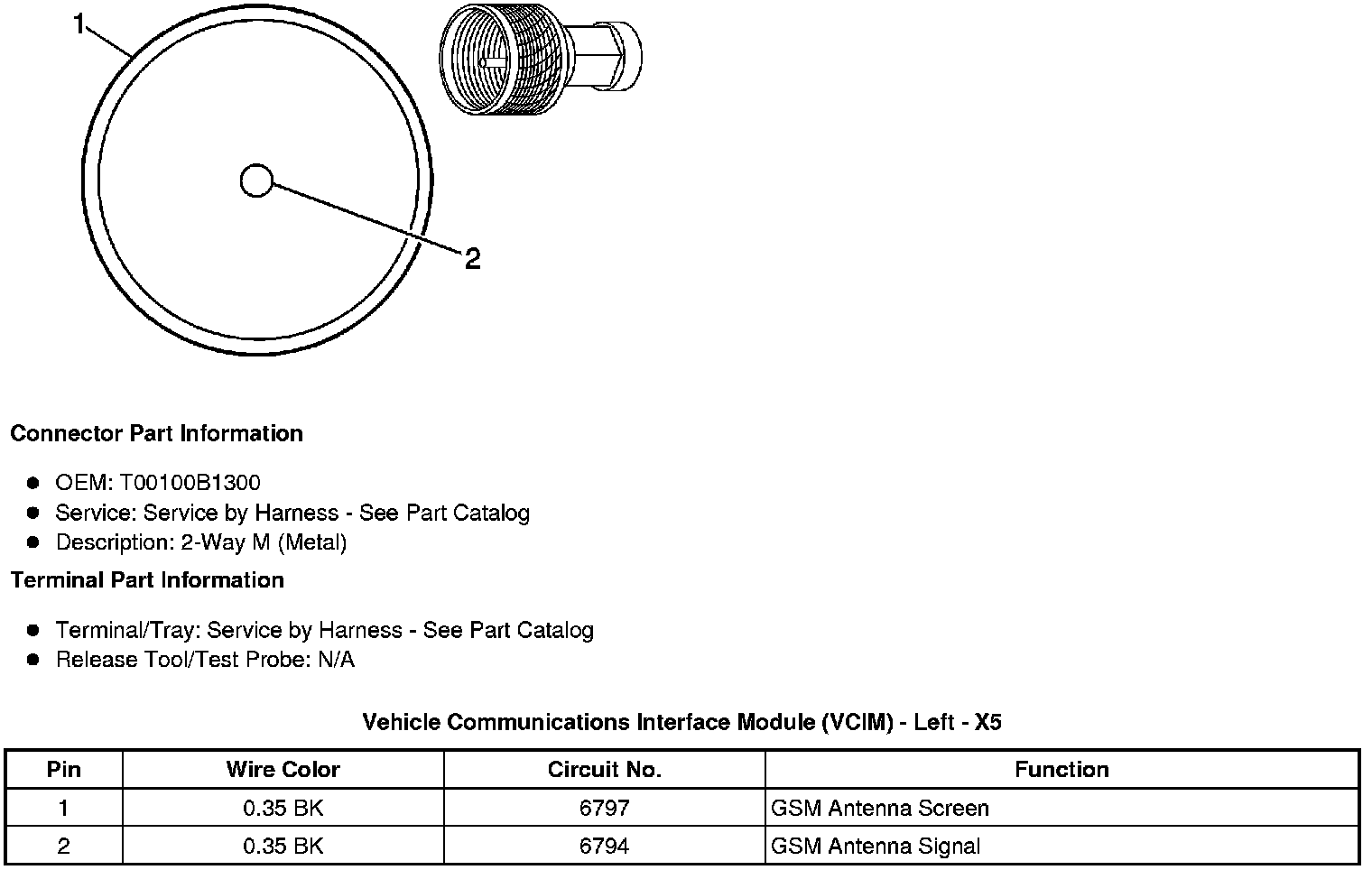

Vehicle Communications Interface Module (VCIM) - Left - X5





Vehicle Communications Interface Module (VCIM) - Left - X6

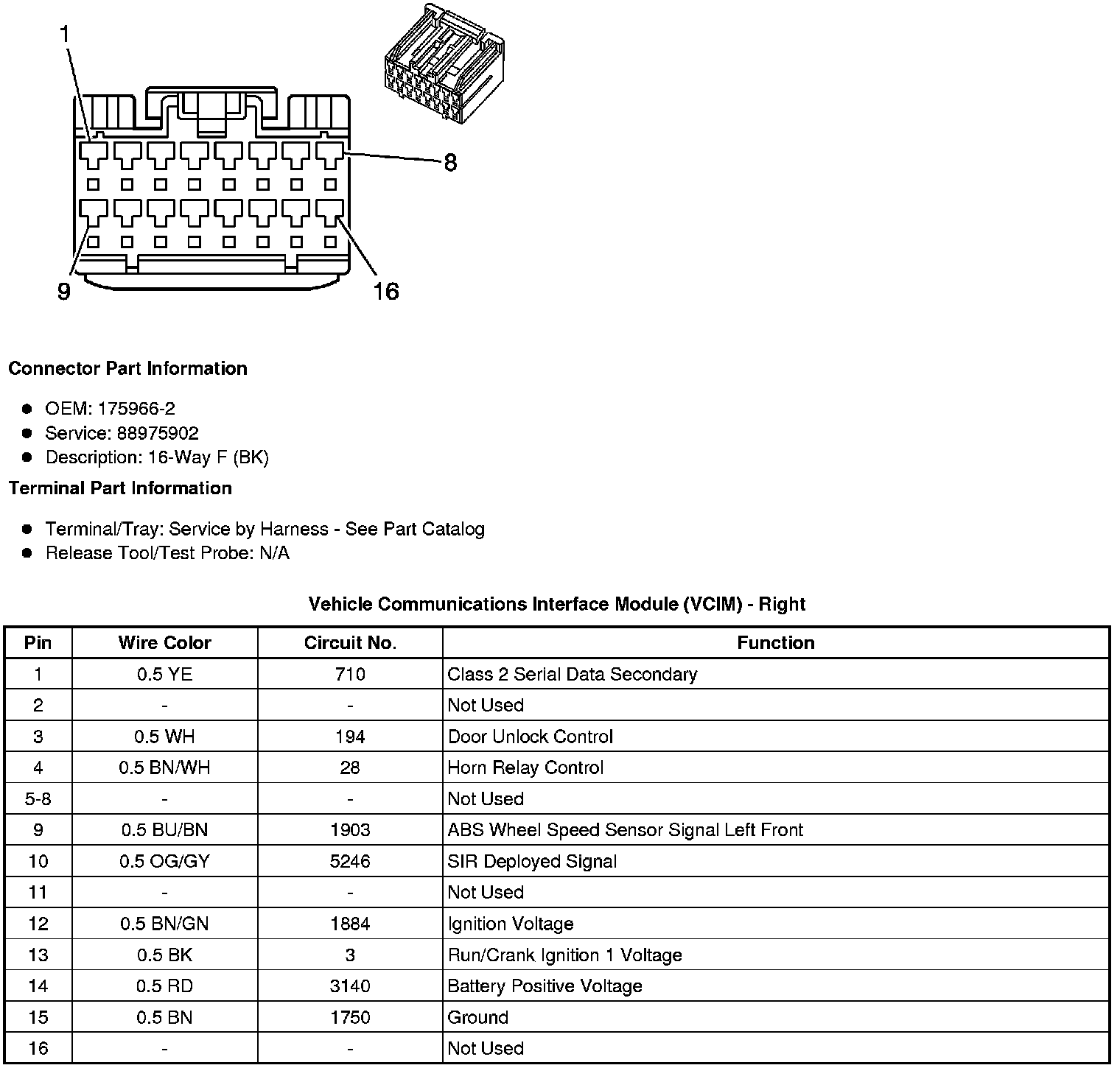

Vehicle Communications Interface Module (VCIM) - Right
