Impact Sensor




Component Connector End Views

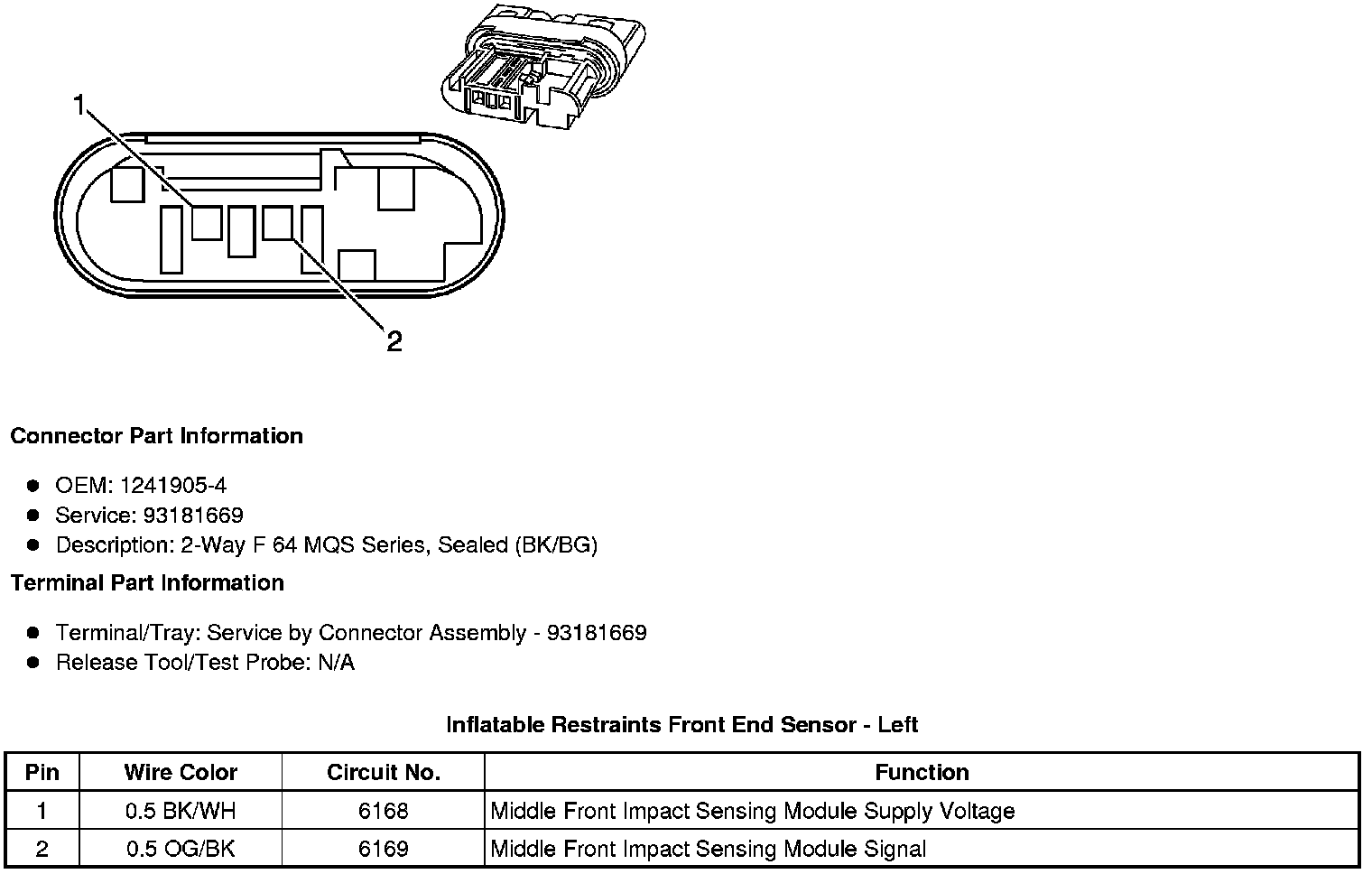

Inflatable Restraints Front End Sensor - Left

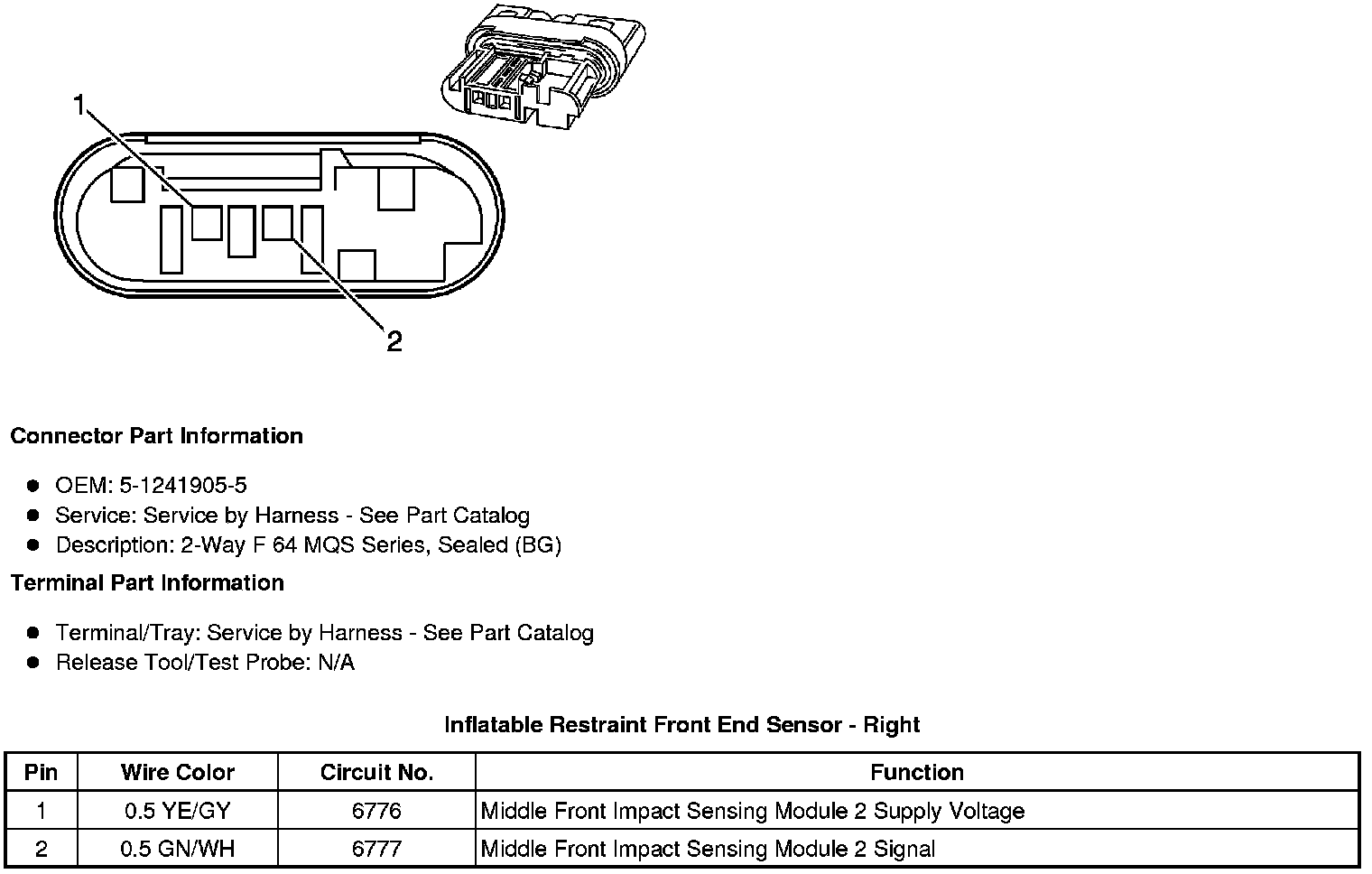

Inflatable Restraint Front End Sensor - Right

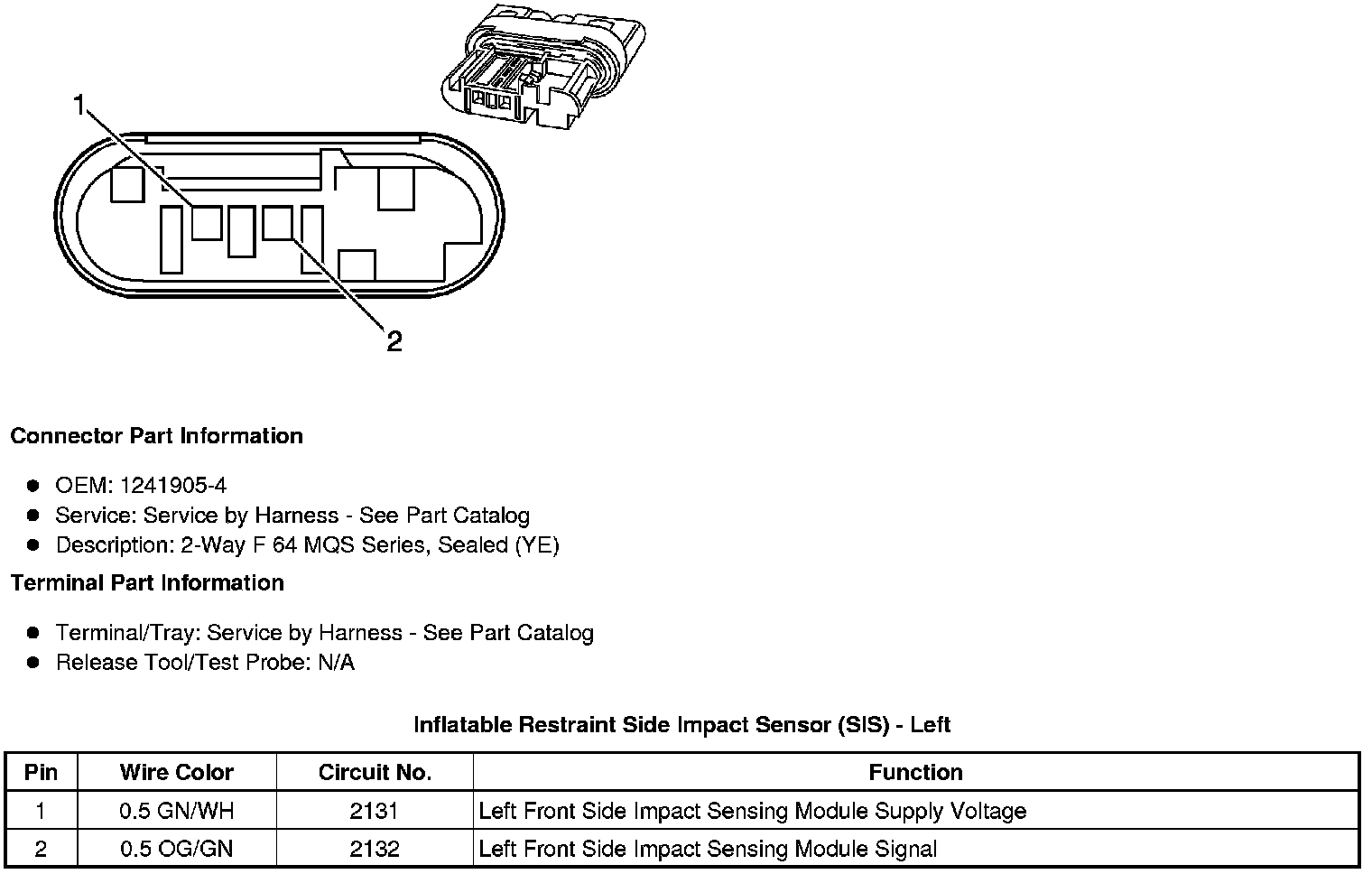

Inflatable Restraint Side Impact Sensor (SIS) - Left





Inflatable Restraint Side Impact Sensor (SIS) - Right
