Transmission Shift Position Indicator Lamp

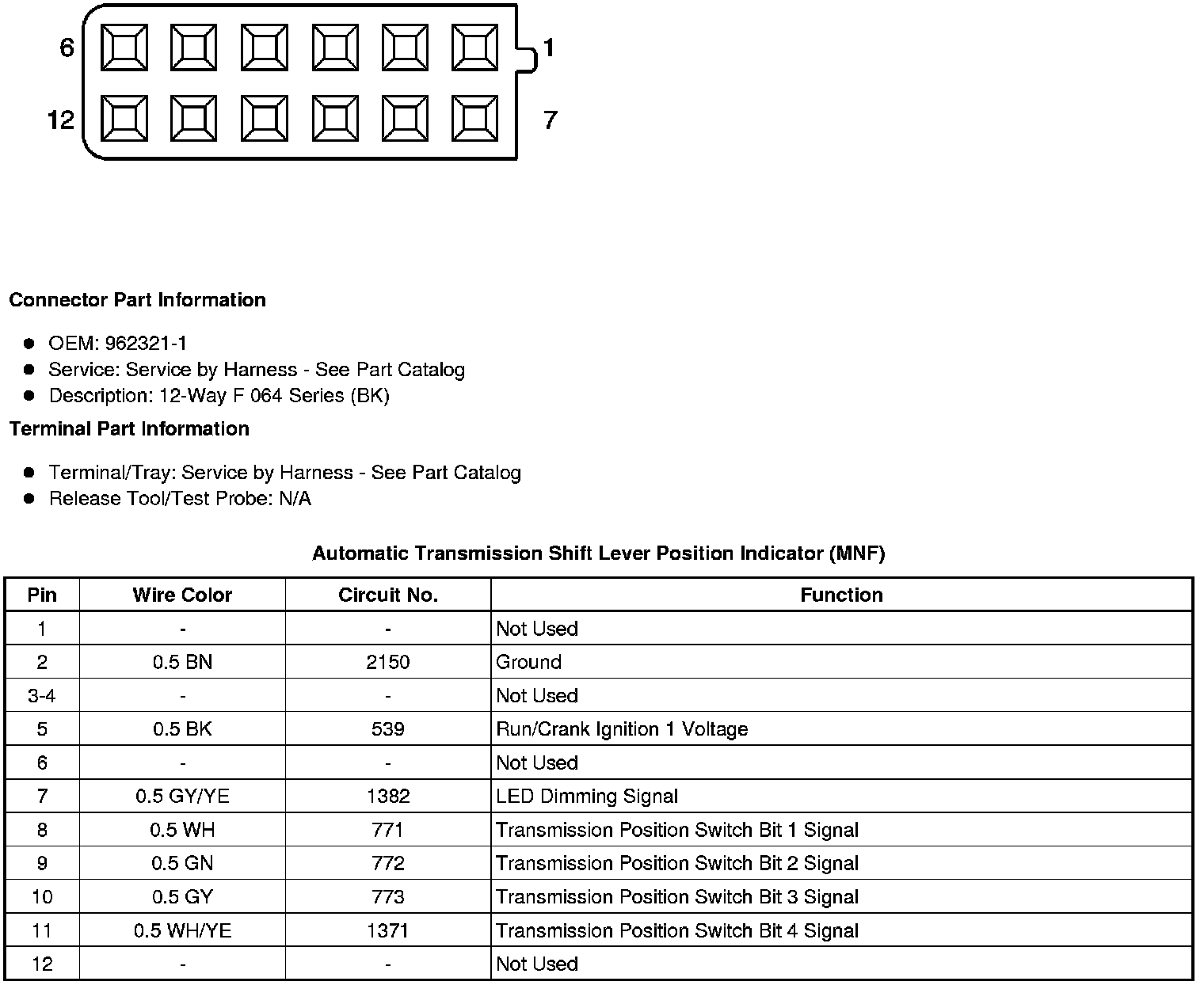

Component Connector End Views

Automatic Transmission Shift Lever Position Indicator (MNF)
