Middle Valve Body Assembly

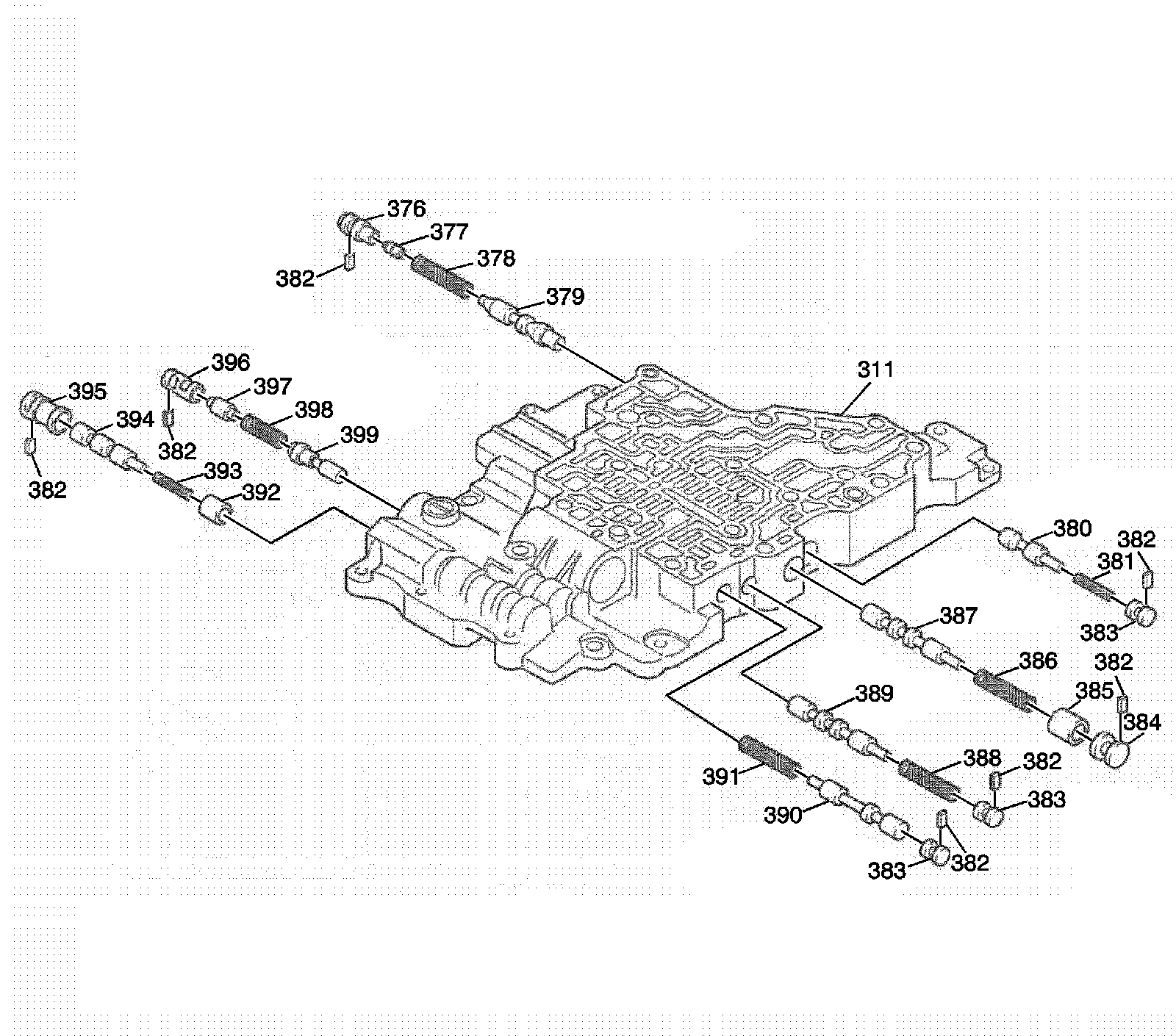

Disassembled Views

Middle Valve Body Assembly




311 - Middle Control Valve Body Assembly
376 - Primary Regulator Valve Sleeve
377 - Primary Regulator Valve Plunger
378 - Primary Regulator Valve Spring
379 - Primary Regulator Valve
380 - Lock Up Control Solenoid (SLU) Valve
381 - Lock Up Control Solenoid (SLU) Spring
382 - Sleeve/Bore Plug Retainer
383 - Solenoid Modulator Valve Bore Plug
384 - Solenoid Modulator Valve Bore Plug
385 - 3-4 Shift Valve Sleeve
386 - 3-4 Shift Valve Spring
387 - 3-4 Shift Valve
388 - 2-3 Shift Valve Spring
389 - 2-3 Shift Valve
390 - 1-2 Shift Valve
391 - 1-2 Shift Valve Spring
392 - Solenoid B-1 Modulator Valve No. 1 Plunger
393 - Solenoid B-1 Modulator Valve No. 1 Spring
394 - Solenoid B-1 Modulator Valve No. 1
395 - Solenoid B-1 Modulator Valve No. 1 Sleeve
396 - Accumulator Regulator Valve Sleeve
397 - Accumulator Regulator Valve Plunger
398 - Accumulator Regulator Valve Spring
399 - Accumulator Regulator Valve
