Output Gear Assembly




Disassembled Views

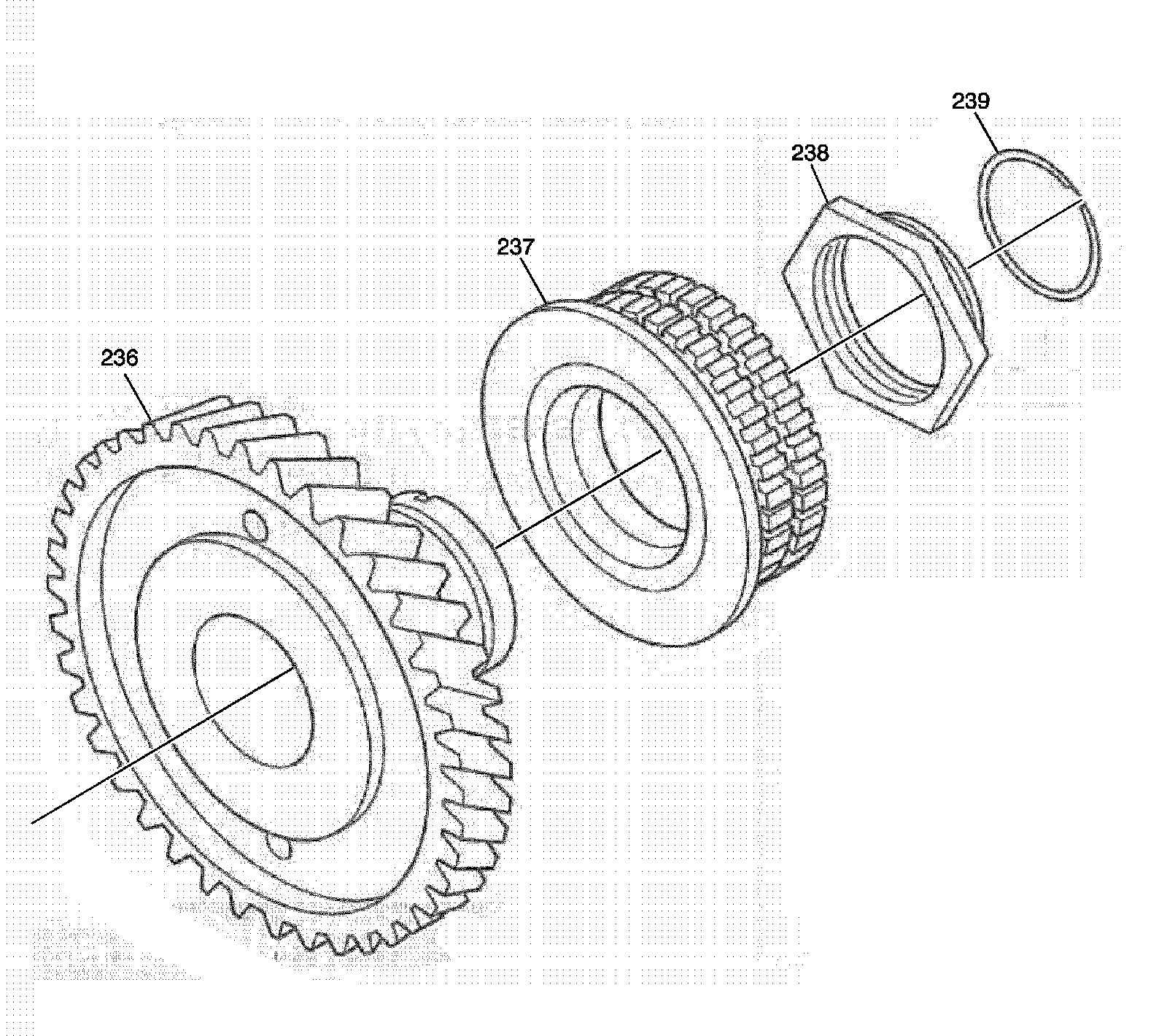

Output Gear Assembly




236 - Output Gear
237 - Output Gear Bearing Assembly
238 - Output Gear Bearing Assembly Lock Nut
239 - Output Gear Retaining Ring
