Splice Locations

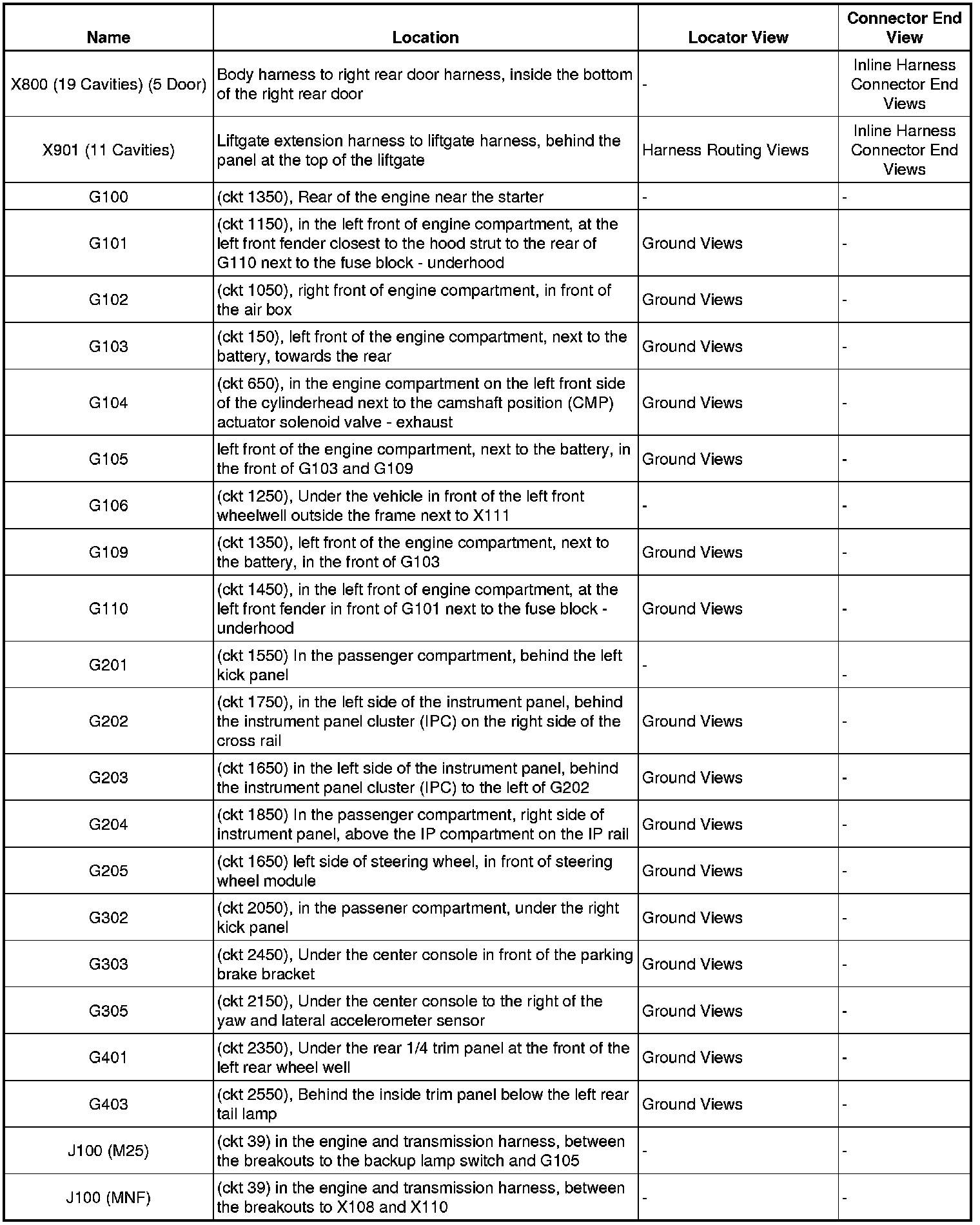

X800 (19 Cavities)(5 Door) - J100 (MNF):

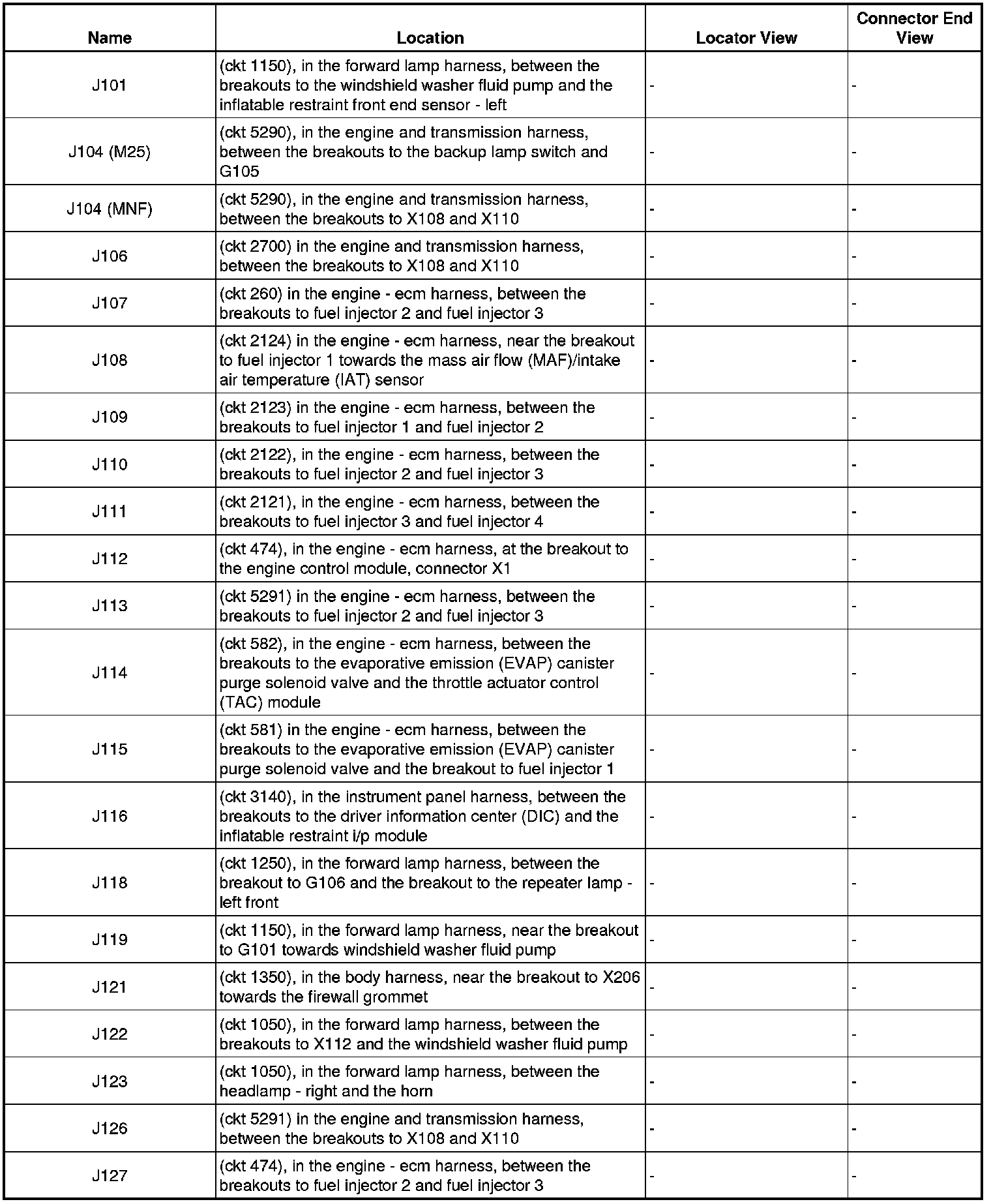

J101 - J127:

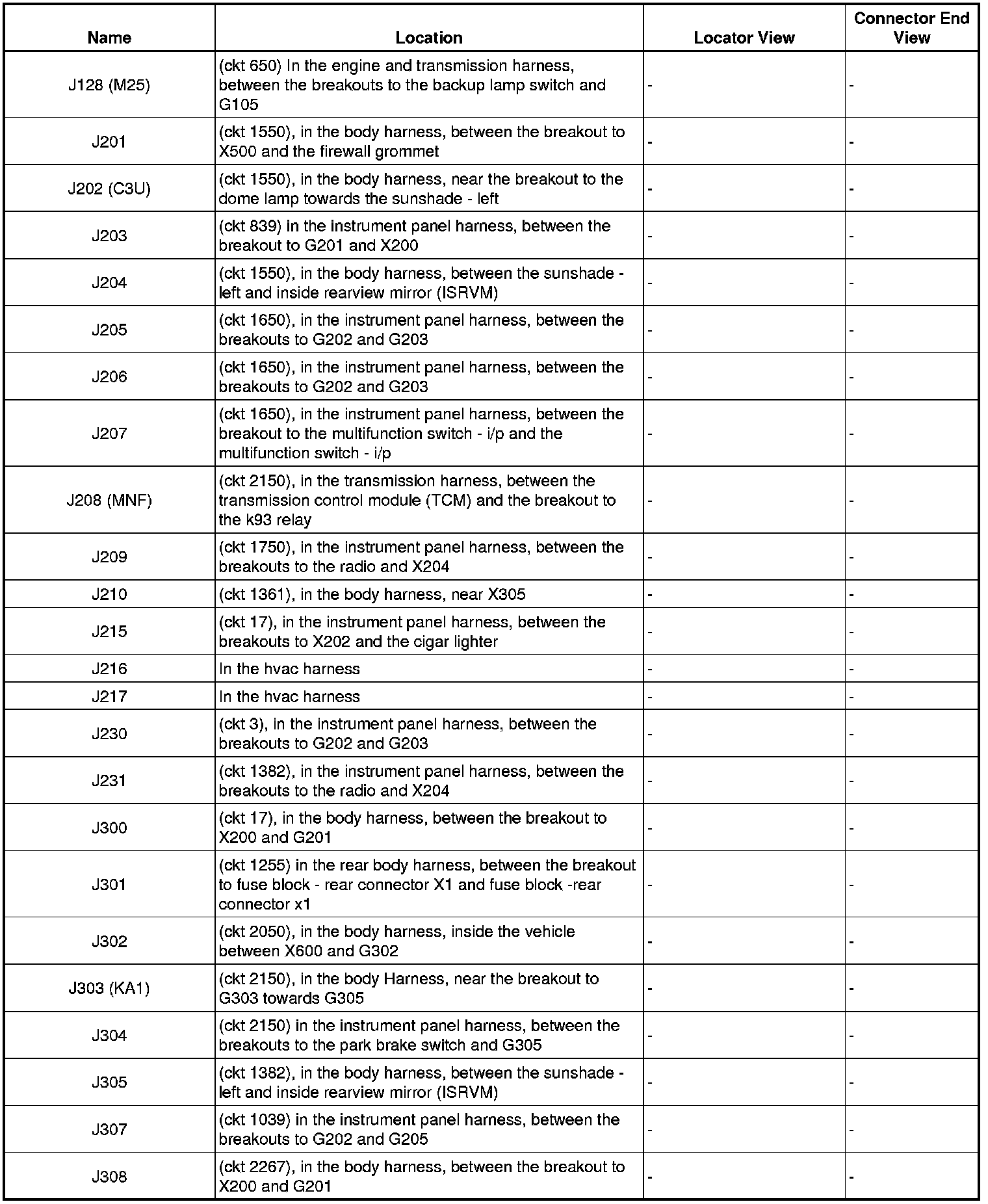

J128 (M25) - J308:

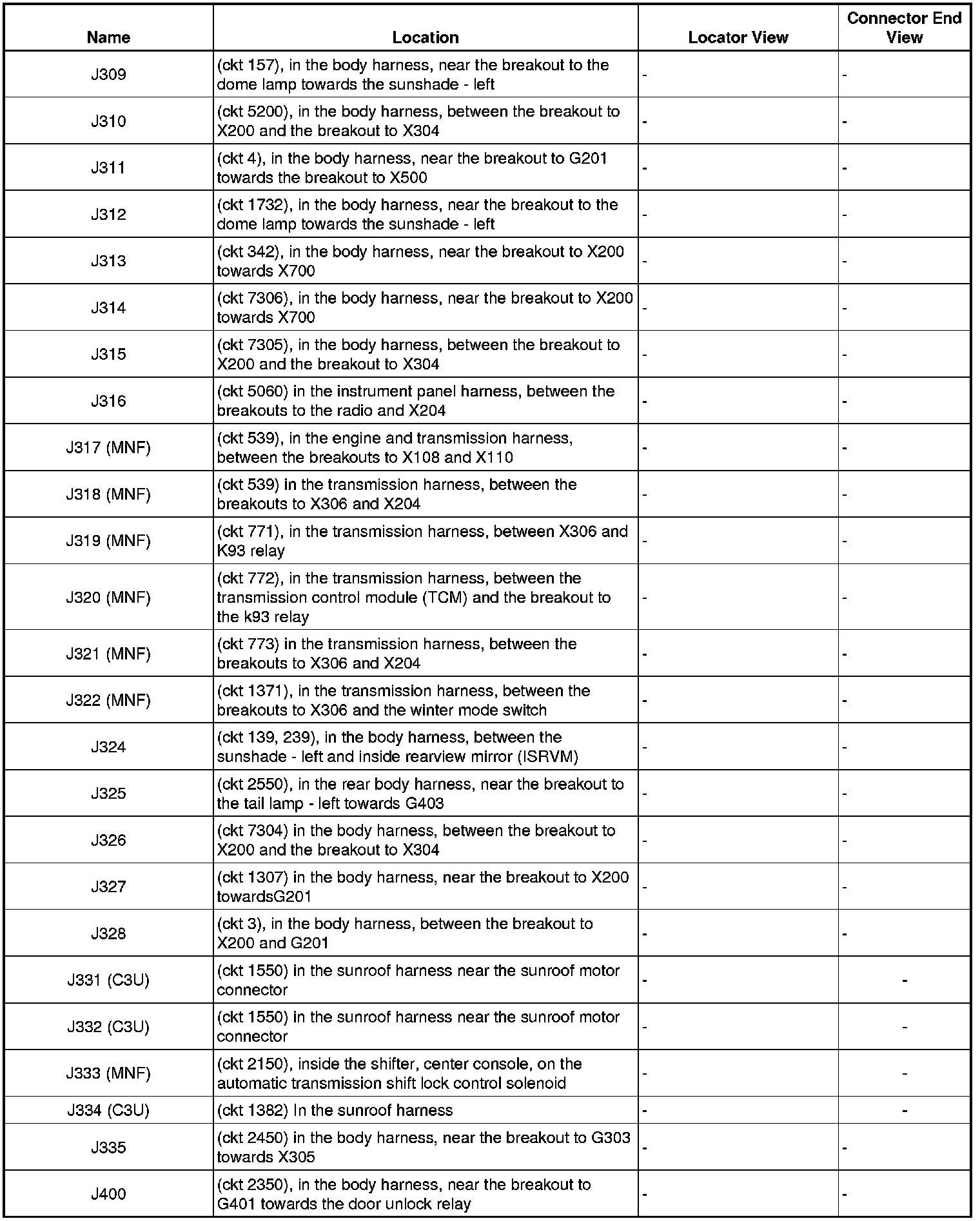

J309 - J400:

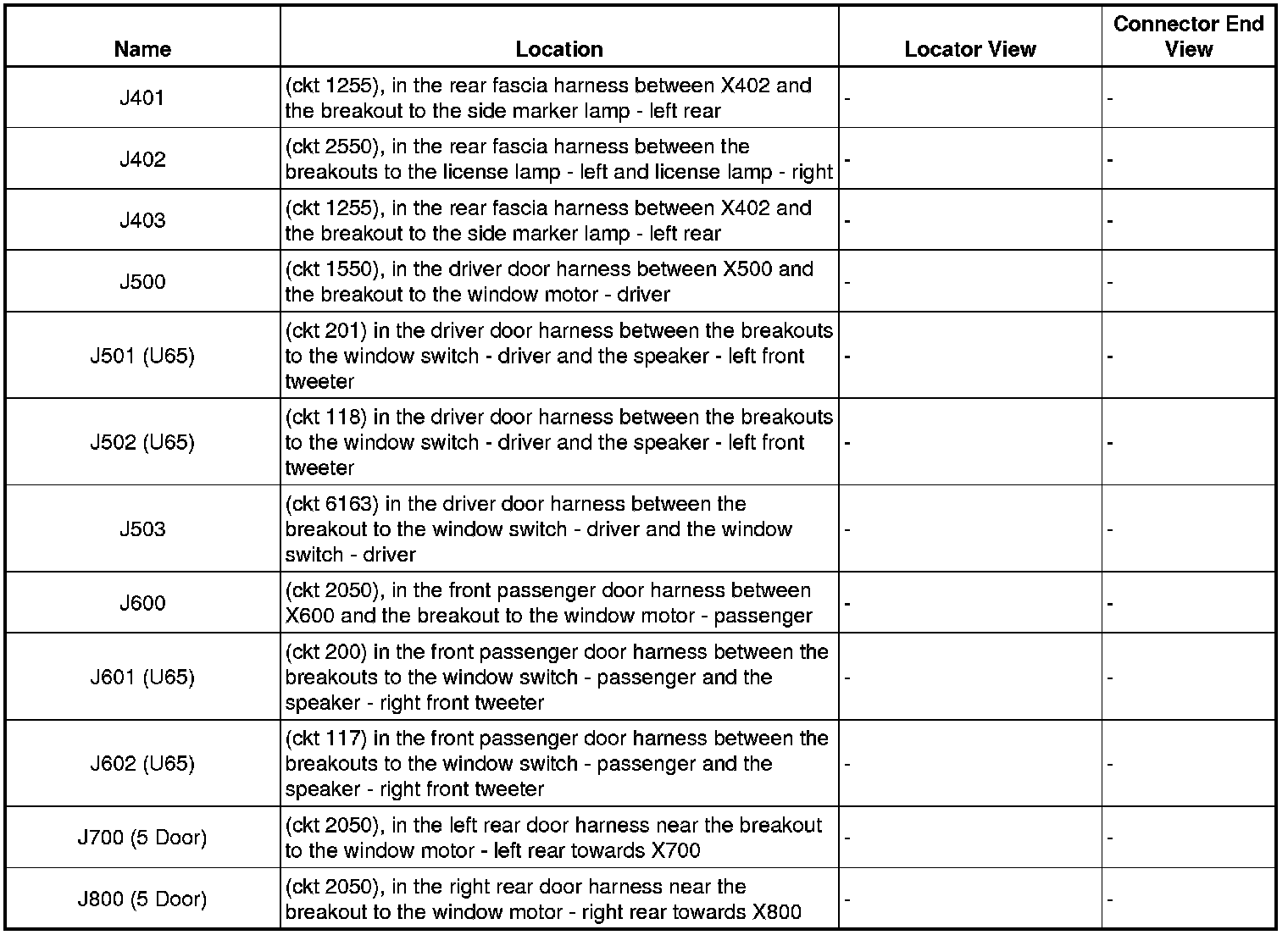

J401 - J800 (5 Door):
