Transmission Position Sensor/Switch: Locations




Instrument Panel/Center Console Component Views

Center Console




4 - Park Position Switch and Ignition Lock Cylinder Control Switch

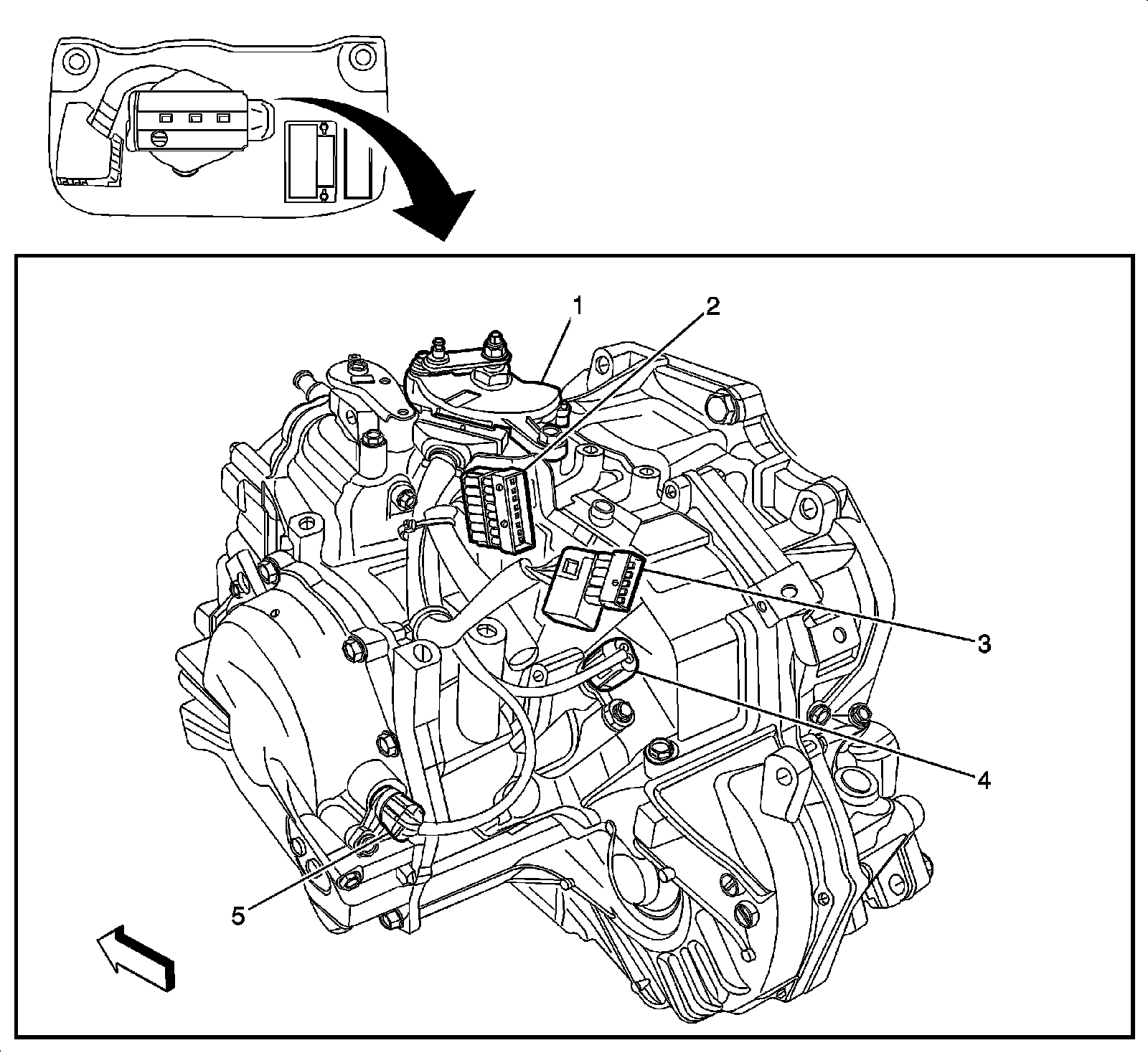

Automatic Transmission (MNF)




1 - Park/Neutral Position (PNP) Switch
