Power Window Switch: Locations




Door Component Views

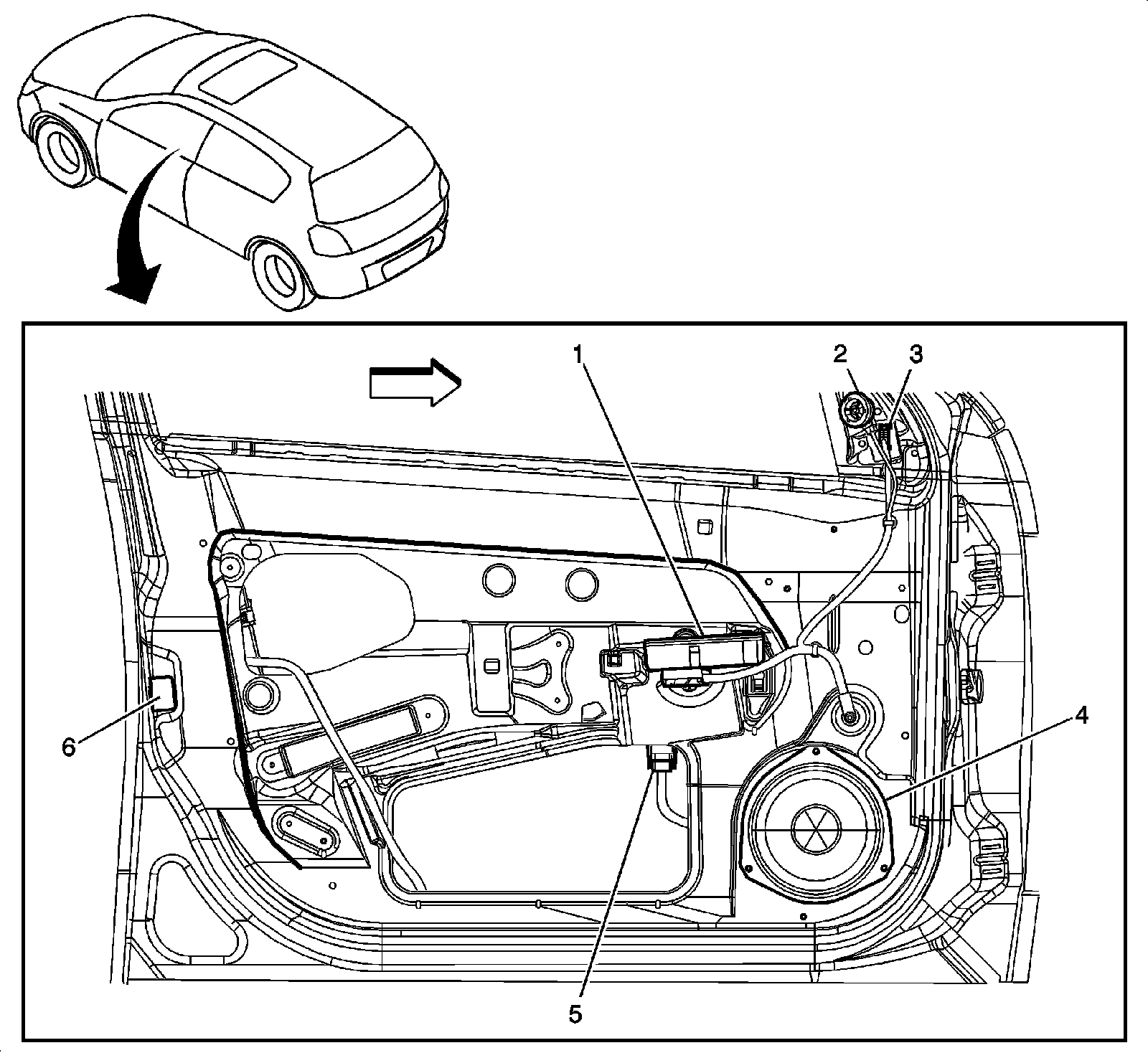

Driver Door




1 - Window Switch - Driver

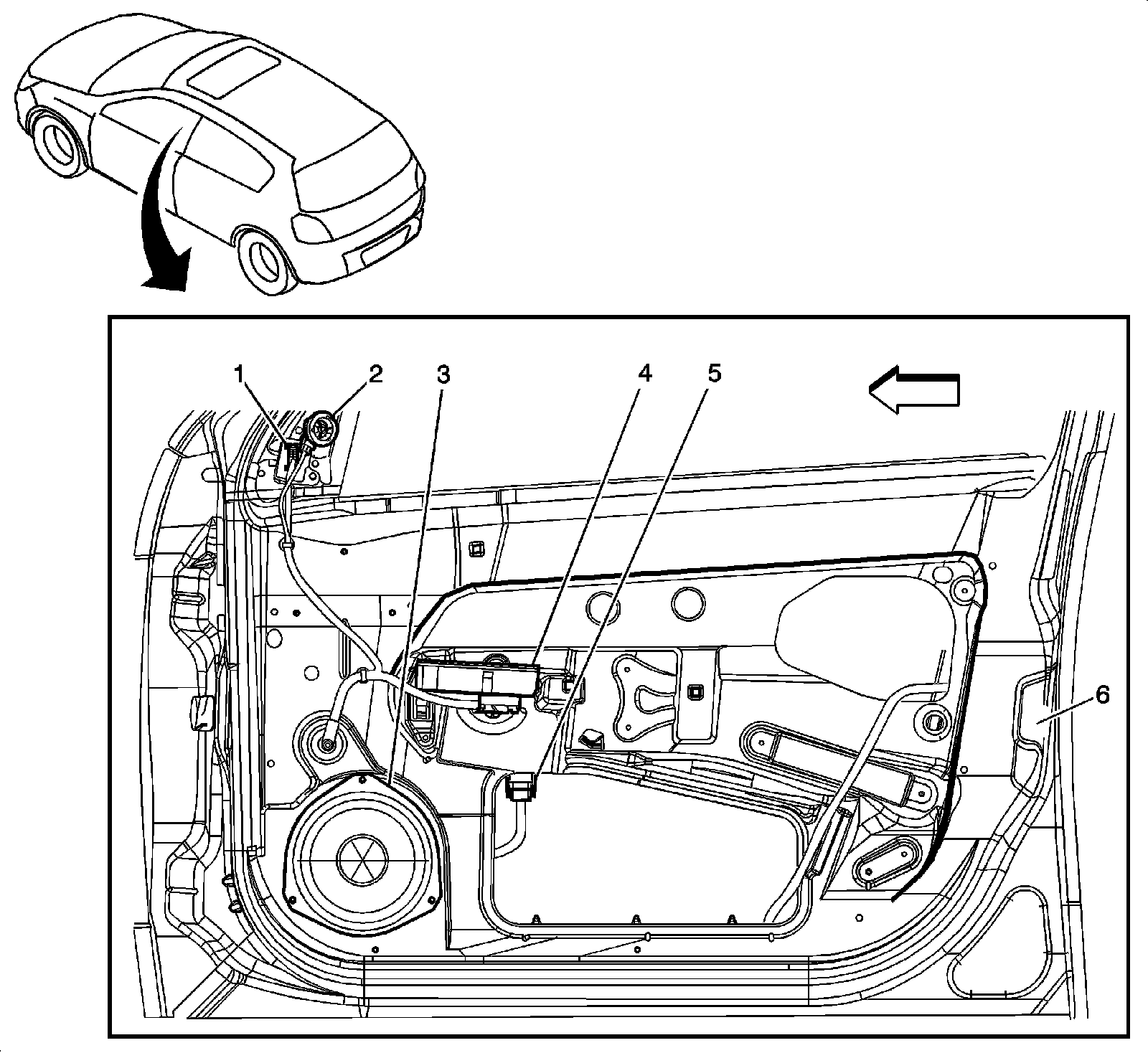

Passenger Door





4 - Window Switch - Passenger

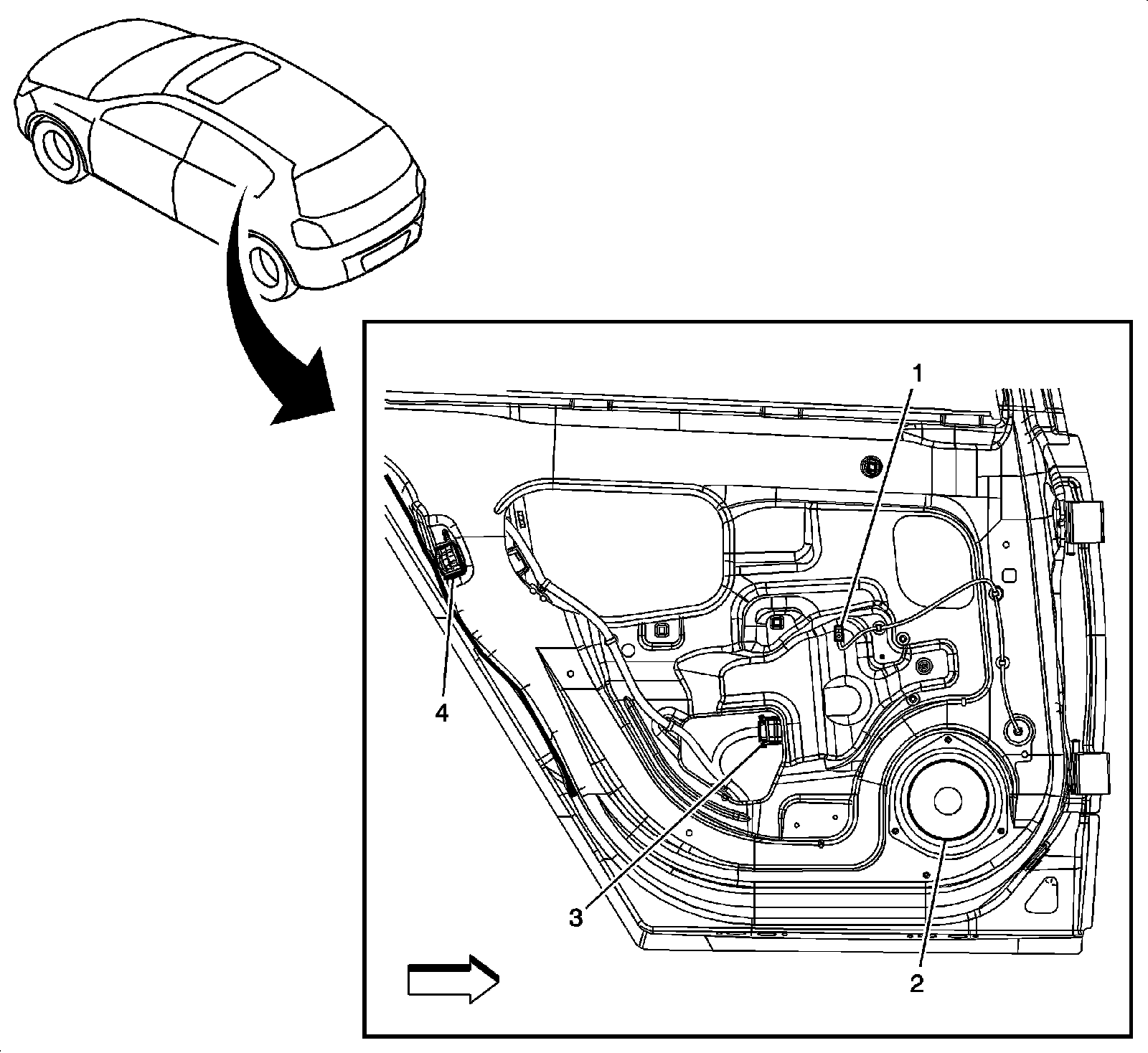

Left Rear Door (5 Door)





1 - Window Switch - Left Rear

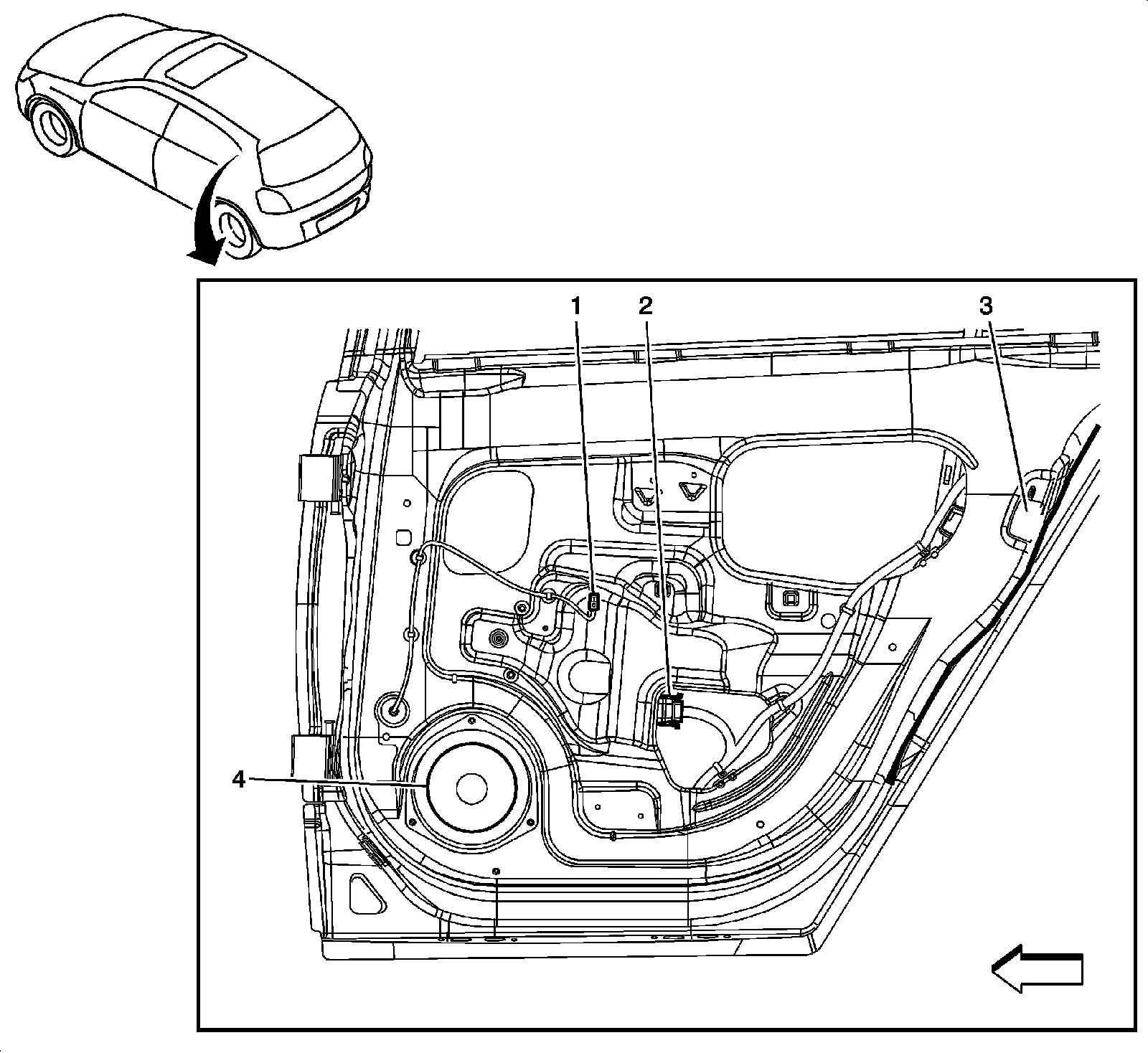

Right Rear Door (5Door)




1 - Window Switch - Right Rear
