Front Side Door Window Switch Replacement




Front Side Door Window Switch Replacement

Removal Procedure

1. Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement (Coupe) (Service and Repair)Front Side Door Trim Panel Replacement (Sedan) (Service and Repair).

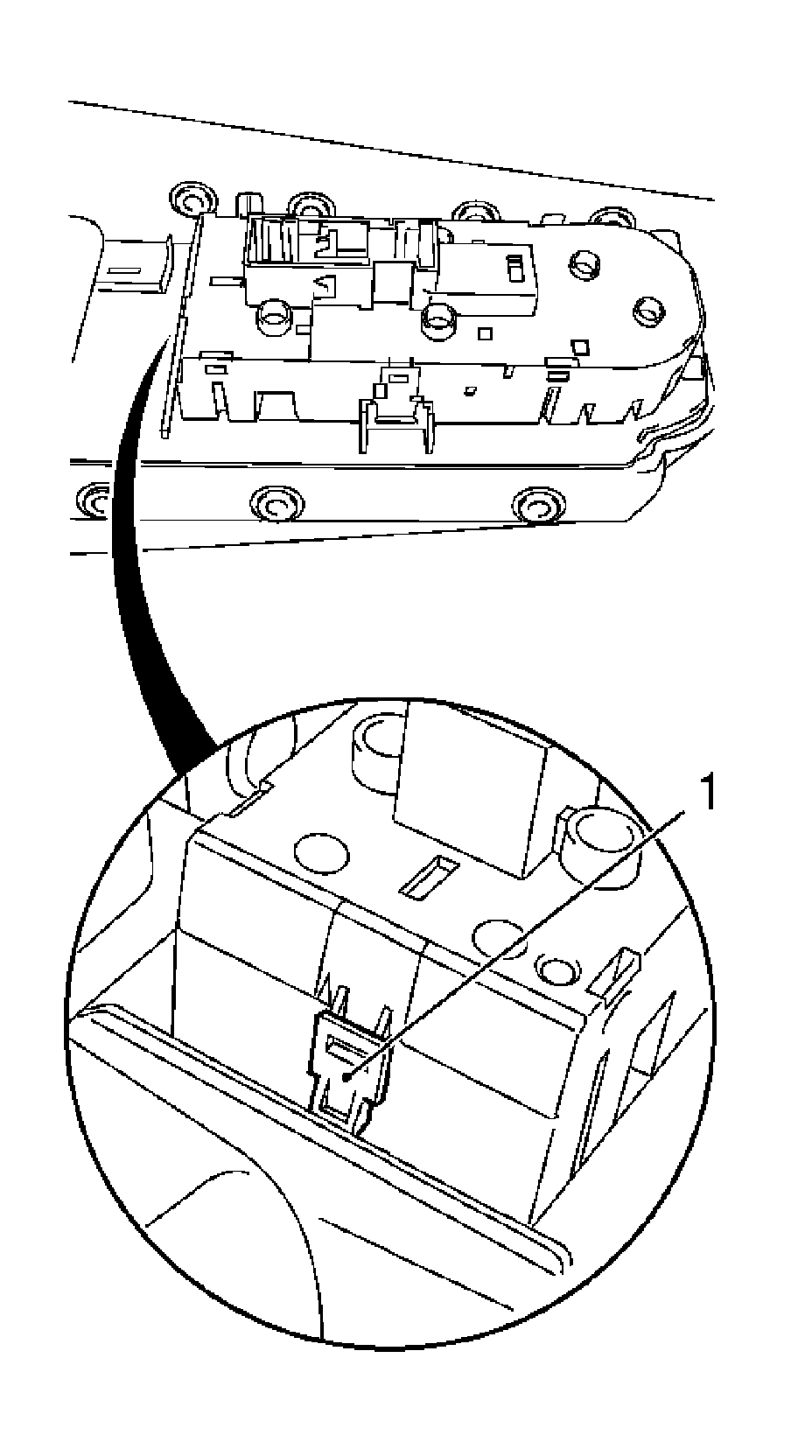

2. Remove the front side door window switch.

* Remove the retaining lug (1).
* Remove the switch.

Installation Procedure

1. Install the front side door window switch.
2. Install the front side door trim panel. Refer to Front Side Door Trim Panel Replacement (Coupe) (Service and Repair)Front Side Door Trim Panel Replacement (Sedan) (Service and Repair).
