Rear Side Door Window Switch Replacement




Rear Side Door Window Switch Replacement

Removal Procedure




1. Remove the rear side door window switch.

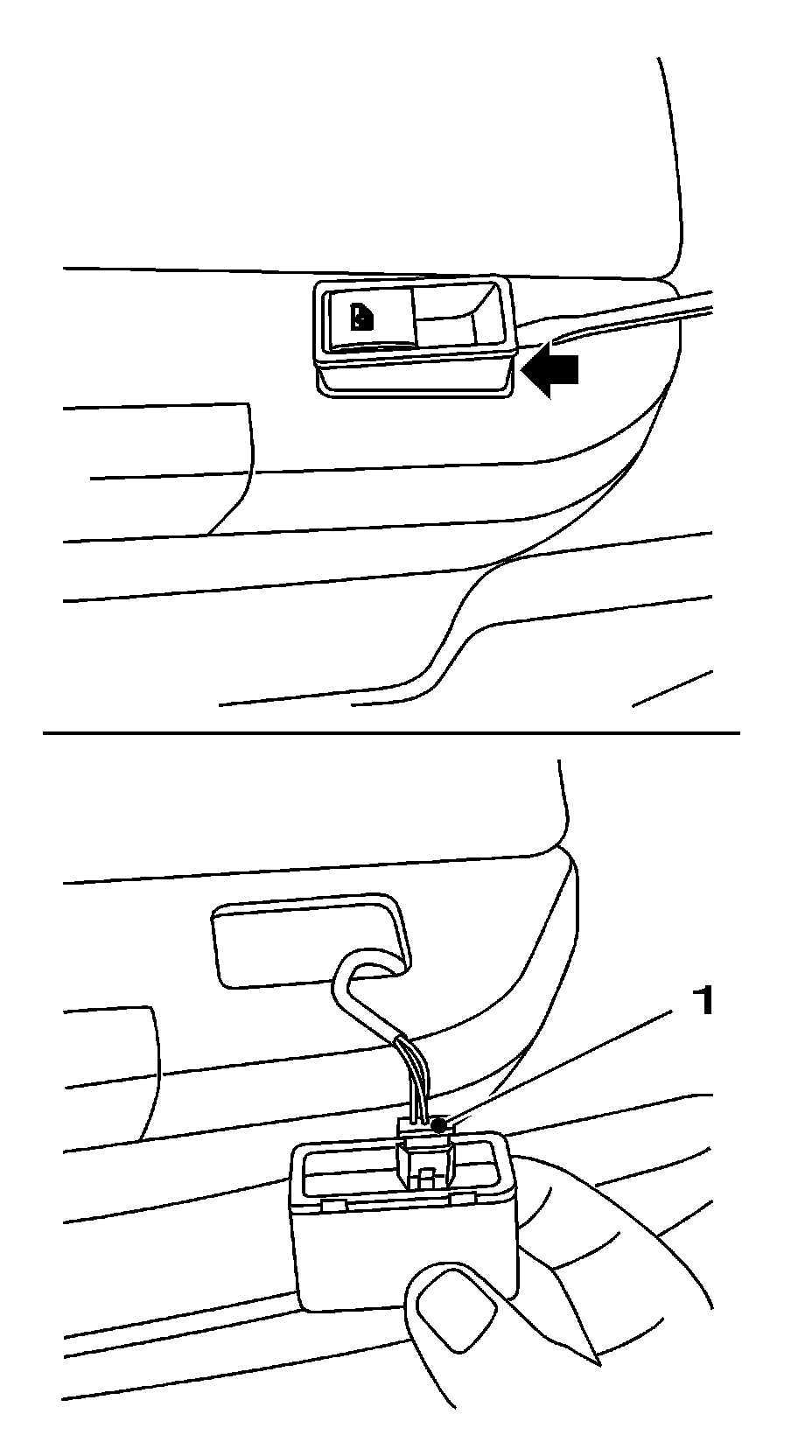

2. Release the switch (arrow) using a suitable tool.
3. Disconnect the wiring harness plug (1).

Installation Procedure

1. Install the rear side door window switch.
2. Connect the wiring harness plug.
3. Install the switch.
