Communication Interface Module Replacement (Left Side)

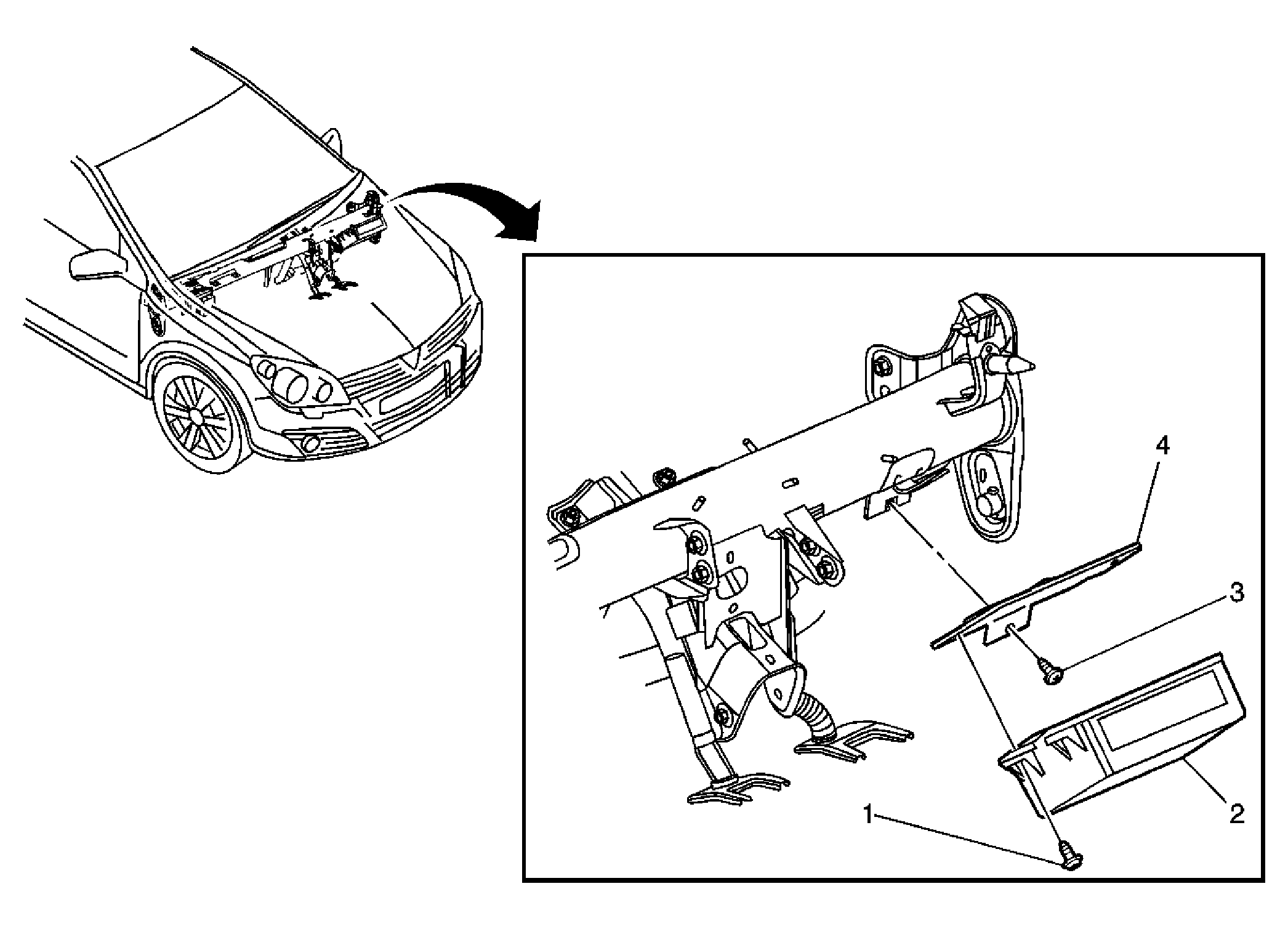

Fig 1: Communication Interface Module Replacement (Left Side)
GM2143742Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement .
1 Communication Interface Module Bolt (Qty: 1)
CAUTION: Refer to Fastener Caution .

Tighten:  4 N.m (35 lb in)
2 Communication Interface Module

Procedure

  1. Disconnect the electrical connections.
  2. Refer to Control Module References for programming and set up procedures.
3 Communication Interface Module Bolt (Qty: 1)
CAUTION: Refer to Fastener Caution .

Tighten:  4 N.m (35 lb in)
4 Mobile Telephone Transceiver
