Turn Signal Multifunction Switch Replacement

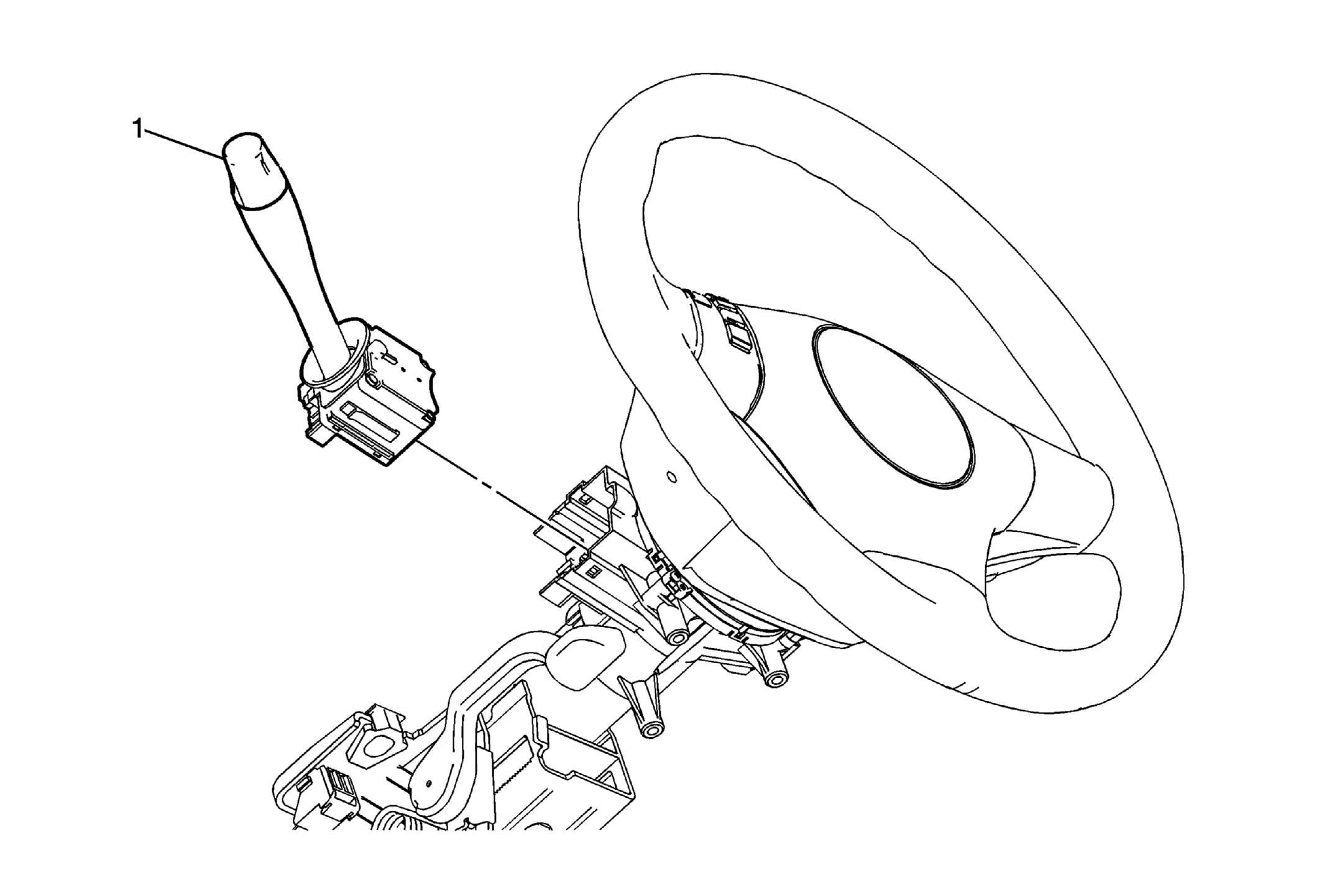

Fig 1: Identifying Turn Signal Multifunction Switch
GM1998551Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .
1 Turn Signal Multifunction Switch

Procedure

  1. Disconnect any electrical connectors as needed.
  2. Release the plastic retaining tabs to remove the turn signal multifunction switch.
