Body Control Systems




Body Control System Schematics

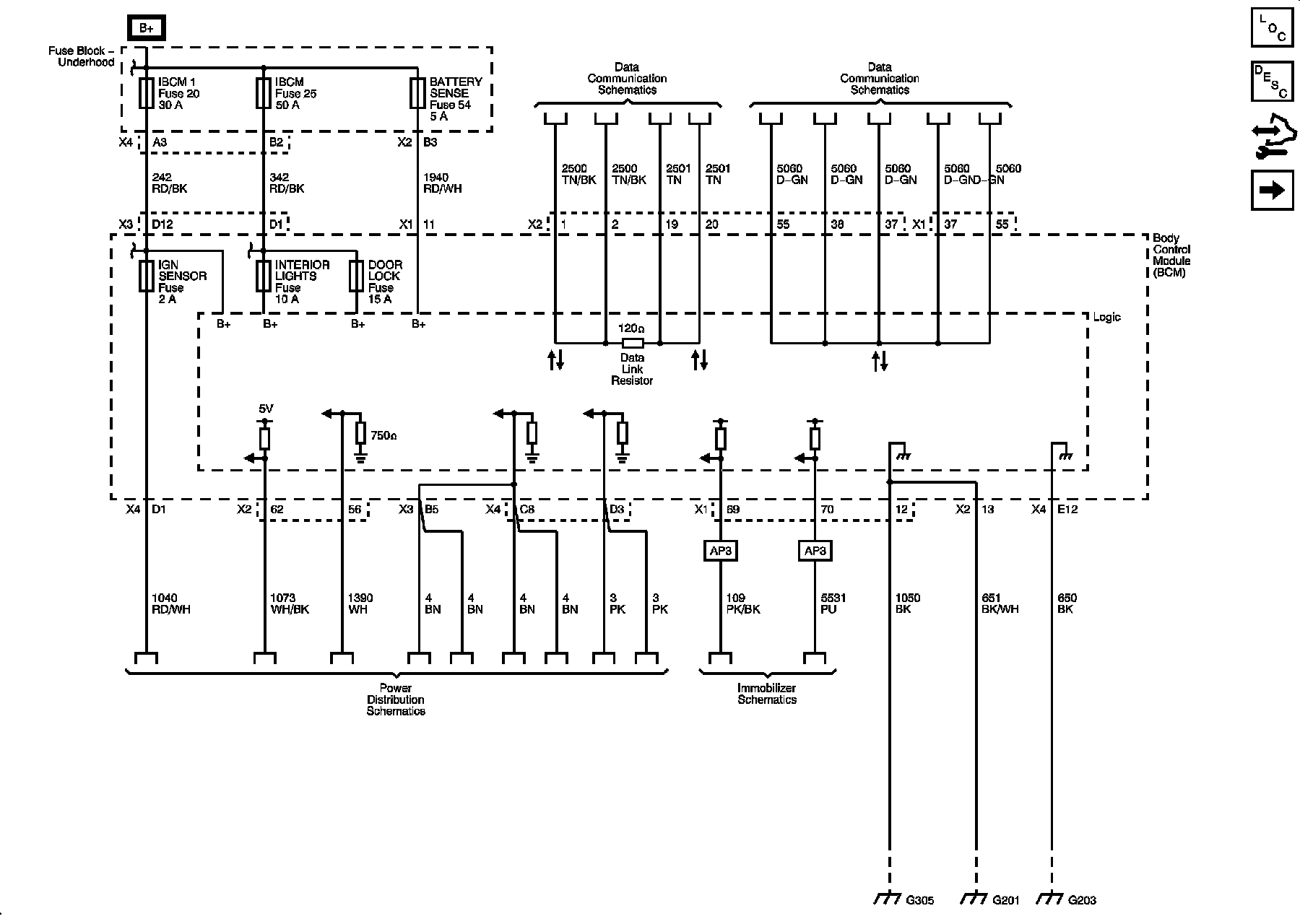

Power, Ground and Serial Data

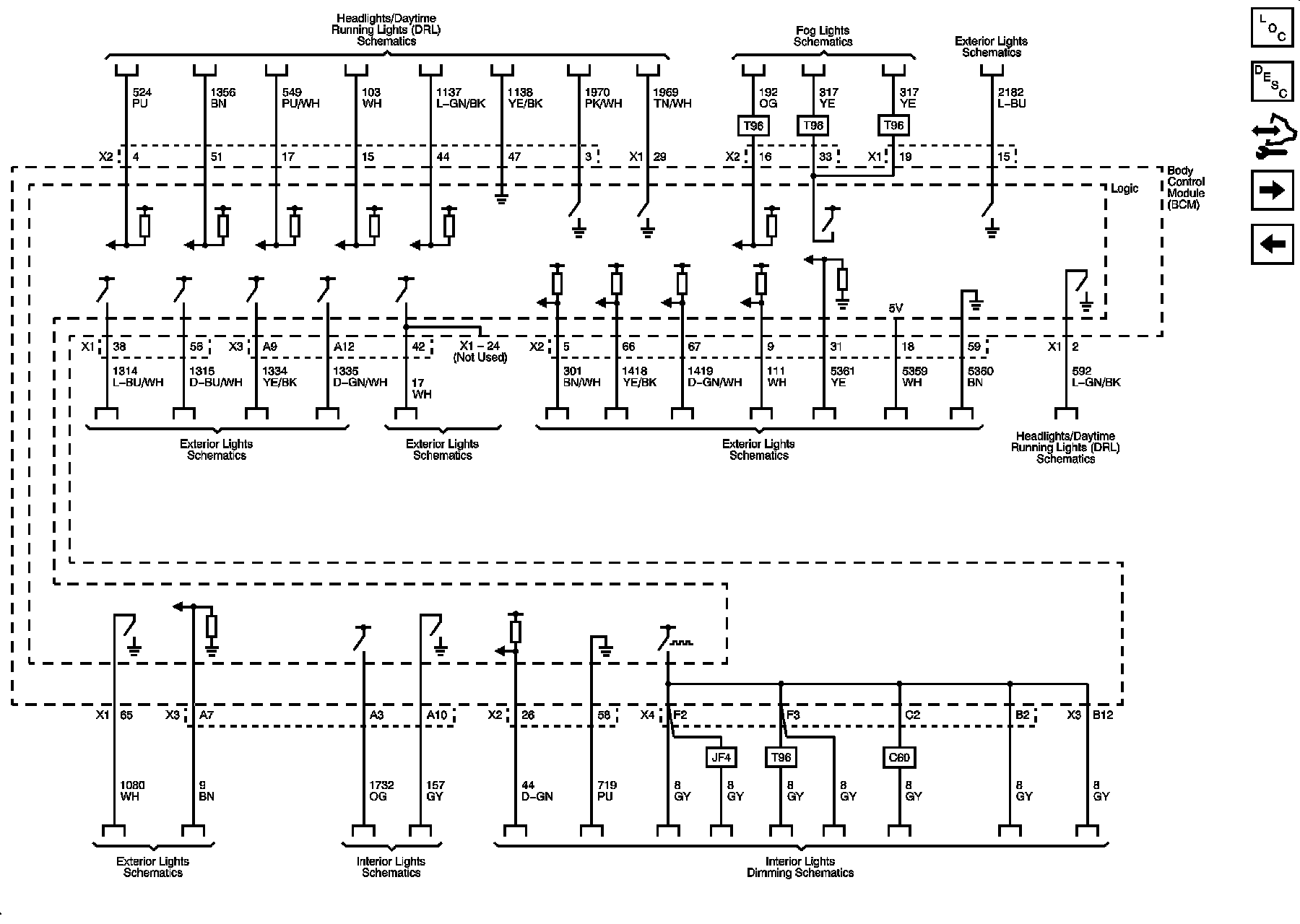

Controlled/Monitored Subsystem References 1 of 4

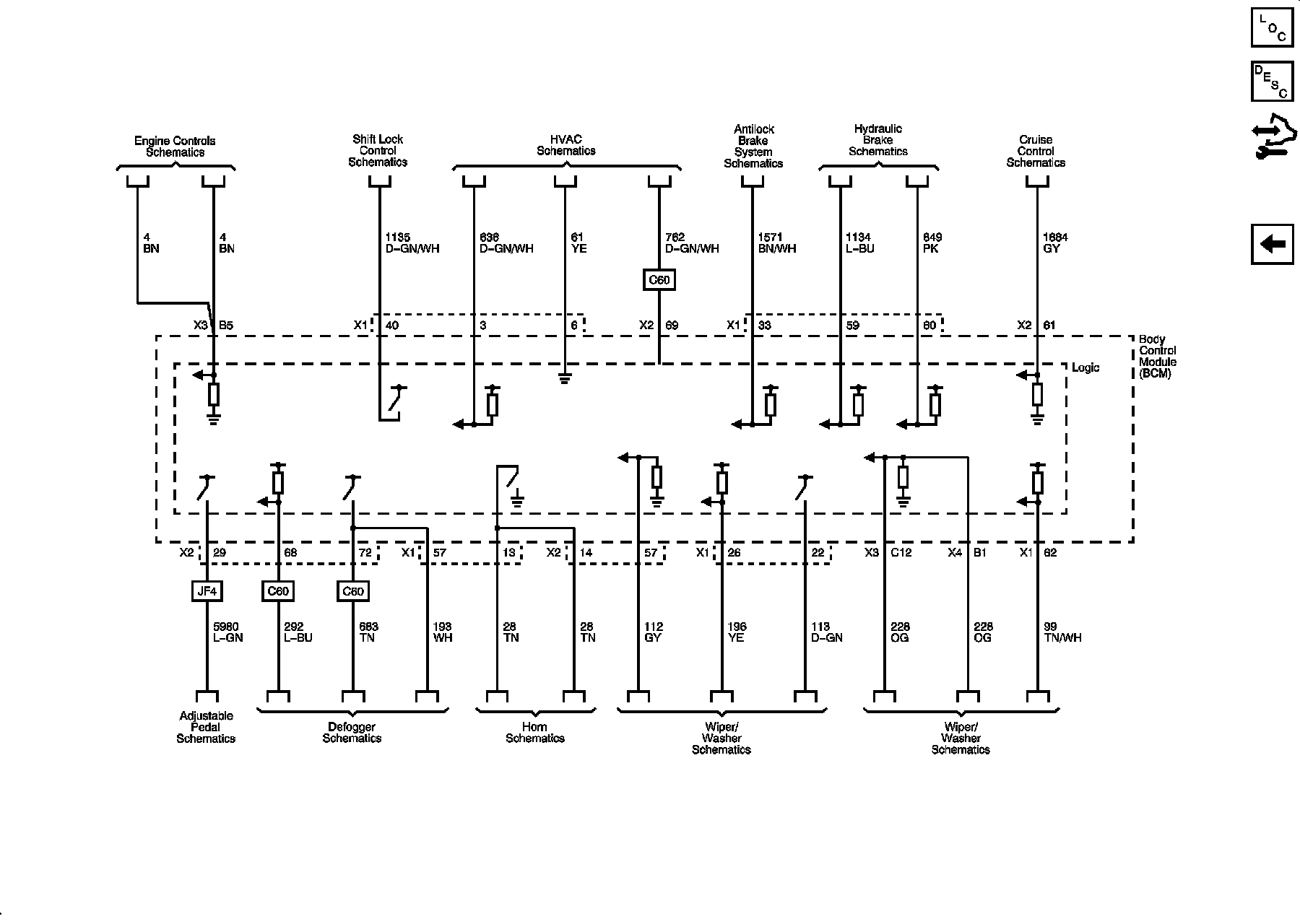

Controlled/Monitored Subsystem References 2 of 4





Controlled/Monitored Subsystem References 3 of 4





Controlled/Monitored Subsystem References 4 of 4
