Powertrain Component Views




Powertrain Component Views

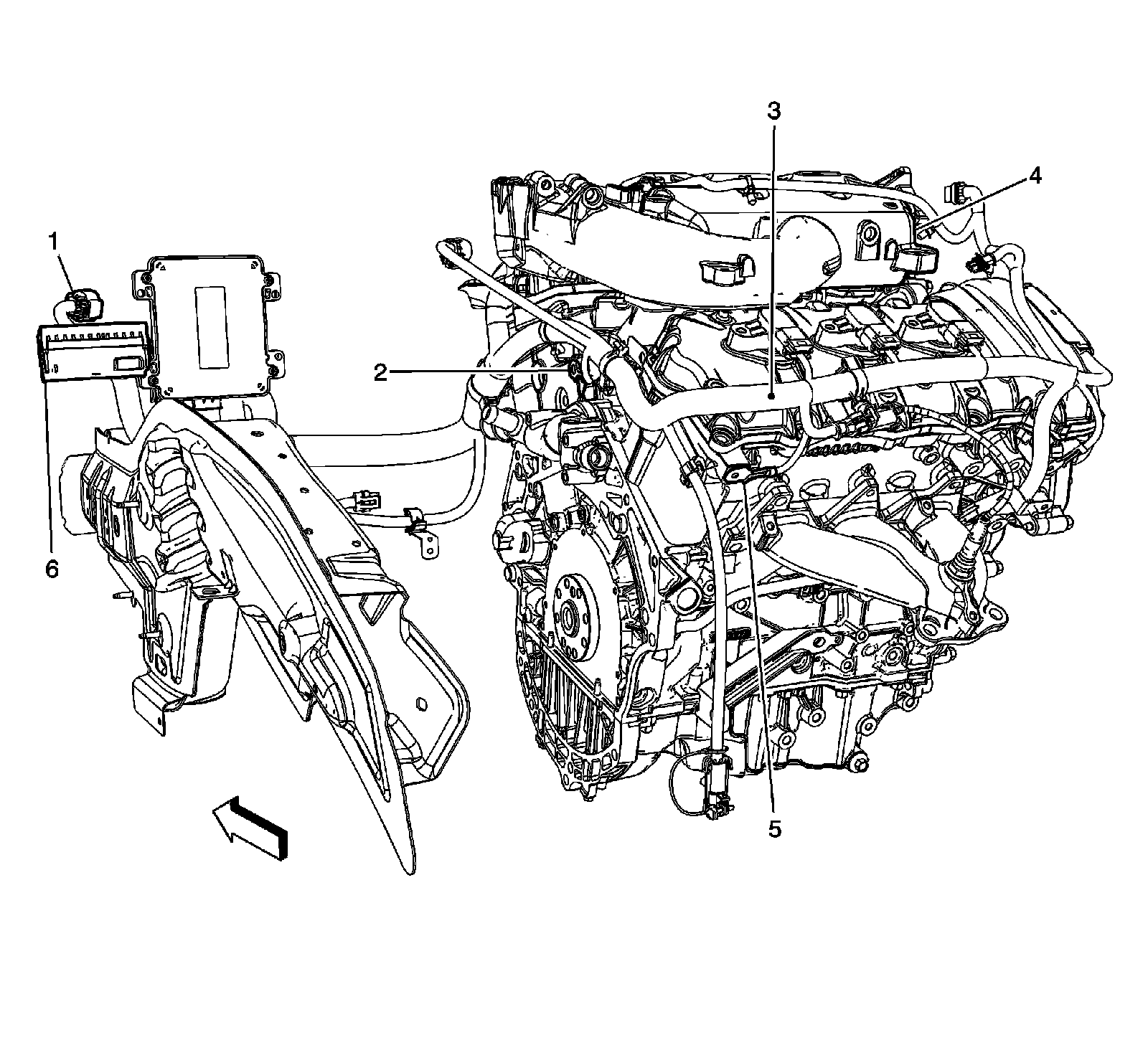

Rear of Engine Components 1 of 2 (LY7)




1 - X108
2 - G105
3 - J198
4 - Upper Intake Manifold
5 - G111
6 - Fuse Block - Underhood X1
