Moveable Window Schematics

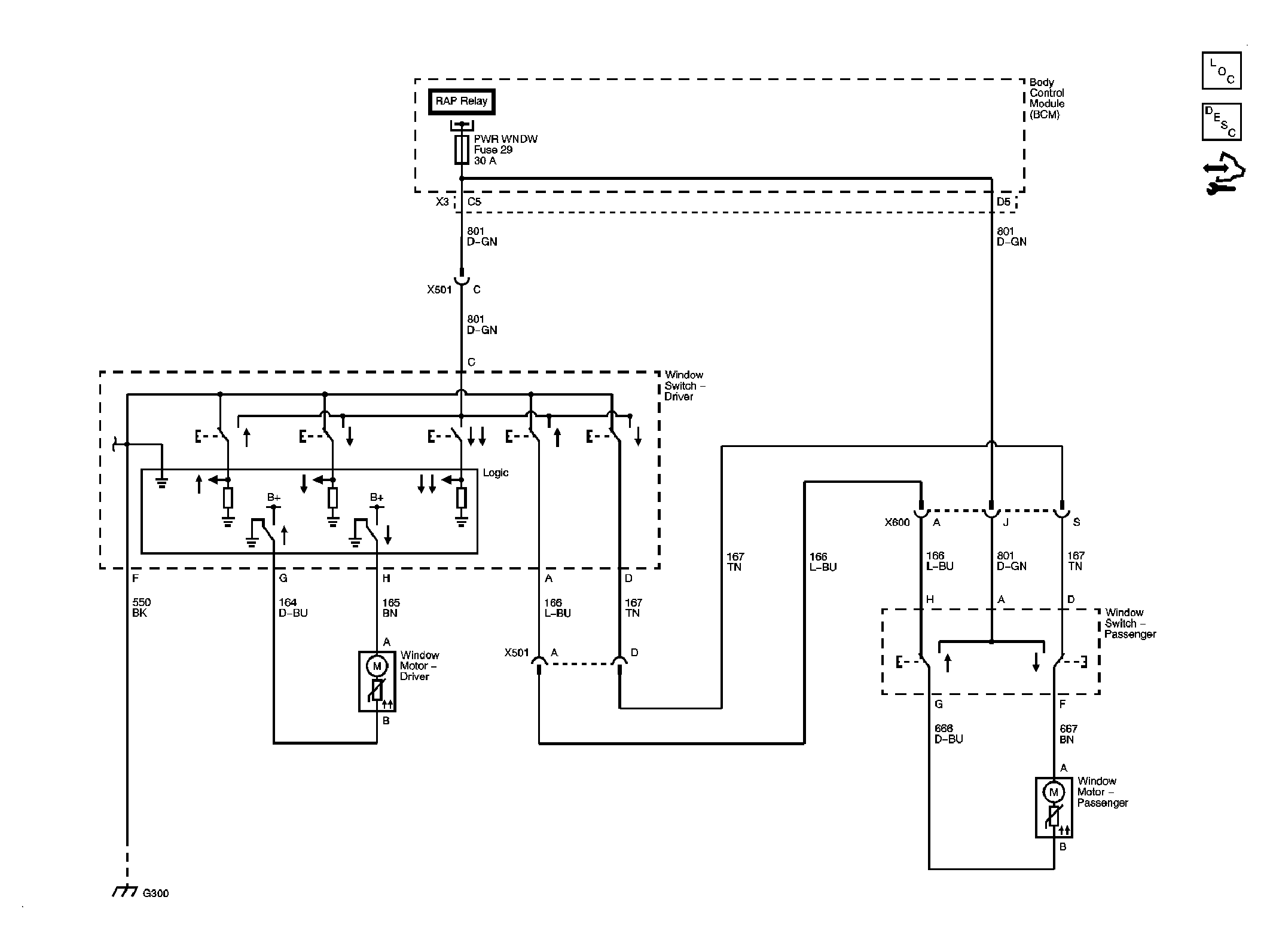

Fig 1: Moveable Window
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
