Power Steering Pump Belt Replacement

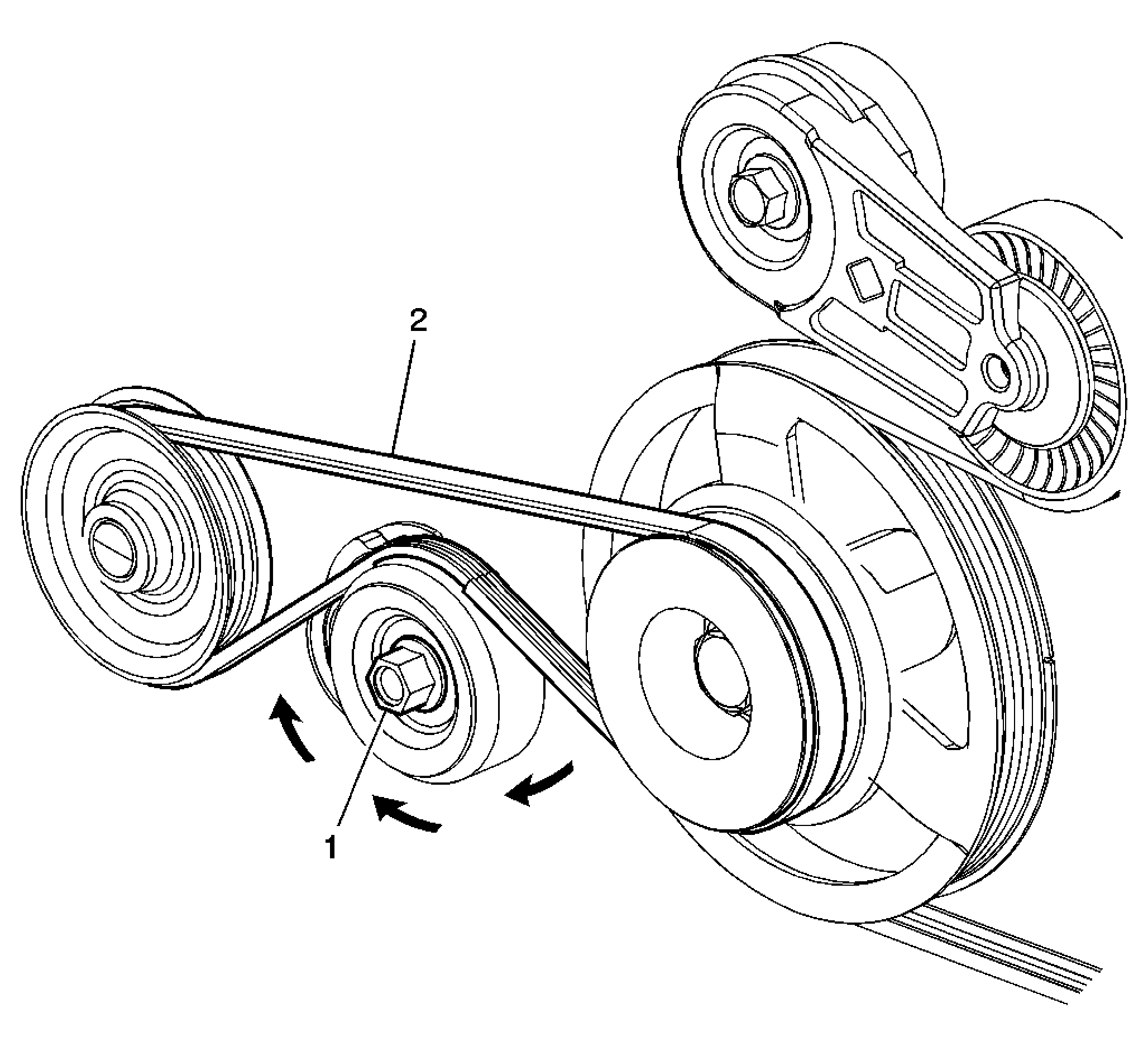

Fig 1: Identifying Power Steering Pump Belt
GM1717023Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Power Steering Pump Belt Tensioner Pulley
Procedure:
Rotate the power steering pump belt tensioner pulley clockwise to release the tension on the power steering pump drive belt.
2 Power Steering Pump Drive Belt
