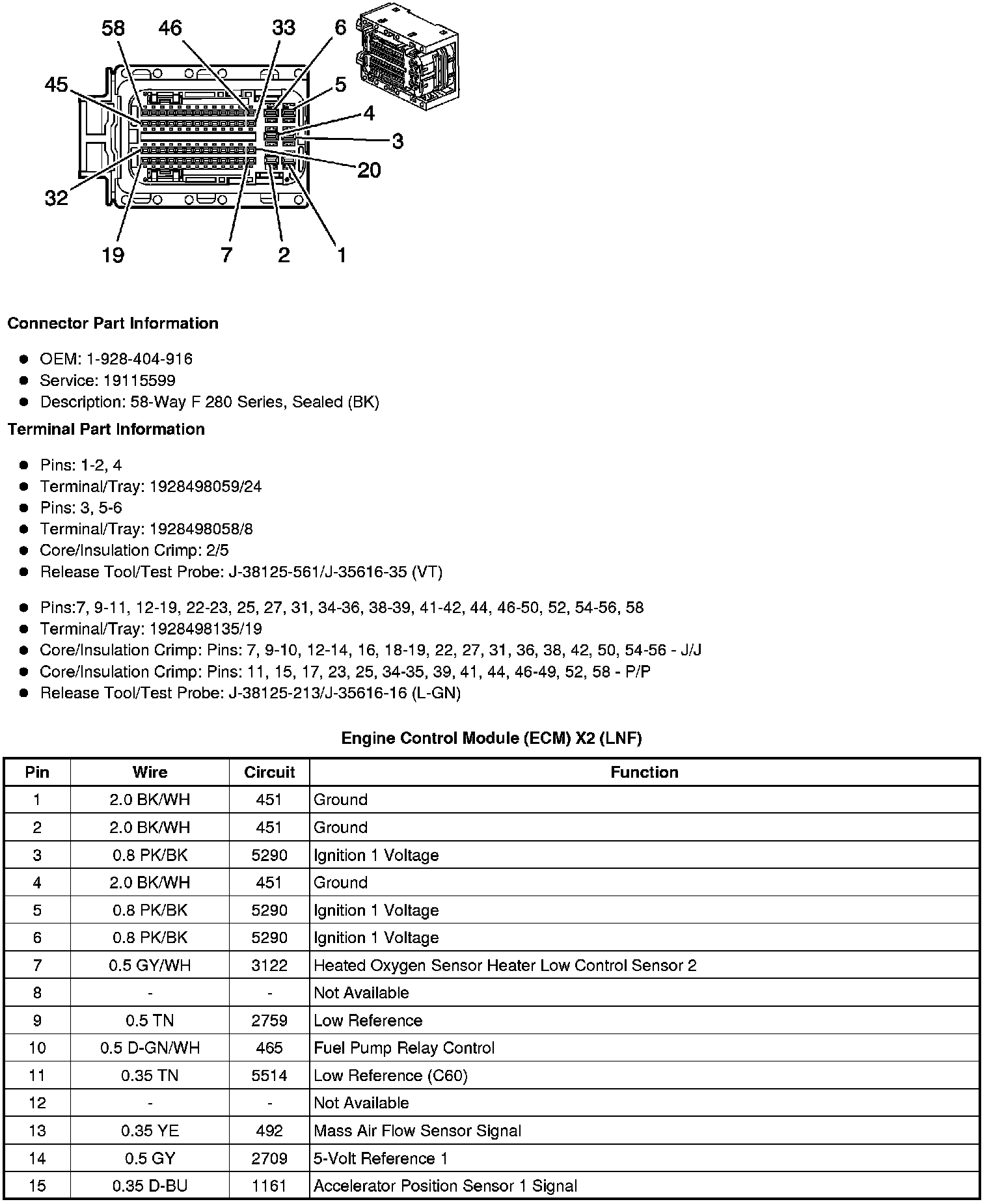

Engine Control Module (ECM) - X2




Component Connector End Views

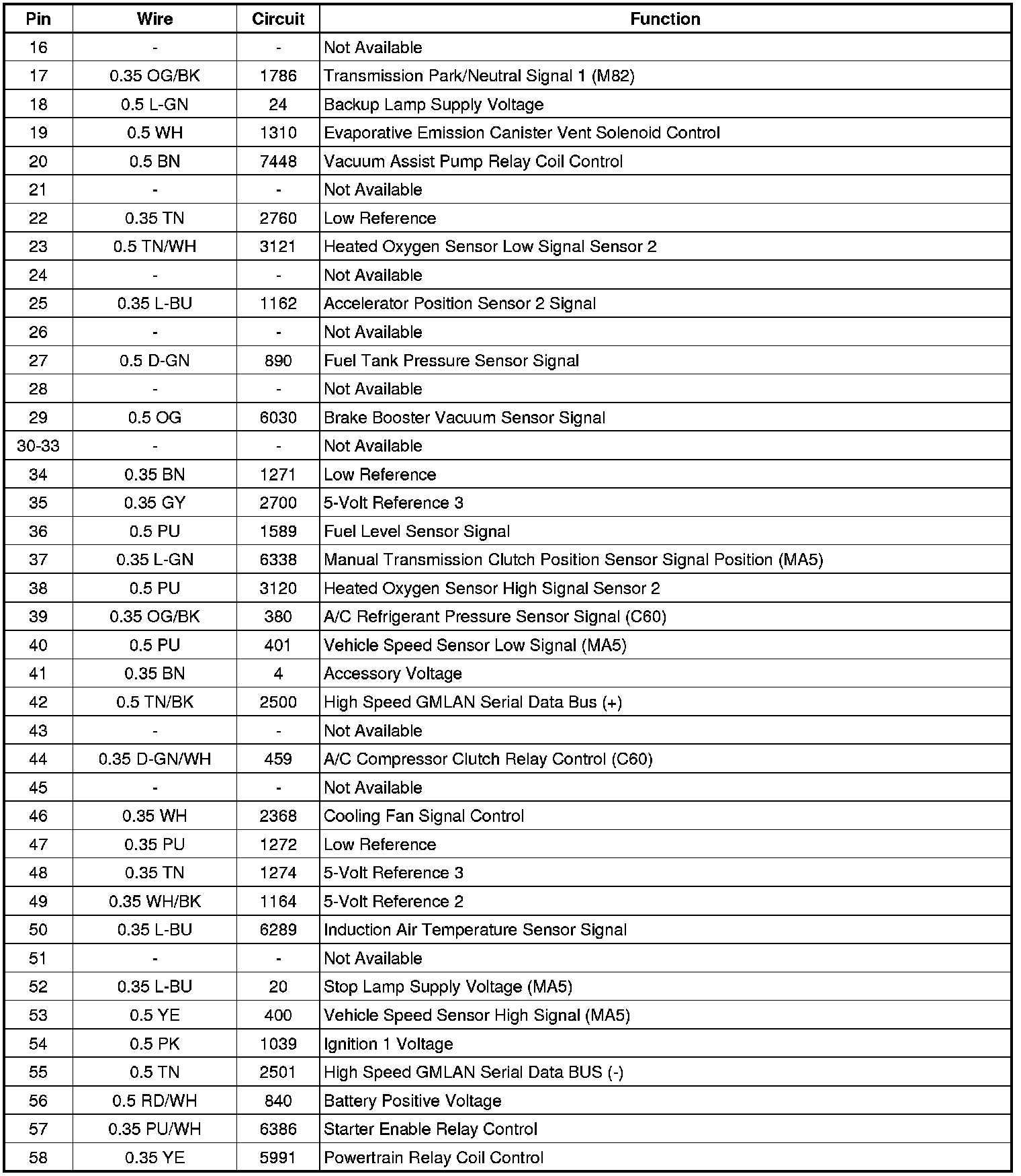

Engine Control Module (ECM) X2 (LNF)
