Forward Lamp

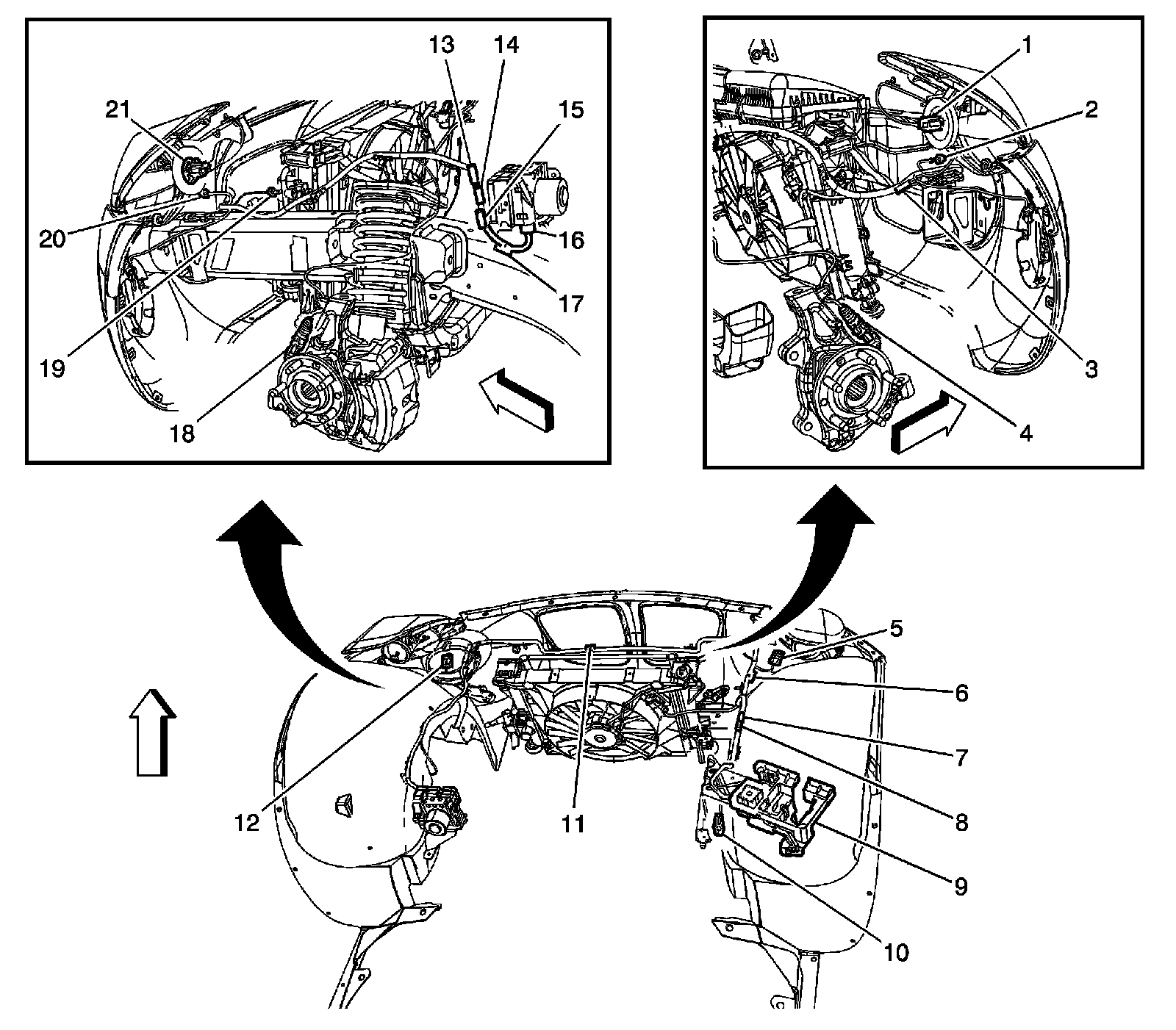

Harness Routing Views

Forward Lamp




1 - X111 (SKY)
2 - G102
3 - J115
4 - Wheel Speed Sensor (WSS) - Right Front
5 - X102
6 - J115
7 - J105
8 - J129
9 - Fuse Block - Underhood
10 - X120
11 - J103
12 - X103
13 - J130
14 - J131
15 - J109
16 - Electronic Brake Control Module (EBCM)
17 - J101
18 - Wheel Speed Sensor (WSS) - Left Front
19 - G101
20 - G105
21 - X110 (SKY)
