Moveable Window Schematics

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

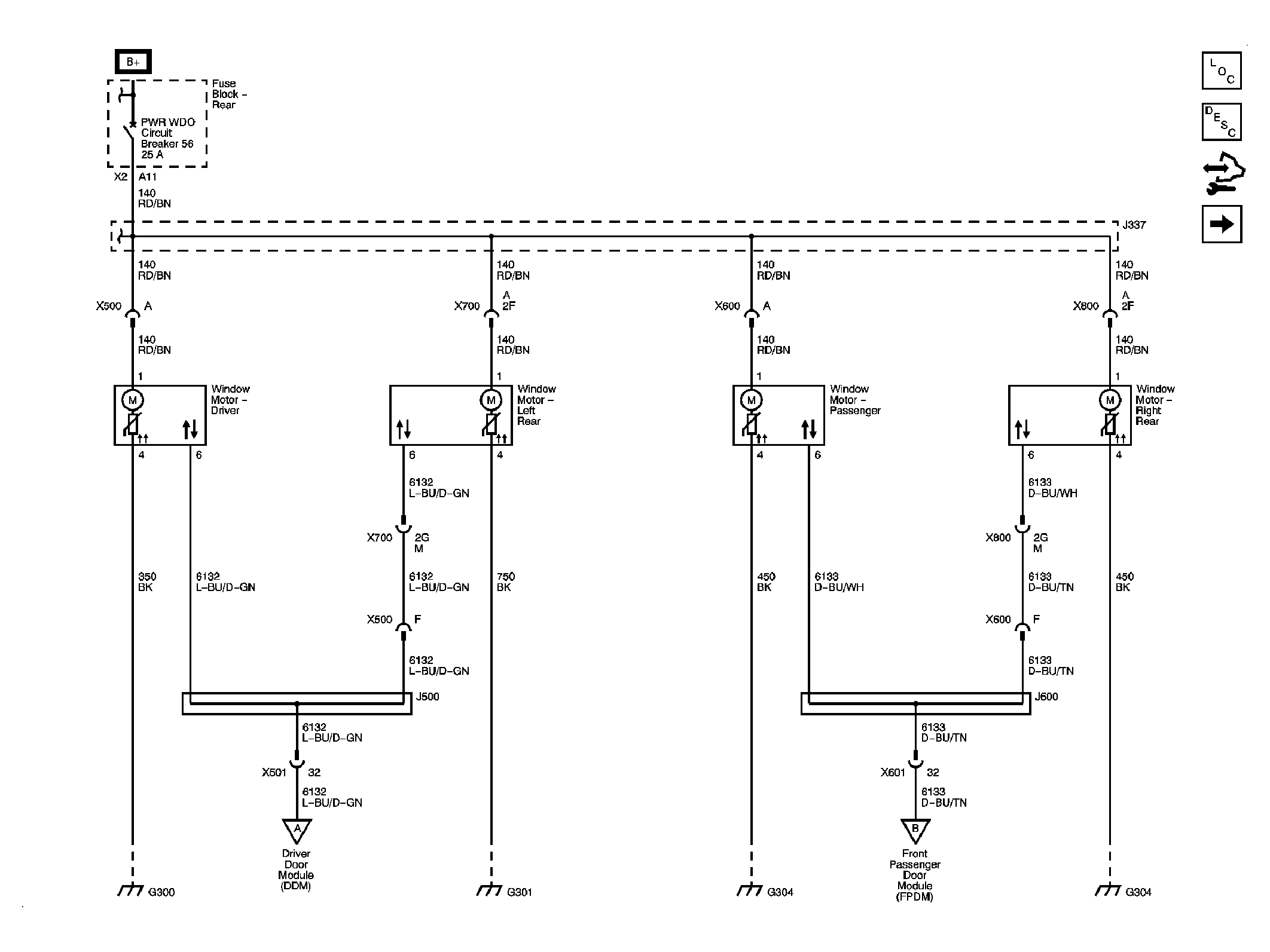

Fig 1: Window Motors Schematic

Courtesy of GENERAL MOTORS CORP.

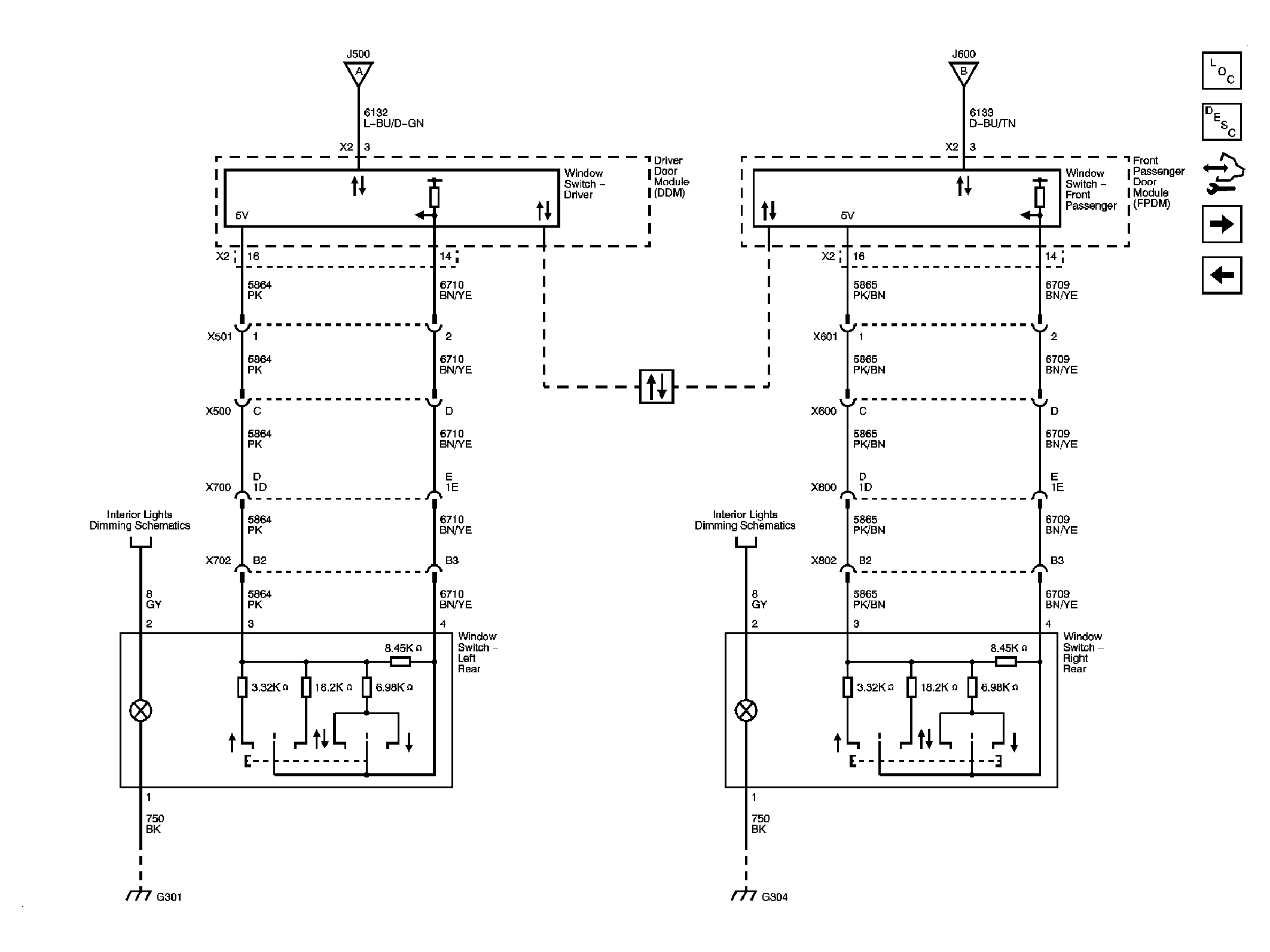

Fig 2: Window Switches Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Upfitter Window Provisions Schematic - V4U

Courtesy of GENERAL MOTORS CORP.
