Seat Temperature Element




Component Connector End Views

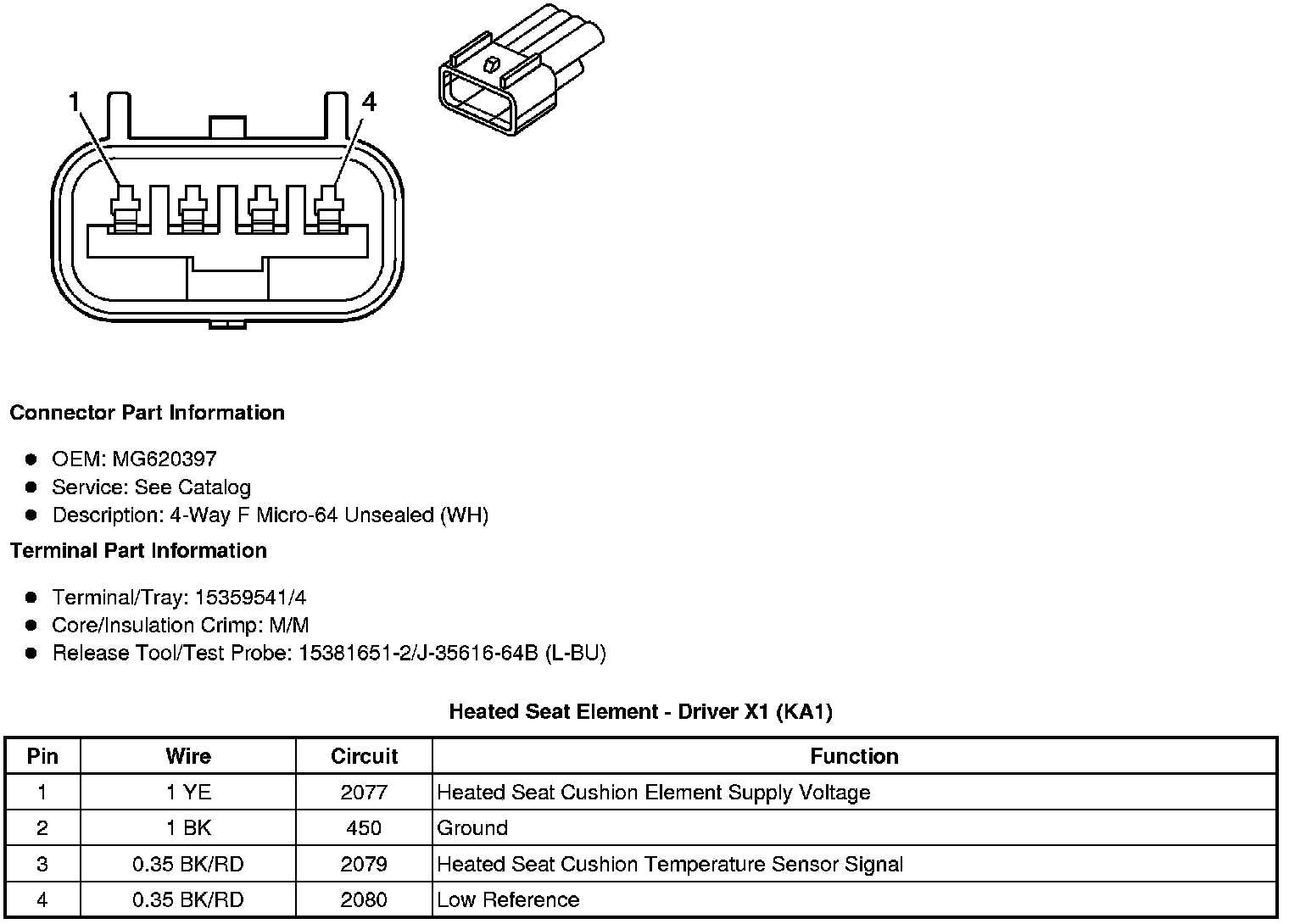

Heated Seat Element - Driver X1 (KA1)

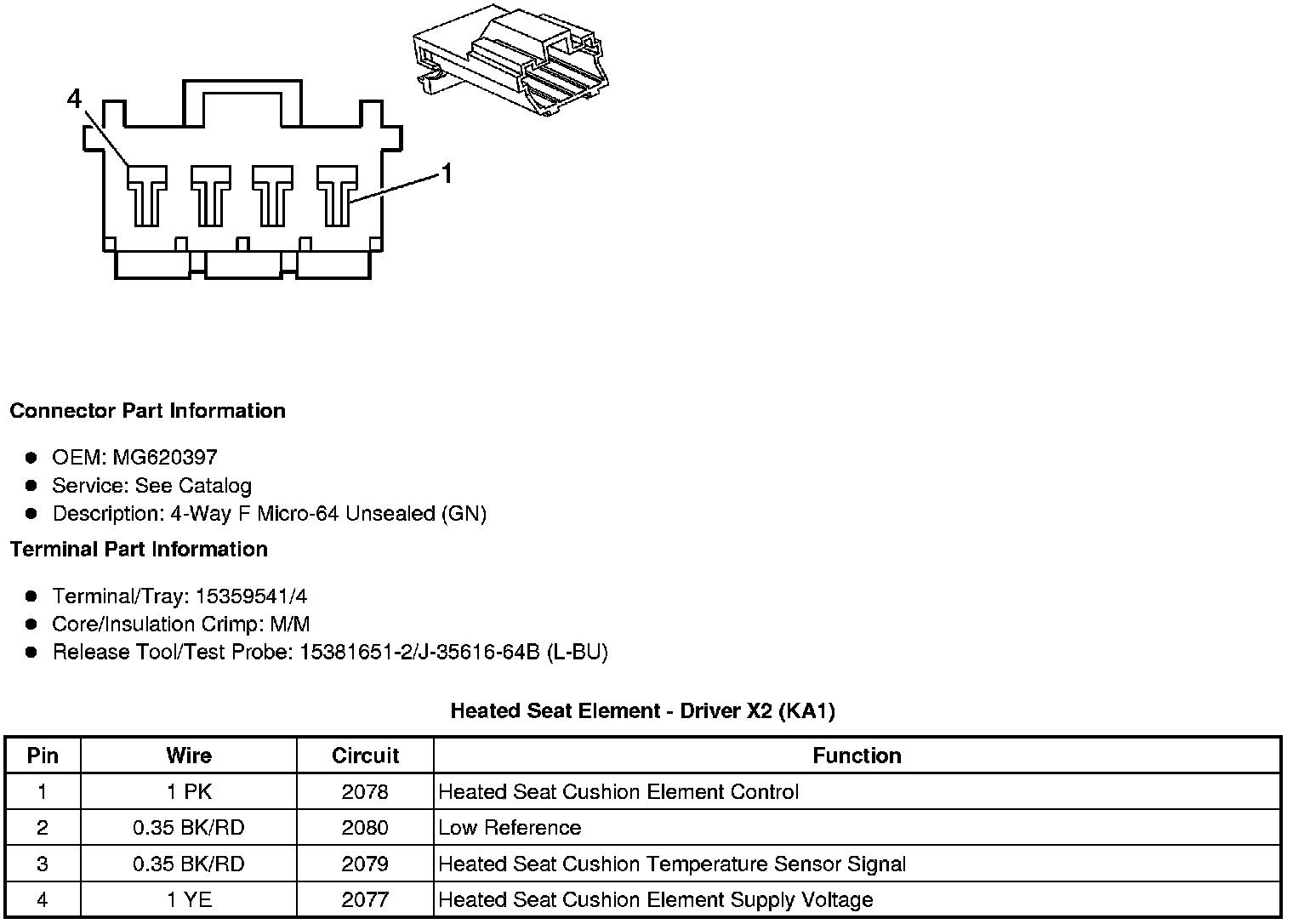

Heated Seat Element - Driver X2 (KA1)

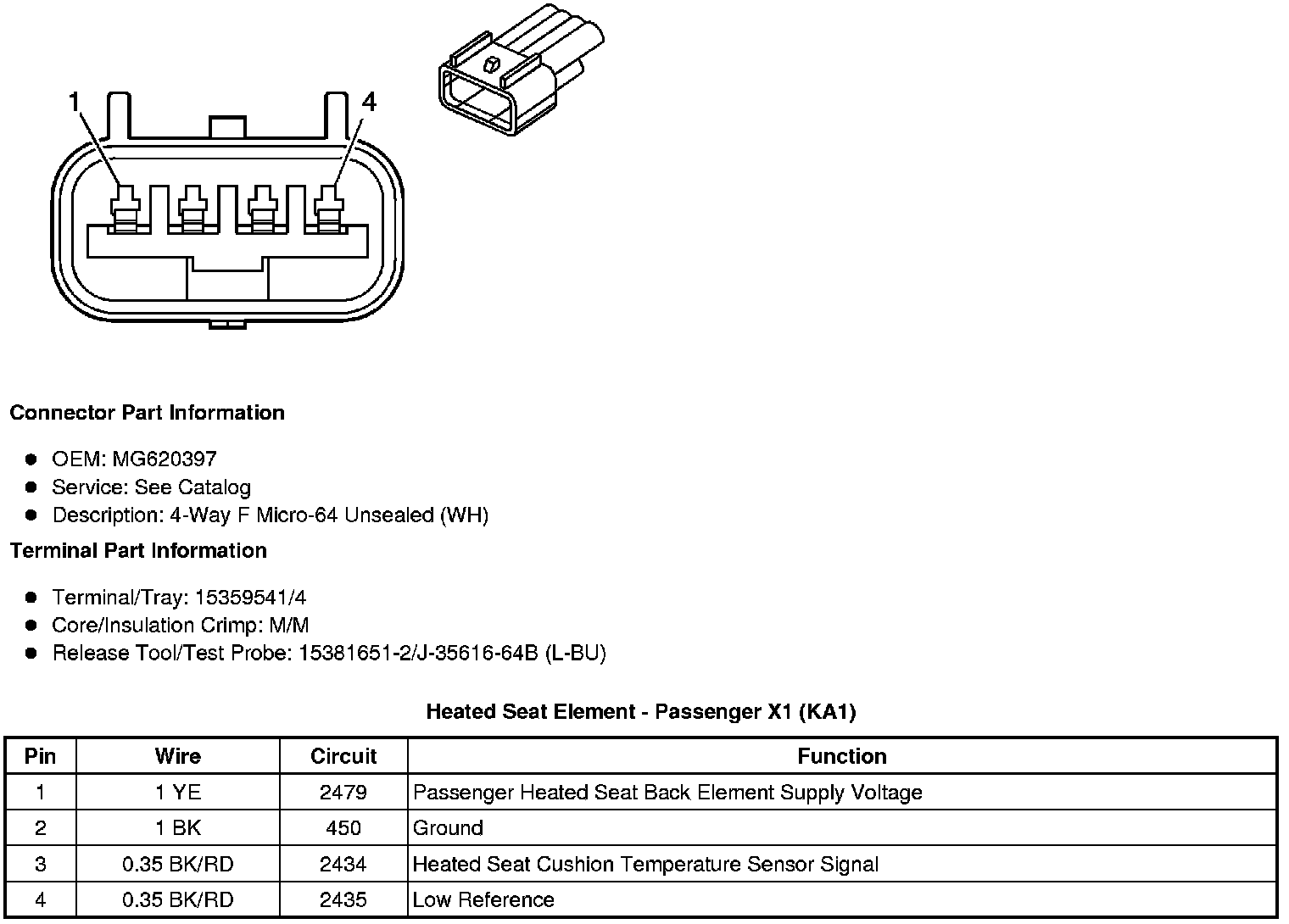

Heated Seat Element - Passenger X1 (KA1)

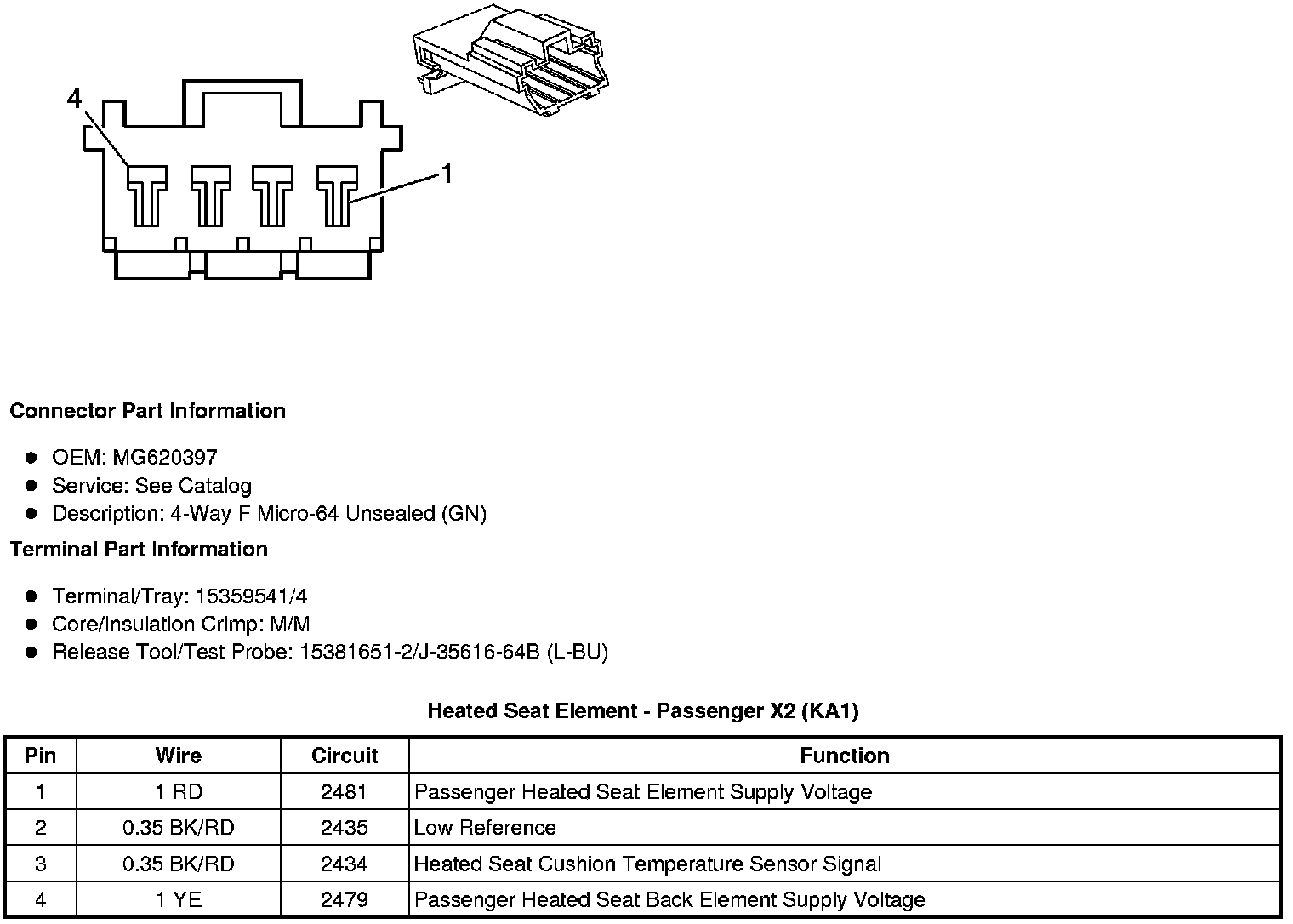

Heated Seat Element - Passenger X2 (KA1)
