Turn Signal Lamp




Component Connector End Views

Park/Turn Signal Lamp - Left Front

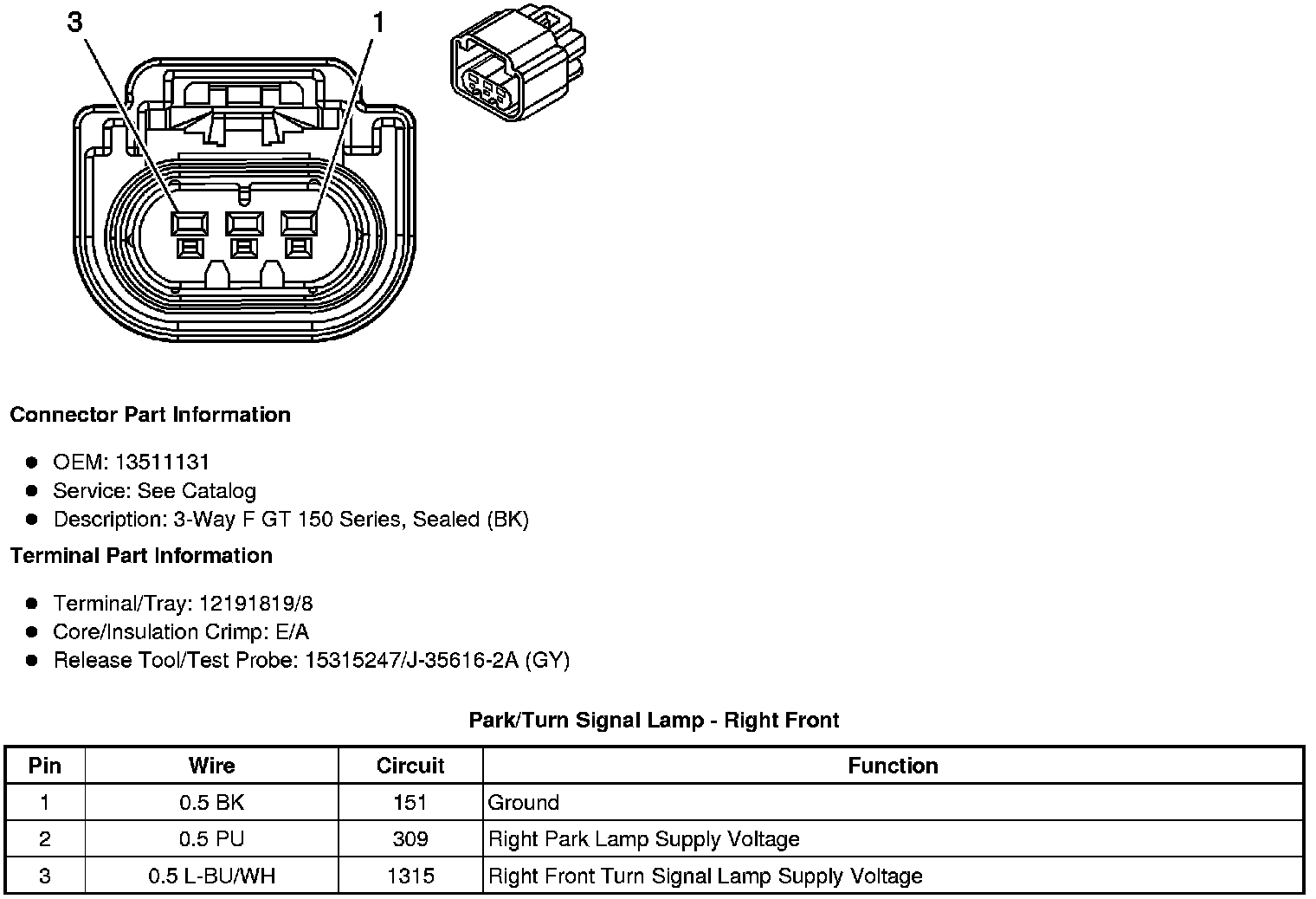

Park/Turn Signal Lamp - Right Front






Turn Signal Lamp - Left Rear






Turn Signal Lamp - Right Rear

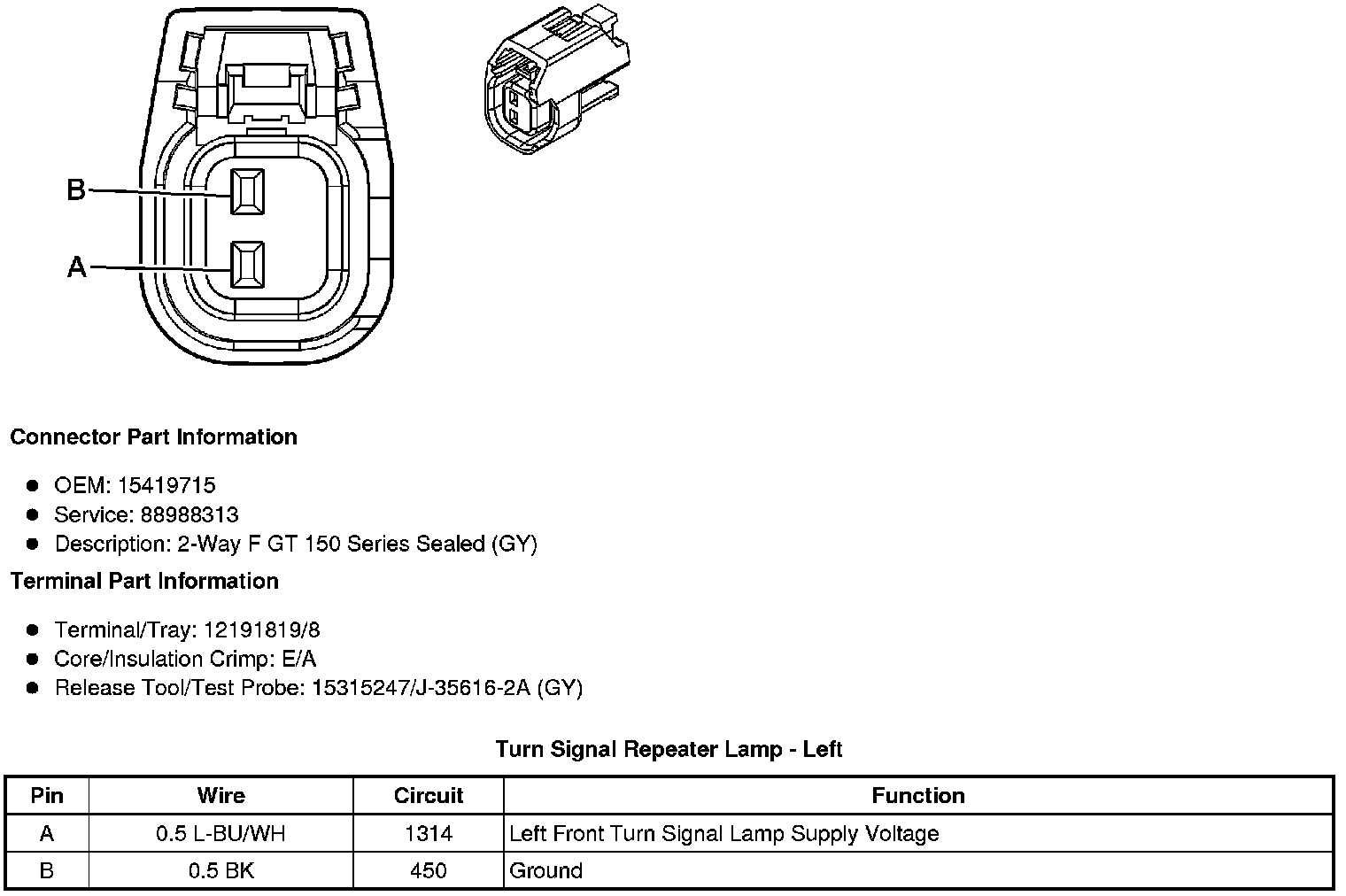

Turn Signal Repeater Lamp - Left






Turn Signal Repeater Lamp - Right
