Harness Routing Views

Harness Routing Views

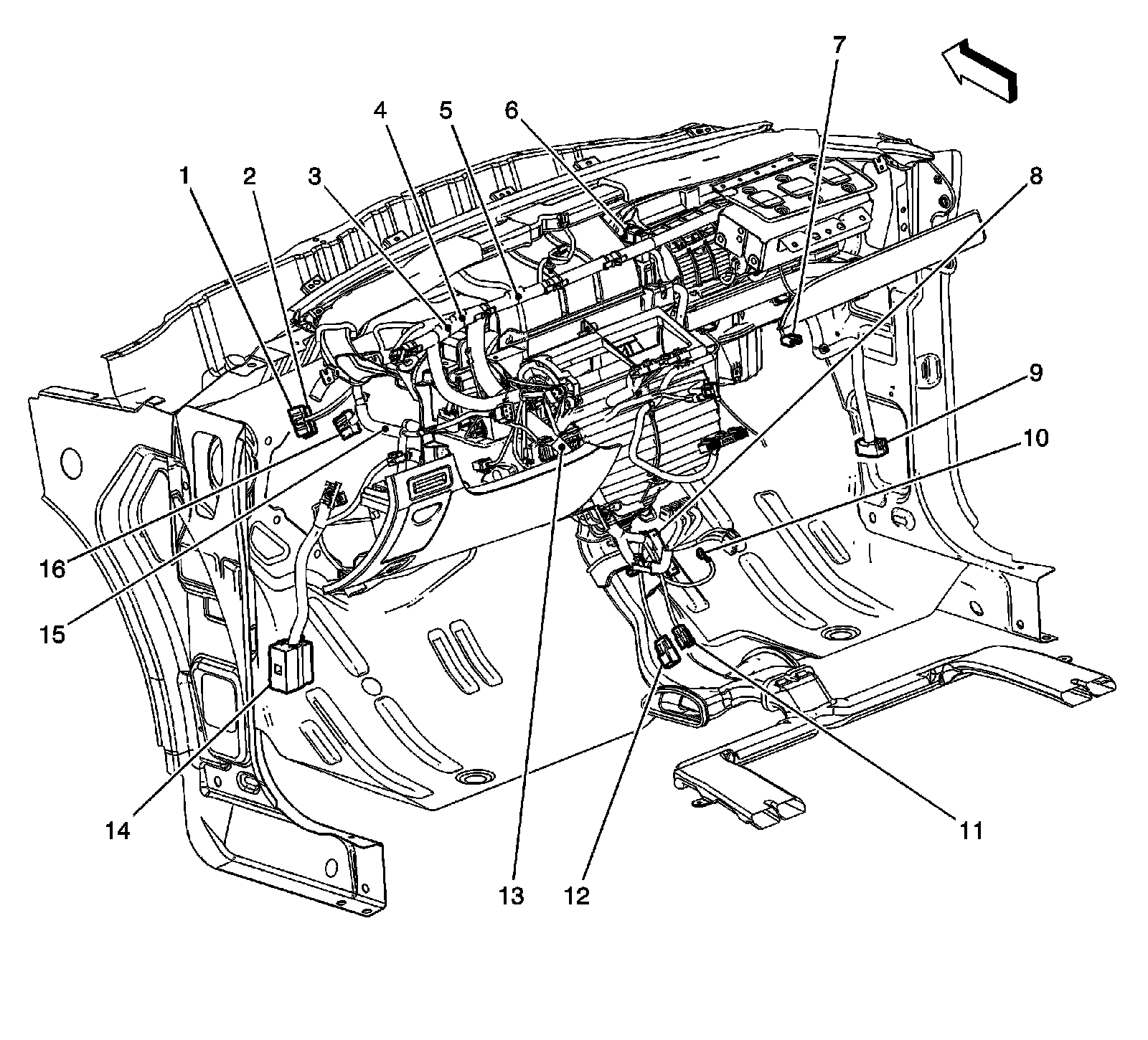

Instrument Panel Harness




1 - JX200
2 - JX203
3 - J206
4 - J202
5 - J204
6 - X202
7 - X214
8 - Fuse Block - I/P
9 - X204
10 - G203
11 - X262
12 - X250
13 - J203
14 - X200
15 - G204
16 - G201/JX201
