Ignition Coil: Diagrams




Component Connector End Views

Ignition Coil 1 (LAT/LE5/LE9)






Ignition Coil 2 (LAT/LE5/LE9)

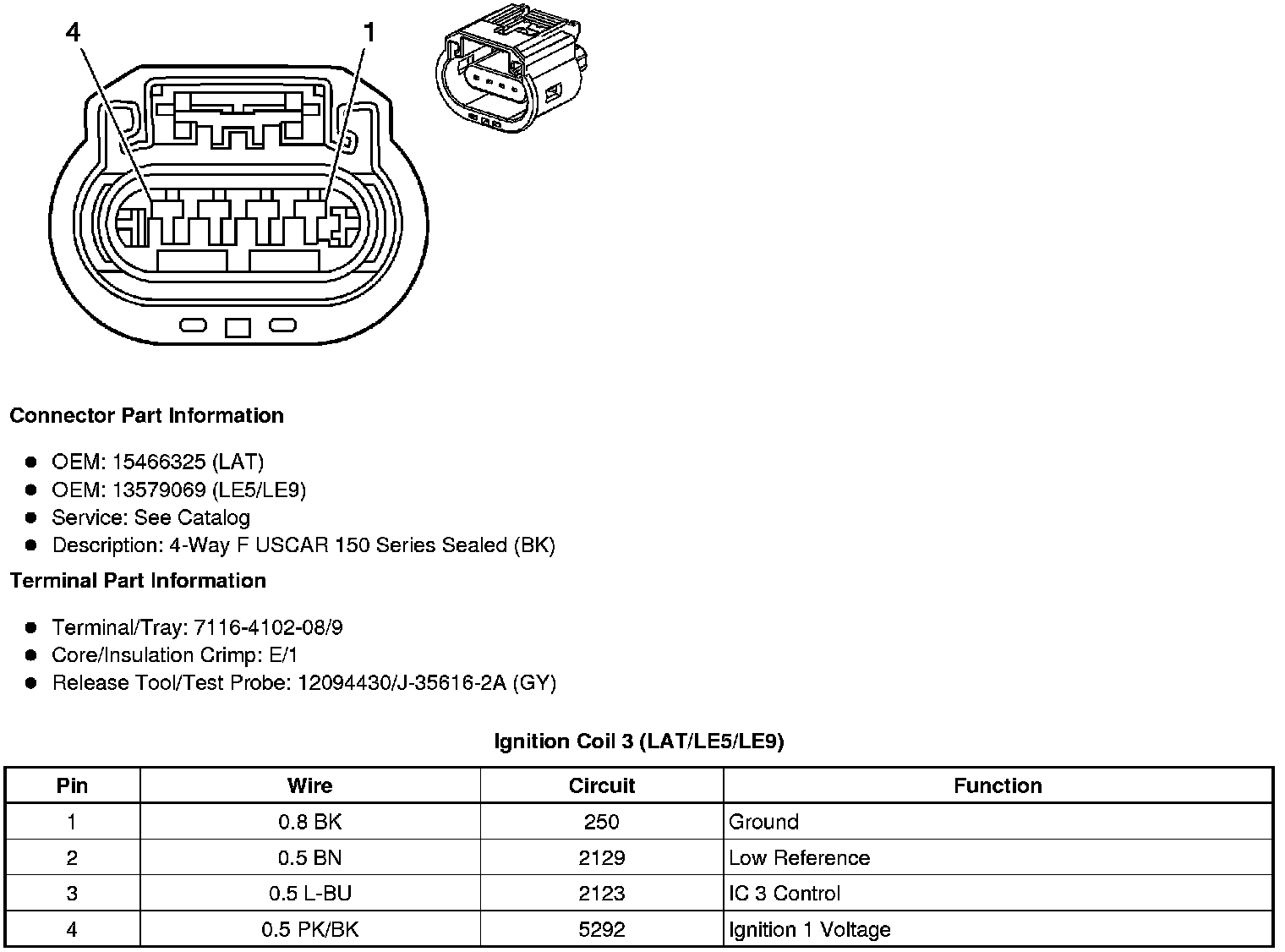

Ignition Coil 3 (LAT/LE5/LE9)

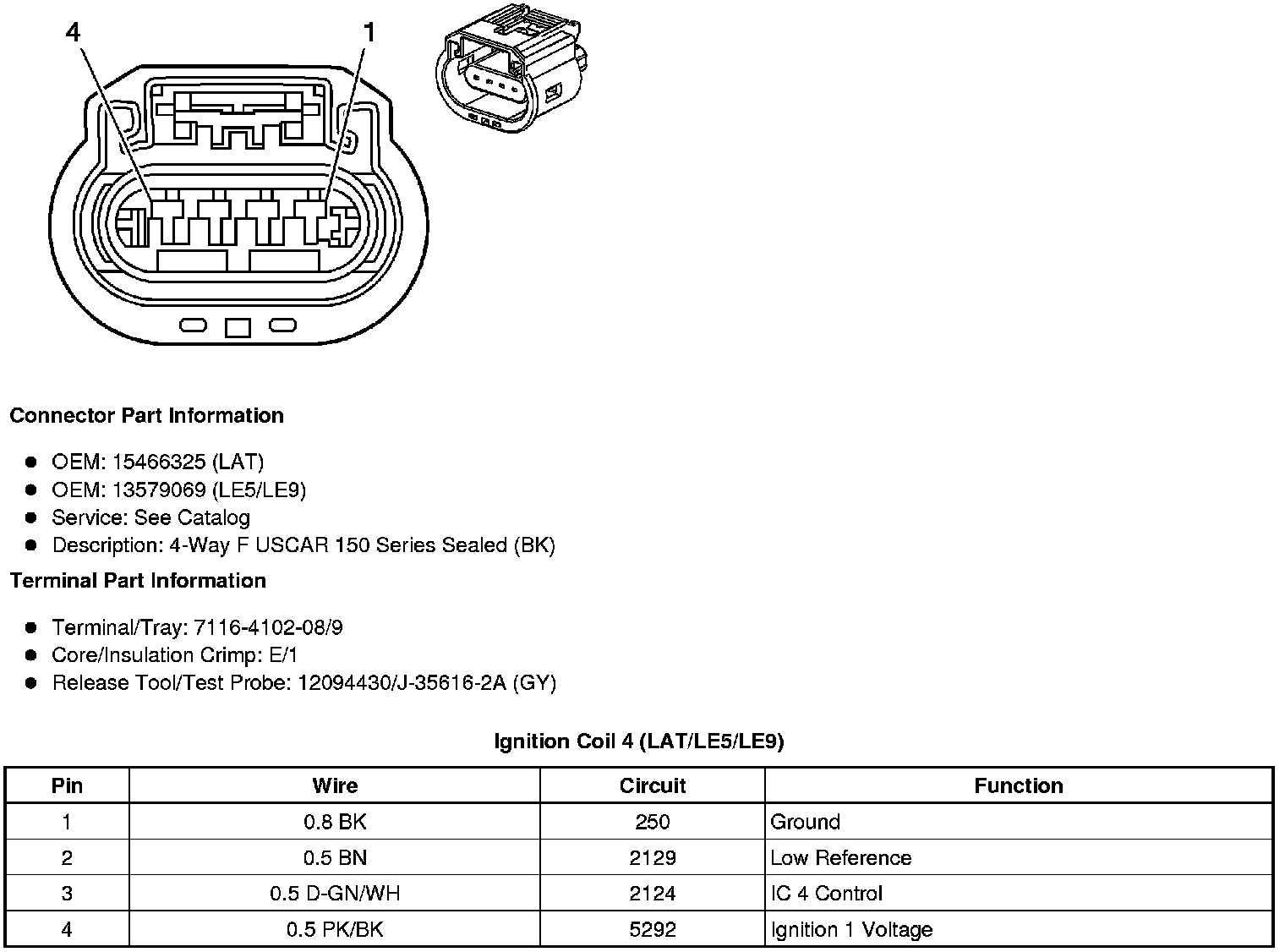

Ignition Coil 4 (LAT/LE5/LE9)
