Fuel Tank Pressure Sensor: Locations

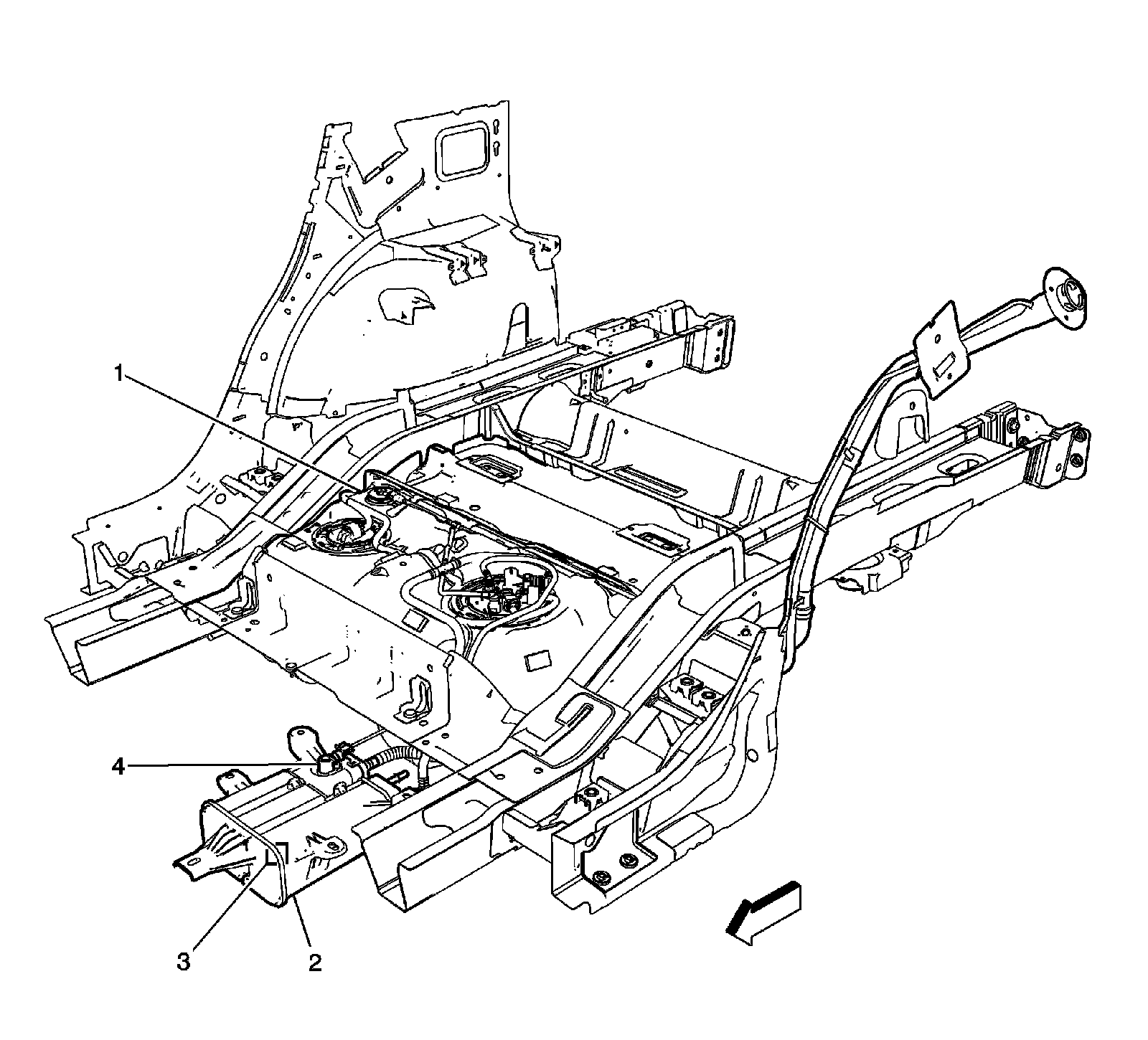

Wheels/Vehicle Underbody Component Views

Evaporative Emissions (EVAP) Canister Vent Solenoid Valve




1 - Fuel Tank
2 - Evaporative Emissions (EVAP) Canister
3 - Fuel Tank Pressure Sensor
4 - Evaporative Emissions (EVAP) Canister Vent Solenoid Valve
