Oxygen Sensor: Diagrams




Component Connector End Views

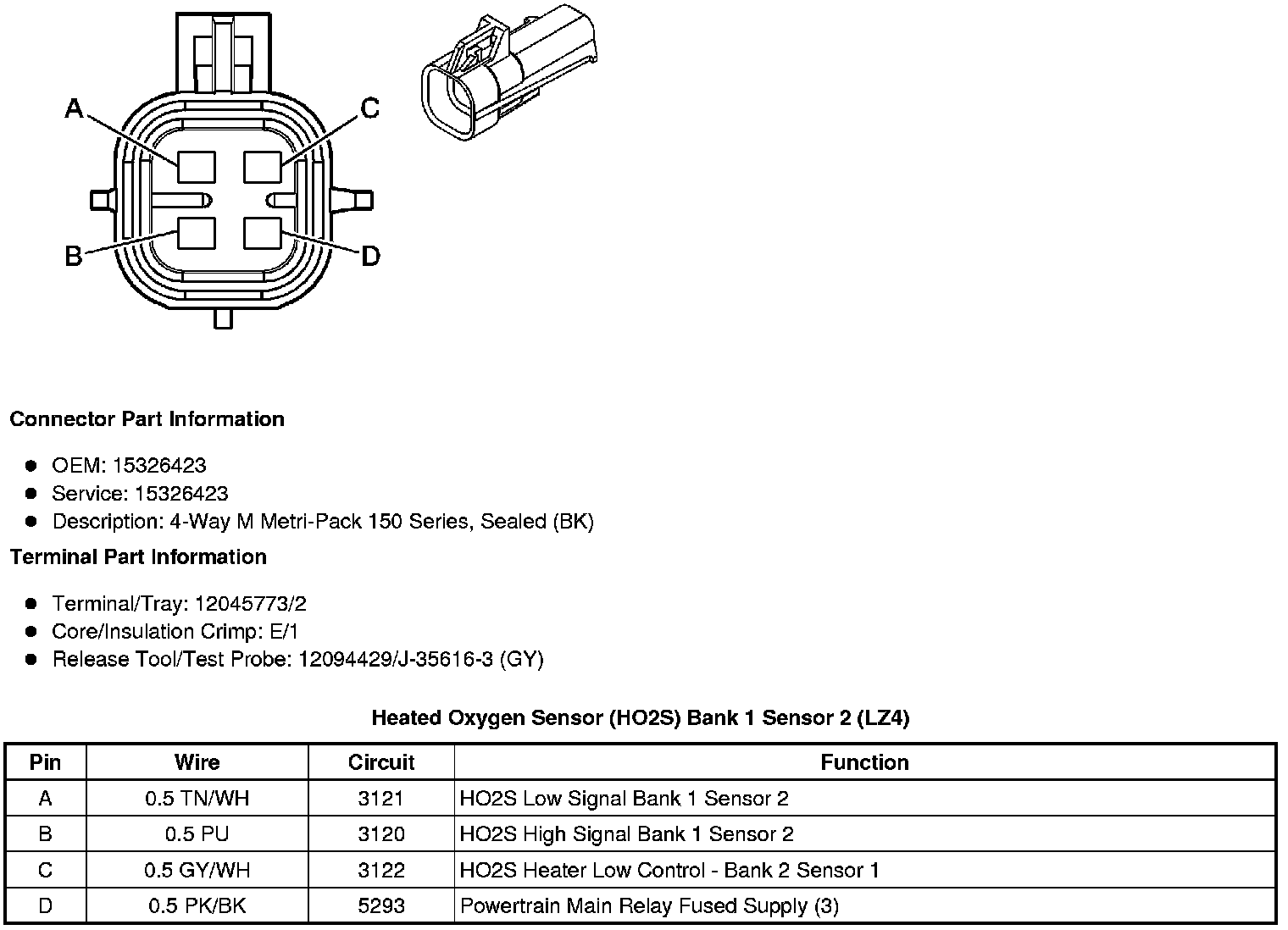

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 (LZ4)

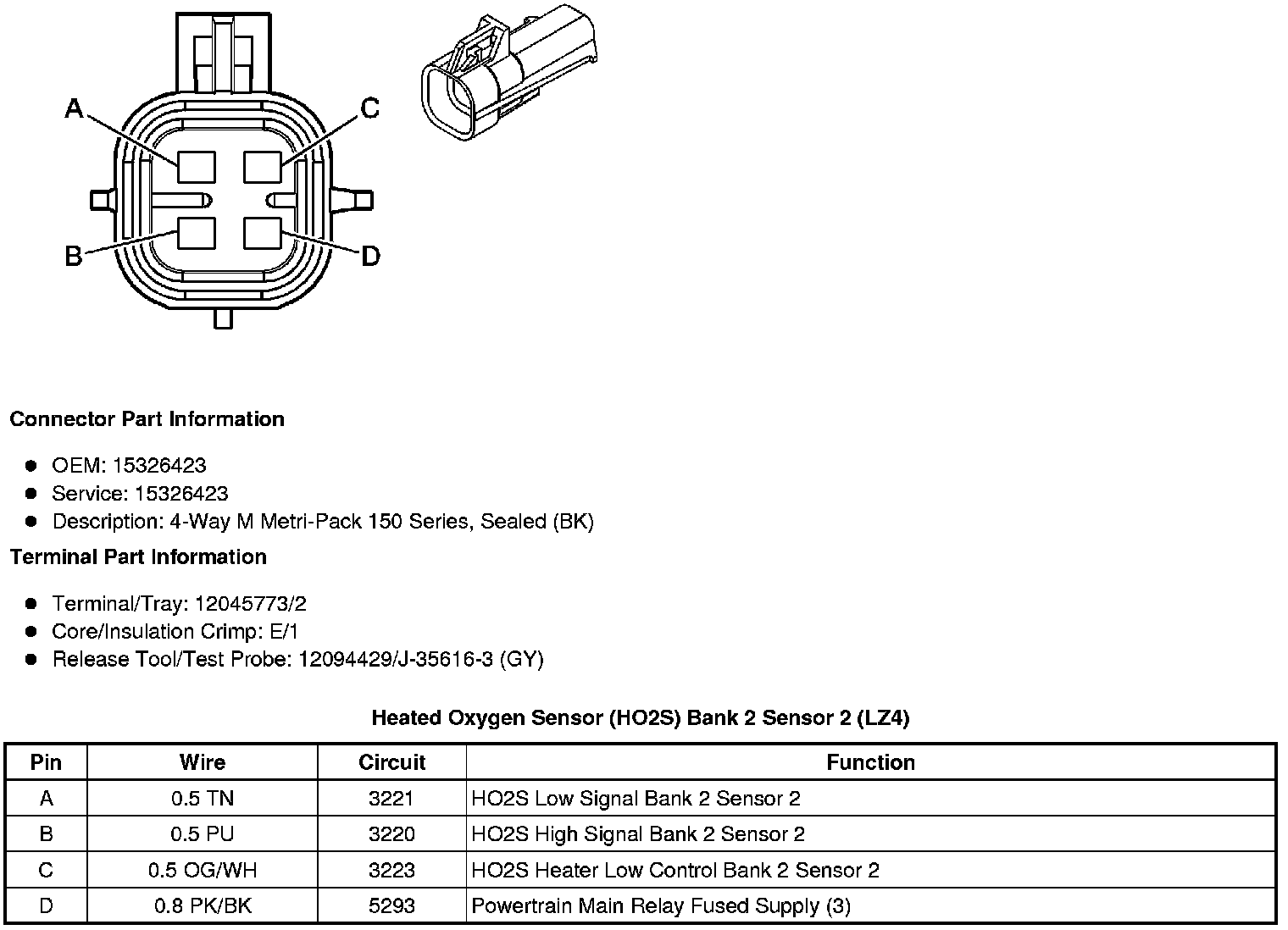

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (LZ4)

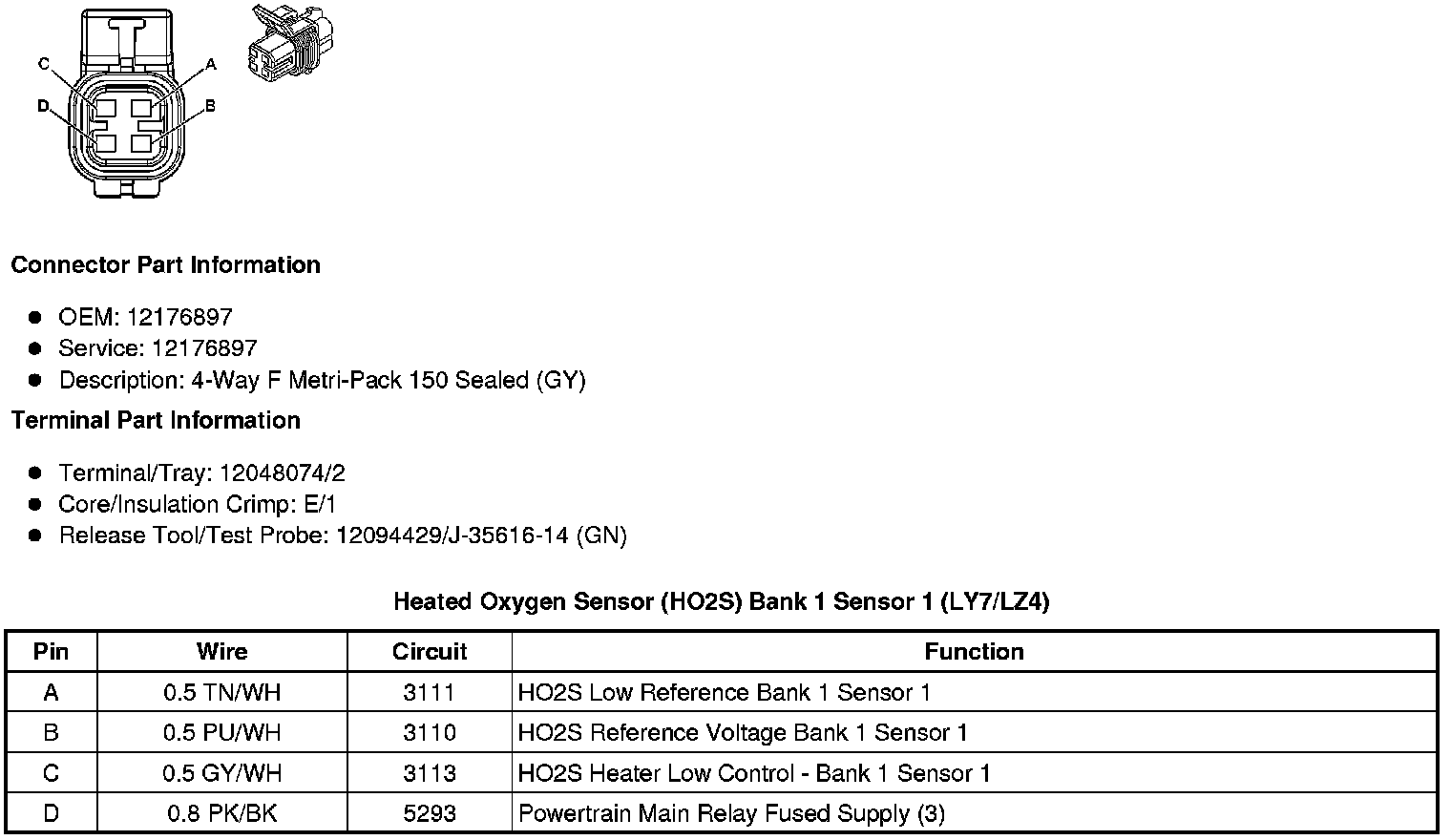

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (LY7/LZ4)

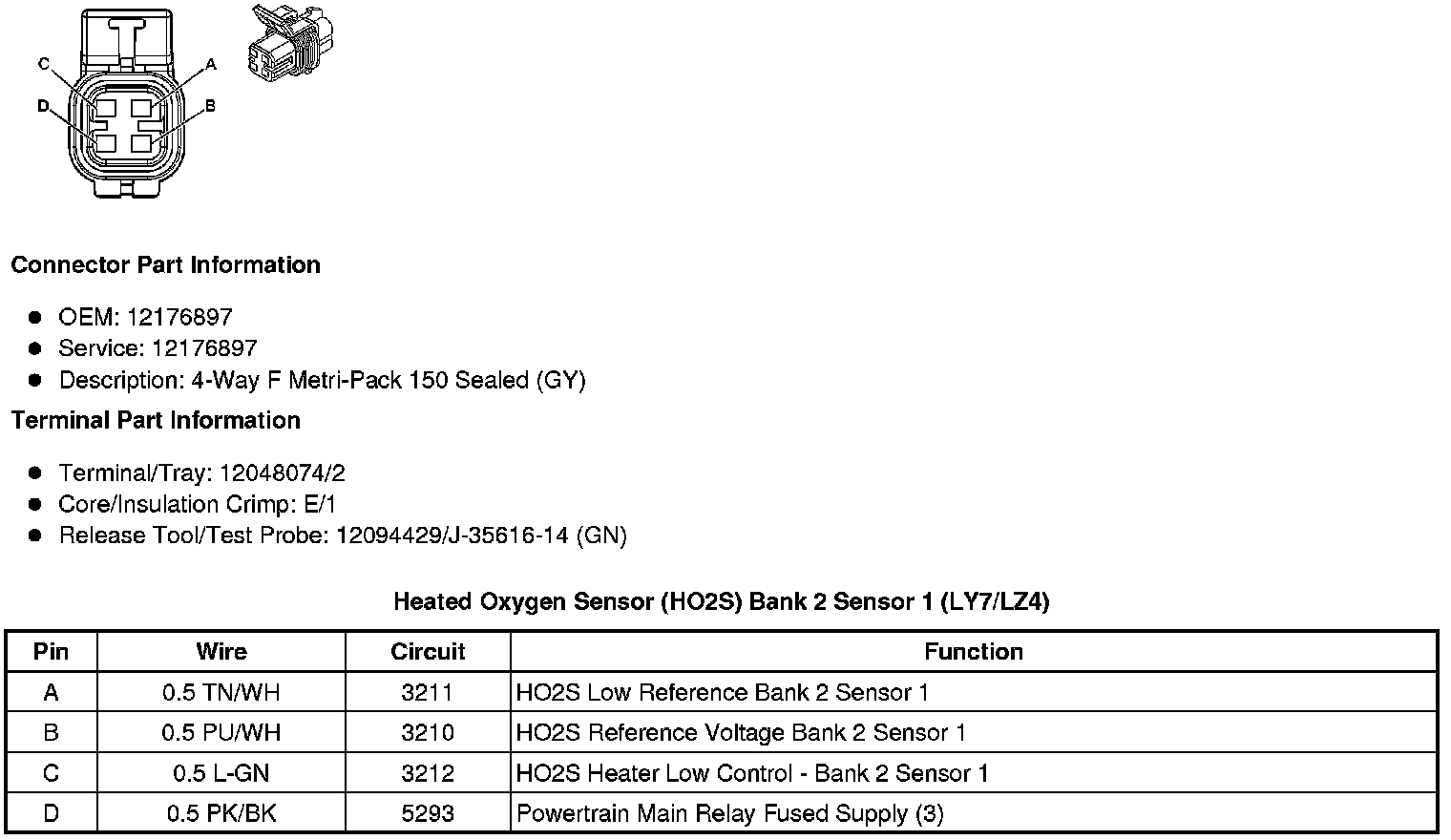

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (LY7/LZ4)
