Connector Views




Component Connector End Views

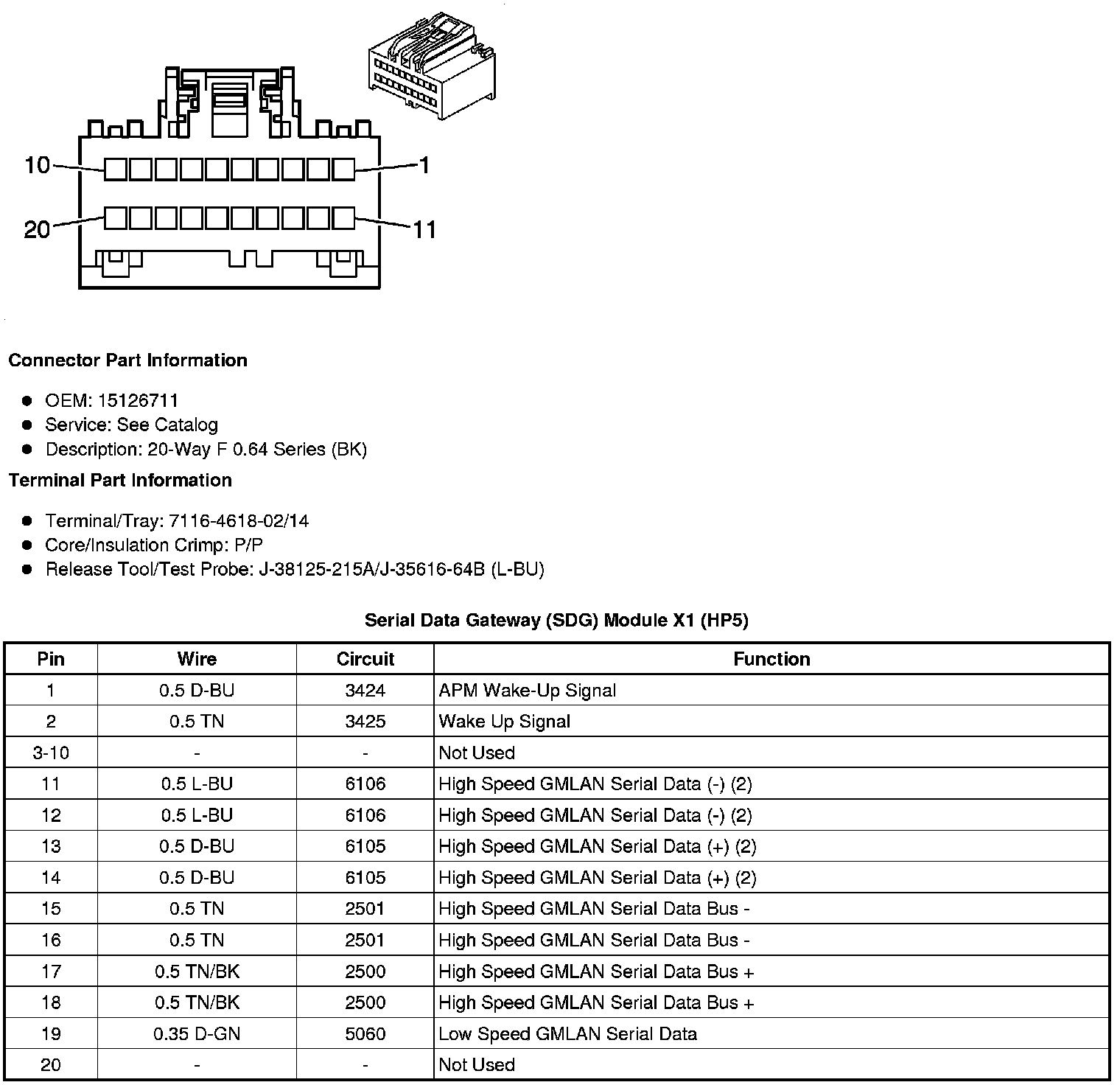

Serial Data Gateway (SDG) Module X1 (HP5)

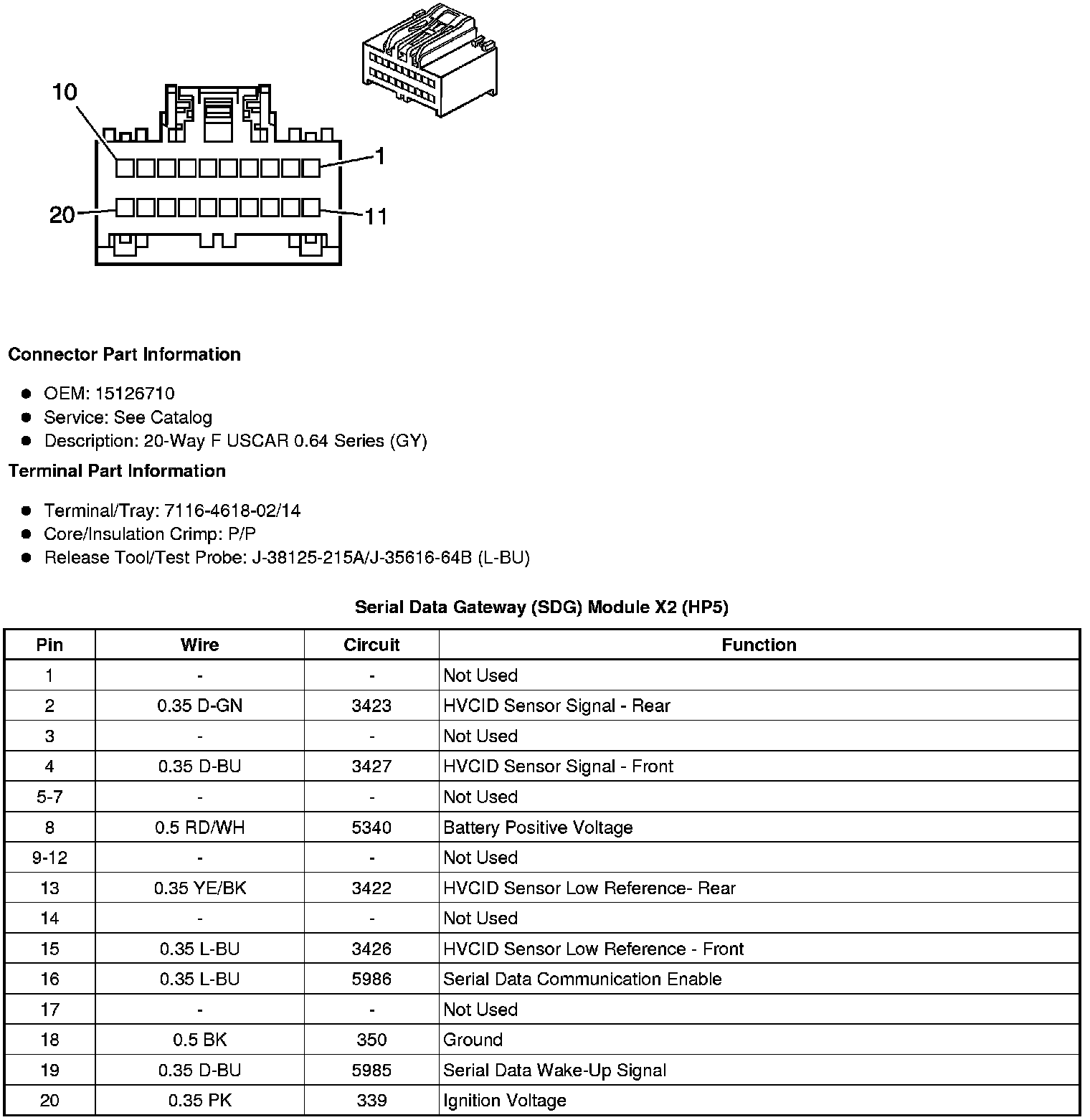

Serial Data Gateway (SDG) Module X2 (HP5)
