Control Module: Diagrams




Component Connector End Views

Automatic Transmission Auxiliary Fluid Pump Control Module X1 (HP5)






Automatic Transmission Auxiliary Fluid Pump Control Module X2 (HP5)

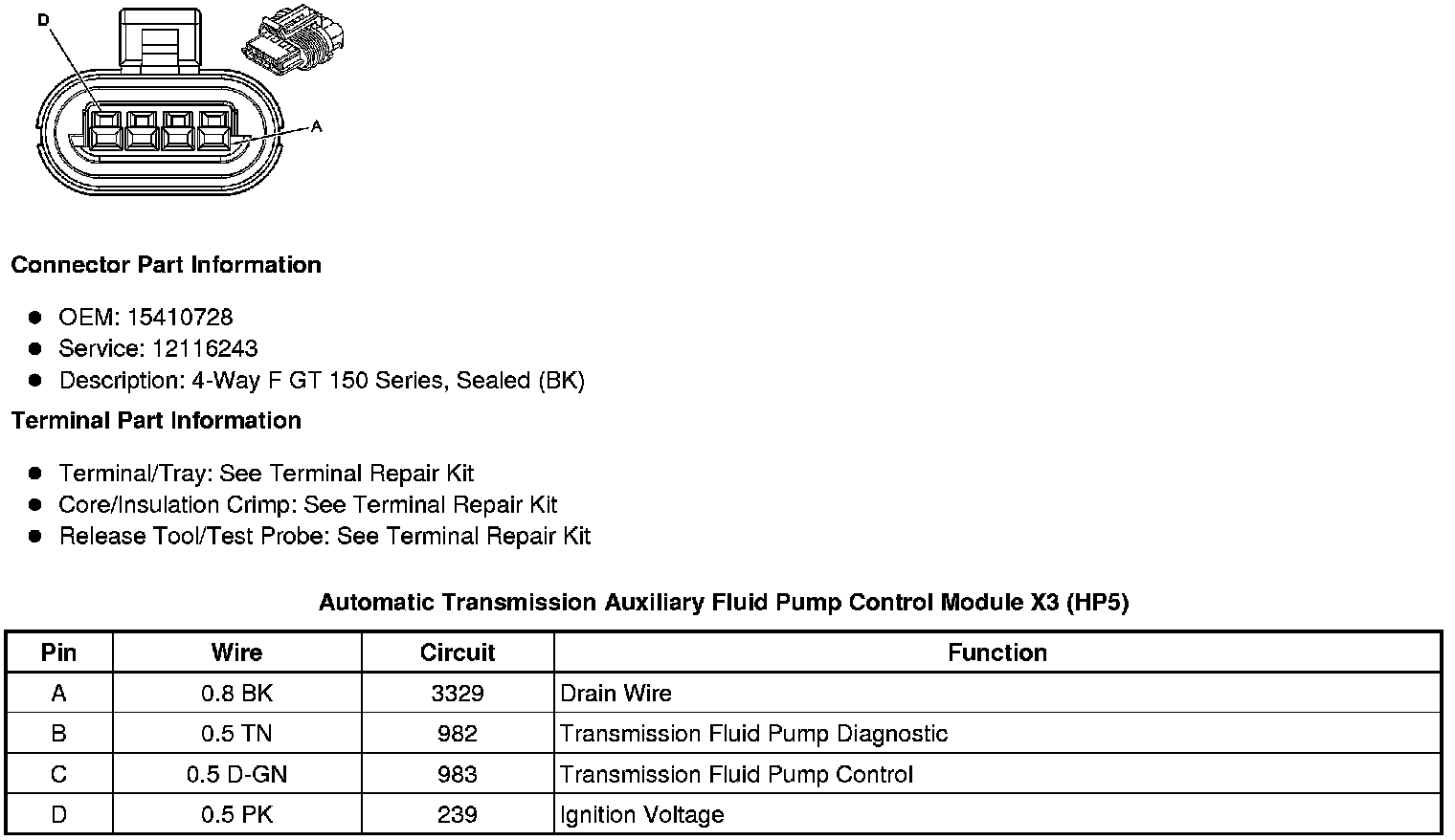

Automatic Transmission Auxiliary Fluid Pump Control Module X3 (HP5)






Transmission Control Module (TCM) (ME7/MN5)
