Power Moding Schematics

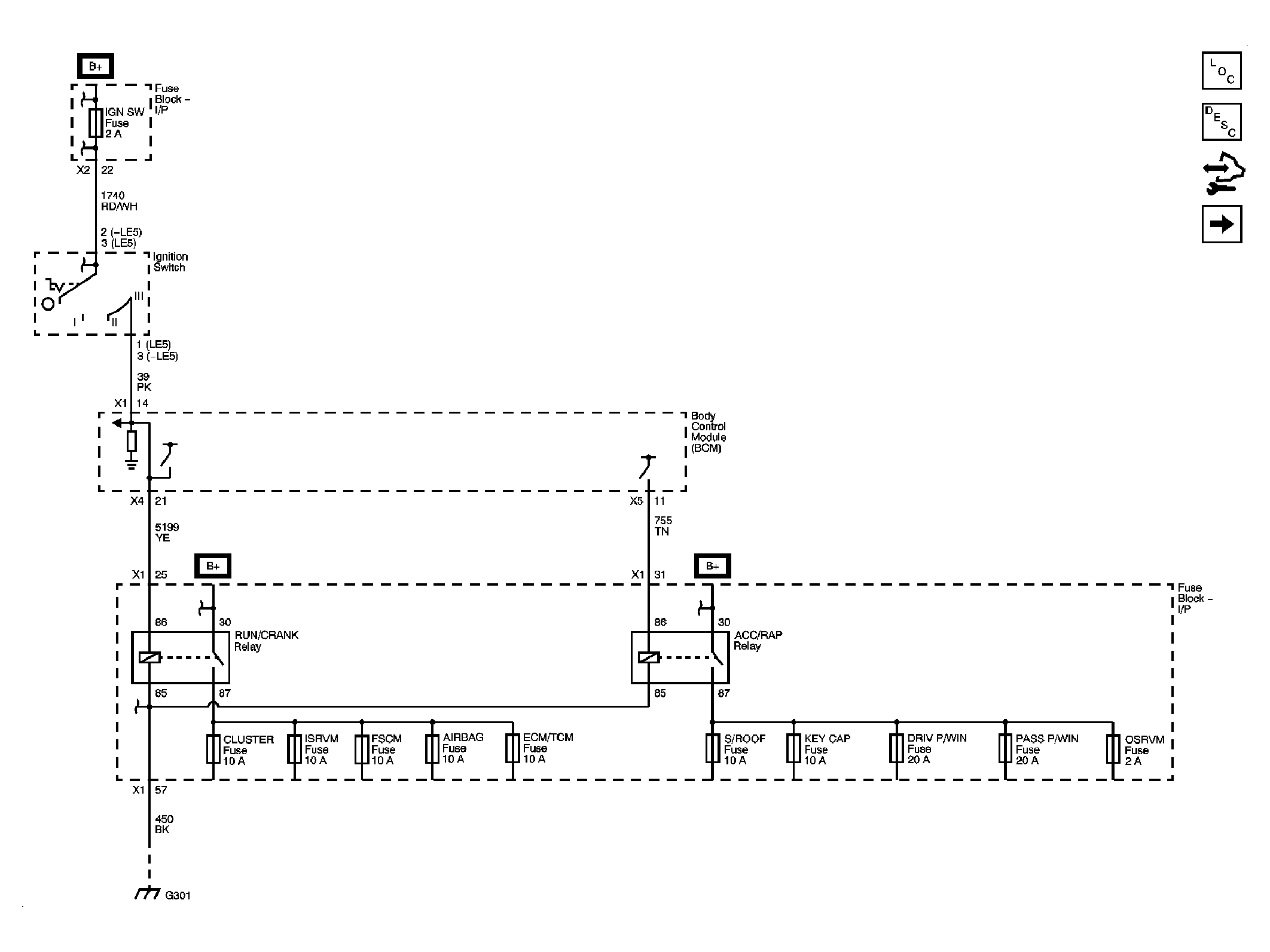

Fig 1: RAP Relay Control
GM2080155Courtesy of GENERAL MOTORS CORP.
Fig 2: Run Relay
GM2080166Courtesy of GENERAL MOTORS CORP.
Fig 3: Data Communications Enable
GM2102898Courtesy of GENERAL MOTORS CORP.
