Front Side Door Window Switch Replacement

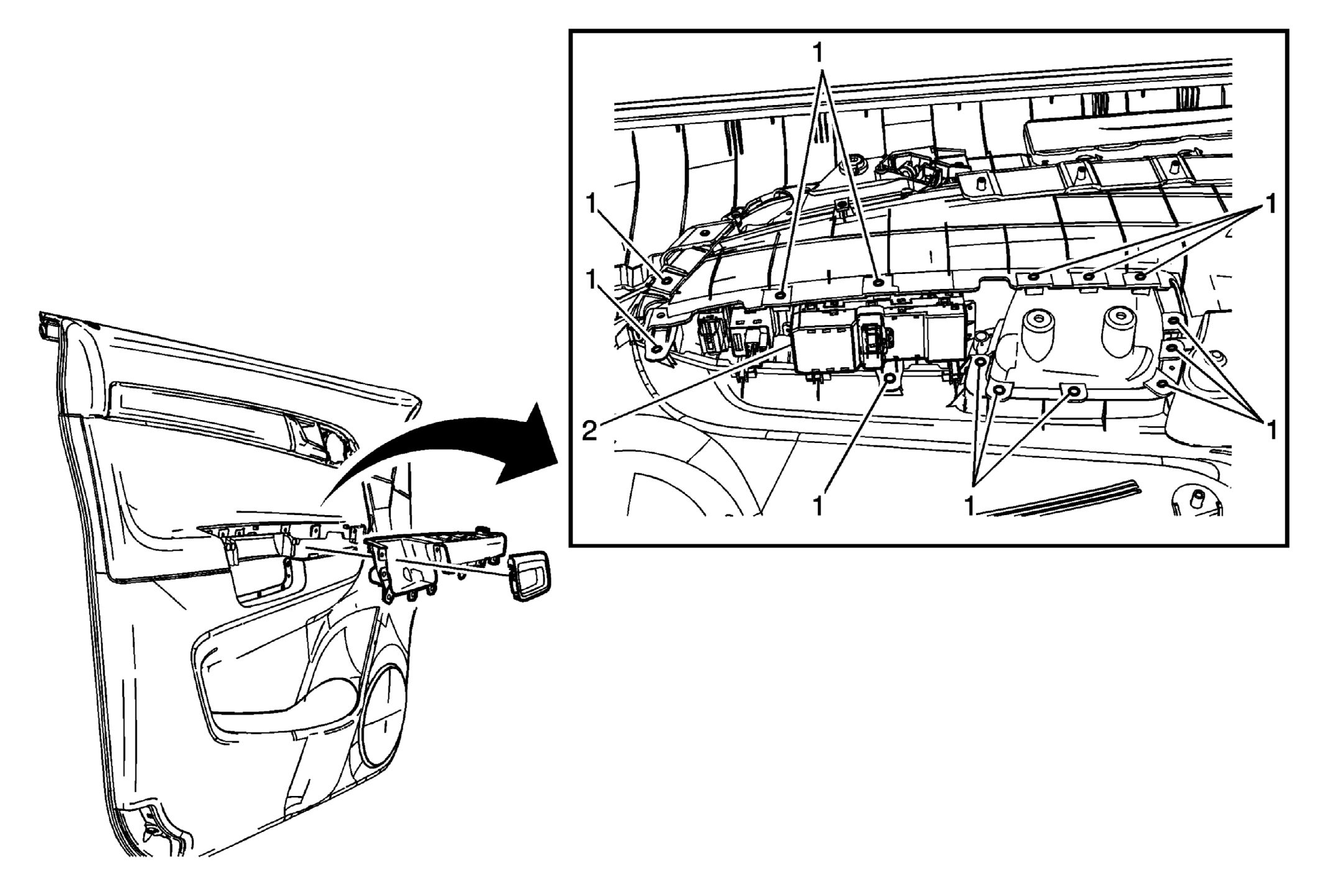

Fig 1: Door Lock Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove Front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Front Side Door Lock and Side Window Switch Screw (Qty: 14) CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (27 lb in)
2	Front Side Door Lock and Side Window Switch Assembly Procedure: Disconnect the electrical connectors
