Hood Open Assist Rod Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

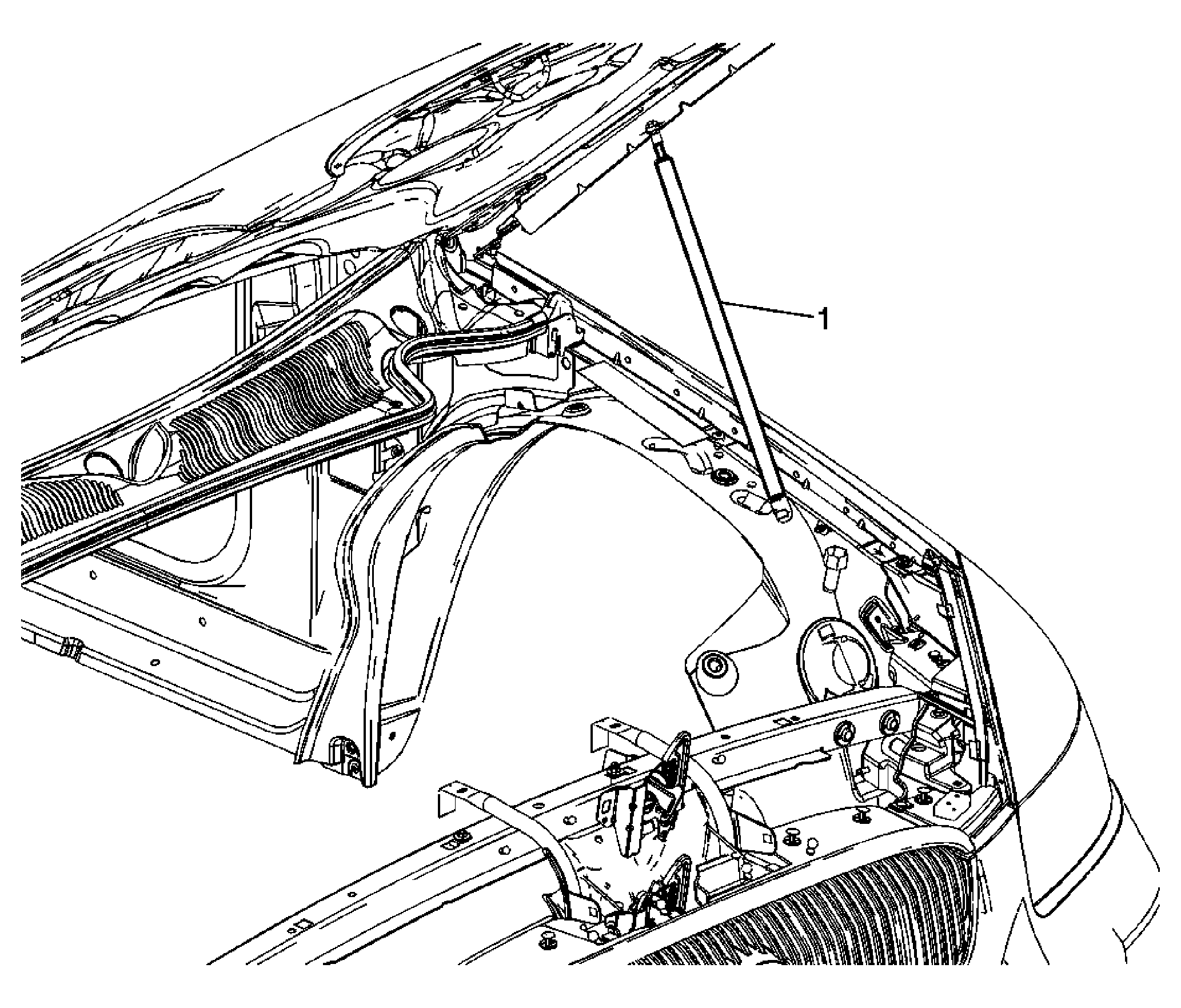

Fig 1: Identifying Hood Open Assist Rod

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Hood Strut Assembly CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. NOTE: Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result. Tip: Remove the metal clip at the ends of the assist rod, then pull away from stud.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Hood Strut Assembly

CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

NOTE: Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result.

Tip: Remove the metal clip at the ends of the assist rod, then pull away from stud.
