Installation Procedure

    NOTE: If replacing the steering column, failure to transfer the scribed marks may result in an off-center steering wheel.
  1. If a new steering column is being installed then transfer the pre-scribed alignment marks on to the new part.
  2. Position the steering column to the vehicle.

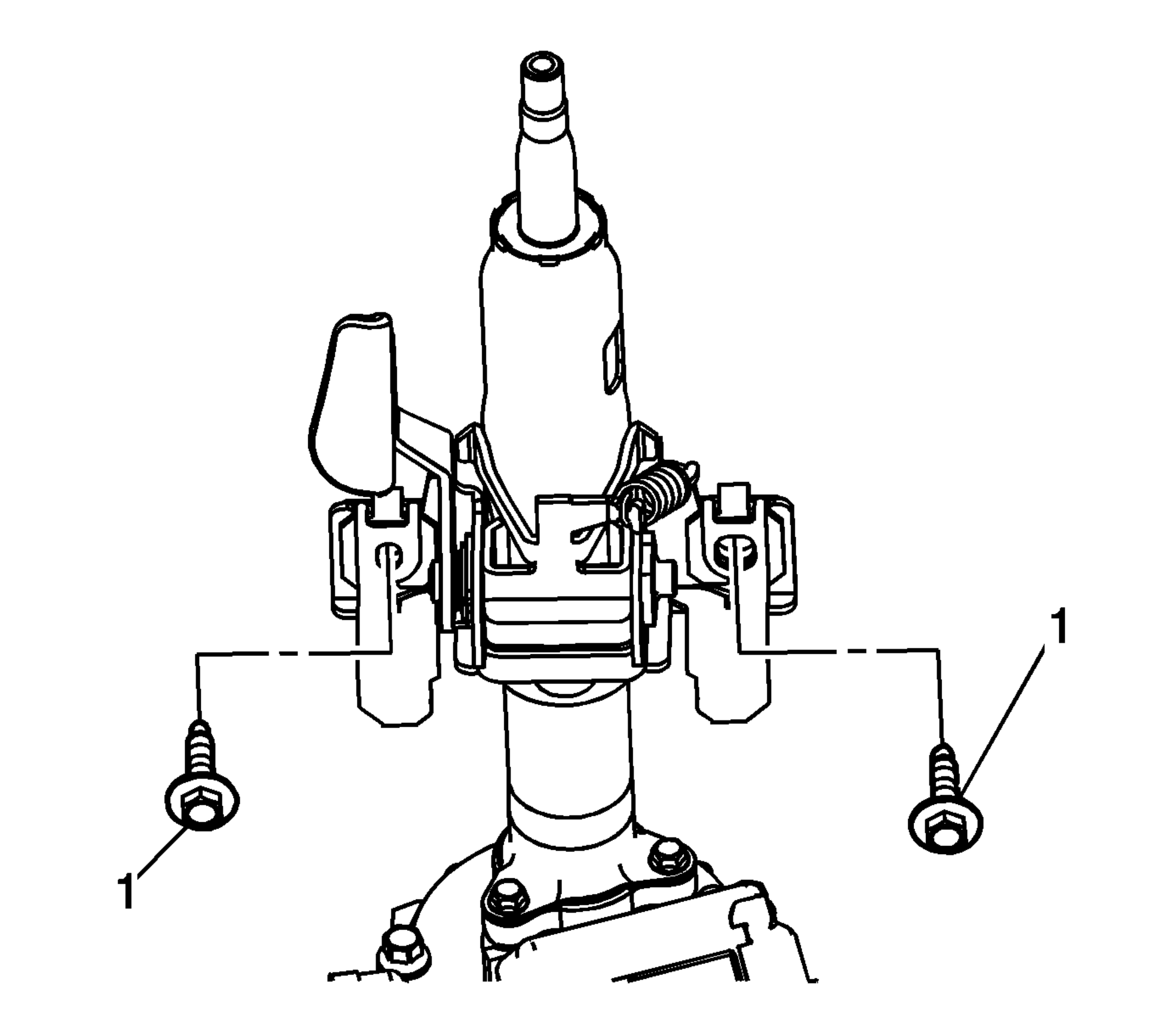

  3. Fig 1: Identifying Steering Column Upper Support Bracket Bolts
    GM1866094Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
    NOTE: Hand tighten all steering column support bracket bolts before finalizing any torques.
  4. Install the steering column upper support bracket bolts (1) and tighten to 25 N.m (18 lb ft).

    An electronic power steering column is shown, a hydraulic power and two mode hybrid steering column is serviced the same way.

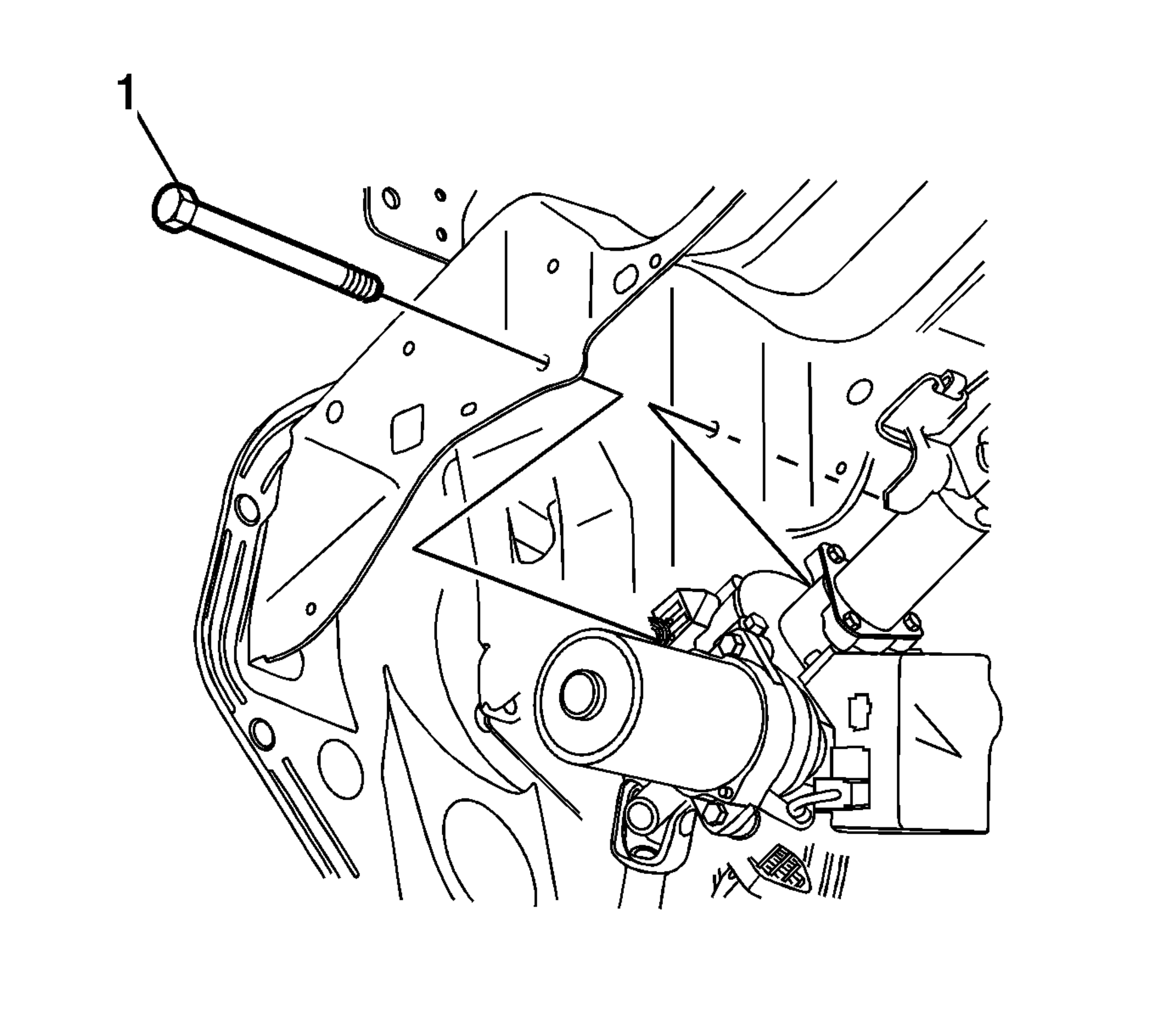

  5. Fig 2: Identifying Steering Column Lower Support Bracket Bolt
    GM1866096Courtesy of GENERAL MOTORS CORP.
  6. Install the steering column lower support bracket bolt (1) and tighten to 25 N.m (18 lb ft).

    An electronic power steering column is shown, a hydraulic power and two mode hybrid steering column is serviced the same way.

  7. Align the scribed marks on the steering shaft coupling to the scribed marks on the steering column shaft and connect them.

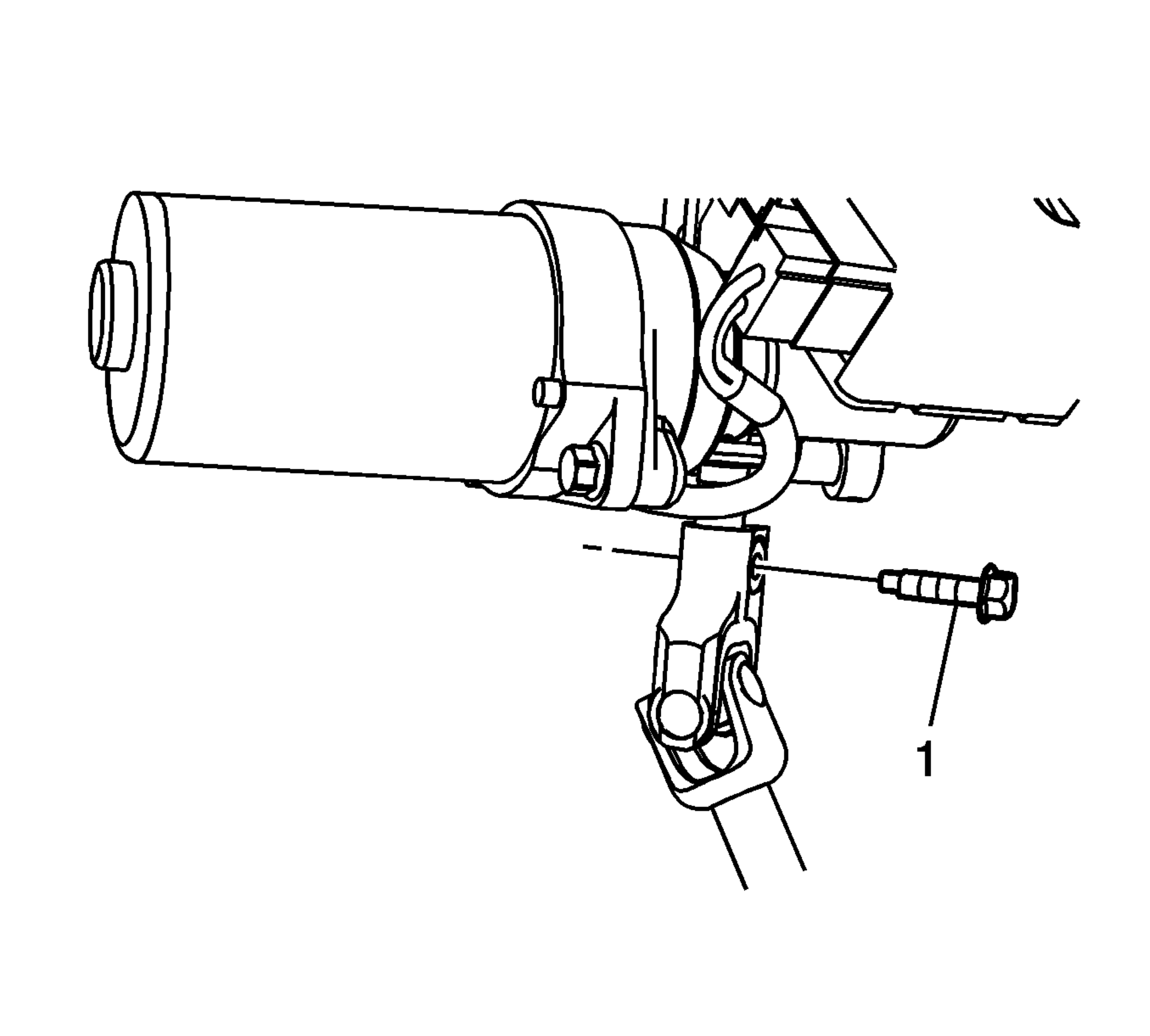

  8. Fig 3: Identifying Upper Intermediate Shaft Pinch Bolt
    GM1865910Courtesy of GENERAL MOTORS CORP.
  9. Install the new steering shaft coupling bolt (1) at the steering column and tighten to 34 N.m (25 lb ft).

    An electronic power steering column is shown, a hydraulic power and two mode hybrid steering column is serviced the same way.

  10. For vehicles with hydraulic power steering, install the new steering shaft coupling bolt at the steering column and tighten to 30 N.m (22 lb ft).
  11. For vehicles with two mode hybrid steering, install the new steering shaft coupling bolt at the steering column and tighten to 30 N.m (22 lb ft).

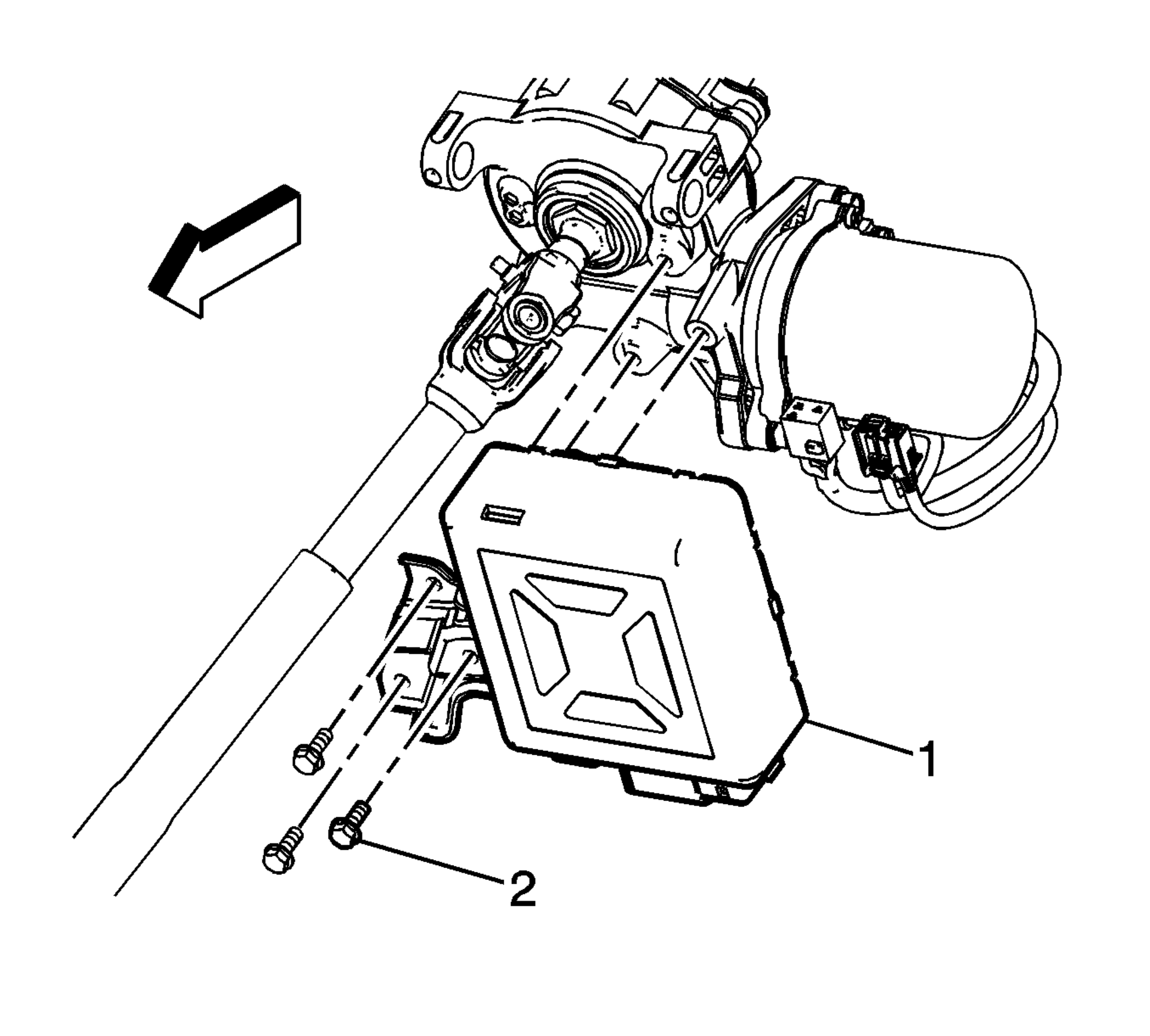

  12. Fig 4: Identifying Electronic Power Steering Motor Control Module/Bracket Assembly
    GM1868380Courtesy of GENERAL MOTORS CORP.
  13. If equipped with an electronic power steering column, position the electronic power steering motor control module and bracket assembly (1).
  14. Install the 3 electronic power steering motor control module bracket bolts (2) and tighten to 11.5 N.m (102 lb in).
  15. Connect any electrical connectors as needed.
  16. NOTE:
    • When installing a NEW service replacement electronic power steering column (non-two mode hybrid), the Saturn Service Stall (SSS) must be utilized to properly program the electronic power steering controller contained with the electronic power steering column.
    • Ensure the steering wheel alignment is in the 12 o'clock position.
  17. Refer to Control Module References for programming and setup information if equipped with electronic power steering.
  18. Install the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
  19. Install the driver knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement .
